Universal Milling Machine

HERMLE UWF 600 CNC

Condition: used, Year of construction: 1965, core drilling diameter max. 50 mm bore depth 2000 mm swing diameter mm drilling capacity diameter max. 110 mm total power requirement 30 kW weight of the machine ca. 10 t Drilling Ø, approx. 2 - 50 mm Boring Ø, approx. 100 mm Drilling depth, max. (see stroke / mounting length) 1,600 - 2,000 mm Stroke of drilling slide, approx. 4,000 mm Distance between the two spindle heads 5,000 mm Height of centres above guideways 350 / 450 mm Drilling feed of drilling slide, infinitely variable 20 - 200 mm/min Quick feed of drilling slide 2,500 mm/min Spindle speeds via belt disks 260 - 650 / 650 - 1,625 rpm Workspindle drive 24 kW Drive of coolant pumps 1 x 7.5/15 kW and 1 x 15/28 kW Total electrical load, approx. 60 kW - 380 V - 50 Hz Total length of machine / guideways 7,500 / 5,000 mm Weight, approx. 10,000 kg Accessories / Special Features * Machine consists of the following elements: Fgjdpfst Hwucex Ahdod Main spindle on the left-hand side, followed by the coolant oil supply device. Table group, driven by ball screw spindle. Coolant oil supply device with elevated height of centres. At the end is a headstock, Type B 16, with drive motor approx. 7.5 kW, n = 900/2400 and 2400/6000. Large coolant device with filter unit. Large selection of accessories and drilling tools with Ø up to 100 mm. * Machine is suitable for working with a rotating workpiece together with a fixed drilling tool (ELB and BTA Process), as well as for a fixed workpiece and a rotating drilling tool. It can work with internal oil feed (Elb) or with external oil feed (BTA). * Complete oil coolant unit with tank and filter and two SIG high pressure pumps. Number of litres can be set: 17 / 40 / 120 or 220 / 500 litres per minute. Capacity approx. 2,500 l. * Feed of main slide is via ball screw spindle and infinitely variable DC motor. Mounted on the main slide is at present a table, approx. 800 x 800 mm, cross-adjustable approx. 500 mm, and suitable for holding cubic and cylindrical workpieces. Electric control via cam rail, approx. 2,500 mm long. End switch for quick feed, feed and return. * 2 closed 3-point steady rests. * FORKHARDT 3-Jaw Chuck, manually operated, Ø approx. 315 mm. * Modernized control panel with speed display, feed setting and display, display for kW, switch for feed, quick feed, right/left, etc. * 2 separate switch cabinets, separate coolant oil display device, bushes, reducers, clamping helps and lots of other accessories. This is a very valuable machine because of all the accessories!

Condition: new, Year of construction: 2025, operating hours: 1 h, functionality: fully functional, travel distance X-axis: 4,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,000 mm, controller manufacturer: STYLE CNC Machines, number of slots in tool magazine: 24, motor manufacturer: FANUC, Delivery after consultation Ref: 24F048 Fgodpfx Ahsw Ty S Ssdjd Year of construction: 2025 Condition: Showroom Specifications: - X-axis: 4000 mm - Y-axis: 1000 mm - Z-axis: 1000 mm - 26 kW (S6) main motor - 8000 rpm - BT-40 - Automatic tool changer (24 positions) - Remote service (IXON) + network connection - Stronger coolant pump incl. spray gun - Upgraded to the latest STYLE software available

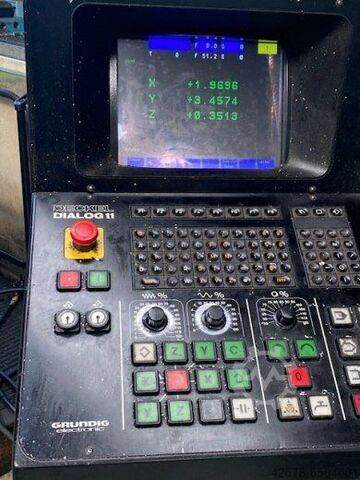

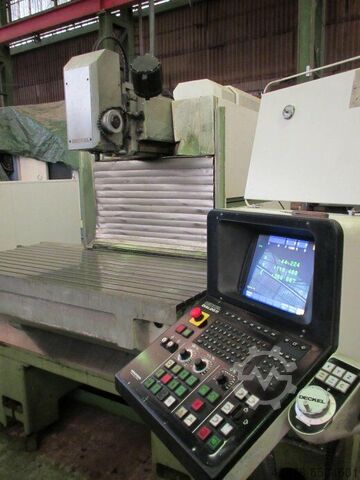

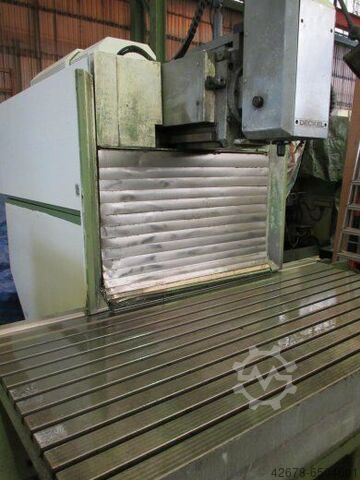

Condition: good (used), Year of construction: 1990, 1 used, well-maintained CNC tool milling machine, traveling column design, with CNC path control GRUNDIG Dialog 11 Table size 1600 x 675 mm Tool holder SK / ISO 40 Travel distances X-axis, longitudinal 1200 mm Y-axis, transverse 600 mm Z-axis, vertical 500 mm Table load 2000 kg Spindle speed range 20 – 6300 rpm Feed rate range, stepless 2 – 10,000 mm/min Rapid traverse in all axes 10 m/min Quill stroke 80 mm Drive power 100% ED 7.5 kW 40% ED 12 kW Machine dimensions L x W x H 3600 x 3000 x 2300 mm Machine weight 6800 kg Control cabinet dimensions L x W x H 1700 x 900 x 1750 mm Control cabinet weight 470 kg Accessories / Special features: • CNC tool milling machine suitable for tool and fixture manufacturing, training, and mold making • CNC path control GRUNDIG Dialog 11 • Screen graphics, dialog-guided input, 3D linear interpolation, circular interpolation, helical interpolation, polar coordinate input, numerous drilling and milling cycles, cycle input graphically supported, milling cycles "contour pocket" for automatic free milling of irregular pockets, even with islands, shifting and rotation of the coordinate system • Electronic handwheel • RS 232 interface • Swiveling vertical milling head +/- 90° • Hydraulic tool clamping, DIN 2080 with clamping groove, Ott system • Quill adjustment 80 mm • Horizontal milling attachment • Full protection enclosure • Ball screw spindles in all 3 axes • Coolant system • Lighting Fgsdpfxehhuf Hj Ahdsd Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 D - 44143 Dortmund - Wambel

Condition: excellent (used), Year of construction: 1992, functionality: fully functional, Universal Milling Machine Deckel FP4M with 3-Axis Active Digital Readout Heidenhain, Excellent Condition, CE Compliant!!! Technical Data: - Year of manufacture: 1992, Machine no. 2203-8449 - Fixed angle table - Spindle speed: 50 - 2500 rpm Fgodpfx Aeu Tuk Hohded - Feed rate: 8 – 630 mm/min - Drive power: 3.7 / 4.4 kW - Spindle brake - Rapid traverse: 1300 mm/min - Travel (X/Y/Z): 500/400/400 mm - Vertical milling head traverseable on column - Vertical and horizontal quill - SK40 taper - Vertical quill extendable by 90 mm - Hydraulic drawbar system - Approx. weight: 1600 kg Equipment and Accessories: - 3-axis active Heidenhain digital readout - Coolant system - Chip tray - Central electric lubrication - Operating manual, spare parts drawings About the Machine: For sale is a Deckel FP4M Universal Milling Machine (Active) in very good condition. The machine has minimal backlash, and all slides move smoothly. Even at maximum spindle speeds, the milling machine runs quietly. The machine features hydraulic tool clamping. The FP4M was only occasionally used in a state-run facility for training purposes. On this newer FP4 model, the feed rates are steplessly adjustable in all three axes, and each axis also features a rapid traverse. A major advantage is the active 3-axis digital readout. With the Heidenhain control, you can input measurements that the machine will approach automatically. Oil change has been performed; mechanically and electrically tested. The Heidenhain digital readout makes work easier and even more precise. Take advantage of the opportunity to inspect and test this machine under power on site.

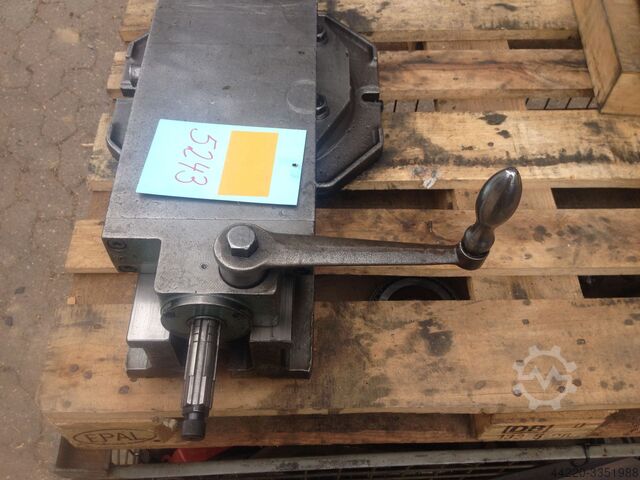

Condition: used, hydraulic vise Manufacturer: Hilma Jaw width: 200 mm Jaw height: 65 mm Overall length: 690 mm Overall height: 205 mm Fsdpodhlqyjfx Ahdjgd Maximum opening width: 440 mm Drive: horizontal and vertical with crank Rotary table: 400 x 370 mm Clamping force: 8 tons.

Condition: excellent (used), Year of construction: 2014, functionality: unexamined, workpiece weight (max.): 2,500 kg, total width: 3,200 mm, total length: 15,800 mm, distance between centers: 6,000 mm, workpiece diameter between centers: 850 mm, overall weight: 19,000 kg, We offer this very good Hol-Monta spol.sro UB 85 / 6000 CNC cylindrical grinding machine, year of construction 2014. Fjdpfx Asy Hgrgehdegd Model: UB 85 / 6000 CNC Control type: Kavalir K 51-2 Serial number: H 214 09 005 Swing dia. 850 mm Center distance 6 000 mm Internal Grinding attachment Steadyrests etc.

Condition: excellent (used), Lower tensioning element Manufacturer: AMF Type: 6490-18/20 Fgedpsln Umbjfx Ahdod Height: 25 mm Width: 50 mm For screws M 16 7 pieces available

Condition: used, thickness of jaw 250 mm height of jaw 80 mm clamping width 340 mm = hydr. machine vice Fgodpfx Astqqpkehdsd (pos.1) - with hand crank and 3 clamping shoes -

Condition: good (used), Jaws: 195 x 60 mm Clamping width: mm Fgodpjq Ewt Eefx Ahdod Footprint: 580 x 200 mm Height: mm Material: cast iron Weight: kg Total dimensions: 600 x 170 x 130 mm

Condition: good (used), Steady rests and puller for a WMW cylindrical grinding machine with a center height of 175 mm Fgedpewg Rx Defx Ahded 1 x fixed steady rest, inner diameter 220 mm 3 x fixed steady rests 1 x puller with diamond dresser and fine adjustment Only available as a package deal! Siegfried Volz Machine Tools Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel
