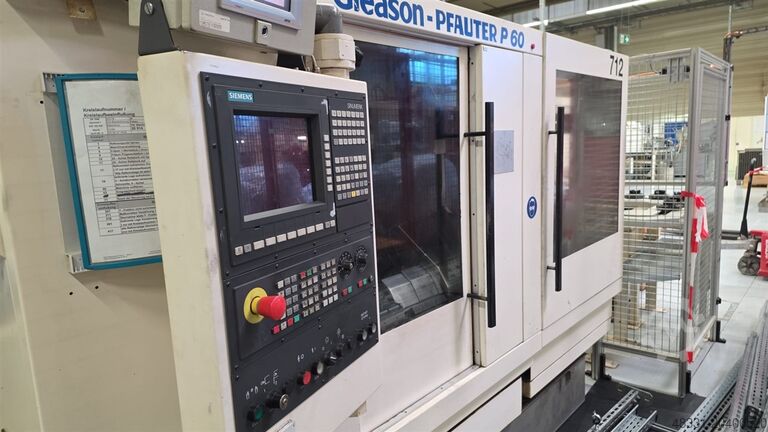

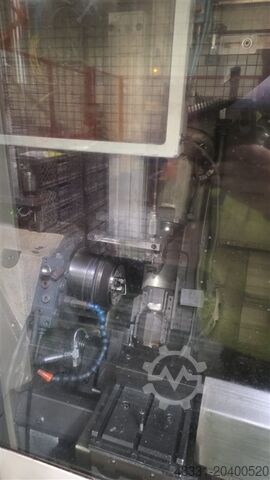

Gear Hobbing Machine - Horizontal

GLEASON- PFAUTER P60

Condition: used, TECHNICAL DETAILS - Maximum workpiece diameter : 80 [mm] - Z-axis travel : 220 [mm] - Max module : 2.5 - Max workpiece-holding spindle speed : 3000 [rpm] - Max dimensions of the hob (diameter x length) : 118 X 120 [mm] - Speed of the hob-holding spindle : 200-5000 [rpm] - Shifting travel : 140 [mm] - Angular travel of hob-holding headstock : -45/+115 [°] Crjdpeyuzgasfx Aqtjh - Machine floor space : 2700/2180 [mm] - Machine height : 2310 [mm] - Machine weight : 4800 [kg] EQUIPMENT - CNC : Siemens 840D PowerLine - Loading manipulator

Condition: used, max. wheel diameter 0-200 mm max. module 25 Credpfstuxa Uex Aqtoh min. module 0,5

Condition: used, Year of construction: 1992, max. wheel diameter 150 mm gear width 300 mm max. module 4,5 min. module total power requirement 20 kW weight of the machine ca. 6 t Cedpfx Aet Hwxbjqterh dimensions of the machine ca. m

Condition: refurbished (used), functionality: fully functional, The Klingelnberg PKE 300 H (PSKE 900) bevel gear testing machine was designed as a universal machine for the flexible machining of gears and is used for single flank rolling tests on bevel gears with evaluation Picture shows machine in actual condition as retrofit / modernized. Performance description: Wheel diameter: 450 (300) mm Axle angle: 90 degrees Hypoid: +/- 60 mm Space requirement approx.: 1.4 x 0.8 x 1.5 mm Cedstncnhspfx Aqtorh Machine weight approx.: 1,100 kg Further information on possible options, current purchase price on request. *Information, dates are non-binding, subject to prior sale

Condition: used, Year of construction: 1969, max. wheel diameter 265 mm gear width 45 mm max. module 4 min. module 0,3 max. workpiece diameter 300 mm stroke length max. 0-50 mm stroke position adjustment 25 mm distance work spindle /surface of the table 170/245 mm spindle taper innen MK 4 table-size 180 mm table hole 95/75 mm strokes per minute 450 - 840 total power requirement 10 kW weight of the machine ca. 5200 kg dimensions of the machine ca. m Max. gear Æ (external) approx. 265 mm Max. workpiece Æ for internal gears 300 mm Max. gear width 45 mm Module range 0.3 - 4 Length of stroke 0 - 50 mm Adjustment of length of stroke 25 mm Distance between table and spindle, min./max. 170/245 mm Credpfx Aot Hwrusqteh Spindle taper (external 90 / internal 50) MT 4 Table size 180 mm Table bore 95 / 75 mm Table travel, cross, approx. 175 mm Number of strokes, infinitely variable 450 - 840 /min Feed range 0.09 - 0.6 mm/stroke Rotary feed, strokes per cutter revolution 2,722 - 681 Total electrical load 10 kW - 380 V - 50 Hz Weight 5,200 kg Accessories / Special Features * Selection switch for various working programmes, and for manual control. * Multi-cut device for roughing, finishing and sparkout, via presettable micrometer screws. * Hydraulic workpiece external clamping device mounted on table, for internal gears (a sort of collet chuck). * Separate switch cabinet. * Separate hydraulic unit. * Hydrostatic straight guide, with cooling aggregate for the hydrostatic pressure oil, separate. * Lateral table adjustment ensures optimal ram lift from workpiece. * Infinitely variable number of strokes via DC motor. * Built-on coolant device. * Presettable impulse counter for switching off table after every cut. With digital display. * Various change gears.

Condition: used, Year of construction: 2006, workpiece diameter 5 - 1.000 mm module range 0,2 - 25 helix angle < 90 ° Control Wenzel GearTec faceplate diameter 750 mm x-axis 1.200 mm y-axis 550 mm z-axis 1.000 mm total power requirement 6,5 kW weight of the machine ca. 11 t dimensions of the machine ca. 3,30 x 3,15 x 2,70 m Software: BMain, FPDFPPostAction, GrafTool, TAlign, Cjdpfx Aqoyvvlbotsrh TAnalyse, TApplication, TCali, TCut_INPUT, TCut_MEAS_EVAL, TGear_INPUT, TGear_MEAS_EVAL, THob_INPUT, THob_MEAS_EVAL, TMesblatt, TPlot, TRoot_INPUT, TShaft_INPUT, TShaft_MEAS_EVAL, TStat, TStylus, WMI, wingeco.

Condition: used, Year of construction: 1980, max. wheel diameter 400 mm gear width NA mm max. module 5 min. module total power requirement kW Cjdpfx Aqst Hw Ebetjrh weight of the machine ca. t dimensions of the machine ca. m Manual Two Flank Gear Tester

Condition: excellent (used), Year of construction: 2007, max. wheel diameter 400 mm weight of the machine ca. 4 t Q U O T A T I O N We are pleased to offer you ex our stock, subject to prior sale, and error in technical data : KLINGELNBERG Single- and double-flank rolling test machine with structure-borne sound testing model R 30 year 2007 _____ Workpiece outer diameter min. / max. 36 / 300 mm Center distance between workpiece and counter wheel 135 - 290 mm Spindle speeds max. 3.000 rpm Drive torque max. up to 2196 rpm 20 Nm Drive torque max. 2196 – 3.000 rpm 14,7 Nm Spindle drive 4,62 kW Crsdpfx Aqsxvdryotsh Total drive approx. 10 kW - 400 V - 50 Hz Total weight approx. 4.000 kg Accessories / Special Features: • The machine is a universal rolling tester designed for the following testing procedures: o Single-flank rolling test o Double-flank rolling test o Structure-borne noise testing in single and double-flank contact o Helix testing in double-flank contact • WINDOWS PC control for measurement data acquisition and analysis with the NoisyS32 testing software • SIEMENS control panel for operating the machine and evaluating the test cycles • Complete enclosure with electrically monitored sliding doors • Attached control cabinet, various accessories, operating instructions • Unfortunately, the license dongle for activating the measurement software is currently missing. We hope to receive it from the supplier of the machine. Condition : very good condition ! Almost unused ! Soon : Please click here to view a video of the machine running : ! Delivery : immediately available, FCA Metzingen Payment : 100 % Net, after conclusion of contract, before loading We always have a large selection gear machines – CNC or conventional - available. Please let us know your requirements.

Condition: excellent (used), Year of construction: 2022, functionality: fully functional, machine/vehicle number: 113018006121, Equipment: documentation/manual, type plate available, Optical measuring system with the following objectives: 1900WD30, 800WD17, 400WD19, and 150WD11. Rotary unit with EROWA clamping system. Cjdpfxezwuxas Aqtorh Ring light, compatible with all objectives. Automated pick-and-place system with 24 positions, featuring the latest software packages: MetMax 4.0.1, Alicona Laboratory Measurement 11.0.1, and Inspect 2023. 2 Inspect licenses available as floating licenses. Automation Manager.

Condition: used, The Klingelnberg GKP 90 bevel gear testing machine was designed as a universal machine and is used by manufacturers of gears and transmission technologies for noise and contact pattern testing on bevel and hypoid gears. Csdpfjxpq Nlox Aqterh Technical Data • Diameter: 540 (400) mm • Hypoid: ±50 mm • Pinion spindle diameter: 90 mm • Dimensions (LxWxH): 1,800 x 1,800 x 1,600 mm • Machine weight: approx. 2,800 kg *Information and data are provided without obligation. Subject to prior sale. Special Features: The machine is intended for noise and contact pattern testing on bevel and hypoid gears of all gear types. By simulating operational conditions, applying various rotational speeds, and switching load states between drive and coast, the optimal installation distance for standstill can be determined. • Digital actual value display for 2 axes • Infinitely variable speed adjustment via frequency inverter • Electrically secured and removable safety guard • Accessories: Large number of workpiece holders • Condition: Very good
