CNC lathe

Gildemeister CTX600

Condition: excellent (used), Year of construction: 1995, Centre Height: 330 mm Centre Distance: 2,000 mm Working Area: Max. Swing Diameter over Bed Cover: 650 mm Max. Swing Diameter over Cross Slide: 360 mm Main Spindle: Spindle Diameter at Front Bearing: 140 mm Spindle Bore: 107 mm Main Drive: 58.5 kW 2-step Speed Range: 4 – 750 rpm / 750 – 3,060 rpm Feed Drive: Rapid Traverse X/Z Axis: 10/10 m/min Tool Turret: Number of Tool Stations: 12 Of which Driven Tool Stations: 6 Tool Shank Holder: VDI 50 mm Dimensions / Weight: Ksdpfx Aex Sx Htehweln Footprint (L x W x H): approx. 6,400 x 2,150 x 2,000 mm Weight: 9,400 kg Accessories / Special Features: • CNC path control HEIDENHAIN TurnPlus EP 90 with color display • Spindle orientation, C-axis • 12-station turret, VDI 50, including 6 driven tools in turret, brand SAUTER, DIN 5482 B 20x17, max. speed 3,000 rpm • Hydraulic 3-jaw chuck, Ø 315 mm, with various chuck jaws • Hydraulic tailstock with drag device • Hydraulic quill actuation • LTA make air extraction system • Various VDI 50 tool holders • CE compliant In 08 / 2025, the following parts were replaced by GILDEMEISTER service: 1 servo motor, 1 AC servo controller inverter power module for 2 axes, 1 Simodrive power module, 1 single regeneration module, 1 control insert for 1 axis, 1 control module for 2 axes of the inverter servo drive, 1 Simodrive power module for 1-axis motor. Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel

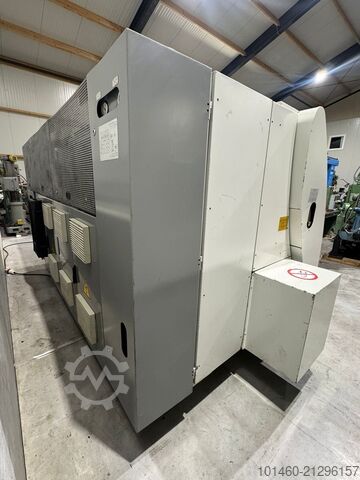

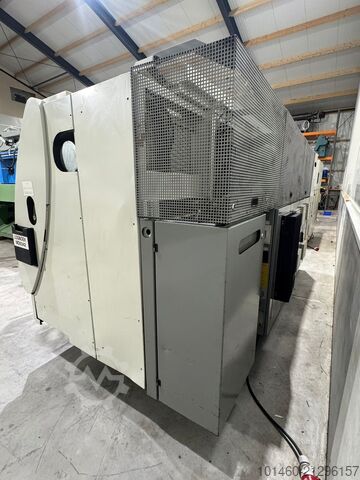

Condition: used, Year of construction: 1998, operating hours: 10,463 h, turning diameter over cross slide: 455 mm, turning length: 1,000 mm, turning diameter: 680 mm, spindle bore: 107 mm, travel distance Z-axis: 1,000 mm, Equipment: documentation/manual, Gildemeister CTX600E Heidenhain CNC Pilot 3190 control Between centers (TDC): 1000 mm Turning diameter over bed: Ø 680 mm Turning diameter over cross slide: Ø 455 mm X-axis travel: 320 mm Z-axis travel: 1097 mm Turret: 12 positions Driven tools: Yes Tool holder: VDI 50 C-axis: Yes Main spindle power: approx. 30 kW Spindle speed range: 4 – 2800 rpm Spindle bore: Ø 107 mm Max. chuck diameter: 500 mm Kodpfjyl Sa Ssx Ahwjln X-axis feed force: 8 kN Z-axis feed force: 15 kN Rapid traverse X: 24 m/min Rapid traverse Z: 30 m/min Tailstock Quill diameter: 120 mm Quill stroke: 120 mm Taper: MK5 (6) Quill force: 14 kN Dimensions & weight Weight: approx. 9,000 kg Length: 4300 mm Width without guard: 2000 mm Width with guard: 2450 mm Height: 2200 mm Note: The information on this page has been obtained and compiled to the best of our knowledge and belief, but accuracy cannot be guaranteed. Accordingly, it does not constitute a representation or contract and we recommend verifying all relevant details. Financial information VAT/margin: VAT: The shown price is excluding VAT (VAT deductible for businesses).

Condition: used, Year of construction: 2003, Technical data: Swing diameter: 680 mm Kljdpfx Ahsyfnqgswen Distance between centers: 1000 mm Speed: 2800 rpm Chuck: ø300 mm Dimensions, approx.: 5560 x 2400 x 2130 mm Weight, approx.: 10,000 kg Equipment: - Control: Heidenhain CNC Pilot 4290 - 12-position turret VDM 40 - C-axis

Condition: used, Year of construction: 1995, Machine in parts for sale spare parts ..... CNC lathe, make GILDEMEISTER Type: CTX 600, year 1995 Forkardt chuck 315 mm, tool turret Tailstock, steady rest Headstock Guide covers and sheets Kjdpfjnximuex Ahwjln Motors Machine in individual parts for sale ..... Please ask what you need and we will send you an offer.

Condition: excellent (used), Year of construction: 1998, turning diameter over cross slide: 600 mm, For sale: CNC Lathe GILDEMEISTER CTX600E V3 with live tooling. TECHNICAL AND VISUAL CONDITION: Very Good Type: CNC Lathe Manufacturer: GILDEMEISTER Model: CTX600E V3 Control system: Heidenhain 3190 Country of origin: Germany Year of manufacture: 1998 Machine specifications: - Turret: 12 stations for VDI-50 tool holders (6 driven stations) - Max spindle speed: 3,600 rpm - C-axis Kledpfoxy Tfdox Ahwjn - Live tooling - Hydraulic tailstock - Tool measurement probe - Max turning diameter X-axis = 600 mm - Max turning length Z-axis = 1,000 mm - Coolant system - 400 mm three-jaw hydraulic chuck - Chip conveyor - Complete programming manual - Mechanical and electrical documentation - Machine weight: 9 tons - Loading onto truck included in the price The machine has undergone a full inspection. 100% operational. Connected and ready for work. Stal-Com has been engaged in the sale, service, and training on CNC machines from the DMG group for 19 years. We specialize in all Gildemeister lathe models and Deckel Maho machining centers. All machines undergo a thorough technical inspection. Our machines are purchased not only by customers from Poland, but also from across Europe and parts of Asia. Each machine can be inspected under production conditions, as we also perform subcontract machining. After purchase, we provide operator training and can assist with setting up part production at the customer’s site. We maintain long-term partnerships with many companies, supplying additional machine tools as needed.

Condition: excellent (used), Year of construction: 1998, functionality: fully functional, Hello Kodpfsu Aauxsx Ahwsln I have for sale a renowned brand CNC LATHE DMG GILDEMEISTER CTX 500 V3 with C axis and driven tools. The machine is in very good technical and visual condition. _ Type: CNC Lathe Manufacturer: DMG GILDEMEISTER Model: CTX 500 V3 Control: HEIDENHAIN 3190 + TURN PLUS overlay for generating programs Country of manufacture: Germany Year of manufacture 1998 _ Machine parameters: - head: 12 - tools for VDI 40 holders (every second socket driven) - max. rpm 3500/min. - C axis - driven tools - max. turning length in the Z axis: 1150 mm - max. turning diameter in the X axis: 500 mm - BERG spindle holder Fi-315 mm - max. shaft diameter Fi-91 mm - cooling system - hydraulic tailstock - controlled from the program - chip conveyor - spindle drive power: 31 KW - DTR - machine weight: 9 tons _ WHY IS IT WORTH BUYING MACHINES in PPM? - we have our own service _ stationary and mobile - we have already sold over 700 DMG machines - possibility of starting the machine at the customer's - operator training and delivery of the machine to the customer included in the price - all our machines have undergone a professional technical inspection - ready to work - purchase of the machine is possible through the installment system and leasing.
