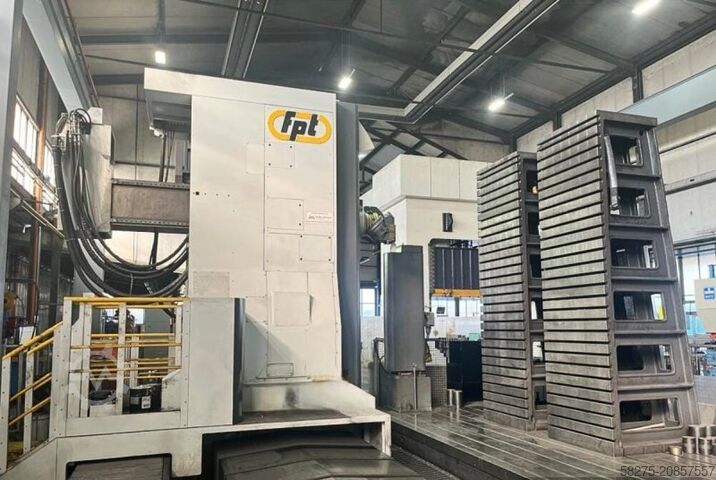

Mobile column milling machine with 2 tables

FPT Industrie RONIN

Year of construction: 2011, condition: ready for operation (used), - USED - TRAVELLING COLUMN CNC MILLING MACHINE WITH ROTARY AND SHIFTING TABLE LONGITUDINAL TRAVEL: 8000 mm TRANSVERSAL TRAVEL: 1500 mm VERTICAL TRAVEL: 2500 mm RAPID FEEDS L-T-V: 35 m/min TABLE SIZE: 2000 x 2000 mm TRANSVERSAL TRAVEL OF THE TABLE: 1500 mm HEAD: A/B AXIS AUTOMATIC ; CONTINUOUS ; ISO 50 ; 7000 rpm; 49 kW; 1180 Nm TOOL MAGAZINE: CHAIN-TYPE ; 80 POS CONTROL UNIT: HEIDENHAIN iTNC 530 ACCESSORIES: SWARF CONVEYOR ; PORTABLE HANDWHEEL ; LASER TOOL SETTER Ndjdpfx Aowl R Agsf Sef NOTE: WITH ROTARY TABLE 1500X1500 mm

Condition: good (used), Year of construction: 1997, x-travel 600 mm y-travel 450 mm z-travel 400 mm Control Heidenhain 430 ITNC tool taper SK 40 voltage 400 V control voltage 24 V weight of the machine ca. 6 t - Operating hours: 48,690 - Max. table load: 1,000 kg - Machine weight: 6,000 kg - Includes tool holders – SK40 - Includes all descriptions - Includes programming manual – Heidenhain - Includes 1 machine vice Ndsdpfewbi A Dox Af Sef - Includes clamping claws

Year of construction: 2016, condition: ready for operation (used), - USED - TRAVELLING COLUMN MILLING MACHINE LONGITUDINAL TRAVEL: 6000 mm TRANSVERSAL TRAVEL: 1500 mm VERTICAL TRAVEL: 2500 mm RAPID FEEDS L-T-V: 35 m/min SPINDLE: 1180 Nm; 42 kW; 337- 5000 rpm WORKTABLE: 300 x 2500 x 7000 mm HEAD: ISO 50 ; MILLESIMAL POSITIONING ; A/B AXIS AUTOMATIC TOOL MAGAZINE: 12 POS; PICK-UP Njdpsxpkxtofx Af Ssdf CONTROL UNIT: HEIDENHAIN TNC 640 HIGH PRESSURE COOLANT: 20 Bar NOTE: AUTOMATIC HEAD CHANGE; COMPRESSED AIR INSIDE THE TOOL; RTCP; AUTOCAL SOFTWARE FOR AUTOMATIC CALIBRATION

Condition: excellent (used), functionality: fully functional, travel distance X-axis: 4,000 mm, travel distance Y-axis: 2,100 mm, travel distance Z-axis: 1,300 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, feed rate X-axis: 30 m/min, feed rate Y-axis: 30 m/min, feed rate Z-axis: 30 m/min, spindle speed (max.): 6,000 rpm, spindle speed (min.): 36 rpm, table length: 4,000 mm, table width: 1,500 mm, tank capacity: 500 l, SHW PowerSpeed 5 Travel Ranges • X-axis (bed): 4,000 mm • Y-axis (vertical): 2,100 mm • Z-axis (spindle horizontal): 1,300 mm Control System • CNC control: Heidenhain iTNC 530 Feed Speed • X, Y, and Z axes: 2 - 30,000 mm/min • Acceleration: 3.5 m/s² Universal Milling Head in Orthogonal Design • Milling head swivel range (mounting): 360 x 1 degree • Milling head swivel range: 180 x 1 degree • Tool holder: SK 50 DIN 69871 • Speed range: 36 – 4,000 rpm o Short-term: 36 – 6,000 rpm Automatic Tool Changer • Tool magazine for 48 tools Clamping Plate • Clamping surface: 4,000 x 1,500 mm Chip Conveyor • Fork length: 4,000 mm Coolant System • Tank capacity: 500 l Nsdow I Rz Hepfx Af Sjdf Splash and Chip Protection • One-sided, with 2 manually sliding doors About the Company MBM MBM Maschinenservice & Gebrauchtmaschinen GmbH is an independent specialist for SHW machine tools. Our main focus is on tool milling machines. Our services include, among others, spare parts delivery, on-site customer service, machine overhauls, and control system modernization. Services: - Used machines - Spare parts - Customer service - Machine servicing - Machine overhauls - CNC control modernization ----- _____ Used machine – used milling machine – used traveling column milling machine – orthogonal milling head – metalworking – tool milling machine – milling head – SHW machine – SHW spare parts – used milling machine – used cnc milling machine – used boring and milling machine – used metal milling machine – used metal mill – used metal machining center – used cnc mill – cnc milling machines – milling machinery – large part machining – cnc large part machining – milling – shw – PS5 – PS 5 – Powerspeed – SHW PSZ 5 – SHW Powerspeed – SHW Powerspeed 5 – PSZ 5 – Heidenhain – MBM milling machine – MBM machine – column-type milling machine

Condition: used, Year of construction: 2007, travel distance X-axis: 8,000 mm, travel distance Y-axis: 2,100 mm, travel distance Z-axis: 1,300 mm, spindle speed (max.): 6,000 rpm, spindle speed (min.): 36 rpm, table width: 5,500 mm, table length: 2,600 mm, total height: 4,900 mm, total width: 16,200 mm, total length: 9,000 mm, overall weight: 55,100 kg, CNC Floor Type Bed Milling Machine CNC Control Heidenhain iTNC 530 Ndodpfx Asxltbvsf Sef Controlled NC Table 1600 x 1600 mm Table dimensions 5500 x 2600 mm Movement X-axis 8000 mm Movement Y-axis 2100 mm Movement Z-axis 1300 mm Movement W-axis 1000 mm C-axis-swivel of milling head body 360 ° A-axis-swivel of milling head 180° Spindle speed 36 - 6.000 R/min Spindle motor 42 / 30 kW Spindle taper DIN 69871-SK 50 Tools in tool magazine 48 If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: excellent (used), travel distance X-axis: 8,000 mm, travel distance Y-axis: 2,600 mm, travel distance Z-axis: 1,600 mm, rapid traverse X-axis: 20 m/min, rapid traverse Y-axis: 24 m/min, rapid traverse Z-axis: 24 m/min, feed rate X-axis: 20 m/min, feed rate Y-axis: 24 m/min, feed rate Z-axis: 24 m/min, spindle speed (max.): 3,200 rpm, rotational speed (max.): 3,200 rpm, pivoting range: 360 °, year of last overhaul: 2022, coolant supply: 16 bar, ejection height: 1,250 mm, tank capacity: 800 l, Technical Specifications Travel Paths • X-axis (bed): 8,000 mm • Y-axis (vertical): 2,600 mm • Z-axis (headstock horizontal): 1,600 mm Control System Ndjdpfx Aowfdalof Sef • CNC control: Heidenhain iTNC 530 Feed Rate • Y- and Z-axis continuously adjustable from: 2 – 24,000 mm/min • X-axis continuously adjustable from: 2 – 20,000 mm/min Universal milling head with orthogonal design • Milling head swivel range: 360 x 1 degree • Milling head swivel range: 180 x 1 degree • Tool holder: SK 50 DIN 69871 • Speed: 3,200 rpm Chip Conveyor • Ejection height above floor: 1,250 mm • Feed length: 8,000 mm mm • Feed width: 350 mm Coolant system • Paper belt filter system o Tank capacity: 800 l o Pump capacity on the machine: 16 bar o Approx. 32 l/min Year of manufacture: 2005 • 2016: General overhaul of the headstock unit • 2022: General overhaul of the milling head About us: MBM Maschinenservice & Gebrauchtmaschinen GmbH is an independent specialist for SHW machine tools. Our focus is on tool-milling machines. Our services include spare parts deliveries, on-site customer service, machine overhauls, and control system upgrades. Services: - Used machines - Spare parts - Customer service - Machine service - Machine overhauls - Control system modernization _____ _____ _____ Used machine - used milling machine - used traveling column milling machine - orthogonal milling head - metalworking - tool milling machine - milling head - SHW machine - SHW spare parts - used milling machine - used milling machine - used CNC milling machine - used drilling and milling machine - used metal milling machine - used metal milling machine - used metal milling machine - used CNC milling machine - CNC milling machines - CNC milling machines - milling machine - large-part machining - large-part machining - large-part machining - CNC large-part machining - milling - SHW - UF6 - UF 6 - Uniforce - SHW UF - SHW Uniforce - SHW Uniforce 6 - UFZ 6 - UFZ6L - UFZ 6 L - Heidenhain - MBM milling machine - MBM machine - column milling machine

Year of construction: 2014, condition: ready for operation (used), - USED - TRAVELLING COLUMN CNC MILLING MACHINE WITH ROTARY AND SHIFTING TABLE LONGITUDINAL TRAVEL: 4000 mm TRANSVERSAL TRAVEL: 1600 mm VERTICAL TRAVEL: 3000 mm RAPID FEEDS L-T-V: 30 m/min TRANSVERSAL TRAVEL OF THE TABLE: 1500 mm PALLET: 2000 x 2500 mm; 1200 rpm; 8000 Nm MAX ADMITTED LOAD: 30000 Kg HEAD: A/B AXIS AUTOMATIC ; MILLESIMAL POSITIONING ; ISO 50 ; 6000 rpm; 38 kW TOOL MAGAZINE: CHAIN-TYPE ; 80 POS CONTROL UNIT: HEIDENHAIN iTNC 530 HIGH PRESSURE COOLANT: 20 Bar ACCESSORIES: SWARF CONVEYOR ; Nodpfx Aowl R Amsf Ssdf TOOL SETTER

Condition: excellent (used), Year of construction: 2005, travel distance X-axis: 16,000 mm, travel distance Y-axis: 3,500 mm, travel distance Z-axis: 1,500 mm, Head Pick up Station TUPC CNC Indexing Micro Head A-Axis 360.000 x 0,001 Gr C-Axis 360.000 x 0,001 Gr SELS Spindle extionsion L=500 mm CTS Internal coolant system ATC Chain Tool changer 60 Positions Hydrostatic guideways Optional T Slotted floorplates 5600 x 1875 (2x) + 4000 x 1875 mm X-Axis: 16.000mm Y-Axis: 3.500mm Z-Axis: 1.500mm Power on spindle: 80kW Spindle speeds: 4000Rpm Spindle Taper: Sk59ISO/Bt/Mk Feed rate X-Axis: 25000mm/min. Feed rate Y-Axis: 25000mm/min. Nsdpfxjxpfkkj Af Sjdf Feed rate Z-Axis: 25000mm/min. Millinghead auto-index:2.5 x 2.5° Length: 24000mm Width: 6500mm Height: 6500mm Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
