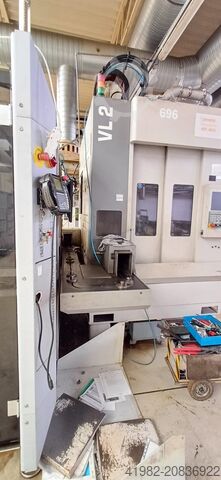

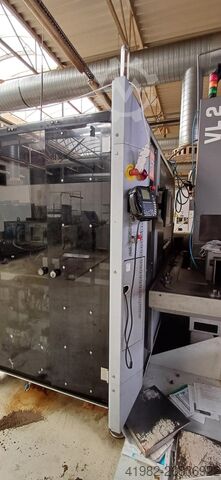

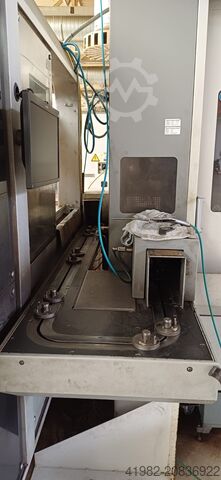

Vertical Turning Machine

EMAG VL2

Condition: ready for operation (used), Year of construction: 2017, operating hours: 10,437 h, travel distance X-axis: 650 mm, travel distance Y-axis: 50 mm, travel distance Z-axis: 375 mm, spindle motor power: 18,100 W, spindle speed (max.): 6,000 rpm, number of axes: 3, This 3-axis EMAG VL2 vertical turning machine was manufactured in 2017. It features a max workpiece diameter of 100 mm, chuck diameter of 160 mm, and a swing diameter of 210 mm. The main spindle offers a power rating up to 18.1 kW and a max spindle speed of 6,000 rpm. Consider the opportunity to buy this EMAG VL2 vertical turning machine. Contact us for more information. Dodpfxex S Skro Aa Ieki • Run time: 10,437 hours • Max. workpiece diameter: 100 mm (4") • Chuck diameter: 160 mm (6.5") • Swing diameter: 210 mm (8") • Max. workpiece length: 150 mm (6") • Main spindle: • Power rating (40% / 100%): 18.1 / 13.9 kW (24 / 19 hp) • Torque (40% / 100%): 77 / 59 Nm (57 / 44 ft-lb) • Turret: • Tool positions: 12 • Driven tools speed: 6,000 rpm • Driven tools torque (30% / 100%): 27 / 15 Nm (20 / 11 ft-lb) • Rapid traverse rate: • X axis: 60 m/min • Y axis: 30 m/min • Z axis: 30 m/min

Condition: used, Year of construction: 2014, max. turning diameter 160 mm max. turning height 150 mm max. workpiece diameter 100 mm max. workpiece height 150 mm max. turning speeds 6.000 U/min travel -x axis 700 mm travel -z axis 375 mm c-axis 360 ° control FANUC Dedeqvd Iqepfx Aa Ijki Vertical Turning Machine | EMAG - VL2 equipped with a workpiece conveyor belt. The machine is in very good condition. Please note that the technical details were added from comparable machines. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: VL-2 | VL 2

Condition: used, Year of construction: 2019, max. workpiece diameter 400 mm max. workpiece length 300 mm control FANUC travel -x axis 995 mm travel -z axis 580 mm max. turning speeds 2.850 U/min no. of tools in turret 12 Stk./pcs. driven tools turning speeds 6.000 U/min Vertical Turning Machines | 2 x EMAG VL 8 equipped with driven tools and Track Motion TM loading system Both machines show the following operating hours: - Power-on hours: approx. 16,300 hrs - Spindle hours: approx. 9,950 hrs An extensive package of tools and clamping equipment is included in the scope of delivery. Djdpfeynnuwjx Aa Ijki The machines are in very good condition and can be inspected under power. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: VL8 | VL-8

Condition: used, Year of construction: 2013, functionality: limited functionality, machine/vehicle number: 105032, Technical characteristics: Work Area - Maximum clamping plate diameter: 160 mm - Maximum turning diameter: 160 mm - Maximum machining diameter: 100 mm - Maximum workpiece length: 150 mm - X-axis travel: 700 mm / Rapid traverse in X: 60 m/min - Z-axis travel: 375 mm / Rapid traverse in Z: 30 m/min - Standard integrated automation (number of loading nests by workpiece diameter: 14/(80...200), 18/(30...160), 30/(30...85)) Main Spindle - Spindle according to DIN 55026: Size A5 - Maximum spindle speed: 6,000 rpm - Spindle power (100%/40% duty cycle): 18.1 / 13.9 kW - Spindle torque (100%/40% duty cycle): 77 / 59 Nm Tool Turret with Driven Tools - Tool holders according to DIN 69880: 12 positions - BMT65 - Maximum tool length including holder: 190 mm - Maximum tool speed: 6,000 rpm - Maximum torque: 27 Nm (10% duty cycle), 14 Nm (100% duty cycle) Electrical Equipment - Operating voltage: 400–480 V, 80 A - Connected load: 27 kVA Dodpfx Aexxwztea Ijki Dimensions - Overall dimensions: Length = 4,350 mm (with chip conveyor), Width = 1,600 mm, Height = 2,500 mm - Weight: 5,500 kg Main Features and Capabilities: - Vertical Design: Optimised for chip evacuation and easy loading/unloading - Control: GE Fanuc FS 32i B - High Precision: Positioning accuracy on X and Z axes ±0.001 mm, Haidenhain linear scales - Main Spindle: High power output and wide speed range - In-process Control: Marposs T25 measurement probe - Automated Loading/Unloading: Parts are automatically loaded and unloaded by integrated automation - Live Tooling: Capable of drilling and milling with driven tools - Tool Life Monitoring with Sister Tool Management - Chip Conveyor, Coolant System, Switchable Dual Cartridge Filter, High Pressure Pump (15 bar) - Fully Enclosed Work Area, Work Area Lighting - Documentation: Electronic available; paper manual not complete Machine Condition: WORKING - Operator panel safety switch is broken

Condition: used, Year of construction: 2003, Pressure 50 t stroke 800 mm distance between columns 2250 mm Distance table/ram, max. stroke up, adjustment up 1600 mm Table surface area 2250 x 1200 mm Ram surface 2250 x 1200 mm feed down 350 mm/s feed up 190 mm/s working feed 27,5 mm/s oil volume 800 l power requirement 24,2 kW Weight 13,0 t Dodpfx Aevuun Hsa Ijki dimensions of the machine ca. 3,75 x 2,75 x 4,67 mxmxm permitted for manual loading according to the CE-norm with oil-hydraulic drive, controllable dependent on pressure/time and way, light-guard (Sick) on front and back, hydraulic ram interlocking (Sitema), light guard with active start

Condition: repair required (used), Year of construction: 2017, functionality: not functional, machine/vehicle number: 108113, Technical Characteristics: Work Area - Maximum clamping plate diameter: 160 mm - Maximum turning diameter: 160 mm - Maximum machining diameter: 100 mm - Maximum workpiece length: 150 mm - X-axis travel: 700 mm / Rapid traverse X: 60 m/min - Z-axis travel: 375 mm / Rapid traverse Z: 30 m/min - Standard automation with closed system (number of loading nests by workpiece diameter: 14/(80–200), 18/(30–160), 30/(30–85)) Main Spindle - Spindle interface per DIN 55026: Size A5 - Maximum spindle speed: 6000 rpm - Power (100% / 40% duty cycle): 18.1 / 13.9 kW - Torque (100% / 40% duty cycle): 77 / 59 Nm Tool Holder with Driven Tools - Tool shank per DIN 69880: 12 – BMT65 - Number of stations: 12 - Maximum tool length including holder: 190 mm - Maximum speed: 6000 rpm - Maximum torque (10% duty cycle): 27 Nm; (100% duty cycle): 14 Nm Electrical Equipment - Operating voltage: 400–480 V, 80 A - Connected load: 27 kVA Dimensions - Total dimensions (L x W x H): 4350 mm (with chip conveyor) x 1600 mm x 2500 mm - Weight: 5500 kg Main Features and Capabilities: - Vertical Design: Optimized for chip removal and easy loading/unloading - CNC Controller: GE Fanuc FS 32i B - High precision: Positioning accuracy in X and Z axes ±0.001 mm with Heidenhain linear scales - Main spindle: High power and broad speed range - In-process control: Marposs T25 measuring probe - Automated loading/unloading: Integrated automation for feeding and removing parts - Live tools: Capability for drilling and milling operations - Tool life monitoring and sister tool management - Chip conveyor & Knoll coolant filtration unit with paper filter and 40 bar pumps (suitable for filtering two machines) - Fully enclosed work area, with work area lighting - Documentation: Electronic version available, printed booklet incomplete Dsdpfsxxip Asx Aa Ieki Machine Status: - NOT WORKING - LT motor defective, repairable - Operator panel, safety switch, and two buttons broken and need replacement

Condition: repair required (used), Year of construction: 2016, functionality: not functional, machine/vehicle number: 107965, Technical characteristics: Work Area - Maximum diameter of the clamping plate: 160 mm - Maximum turning diameter: 160 mm - Maximum machining diameter: 100 mm - Maximum workpiece length: 150 mm - X-axis travel path: 700 mm / Rapid traverse in X: 60 m/min - Z-axis travel path: 375 mm / Rapid traverse in Z: 30 m/min - Standard enclosed automation (number of loading nests in relation to part diameter: 14/(80...200), 18/(30...160), 30/(30...85)) Dsdpfsxw Sviox Aa Ijki Main Spindle - Spindle interface according to DIN 55026: Size A5 - Maximum rotational speed: 6000 rpm - Power at 100% / 40% duty cycle: 18.1 / 13.9 kW - Torque at 100% / 40% duty cycle: 77 / 59 Nm Tool Turret with Driven Tools - Tool shank as per DIN 69880: 12 positions - BMT65 - Number of positions: 12 - Maximum tool length including holder: 190 mm - Maximum speed: 6000 rpm - Maximum torque at 10% duty cycle: 27 Nm, at 100% duty cycle: 14 Nm Electrical Equipment - Operating voltage: 400 - 480 V, 80 A - Connected load: 27 kVA Dimensions - Total machine dimensions: Length = 4350 mm (with chip conveyor), Width = 1600 mm, Height = 2500 mm - Weight: 5500 kg Main Features and Capabilities: - Vertical construction: Optimized chip removal and easy loading/unloading - CNC controller: GE Fanuc FS 32i B - High precision: Axis positioning accuracy in X, Z ±0.001 mm (Heidenhain linear scales) - Main spindle: High power and wide speed range - Process control: Marposs T25 measuring probe - Automated loading/unloading: Parts are loaded and removed via integrated automation system - Live tooling: Enables drilling and milling operations in addition to turning - Tool life monitoring with sister tool management - Chip conveyor & coolant filtration system Knoll with paper filter and 40 bar pumps (capable of filtering 2 machines) - Fully enclosed work area; integrated work lighting - Documentation: Available electronically; hardcopy manuals incomplete Machine status: NOT WORKING - Live tool drive motor - Safety locking mechanism (Euchner) for loading door - Turret drive motor - Turret motor driver - Lubrication pump - Hydraulic manifold (4x electrovalves) - Lubrication pressure system - Rotary union - Hydraulic cylinder for loading door - Spindle clamping/unclamping sensor

Condition: refurbished (used), Year of construction: 2003, functionality: fully functional, spindle speed (max.): 6,000 rpm, turning diameter: 200 mm, total height: 200 mm, CNC SIEMENS SINUMERIK Dedpfxehuz Tcs Aa Ieki With rotary drum. While working the machine ca load the piece on the second chuck outside the machine. It is like a pallet changer in vertical machining center. TURNING CAPACITY Turning ø 200 mm Turning height 200 mm I°SPINDLE Spindle taper ASA 6 iso Chuck diameter 210 mm Turning speed 6000 giri/min Motor power 27/31 Kw Turret 12 SPECIFIC PROPERTIES: X axis travel 250 mm Z axis travel 250 mm

Condition: repair required (used), Year of construction: 2016, functionality: not functional, machine/vehicle number: 107964, Technical characteristics: Work Area - Maximum diameter of the clamping plate: 160 mm - Maximum turning diameter: 160 mm - Maximum machining diameter: 100 mm - Maximum workpiece length: 150 mm - X-axis travel: 700 mm / Rapid traverse in X: 60 m/min - Z-axis travel: 375 mm / Rapid traverse in Z: 30 m/min - Standard enclosed automation (number of loading nests by workpiece diameter: 14/(80...200), 18/(30...160), 30/(30...85)) Main Spindle - Spindle interface according to DIN 55026: Size A5 - Maximum speed: 6000 rpm - Power at 100% / 40% duty cycle: 18.1 / 13.9 kW - Torque at 100% / 40% duty cycle: 77 / 59 Nm Tool Holder with Motorized Tools - Tool holders with cylindrical shank according to DIN 69880: 12 - BMT65 - Number of stations: 12 - Maximum tool length including holder: 190 mm - Maximum speed: 6000 rpm - Maximum torque at 10% duty cycle: 27 Nm, at 100% duty cycle: 14 Nm Electrical Equipment - Operating voltage: 400 - 480 V, 80 A - Connected load: 27 kVA Dimensions Dedpfxsxw Srko Aa Ieki - Total dimensions: Length = 4350 mm with chip conveyor, Width = 1600 mm, Height = 2500 mm - Weight: 5500 kg Main Features and Capabilities: - Vertical Design: Enables optimal chip evacuation and easy loading/unloading. - CNC Control: GE Fanuc FS 32i B. - High Precision: Positioning accuracy on X and Z axes ±0.001 mm with Heidenhain linear scales. - Main Spindle: High power and wide speed range. - In-process Measurement: Equipped with Marposs T25 measuring probe. - Automated Loading/Unloading: Integrated automation for part loading and unloading. - Live Tooling: Capability for driven tools expands machining to drilling and milling operations. - Tool Life Monitoring: Sister tool management for tool life tracking. - Chip Conveyor - Fully Enclosed Work Area with Work Area Lighting - Documentation: Electronic available; hardcopy/incomplete book. Machine Status: NOT OPERATIONAL - Cooling pump x2 units - Live tool drive motor - Lubrication pump - Operator panel - touchscreen needs replacement - Hydraulic block valves x3 - Hydraulic loading door cylinder - Rotary joint - Lubrication pressure switch - Safety door, Euchner type

Condition: repair required (used), Year of construction: 2016, functionality: not functional, machine/vehicle number: 107786, Technical characteristics: Work Area - Maximum clamping plate diameter: 160 mm - Maximum turning diameter: 160 mm - Maximum machining diameter: 100 mm - Maximum workpiece length: 150 mm - X-axis travel: 700 mm / Rapid traverse in X: 60 m/min - Z-axis travel: 375 mm / Rapid traverse in Z: 30 m/min - Standard closed automation (number of loading stations per workpiece diameter: 14/(80...200), 18/(30...160), 30/(30...85)) Main Spindle - Spindle as per DIN 55026: Size A5 - Max. speed: 6000 rpm - Power at 100 / 40% duty cycle: 18.1 / 13.9 kW - Torque at 100 / 40% duty cycle: 77 / 59 Nm Tool Turret with Driven Tools - Toolholders per DIN 69880: 12 × BMT65 - Number of stations: 12 Dsdpfx Aaoxw Slke Ijki - Maximum tool length including holder: 190 mm - Maximum speed: 6000 rpm - Maximum torque at 10% duty cycle: 27 Nm; 100% duty cycle: 14 Nm Electrical Equipment - Operating voltage: 400 - 480 V, 80 A - Connected load: 27 kVA Dimensions - Overall dimensions: Length = 4350 mm (with chip conveyor), Width = 1600 mm, Height = 2500 mm - Weight: 5500 kg Main Features and Capabilities: - Vertical construction: optimal chip evacuation and easy part loading/unloading - Control: GE Fanuc FS 32i B - High precision: positioning accuracy in X and Z axes ±0.001 mm (Heidenhain linear scales) - Main spindle: high power and wide speed range - In-process control: Marposs T25 measurement probe - Automated loading/unloading: integrated automation feeds and removes workpieces - Driven tools: enhances machining capabilities for drilling and milling - Tool life monitoring with sister tool management - Chip conveyor - Fully enclosed work area; workspace lighting - Documentation: Electronic available; physical manual incomplete Machine Condition: NOT WORKING - Operator panel touchscreen needs replacement - Hydraulic cylinder for loading door broken - Emulsion pump - Hydraulic pump - Spindle clamp/unclamp sensor - Hydraulic accumulator - Turret motor

Condition: good (used), Technical specifications for the pallet racking system: Rack system: Jung Heinrich Type: Esmena Technical specifications for installation: Number of rack rows: 1 Length per rack row: 14,135 mm Number of bays per rack row: 5 Number of levels plus floor level: 2 Technical data for volume: Pallet spaces per bay: 9 Number of pallet spaces per row: 45 Total number of pallet spaces: 45 Assuming: Loading equipment: Euro pallet EN 13698-1 Dimensions: 1,200 x 800 x 150 mm Total height including pallet: n.d. Weight per pallet (max.): approx. 800 kg Dkodpjwh Nquofx Aa Ioi Included in delivery: 6x pallet rack uprights, used Material color: blue Frame profile: MX630 Profile dimensions: 100 x 81.3 x 1.8 mm System perforation: 50 / 50 mm Incl. cross and diagonal braces, Footplates The uprights are pre-assembled (screwed framework) Height: 3,000 mm Depth: 1,100 mm 20x pallet rack crossbeams, used Material color: yellow Box profile: 116 x 40 mm Crossbeam type: GNA 116x40 SEG5 Hooks: 5 hooks Clear width: 2,707 mm Max. load per pair of crossbeams: 2,400 kg, with evenly distributed load. 40x locking pins, used Material color: Sendzimir galvanized For securing the longitudinal beams against accidental lifting 24x bolt anchors, new Manufacturer: Hilti Type designation: HST2 M12x105/10 Design: Carbon steel, galvanized Approved for: Cracked concrete 12x leveling plates, used Design: Fully galvanized For leveling shelf uprights that are installed on uneven ground 1x load plate with information on bay and compartment loads, manufacturer, and commission number Dimensions: 420 x 297 x 3 mm

Year of construction: 2018, condition: ready for operation (used), A CNC vertical turning machine EMAG is available. Workpiece diameter: 100mm, max. workpiece length: 150mm, max. chuck diameter: 160mm, travel X/Z: 650mm/375mm, travel Y: +/-50mm, spindle power: 15.7kW, torque: 77Nm, speed: 6000rpm, tool stations: 12, rapid traverse X/Z: 60m/30m/min. Machine dimensions X/Y/Z: approx. 2500mm/1800mm/2800mm, weight: approx. 4500kg, control: Fanuc 32-iB, operating hours: approx. 28487h, spindle hours: approx. 18640h. Including extraction system, 2 axial and 2 radial driven tools, 20x fixed tool holders, 3-jaw chuck and probe. Documentation available. An on-site inspection is possible. Dkodpfexq Exksx Aa Iei

Condition: as good as new (ex-display), Year of construction: 2023, functionality: fully functional, General Control: Fanuc 31i-B5 Chuck diameter: 160 mm Turning length: 150 mm Workpiece diameter: max. 100 mm Workpiece length: max. 150 mm Travel X: 650 mm Travel Z: 375 mm Spindle Power: max. 15.4 kW Torque: max. 7 Nm Speed: max. 6,000 rpm Tool turret: 12 stations Mounting: BMT55 Rapid traverse X/Z: 60/30 m/min AGW speed: 6,000 rpm AGW torque: max. 23.7 Nm Automation Technology: Perimeter-type workpiece storage Dksdpfx Aaox Ahbxe Iei Workpiece height (incl. workpiece pallet): max. 150 mm Workpiece weight: max. 5 kg Workpiece handling: Via spindle (pick-up) Equipment Chip disposal: Chip conveyor Coolant supply: High-pressure coolant, 15 bar Workpiece measurement: Measuring probe Emulsion mist separator: Mechanical Clamping cylinder: Hydraulic full clamping cylinder

Condition: new, functionality: fully functional, Spindle unit MKK05-012-25-60-080-00340 Original packaging, from stock with documentation EMAG order number: 20399062 Dkjdpfxsxz Al Ae Aa Iji
