Universal tool milling machine, tool milling machine, universal milling machine

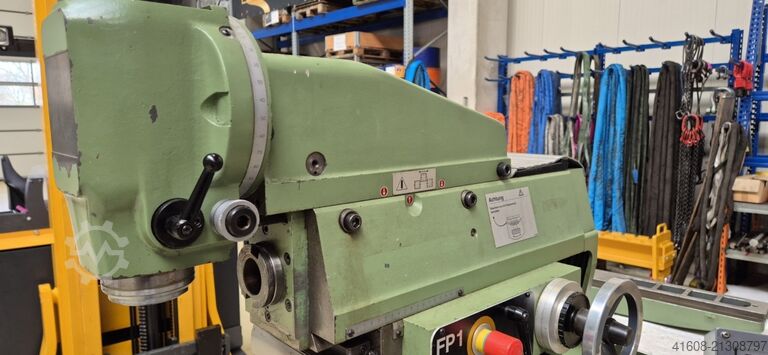

DECKEL FP 1

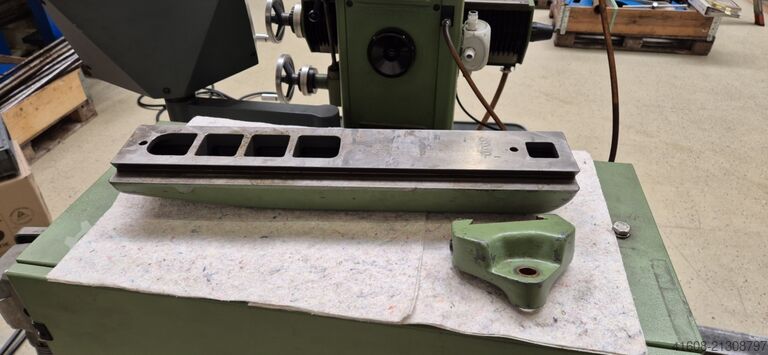

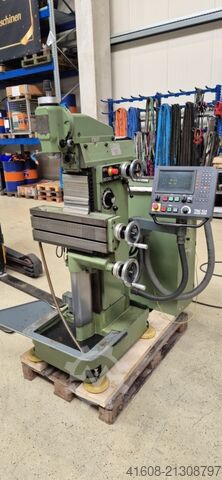

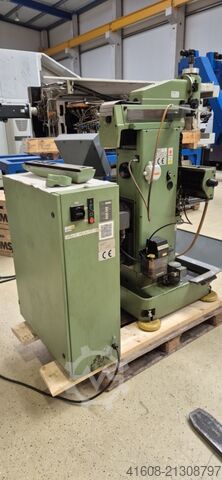

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, Technical details x-travel 300 mm y-travel 160 mm z-travel 290 mm table surface area 600 x 210 mm tool taper SK 40 spindle turning speed range (16) 40 - 2000 U/min feeds -stepless- 5 - 500 mm/min rapid traverse 1,2 m/min spindle motor 1,5 / 1,9 kW total power requirement 9,5 kVA weight of the machine ca. 830 kg dimensions of the machine ca. 2000 x 2200 x 1655 mm Additional information The machine is in very good condition and comes from a training workshop. Equipment: * 3-axis positioning control with active digital display Heidenhain TNC 123 - Manual mode: Manual operation and positioning with manual input - Automatic mode: Single-block programme run, programme storage * Fixed angle table * Movable vertical milling head, swivel range +/- 90 degr., quill stroke 60 mm * Coolant equipment * Central lubrication * Tailstock with counter bearing Lhjdpsymln Sjfx Ahwsc * Manual

Condition: used, Technical details: travel -y axis: Schlitten auf Balken: 200 mm spindle taper ISO: SK 40 spindle head swivable left - right: je 90° ° quill stroke: 80 mm turning speed range: 90 - 900 / 5 step U/min distance table - lower edge spindle: min./max.: 50 / 400 mm table surface area: Anbaufläche:760 x 200 mm table surface area: Spannfläche: 630 x 200 mm max. table load: 100 kg x-travel: Tisch längs: 320 mm Lodpfxju Ndb Ao Ahwjhc z-travel: Tisch vertical 350 mm table swivelabel +/-: re/li je 30° distance table - lower edge spindle: min./max.: 50 / 400 mm feed:: Tisch: stufenlos 14 - 71 mm/min total power requirement: 4,0 kW weight approx.: 1.200 kg dimension machine xH: 1,3 x 1,5 x 1,8 m Equipped with Heidenhain DRO for X and Y travel Swiveling work spindle The feed works via variator gear. The table is swivelable. Spindle speeds operate in 3 levels via gears and in 2 levels electrically. Cooling device diverse tool holders SK40 Der Fräsbalken ist um ca. 350mm ausfahrbar. The machine vise is not included in the delivery scope (see picture), but can be purchased additional! *

Condition: used, Year of construction: 1980, x-travel 300 mm y-travel 160 mm z-travel 340 mm tool taper SK40 Speed 40-2000 U/min. control Aktiv HEIDENHAIN table-size 600 x 210 mm total power requirement 2 kW weight of the machine ca. 0,73 t dimensions of the machine ca. TBH 1200x1100x1600 m Lhsdpew A Apysfx Ahwsc - Active feed in the X and Z axes - Additional swiveling table 600 x 210 mm - Coolant system - Counter bearing for horizontal milling - Several fixtures and clamping devices/milling cutters - Operating instructions

Condition: used, Year of construction: 1980, x-travel 300 mm y-travel 160 mm Lhedpfjw A Ap Hox Ahwec z-travel 340 mm tool taper SK40 Speed 40-2000 U/min. control Aktiv HEIDENHAIN table-size 600 x 210 mm total power requirement 2 kW weight of the machine ca. 0,73 t dimensions of the machine ca. TBH 1200x1100x1600 m - Active feed in the X and Z axes - Additional swiveling table 600 x 210 mm - Coolant system - Counter bearing for horizontal milling - Several fixtures and clamping devices/milling cutters - Operating instructions

Condition: new, Technical data: Capacity: 160 t Installation height: 1100 mm Max. working area: 1100 x 350 mm Ram stroke: 400 mm Advance speed: 6.2 mm/s Return speed: 6.8 mm/s Motor power: 5.5 kW Width: 1640 mm Depth: 1000 mm Height: 2550 mm Weight, approx.: 1300 kg Lodpfx Ask Nz Ntshwshc Equipment: - Laterally adjustable cylinder via rack, pinion, and handwheel - Spacious working area - Height-adjustable table - Torsion-resistant design with welded steel construction - Manometer - Fine pressure adjustment - Additional hand pump Support prisms available at extra cost.

Condition: used, Universal tool milling machine DECKEL type FP 1 Machine no.: 52185 Year of manufacture: 1968 Travel X: 300 mm Y: 150 mm Z: 340 mm Table size: 600 x 250 mm Spindle taper: SK 40 - S20 x 2 Spindle speed: 40-2000 rpm, 16 steps Lhsdpfedzqb Sex Ahwec Motor power: 1.0 and 1.4 kW, pole-switchable Mains connection: 380 Volt, 50 Hz - Feed on X and Z axes - Two motor speeds and 8 gearbox speeds - Quill stroke on vertical milling head: 60 mm - Fixed angle table - Coolant system in the machine base - Free-standing control cabinet - Counter support with counter bearing for horizontal milling SK 40 Required space (L x W x H): 1200 x 1100 x 1600 mm Weight: approx. 1000 kg Very good condition

Condition: used, Univ. tool milling machine DECKEL type FP 1 Machine No. 28317 Year of construction approx. 1960 travel X: 245 mm Y: 150 mm Z: 340 mm table size 600 x 210 mm spindle admission horizontal MK 4 - S20 x 2 spindle speed vertical 95-1900 rpm. 12 steps Spindle speed horizontal 60-1200 rpm. 12 steps motor power 0,8 and 1,1 kW pole-changing Mains connection 380 Volt, 50 Hz - Spindle speed via 2 motor speeds and 6 gear steps - feed in X- and Z-axis Lodpfx Aoiy Ekvohwohc - Coolant device with mechanical pump in machine base - Pinol shift at vertical milling head 60 mm - vertical milling head +/- 90° tiltable - Metal base made of angle iron with machine feet space requirement L x W x H 1100 x 900 x 1650 mm weight 650 kg good condition

Condition: used, plate width 6400 mm plate depth 1870 mm plate height 400 mm Lhsdpfx Ahegrm Ngswsc

Condition: excellent (used), Deckel FP1 AKTIV (3-Axis Active) Machine no.: 2102-3240 Year of manufacture: approx. 1988 Travel paths: X: 300 mm Y: 150 mm Z: 330 mm Table size: 600 x 210 mm Spindle taper: SK 40 – S20x2 Spindle speed: 40–2,000 rpm Motor power: 1.6 and 2 kW Power supply: 380 V, 50 Hz Equipment/Accessories: - Active digital readout, 3 axes, HEIDENHAIN type TNC 113 - Infinitely variable feed in X, Y, and Z axes - Vertical milling head quill travel: 60 mm - Vertical milling head swivels and extends 100 mm horizontally - Coolant system (coolant tank in machine base) - Documentation - Central lubrication system - Machine vice - Various toolholders/collets/tools Space required (L x W x H): 1,350 x 1,100 x 1,700 mm Weight: 850 kg The machine has been visually reconditioned and technically inspected. Geometry inspection videos can be provided upon request. Backlash Y axis: 0.1 mm Backlash X axis: 0.2 mm Backlash Z axis: 0.15 mm Runout horizontal spindle: 0.001 mm Runout vertical spindle: 0.001 mm Parallelism deviation Y axis: 0.002 mm (measurement path: 150 mm) Parallelism deviation X axis: 0.01 mm (measurement path: 300 mm) Geometry inspection videos can be provided upon request. The following parts have been renewed: - Gears in horizontal head replaced and gear shaft newly mounted - New guide cover for Z axis + various attached parts - Machine refurbished Ljdpfxoyll A Te Ahwjhc - New LEDs installed - Y-axis chain tensioner overhauled - Reference point programming checked - Function test carried out

Condition: excellent (used), Tool milling machine DECKEL FP 1, three-axis digital readout TNC 113, from educational institution - CE marking - Travel X / Y / Z 300x160x340 mm - Heidenhain TNC 113 / plug-in control Lsdpjyln Irjfx Ahwehc - Spindle speed range 40 - 2000 rpm - Infinitely variable feed in all three axes - Rapid traverse in all three axes - Vertical head adjustable by 100 mm - Vertical-horizontal milling facility - Tool holder ISO 40 - Drive power 1.5 / 1.9 kW - Fixed angle table - Chip tray - Coolant system - Work light - Documentation Dimensions: LxWxH 1.3x1.2x1.7 m / Weight: 950 kg Errors and omissions excepted

Condition: new, pressure: 150stroke: 300column width: 1570working speed: 5retracting speed: 10Workshop Press: Steel welded construction Any stop position Pressure gauge Safety valve against overload 2 V-prisms Height-adjustable table Table up/down device Control with operating lever Equipment according to CE regulations, operating manual in German (Sample photo) Specifications: Press force: 150 tons Motor power: 11 kW Stroke: 300 mm Clear distance between columns: 1,570 mm Piston Ø: 280 x 200 mm Feed speed: 9 mm/s Working speed: 5 mm/s Lhsdpfx Ahsd Ab Ndswjc Return speed: 10 mm/s Length: 2,500 mm Width: 1,000 mm Height: 2,270 mm Weight: 2,100 kg

Condition: reconditioned (used), Year of construction: 1976, Universal Tool Milling Machine Manufacturer: DECKEL Model: FP 1 Year of manufacture: 1976 – workshop inspected Machine No.: 51720/08 Geometric acceptance with inspection protocol Accessories: - 3-axis digital readout K+C Arbah-M, new - Fixed table 600 x 210 mm (T-slot 12 mm) - Vertical milling head SK 40 with draw thread S 20 x 2 - Coolant system - Operating manual Lsdpfx Ahoyipmwswshc Used as seen, without warranty The machine technically corresponds to the standard at the time of manufacture.

Condition: excellent (used), functionality: fully functional, spindle mount: MK 0, Accessory device for milling machine Deckel FP 1 The slotting head is suitable for keyway slotting operations on the milling machine. It is suitable for planing operations in the vertical direction (Z-axis) on the milling machine. The slotting head can be swiveled 360 degrees. The stroke of the ram is adjustable from 0 mm to 80 mm. Number of strokes: 16 to 200 strokes per minute. Tool holder approx. 16 x 16 mm. Accessories: 5 slotting tools with widths of approx. 5 mm, 7 mm, 9 mm (tool shank 16 x 15 mm). The slotting head is used. This is an original Deckel accessory device. The unit was only used by us for precision work. The slotting head is in very good condition. Weight: approx. 30 kg Price: Ex works, VAT can be shown separately. Payment: Invoice with VAT indicated. Payment upon collection or in advance. Delivery: Shipping via a parcel service is possible. Self-collection is possible. Terms of delivery: Lhedpjyk In Nefx Ahwec We deliver according to the Machineseeker standard contract, Standard purchase contract for used machinery from Machineseeker. A standard contract can be downloaded from Machineseeker. Delivery time: Available immediately.

Condition: used, Year of construction: 1981, Technical details: x-travel: 400 mm Ledju Nc Hkjpfx Ahwohc y-travel: 420 mm z-travel: 380 mm table surface area: 710 x 400 mm max. table load: 120 kg range of revolution per miute: 45 - 2240 / 18 step U/min feed continuous: 6,3 - 600 / 2 steples mm/min quill stroke vertical: 100 mm quill stroke: horizontal: 100 mm spindle taper: vertical/horizontal: SK 40/SK40 spindle head swivable left - right: 90 ° distance table/horizontal spindle: min./max.: 200 / 325 mm distance table/vertical head: min./max.: 150 / 730 mm total power requirement: 5,5 kW weight of the machine ca.: 1,95 kg machine dimensions LxWxH: 1,7 x 1,4 x 1,9 m dimensions electric cabinet: 850x500x1500 mm The milling machine is equipped with a 3-measuring path display. incl. machine feet and operating instructions *

Condition: used, tool adaptor 88 Lsdsv Dxzcopfx Ahwshc length 560 mm center height of top slides 65 mm weight 17 kg Counter holder / horizontal milling device for tool milling machine Deckel Mod. FP 1 consisting of upper beam and mounting of the milling arbor. The distance from the middle of the milling arbor to the lower edge of the counter holder is 65 mm, the width of the guide is 88 mm. Machine dealer with own stock of 1600 m².
