Universal tool milling machine

DECKEL FP 2

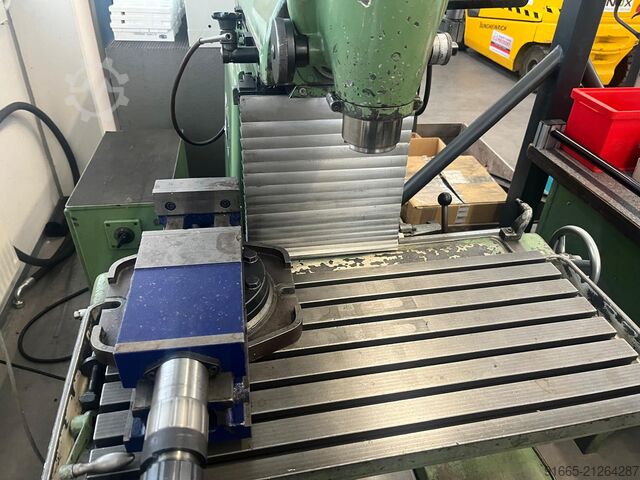

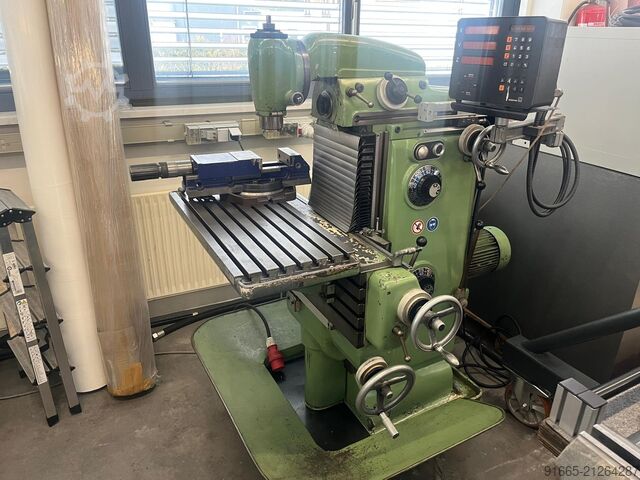

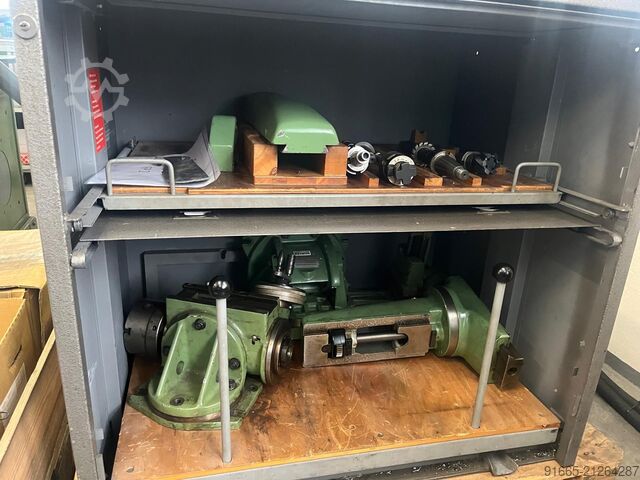

Condition: excellent (used), Year of construction: 1979, functionality: fully functional, Universal Milling Machine Deckel FP2 with 3-Axis Active – TNC 111 Digital Readout by Heidenhain, incl. Accessories, Excellent Condition Technical Data: >> Year of manufacture: 1979, Machine No. 2202-10512 >> Fixed angle table >> Spindle speeds: 25 – 2500 rpm >> Infinitely variable feed on 3 axes >> Rapid traverse on 3 axes >> Drive power: 2.2 kW >> Spindle brake >> Travel X/Y/Z: 400/220/400 mm >> Vertical milling head adjustable 150 mm on spindle carrier >> Vertical and horizontal quill – SK40 extendable Redjy H Ibcopfx Abbot >> Drawbar system M16 >> Weight approx. 1400 kg Equipment and Accessories: >> 3-axis TNC 111 Active digital readout by Heidenhain >> Coolant system >> Central lubrication >> 1 accessory cabinet containing: Collets, tool holders, clamping tools, tailstock, Dividing head with 3-jaw chuck, vise, tailstock, indexing plates, and much more About the Machine: For sale is a Deckel FP2 universal milling machine in excellent condition. The FP2 comes from a state-operated laboratory where it saw only minimal use. It includes an accessory cabinet with a wide range of tools. The machine has very little backlash, and all spindles move smoothly. The geometry is outstanding. Even at maximum spindle speeds, the milling machine runs quietly. On this newer FP2 model, the feed on all three axes is continuously adjustable and each axis has rapid traverse. A major advantage is the active 3-axis digital readout. With the Heidenhain digital control, set dimensions can be entered and the machine will automatically travel to these positions. An oil change has been carried out. The machine has been mechanically and electrically checked. The Heidenhain digital display makes operation easier and even more precise. Take advantage of the opportunity to view and test the machine under power on site.

Condition: good (used), For sale is a Deckel FP2 with high-speed milling head (V-belt drive with gear ratio) Rjdpfxelz R Iws Abbjt The machine was only used for copper & graphite processing, so it is not subjected to heavy use The machine is ready for use and fully functional A digital display can be retrofitted for an additional charge. The machine can also be sold without a milling head. Partial device NOT included Accessories available for an additional charge Tool holder: SK 40 Travel paths X/Y/Z: 400 / 200 / 400 mm Speed range: 40 - 2000 rpm Vertical spindle travel: 60 mm Horizontal spindle travel: 100 mm Feed rates: 8 - 400 mm/rev Table size: 700 x 330 mm Motor power: 2.2 kW Connection: 400 V / 16 A plug Weight: approx. 1300 kg All prices plus VAT Machine purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? For more information or contact options, visit us on our website

Condition: ready for operation (used), Tool Milling Machine / DECKEL FP 2 with 3-axis Heidenhain Digital Readout ND 780 - Travel (X/Y/Z): 450x230x400 mm - Automatic feeds / rapid traverse on all 3 axes - Heidenhain 3-axis digital readout ND 780 - Spindle speed range: 40–2000 rpm Redpfx Abey Ipgijbst - Universal tilting/swiveling/rotary table - Horizontal / vertical milling setup with vertical sliding head - Tool holder ISO 40 - Coolant system - Chip tray - Various tool holders and collets - Documentation Dimensions: LxWxH 1.5x1.7x1.8 meters / Weight: 1600 kg Errors and omissions excepted

Condition: good (used), Year of construction: 1982, functionality: fully functional, Tool milling machine with 3D control, manual handwheels, and a universal table adjustable in three axes. Control: Deckel Dialog Control 4: 3D contouring control, including drilling and milling cycles Monitor, electronic handheld control panel Terminal for program input and output Technical specifications: Travel range X/Y/Z 300 x 220 x 400 mm Rjdpfx Abswid Spjbot Speed 31.5 - 3,150 rpm with 21 gear stages Feed rate 4-2,000 mm/min Rapid traverse 4 m/min Drive power 1.6-2.0 kW SK 40 tool holder Hydraulic tool clamping Universal milling table with digital display: Clamping area 600 mm x 320 mm Table load 180 kg C-axis rotation range 360° A-axis tilt range 15°/45° B-axis swivel range +/- 45° Vertical milling head: Manual quill stroke - horizontally 65 mm, vertically 60 mm Additional equipment: Manual machine handwheels with scale Direct travel measurement of the NC axes Cooling water system Special accessories: Approx. 33 tool holders (without tools) - see photo High-speed milling spindle Machine data: Machine weight approx. 1,380 kg Space requirement including accessories L approx. 2,940 mm, W approx. 1,900 mm, H approx. 1,960 mm Power supply: 380 V, 50 Hz, 12 kVA The machine is in good, fully functional condition. It can be inspected with power and chippings by appointment.

Condition: ready for operation (used), Cover FP 1 Milling machine Traverse path X-axis: 300mm Rsdpfxeuvih Hj Abbst Y-axis travel: 160mm Z-axis travel: 340mm Mounting: SK 40 with tightening thread Feed X-axis: 290mm Weight: approx. 940 kg (with pallet) Space requirement: 1300mm x 1200mm x 1800mm ( L x W x H ) Dimensions with pallet: 1400mm x 1400mm x 2000mm ( L x W x H ) You are welcome to come by for a viewing. We are happy to arrange a cost-effective forwarding agent for you. organize! You will receive a proper invoice. A net invoice can also be issued for foreign customers. Prerequisite is a valid VAT number. Subject to prior sale. Visit our store and have a look at our other offers. Company names and trademarks are the property of their owners and are used only to identify and describe the products. Deviations from technical data and errors in the description of the article may occur and are reserved.

Condition: reconditioned (used), functionality: fully functional, travel distance X-axis: 400 mm, travel distance Y-axis: 220 mm, travel distance Z-axis: 400 mm, spindle speed (max.): 2,500 rpm, spindle speed (min.): 25 rpm, year of last overhaul: 2026, Dear Sir or Madam, We are offering for sale a Deckel FP2 Aktiv. This newer model is particularly notable for its infinitely variable spindle speed control with Heidenhain Aktiv control, making operation both very simple and extremely comfortable. The machine has undergone extensive partial refurbishment in our workshop and is therefore in excellent condition. You are welcome to inspect the machine on site. Delivery time: on request Machine number: 2202-xxxx Table: Rigid angle table or rotary-tilting-swiveling table Travel (X/Y/Z): 400mm / 220mm / 400mm Drive power: 3 kW Number of spindle speeds: 16 Speed range: 25-2500 rpm Tool holder: SK40 Drawbar system: S20x2 Feed: Infinitely variable Equipment and accessories: 3-axis Heidenhain digital readout, stepless feed adjustment on all 3 axes, Heidenhain digital readout with Aktiv control, coolant system, central lubrication, technical documentation, machine leveling feet, safety devices (optional) Our service promise to you: - We are a certified master workshop specializing in mechanical engineering - All machines are thoroughly inspected - All lubricants and any worn parts are replaced in advance Redpfx Abox Hr Dzjbet - On request, we can fully or partially overhaul the selected machine for you - If desired, you can order further accessories such as tools, etc. directly - If desired, we can install additional equipment such as safety devices, etc. directly - We are also happy to handle shipping and/or installation for you

Condition: reconditioned (used), functionality: fully functional, travel distance X-axis: 400 mm, travel distance Y-axis: 220 mm, travel distance Z-axis: 400 mm, spindle speed (max.): 2,500 rpm, spindle speed (min.): 25 rpm, year of last overhaul: 2026, Equipment: documentation/manual, Dear Sir or Madam, We are offering a partially overhauled Deckel FP2 for sale. This newer model stands out particularly due to its stepless speed control, which makes operation very easy and extremely comfortable. The machine has undergone an extensive partial overhaul in our workshop and is therefore in excellent condition. You are welcome to inspect it on site. --- Currently 3 units available for immediate delivery! --- Availability: 3x immediately Machine no.: 2202-xxxx Table: fixed angular table or rotary-tilt-swivel table Travel distances: X 400mm / Y 220mm / Z 400mm Drive power: 3kW Number of spindle speeds: 16 Speed range: 25-2500 rpm Rsdpfjy Exayjx Abbst Tool holder: SK40 Drawbar thread: S20x2 Feed: stepless Equipment and accessories: Heidenhain 3-axis digital readout, stepless feed regulation on all 3 axes, coolant system, central lubrication, technical documentation, leveling feet, safety devices (optional) Our service promise to you: - We are a certified master workshop in mechanical engineering - All machines are thoroughly inspected - All lubricants and, if necessary, worn parts are replaced in advance - On request, we can fully or partially overhaul your selected machine - If desired, you can order additional accessories such as tools, etc. directly - If required, we can directly install further equipment such as safety devices - We are happy to arrange shipping and/or installation for you

Condition: used, Year of construction: 1976, Technical details: table surface area: 1300 x 190 mm range of revolution per miute: 60 - 4000 Stufenlos U/min feed continuous: Pinole: 0,06 / 0,12 / 0,24 mm/U quill stroke vertical: 140 mm spindle taper: SK 40 spindle head swivable left - right: 90° und 45° ° total power requirement: 3,0 kW weight of the machine ca.: 1620 kg machine dimensions LxWxH: 2,7 x 2,3 x 2,4 m Milling machine with universal milling head Spindle run right/left Table specifications: X/Y/Z travel: 860/380/460mm. feed X/Y/Z: 40 - 400mm/min. continuous rapid traverse 400mm/min. max. workpiece weight 30kg Equipment 3-way measuring display Mitutoyo with beam Rjdpfxeu Sq Emo Abbst machine lighting Coolant tank with pump X- and Y-axis feed adjustable incl. accessories comparable to the picture *

Condition: ready for operation (used), machine/vehicle number: 46436, Travel distances: longitudinal: 400 mm vertical: 400 mm horizontal: 200 mm Features: Rodoygia Eepfx Abbot - Sliding vertical milling head - Tilting angle table 260 x 600 mm - Various tool holders - Setup elements - Rotary table D:280 mm - Documentation Condition: workshop-tested

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: 9585, DECKEL Universal Milling and Drilling Machine Rjdsygicajpfx Abbet Model: FP 2 Machine No.: 9585 Year of manufacture: 1978/79 Condition: Good, operational condition Travel distances: longitudinal: 400 mm vertical: 400 mm horizontal: 200 mm

Condition: used, Year of construction: 1979, WANDERER Rjdpfx Ajru A S Aebbet TYPE:KFV2 X: 1200mm Y: 350mm Z: 450mm MADE IN GERMANY

Condition: used, Year of construction: 1989, x-travel 300 mm y-travel 300 mm z-travel 400 mm CNC-control DIALOG 11 spindle taper ISO 40 spindle turning speed range 31 - 5.000 U/min table-size 620 x 390 mm table load 250 kg power capacity 5,5 kW feeds -stepless- 2 - 6.000 mm/min quill stroke 80 mm voltage 380 V Rsdpfx Abjx Ndbqsbet total power requirement 11,0 kVA weight of the machine ca. 1,65 t dimensions of the machine ca. 1,85 x 1,90 x 1,80 m electric cabinet 1,35 x 0,70 x 1,70 m - Serial-No.: 2836-0175 - control: DIALOG 11 - electrical hand wheel - horizontal milling spindle - coolant equipment

Condition: used, x-travel 400 mm y-travel 200 mm z-travel 400 mm Rsdsyyqpvjpfx Abbot turning speeds 40 - 2.000 U/min tool taper SK 40 In our opinion, the machine is in good used condition and can be inspected under power by appointment. Accessories, tools and clamping devices shown are only part of the scope of delivery if this is noted in the additional information. Changes and errors in the technical data and information as well as Subject to prior sale!

Condition: used, Clamping table, clamping angle, T-slot table, rotary table, milling machine table -Clamping table: milling machine table -Table surface: 600 x 220 mm -Y-axis: 130 mm movable, hand crank with fine adjustment, see photos Redoqddi Uepfx Abbst -T grooves: groove width 12 mm, groove spacing 45 mm -Total dimensions: 690/490/H300 mm -Weight: 72 kg

Condition: like new (used), x-travel:300 mm y-travel:220 mm z-travel:400 mm surface area:620 x 390 mm turning speeds:31 - 3150 U/min Rodpeh Ty Hkjfx Abbot feed range:1 - 3600 mm/min rapid traverse:4000 m/min
