Used edge milling machines for sale (14)

Condition: new, Catalog number: H0531 – new machine, in stock – tiltable spindle – with side trolley – CE certificate – DTR documentation in Polish TECHNICAL DATA spindle diameter 30mm spindle stroke 100mm max spindle diameter 180mm spindle adjustable at an angle of -5+45 degrees Chedpfjvw Rtwox Aduof table dimensions 1000x360mm sliding table 1000x250mm 4 types of speeds 1800, 3000, 6000, 9000 U/min engine power 2.8kW/3.9kW exhaust nozzle diameter 100mm dimensions length/width/height 1150/1155/730mm weight 270kg PRODUCT FEATURES Milling machine lower spindle - table FS 200SF is a massive construction with a table top made of grey cast iron with a high-quality gauge mounted to hold the processing element and high precision of adjustment. The price includes a milling machine with a sliding side carriage. FS 200SF with a tilting spindle is a device with a wide 4-step speed range: 1800/3000/6000/9000 It is successfully used for processing the edges of straight-line elements and for creating decorative strips, grooves, projections, tenons and dovetails The welded steel body and large cast iron table make it a very solid and stable machine, not susceptible to vibration A precise formatting table included Net price: PLN 14,100 Net price: EUR 3,350 Net price calculated according to the exchange rate of PLN 4.2 / EUR (in the event of greater exchange rate fluctuations, the price may change)

Year of construction: 1988, condition: used, - with lateral crosscut saw Codpfx Asbaz E Asdushf

Condition: excellent (used), SCM MiniMax Formula1 8/24 milling machine Technical specifications: Spindle diameter: 40 mm Spindle height: 140 mm RPM: 3000/4500/6000/7000/10000 r/min Manual spindle height adjustment Spindle lock Work table dimensions: 730x1860 mm Dimensions of working table with carriage: 760x600 mm Culagi arms adjustable Power supply: 400 V Overall dimensions: Length: 3680 mm Csdpfx Adjuyg Tceuehf Width: 1200 mm Height: 1500 mm

Condition: used, Wigo Double squaring machine with 3 groups per side, complete with inverters. - right and left circular saw - right and left cutter Chedpfx Asummldsdujf - right and left cutter Max working width: mm. 1500 Engine power: Circular saws: 3KW X2 Toupie Milling Machines: 5.5kw x2 Rotary Sanders: 5.5kW x2 Feed motor: 4KW Shoulder width adjustment motor: 3KW

Condition: new, functionality: fully functional, total length: 3,950 mm, total width: 1,220 mm, total height: 1,610 mm, overall weight: 1,900 kg, input frequency: 50 Hz, input voltage: 400 V, Fully automatic large-format edge polishing machine with CNC control and pivoting milling/polishing unit for finishing sawn or pre-milled surfaces. The machine is suitable for transparent, technical, or decorative plastics (PMMA, PC, PETG, etc.) as well as for the processing of composite materials (PMMA with paper or aluminum). The required process parameters can be conveniently retrieved via the integrated material library, based on the material to be processed and the desired surface finish. A tool recommendation and the corresponding setup for the specific operation are also displayed. The high precision of the polishing table significantly reduces the formation of streaks during processing. Additional mounting points for side stops or further guiding aids allow for flexible adaptation to any product. Specific features: - CNC control with material library - Machine body and front stop - Milling/polishing unit - Working area - Multifunctional table - Tools Technical data*: Material thickness (0°/45°/60°): 2 - 120/85/60 mm Material length: 20 - 3,050 mm (with turnover) up to 6,100 mm Table width: 525 mm Pivot range: 0° - +63° Milling depth (0°/45°/60°): 0.05 - 1.5/3/3 mm Spindle speed: 6,000 - 12,000 rpm Feed speed: 0.1 - 5 m/min Return speed: 50 m/min Number of clamping cylinders: 6 (optionally up to 20) Number of side stops: 1 (optionally up to 8) Extraction port Ø: 100 mm Machine length: 3,950 mm Machine width: 1,220 mm Machine height: 1,610 mm Working height: 926 mm Compressed air supply: 6 bar Operating voltage: 400 V, 50 Hz, +PE +N Milling motor power: 4.5 kW Drive motor power: 1.2 kW Total power: 7.5 kW Weight: 1,900 kg Tool type: EURACRYL ES with quick-change system Vacuum table: Included Remote maintenance: Included Tool holder: Included (1x tool holder for 4 inserts) Tool: Not included *Subject to material tests, depending on material type, tool equipment, and surface finish Scope of delivery: - 1 operating manual Item no. 0175200 Csdpfx Asxd Si Aoduehf

Year of construction: 1996, condition: used, Profile edge grinding and milling machine, edge grinding machine, edge grinder, grinding machine -with: copying device Chodpfod Dzliox Aduof -Equipment: 1 grinding head -Power: 1.1 kW -Speed: 500-1500 rpm -Dimensions: 1200/1420/H1520 mm -Weight: 656kg Compact linear milling and grinding machine for any profile on strips and panel edges. Extremely short changeover times to a stationary grinding machine. Corner processing on MDF and solid wood workpieces with different radii (R = 1 to R = 30 mm) and corner angles. Manual creation of corner angles from 25 to 170 degrees. The grinding process for corner processing takes place in one clamping (approx. 10 seconds).

Condition: excellent (used), SCM internships in excellent condition Csdpfet Hkq Rox Adujhf

Condition: new, Clean air extraction / dust extractor Dust-tested to H3, residual dust content less than 0.1 mg/m³ Suitable for extracting and separating dry wood and plastic chips High extraction performance with low space requirement Maximum performance in this class Very quiet Designed for commercial use Robust and compact housing made of galvanized sheet steel Extraction nozzle can be easily converted from left to right for flexible use Large inspection openings Large, mobile chip container with clamping bracket and chip collection bag Dust extractor already fully assembled on delivery, so can be used quickly All models are mobile Polyester fleece filter material, aluminized, therefore with long service life Antistatic filter tested and approved to category M-BIA as standard The fan is connected downstream of the filter Efficiency class extraction motor IE3 Csder A Eq Rjpfx Adushf Nominal volume flow 1448 m³/h Nominal negative pressure 2242 Pa Power drive motor 2.2 kW, 400 V, 50 Hz Chip collection volume 2 x 165 l Nominal width of external suction connection inlet 160 mm Filter area 9.21 m² Residual dust content < 0.1 mg/m³ Sound pressure level max. 73 dB(A) L x W x H approx. = 1618 x 830 x 1653 mm Weight approx. 268 kg VERSION PM Automatic filter cleaning with pneumatic system that moves a scraper frame

Condition: used, Technical data: Spindle diameter: 35 mm Spindle height: 140 mm RPM: 3000/4500/6000/8000/10000 obr./min Manual spindle height adjustment Spindle lock Work table dimensions: 350x1190 mm Culagi arms adjustable Extraction spigot diameter: 115 mm Motor power: 4 kW Chjdpfx Aep T Un Seduof Power supply: 380 V Overall dimensions: Length: 1190 mm Width: 860 mm Height: 1600 mm

Condition: used, Year of construction: 2000, machine/vehicle number: 0-260-06-0228, Foot control 1200 x 800 mm suction nozzle 80 mm Csdpfx Aoigadlsduohf pneumatic connection cable + plug 16 A 1 set of operating tools 1 set of sensing rollers

Condition: good (used), Year of construction: 1985, external dim. 1200x1050x1700 mm Worktable 1020x800 Tool shaft 30mm Tool adjustment -10° do +45° Chedpfxeivy Tfe Adusf Power 7,5 kW

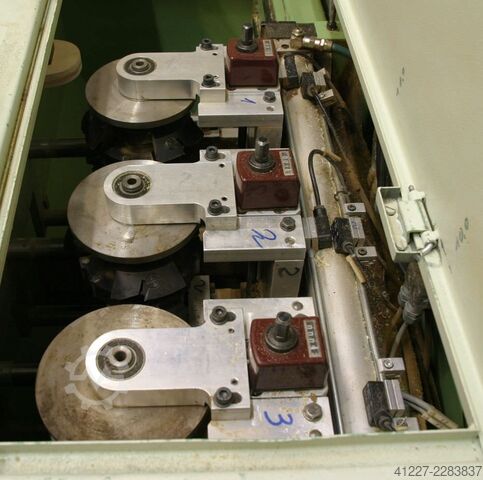

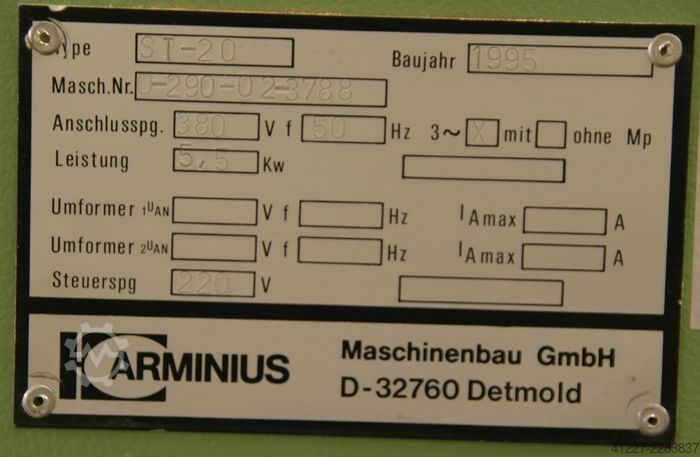

Year of construction: 1995, condition: used, Profile edge grinding and milling machine, edge grinding machine, edge grinder, grinding machine Chjdpfx Adocg Al Ssuof -with copier -2x: milling heads -Power: 1.5 kW -Speed: 3000-6000 rpm -1x: grinding head -Power: 1.1 kW -Speed: 500-1500 rpm -Milling and grinding heads in thickness: adjustable -Max. Workpiece thickness: 40 mm -Max. Corner radius: 40 mm -Dimensions: 1200/1600/H1520 mm -Weight: 782 kg

Condition: used, Technical data: Spindle diameter: 35 mm Spindle height: 145 mm Max tool size: 220 mm Revolutions: 2900/4400/6000/8000/10000 rpm Manual spindle height adjustment Spindle lock Working table dimensions: 300x1100 mm Adjustable culagi arms Engine power: 5.5 kW Codpfxeh Dzxzo Aduehf Power supply: 380 V Producer: Casadei Overall dimensions: Length: 1170 mm Width: 800 mm Height: 1230 mm

Condition: new, Technical data: Spindle diameter: 35 mm Csdpfx Adohp N Nbeushf Spindle height: 140 mm Revolutions: 1300/2500/3500/5000/6000/8500 rpm electric spindle height adjustment Spindle lock Working table dimensions: 700x1200 mm Adjustable culagi arms Engine power: 4 kW Power supply: 380 V Producer: Paoloni Overall dimensions: Length: 1,200 mm Width: 850 mm Height: 1340 mm
