Used tilting spindle moulders for sale (60)

Condition: new, Year of construction: 2023, Stable cast iron construction Milling spindle can be swiveled backwards from 0° to -45° Right-left rotation of the milling spindle Generously dimensioned milling unit made of cast iron, attached directly to the table Solid and precise cast iron table Standard curved milling protection hood Aluminum sliding carriage ball contact system Torsion-resistant, highly precise, smooth-running and problem-free in daily use 10-year SCM guarantee on wear of the guideways Milling spindle mounted high up with precision ball bearings, resulting in the lowest possible bearing load and the longest possible service life Exact router fence with quick adjustment and fine adjustment with a scale on the stop jaw Integrated suction connection Itjdpfx Abeiknp Rjnjd Large milling table opening allows the use of larger tools Weight approx. 290 kg Extraction connection diameter 2 x 120 mm Working table L x W = 1000 x 435 mm Table height 900 mm Sliding carriage length 1000 mm Sliding carriage width 270 mm Drive motor power 5.0 kW, 400 V, 50 Hz Milling spindle inclination 0 to -45 ° Spindle usable length 100 mm Overhang max. above table 130 mm Spindle speeds 3500/7000/10000 rpm Mandrel diameter 30 mm Tool diameter max. lowerable 180 mm

Condition: new, spindle moulder with tillable spindle guaranteed quality at your finger tips - easy-to-use the operator easily adjusts all movements due to a hand wheel with mechanical decimal readouts located on the front of the machine. spindle speed readout via LED's left right turning of spindle spindle moulder fence with manual adjustment machine in version 'LL' with left and right table elongation (2500 mm), pull - out work piece support and emergency stop button carriage on work table for tenoning works incl. fence and work piece clamp incl. feeder unit STEFF 2048 4 rollers 8 speeds work table dimensions 1200 (2500) x 855 mm spindle DM 30 mm usable spindle lenght 125 mm max. tool DM under table 240 x 80 mm Itsdpfx Ascuwptsbnjd suction connection DM 2 x 120 mm motor 5,5 kW INcL. OPTIONS: version 'LL' with long cast iron tables (2500 mm) & pull out work piece support in front fence with hand wheel adjustment and numerical read out machine dimensions L x B x H = 2500 x 855 x 900 weight approx. 500 kg Advise used machines: • Technical data without obligation, mistake and intermediate sale reserve. • Price is considered ex-location price • All articles or machines are bought as seen without any entitlement on warranty. • It is left to the choice of the buyer to view the machines before at its location. • Special arrangements are possible but only valid in written form. (We answer your inquiries only with stated address + telephone number!)

Condition: new, work table dimensions 2500 x 780 mm spindle DM 30 mm tilting of spindle +/- 45,50 usable spindle lenght 140 mm Max. tool DM under table 300 x 80 mm suction DM 1 x 120 & 2 x 100 mm Motor elektrospindel 7,50 kW elektro spindel with inverter for speed 900 to 12.000 RPM control panel with mit "Easy Touch 7" program "Flex"- fence with autom. adjustment via 'Easy Touch 7' left right turning of spindle table elongation front INCL. OPTIONS: - "Fast” table with autom. adjustment via 'Easy Touch 7' control - version “LL” with 2 cast iron tables (2500 mm) Advise used machines: • Technical data without obligation, mistake and intermediate sale reserve. • Price is considered ex-location price • All articles or machines are bought as seen without any entitlement on warranty. • It is left to the choice of the buyer to view the machines before at its location. • Special arrangements are possible but only valid in written form. Iodpfsd Etkhex Abnstd (We answer your inquiries only with stated address + telephone number!)

Condition: excellent (used), Year of construction: 1999, Tilting Spindle Moulder Panhans Type 231, tiltable from -5 to +45 degrees Reinforced drive motor 7.5 kW with automatic motor brake Reverse/forward operation Itsdpfxoyrhhrj Abned Tilt angle manually adjustable from -5 to +45 degrees with handwheel and dial gauge Height adjustment manually adjustable with handwheel and dial gauge Four spindle speeds: 3000, 4500, 6000, and 9000 rpm Spindle diameter 30 mm with quick-change nut Planed machine table, extended version with extendable workpiece support Fence with fine adjustment, main fence with Siko counter and resettable counter for easy milling depth adjustment Cast iron jaws, left 500 mm, right 500 mm, in very good condition 4-roller feed unit Haffner, with 4 speeds, reverse and forward operation Feed socket Adjustable anti-kickback device for plunge routing Extraction ports 2 x 120 mm Emergency stop switch CE mark Some parts of the machine have been repainted Very well maintained condition Dimensions approx. 2350 x 1200 x 1700 mm (LxWxH). Weight approx. 900 kg. The machine can be demonstrated on site by appointment. We only offer machines that are ready for demonstration in our warehouse; see also "more offers from this supplier."

Condition: excellent (used), Year of construction: 1994, Tilting Spindle Moulder Manufacturer: Martin Model: T25 Year of manufacture: 1994 Tilting range: -5° to +45° Height and angle adjustment: Electric Spindle diameter: 2 spindles, 30 mm / 40 mm Power: 5/6 kW Speeds: 3,000 / 4,500 / 6,000 / 9,000 rpm Itodpfxoyvrnro Abnod Left/right rotation: Yes Motor brake: Yes Weight: approx. 1,500 kg

Condition: used, Motor output 5,9 kW Spindle diameter 30 mm reus 3000 / 4500 / 6000 / 9000 U/min Itedpfxsyrhv Nj Abned Panhans Type 259 swivel spindle milling machine or table milling machine for precise milling, profiling, and rebating of solid wood and wood-based materials. The machine has a swiveling milling spindle, enabling versatile machining at different angles. Ideal for carpentry, furniture making, and interior design. Includes Haffner feed device.

Condition: repair required (used), Year of construction: 1991, Tilting spindle moulder Manufacturer: Panhans Model: 240 Year of manufacture: 1991 The electronic angle value detection (actual value) is not functional. Table: 135 x 80 cm Power: 11 kW Tilting range: -5° to +45° Angle adjustment: Electric Height adjustment: Electric Spindle speeds: 3/4.5/6/9,000 rpm Left/right rotation: Yes Motor brake: Yes Weight: approx. 780 kg Ijdpfx Asx Tgtwobnstd Incl. power feed

Condition: used, used, top condition, incl. milling fence Milling fence with fine adjustment, central adjustment via rack and pinion, new fence jaws Make: Bäuerle Itodpfxsyt R Nuj Abnsd Type: SFM 2 Machine no.: 8719 Tiltable from 0 to 45° Brake Motor with 2 speeds/pole changeable 6 speed levels: 1,800 - 4,500 - 5,600 - 6,000 - 9,000 - 12,000 rpm Right/left rotation Table size: 1150 x 1200 mm Milling spindle diameter: 30 mm Milling fence Space requirement approx. 1200 x 1200 x 1300 mm Weight approx. 1000 kg Location: 97447 Gerolzhofen, free loaded, unpacked Delivery in as-inspected condition, function tested without overhaul, without warranty or guarantee

Condition: as good as new (ex-display), functionality: fully functional, power: 7.35 kW (9.99 HP), input voltage: 400 V, input frequency: 50 Hz, spindle diameter: 30 mm, pivoting range: 46 °, rotational speed (max.): 18,000 rpm, rotational speed (min.): 1,000 rpm, The new profil 92 M e-motion spindle moulder is Format4’s premium model, offering maximum operating comfort and ensuring absolute efficiency through minimal setup times during milling operations. The advanced electric spindle features an HSK 63F interface for a tool quick-change system with pneumatic clamping. The swiveling range of ±46° enables limitless machining versatility. With the self-explanatory e-motion control via a 15-inch touchscreen panel, spindle speed, spindle height and angle, as well as the fence position and even the table opening, can be set intuitively and precisely. Integrated memory for tools, spindle settings, and milling programs ensures perfect repeat accuracy and the shortest setup times. Electrically controlled, eccentric inserts provide maximum table support area and significantly reduce adjustment work, especially when swiveling the spindle. The newly developed heavy-duty precision milling fence features two powered axes for precise depth adjustment of the complete fence, plus an independent, adjustable depth stop for the right-hand feeding jaw. For convenient access during curve milling, the fence can be swung completely out of the working area. Optionally, the Format4 profil 92 M e-motion can be equipped with an electrically height-adjustable power feeder. Further technical data: - Maximum tool diameter: 250 mm - Usable spindle height: 140 mm - Height adjustment: electric Optional equipment: 12 Potential-free contact 106 HSK 63F spindle, Ø 30 mm, 140 mm 118 Integral safety rulers, 650 mm 119 Table opening 255 mm with controlled eccentric inserts 183 Table extension on both sides 670 mm with 2200 mm sliding frame 213 Electrically height-adjustable feeder support, incl. horizontal tube 220 Parts list holder with A9 clipboard Advantages: - Highly efficient electric spindle with stepless speed adjustment and HSK 63F interface - Position control for milling height and angle ±46º - Position control for milling fence including offset function - Smartouch with intuitive e-motion control system - Table opening with controlled eccentric inserts (optional) - Electrically adjustable height for the feeder on overhead column (optional) Further information: - The electric spindle features a HSK F63 tool quick-change system - Clamping range: 2–25 mm with OZ25 collets - "Integral" safety rulers: 650 mm Iodpswztr Njfx Abnjtd - Table extension on both sides 670 mm with 2200 mm sliding frame - Table opening 255 mm with controlled, eccentric inserts

Condition: used, Year of construction: 1994, Used, excellent condition, top specification, extensive accessories with 3-axis control, pneumatic spindle change, electronic adjustment of the milling fence 99 memory programs, 15 change spindles, adjustable table insert Manufacturer: SCM Model: T150 Class Year of manufacture: 1994 Upgraded motor: 6 / 7.5 kW tilt range from -10° to +45° motor brake motor with 2 speeds, pole-changeable speed settings: 3250/5000/6500/10,000 rpm right and left rotation Table size: 2700 x 700 mm Milling spindle diameter: 15 x 30 mm / 1 x 40 mm Milling spindle clamping: HSK Quick-change spindle system: SK / HSK Table extension: 2 x 650 mm Extendable frame support Aluminium fence jaws Milling fence with fine adjustment Digital displays for milling fence – diameter – depth of cut – jaw offset Guard and pressure device Top control panel Swiveling control panel - electric height adjustment - electric tilt adjustment - electric milling fence Positioning control for 3 axes: height/tilt/milling fence with 99 programs Digital displays for tilt angle – spindle height – fence depth Swivel-away fence device Socket for feed unit Original price approx. 40,000 – 45,000 EUR Extraction connection 120 x 120 mm Iedjythdvspfx Abnjtd Space requirement approx. 2700 x 1300 x 1800 mm Weight approx. 1073 kg Location: 97447 Gerolzhofen, free loaded, unpacked Handover in the current condition as inspected, function tested, without overhaul, without warranty or guarantee.

Condition: new, functionality: fully functional, input voltage: 400 V, rotational speed (max.): 9,000 rpm, rotational speed (min.): 1,800 rpm, table width: 360 mm, table length: 1,000 mm, overall weight: 218 kg, Equipment: CE marking, Smooth and effortless movement of the sliding table carriage ensures easy and convenient processing of large workpieces. A robust spindle moulder safety hood with precisely adjustable aluminium limiting rails guarantees accuracy and operational safety. The electronic display allows for quick and legible spindle speed readings. The equipment includes a tilting fence with an eccentric tensioner for stable material guidance. The dynamically balanced spindle ensures exceptionally quiet and smooth performance. Spindle speed changes are quick and convenient via the poly-V belt. A stable outrigger table (optional) allows processing of large components without the need for additional support. All aluminium parts (sliding table, fences, etc.) are anodised, increasing durability and resistance to corrosion. The large spindle moulder unit, made from cast iron and tiltable from +5° to -45°, ensures versatile application. The backward tilting spindle offers added benefits – better utilisation of feed, maximum safety, and precise machining. Technical specifications: Itedpfxjyt I Ego Abnjd Table size - width: 1000 mm Table size - depth: 360 mm Sliding table length - format/roller: 1000 mm Sliding table width - format/roller: 240 mm Sliding carriage type: Sliding table Outrigger table dimensions (optional): 600 x 410 mm Working height: 895 mm Spindle diameter: 30 mm Tilt range of spindle: +5° to -45° Spindle height adjustment: 100 mm Clamping length: 100 mm Max. tool diameter: 200 mm Max. retractable tool diameter: 180 mm Table opening: 200 mm Spindle speed min.: 1800 rpm Spindle speed max.: 9000 rpm Number of speed settings: 4 (1800 / 3000 / 6000 / 9000) Extraction port diameter: 100 mm Motor power: 3.9 kW Motor power S1 100%: 2.8 kW Voltage: 400 V Dimensions - width: 1240 mm Dimensions - depth: 710 mm Dimensions - height: 1200 mm Weight approx.: 218 kg

Condition: like new (used), Year of construction: 2023, functionality: fully functional, power: 7.35 kW (9.99 HP), input voltage: 400 V, input current: 14 A, input frequency: 50 Hz, type of input current: three-phase, spindle diameter: 30 mm, pivoting range: 45 °, rip fence adjustment: manual, actuation type: electric, rotational speed (max.): 3,500 rpm, rotational speed (min.): 10,000 rpm, table width: 770 mm, table length: 1,160 mm, feed roller diameter: 120 mm, power of feed motor: 750 W, Equipment: CE marking, documentation/manual, We are offering this near mint FELDER F 900 M tilting spindle moulder, year of manufacture 2023. Type: F 900 M Serial number: 431.05.404.23 Voltage: 400.0 V Phases: 3 Power: 7.35 kW Itsdpfxjytqi Uo Abned Frequency: 50 Hz Current: 14.0 A Code: 7954 Year of manufacture: 2023 Country of manufacture: Austria If you have any questions or need further information, please feel free to send us a message or call us.

Condition: excellent (used), Year of construction: 2007, Tilting spindle moulder Utis CSN Digital & stand for feed unit, feed unit by Maggi Italy Year of manufacture 2007 Itedpfxjwudlyj Abned

Condition: used, spindle diameter: 30 mm, rotational speed (max.): 10,000 rpm, rotational speed (min.): 3,000 rpm, table width: 1,000 mm, table length: 1,200 mm, total length: 1,300 mm, total width: 1,100 mm, total height: 1,500 mm, overall weight: 1,000 kg, height adjustment type: electric, space requirement height: 1,500 mm, space requirement length: 1,300 mm, space requirement width: 1,100 mm, spindle height adjustment: 120 mm, spindle speed (max.): 10,000 rpm, spindle speed (min.): 3,000 rpm, No. 04514 Tilting spindle moulder Kölle F 45 Used Spindle diameter 30 mm Table size 1200 x 1000 mm LW Height-adjustable and tiltable Milling spindle can be tilted from -5° to +45° By turning the milling fence by 180°, milling can be carried out at the rear of the machine, resulting in a tilting range of +45° to -45° Height adjustment 120 mm Milling speeds 3000 / 4000 / 5000 / 6000 / 8000 / 10000 rpm Tool holder MK 5 Milling fence with central fine adjustment Technical documentation included Transport dimensions approx. 1300 x 1100 x 1500 mm LWH Weight approx. 1000 kg To avoid possible misunderstandings, an on-site inspection is possible and recommended by appointment Iodpfxoyh I Hks Abnotd Sold as is Technical specifications, condition description, year of construction and scope of delivery according to manufacturer's brochure or previous owner, without guarantee Subject to prior sale For used machines, any warranty is excluded, the following applies: “sold as seen” Terms of payment: Prices plus VAT, payment before collection or dispatch Terms of delivery: ex warehouse

Condition: excellent (used), Felder F 700 Z Spindle Moulder 205 cm sliding table integrated in the worktop, Spindle adjustable in height and tiltable 0-45 degrees, Interchangeable 30 mm spindle, 7.3 kW motor, electric brake, Itodpfxeyn Iu Rj Abned Forward and reverse rotation, 4 spindle speeds, Very good condition, fully ready for operation.

Condition: good (used), Used Kölle tilting spindle milling machine Model F 45 Table size 1070 x 1000 mm Iedpfxjv N Dcpj Abnetd Table height 850 mm Motor 5.5 HP / 400 V Right/left rotation Speed 2800/4500/6000/10000 rpm Spindle Ø 30 + 40 mm, Spindle stroke 110 mm Electric height and tilt adjustment Swivel range -5 to +45 degrees Electric motor brake Aigner integral stop 650/650 mm Milling stop rotatable 360° Weight approx. 1050 kg

Condition: ready for operation (used), Year of construction: 1987, functionality: fully functional, 4 spindle speeds: 3000/4500/6000/9000 rpm. Right-/left-hand rotation Control panel on top Table extensions and pull-out table support Motor 4.7/5.7 kW Iodsxwxrqjpfx Abnjtd Spindle diameter 30 mm Weight approx. 1000 kg With feed unit WEGOMA VS 34, 3 rollers Tenoning table for cross machining

Condition: new, Year of construction: 2026, functionality: fully functional, The CORMAK SH-30S PRECISA spindle moulder (shaper), available in 400V or 230V versions, is a high-performance and precise woodworking machine designed for professional wood processing in industrial plants, carpentry workshops, and craft studios. Thanks to its stable construction, interchangeable spindle, and wide range of spindle speeds, it ensures top working standards when milling straight components as well as complex shapes. Main Advantages of the Machine Stable cast-iron table construction ensures effective vibration damping and perfectly smooth material feed. Spindle speed range: 1400 / 4000 / 6000 / 9000 rpm enables machining of various wood species and wood-based materials. Reinforced and dynamically balanced spindle guarantees quiet and precise vibration-free operation. Height adjustment with scale allows accurate setting of machining parameters. Comprehensive standard equipment set – tilting fence, holders, and assembly tools included. Complies with all occupational health and safety regulations, DTR documentation, and CE standards – ensuring safe operation and regulatory compliance. Construction and Technology The construction of the CORMAK SH-30S PRECISA spindle moulder is based on a solid high-grade cast-iron body, effectively eliminating unwanted vibrations during operation. The 620 × 510 mm work table is precision-ground to provide even and smooth material sliding. The 2.2 kW motor (400V or 230V version available) ensures sufficient power even during intensive use. With a 100 mm spindle stroke and a maximum clamping height of 105 mm, the machine is highly versatile and suitable for a wide range of milling operations. Precision and Work Efficiency The CORMAK SH-30S PRECISA spindle moulder combines high build quality with functionality. Multi-stage spindle speed adjustment allows optimal parameter selection depending on the type of material and cutter profile. Precision guides and fences enable accurate reference point settings, resulting in repeatability and superior final finish quality. Applications Itsdpfxovugf Ds Abnjd The CORMAK SH-30S PRECISA model is suitable for: Professional carpentry shops and production facilities Furniture workshops and craft studios Production of decorative moldings, grooves, rebates, tenons, and finger joints Edge processing of straight and curved components Standard Equipment Tilting fence 60° left/right Workpiece holder Workpiece fence Anti-slip feet Assembly tools Optional Equipment An interchangeable spindle with ER20 collet chuck allows quick changeovers and adaptation to various tools – price: PLN 700 net. Technical Specifications Motor power (S1): 2.2 kW Voltage: 400 V or 230 V Table dimensions: 620 × 510 mm Table height: 860 mm Dust extraction port: 100 mm Spindle stroke: 100 mm Max. clamping height: 105 mm Table opening: 160 mm Max. tool diameter below table: 150 mm Spindle speed: 1400 / 4000 / 6000 / 9000 rpm Spindle diameter: 30 mm Gross weight: 126 kg Overall dimensions: 640 × 660 × 1250 mm

Condition: used, Year of construction: 2012, functionality: fully functional, input voltage: 400 V, type of input current: three-phase, spindle diameter: 30 mm, rotational speed (max.): 10,000 rpm, rotational speed (min.): 3,500 rpm, table length: 2,070 mm, extraction connection diameter: 100 mm, height adjustment type: mechanical, milling spindle length: 130 mm, spindle speed (max.): 10,000 rpm, working length of spindle: 130 mm, Equipment: motor brake, – Year of manufacture: 2012 – Austrian production – Spindle adjustable from 0° to 45° – Sliding table for tenoning operations – CE marking TECHNICAL SPECIFICATIONS: – Spindle diameter: 30 mm – Spindle height: 130 mm – Maximum tool diameter (allows use of large milling tools): 230 mm – Maximum tool diameter at 45°: 125 mm – 4 spindle speeds: 3500 / 6500 / 8000 / 10000 rpm – Main motor power: 5.5 kW – Electric motor with brake – Table dimensions (L x W): 780 x 970 mm – Sliding table dimensions (L x W): 2070 x 350 mm – "x-Roll" sliding table – Manual height adjustment – Manual angle adjustment: 0° - 45° – Quick-change spindle system – Fence on carriage – Additional table on carriage – Right/left rotation – Extraction port diameters: 100 and 80 mm – Transport dimensions (L/W/H): 220 x 90 x 150 cm – Weight: approx. 350 kg Itodpfxjycqiye Abnsd

Condition: like new (used), Year of construction: 2023, functionality: fully functional, For sale is a Felder F-700 Z milling machine with 4 spindle speeds. The machine is used as a showroom model at our facility and can be considered as new, with full warranty/guarantee. Technical specifications: - 4 milling speeds - Milling spindle tiltable 90° - 45° - Milling fence for tools up to Ø 230 mm - Multi-adjustment system - Tenoning and slotting table - Motor power 5.5 kW / 7.5 HP, SD start Ijdpfx Aswp Ri Ujbnotd - Year of manufacture: 2023 / as new The machine is located at A-8561 Söding and can be inspected at any time during our opening hours. Subject to prior sale! Info Tel.: 03137-3109 Related terms: milling cutter, milling machine, milling Reference: R-D1618

Condition: like new (used), SCM bottom spindle moulder Sliding carriage in the table 120 cm Height and tilt electrically adjustable Spindle fi30 7 kW motor Itedpfx Ajwt A Iqjbnsd 4 spindle speeds Very good condition

Condition: new, Year of construction: 2026, functionality: fully functional, Perfect machine for both professionals and novices. Tilting cutter arbor expands the capabilities of basic tools. Thanks to its sturdy construction it is used in small workshops and in large carpentry facilities. Large milling cast iron table, ground and polished. Moulder base made of welded steel metal sheets Precise spindle height adjustment through a big handwheel Precise milling limiter adjustment Stability of milling unit in bearings with column guide Easy switching between 4 speeds: 1800/3000/6000/9000 rpm V-belt drive Easy exchange of milling cutter Default equipment 30 mm spindle Table for Tenoning Movable table expansion Side and upper workpiece clamping Precise setting of milling limiter Angular limiter User manual EC declaration of conformity Technical data Table size 640×710 mm Spindle stroke 100 mm Spindle length 100 mm Maximum machine diameter under table 80 mm Max. machine diameter above table 200 mm Spindle tilt from 10° to 30° Hole diameter in table 185 mm Spindle diameter 30 mm Spindle speeds 1800, 3000, 6000, 9000 rpm Motor power S1 2.8 kW, S6 4 kW Power supply 400V Weight 170 kg Warranty 12 months Iedpjvugccjfx Abnetd User manual yes

Condition: new, Year of construction: 2026, ROBLAND T 120 TP Itsdpfx Abollup Rensd voltage 3 x 230V / 3 x 400V weight 1070 kg motor power 7 kW (optional 9.2 kW) table dimensions 1200 x 705 mm table height 930 mm interchangeable spindle diameters 30 / 32 / 40 / 50 mm 1" 1/4 spindle length 180 mm height adjustment 205 mm number of revolutions per minute 3000 / 4500 / 6000 / 7000 / 10000 max diameter and height of the table 320 x 95 mm dimensions of the movable table 760 x 500 mm table height adjustment 1050 mm diameter of the extraction spigot 120 mm

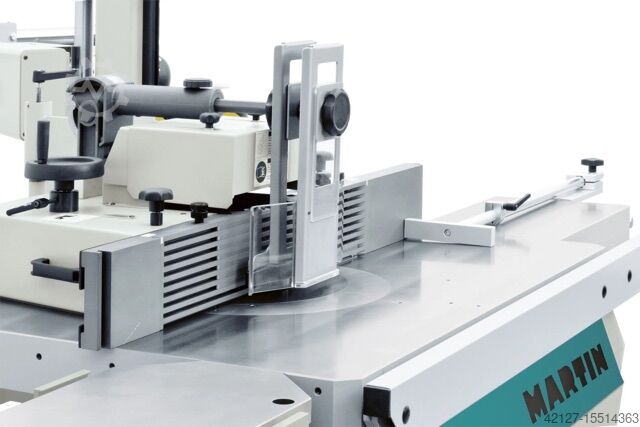

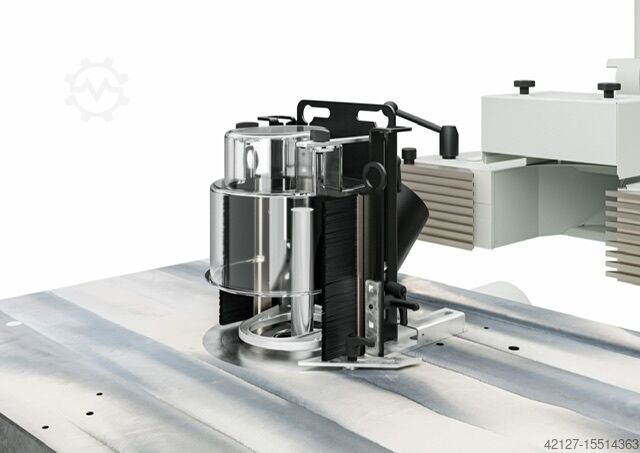

Condition: new, Year of construction: 2025, Martin T 27 Flex Swivel Spindle Moulder – double-sided tilting – Flexibility for today and tomorrow. Setting up a tilting spindle moulder is usually a major challenge. Not with the T27 Flex and its modern touchscreen control: thanks to integrated tool offset management, you can set up even complex moulding profiles with a tilted spindle in no time. This allows you to make full use of the wide swivel range of 2 x 46°, letting you follow your requirements with complete flexibility. Additionally, the machine can be configured precisely to suit the specific needs of your operation. Itedsr Hr D Nspfx Abnjd Equipment includes: - T 27 Flex - T 2711-a Digital indication of fence jaw position via the control system - T 2731-a Table extension on both sides + extendable workpiece support - T 2740-a Centrex guard - T 2742-a Integral fence - T 2743-a Auto Lock spindle moulder fence jaw clamping system - T 2790-La Console for feed unit stand, left side attachment The photo shows a sample machine only / feed unit and support not included Included scope of delivery is described in the text above Location: Arriving in stock at 54634 Bitburg - Available in two weeks -

Condition: new, - NEW -description- Stable cast steel construction- Milling spindle can be swiveled backwards from 0 ° to -45 °- Three spindle speeds from 3500 - 10000 rpm- As standard with right-left rotation of the milling spindle- Large-sized milling unit made of gray cast iron,attached directly to the table- Solid and precise gray cast iron table- Quick and easy speed change- Powerful 5.0 kW industrial motor- Standard curved milling protection hoodEquipment detailsAluminum sliding carriage- Equipped with a thousand times tried and testedBall contact system- torsion-resistant, extremely precise, smooth-running andproblem-free in daily use- 10 year Holzkraft guarantee on wear and tearof the guidewaysGray cast iron milling unit- Attached directly to the router table- Milling spindle mounted high up with precision ball bearings,thus the lowest possible bearing loadand the longest possible service life- 3 milling speeds from 3500 to 10000 rpmPowerful engines- Equipped with a powerful three-phase motorMilling protection- The milling protection is standard for maximum safetywith a height-adjustable guide railand ling stop- Exact milling stop with a quick adjustmentand a fine adjustment with a scale on the stop jaw- The integrated suction connection ensures a clear viewRouter table opening- A large router table opening also enablesthe use of larger flattening cuttersand tenoning and slotting toolsabove and below the tableArc milling protection hood- Included as standard in the scope of deliveryReversible stop jaws- Versatile integrated stop for bridgingthe tool gap- Allows you to work safely withnarrow workpiecesTechnical specifications:Dimensions and weightsWeight (net) approx. 290 kgConnection suctionExtraction nozzle diameter 2 x 120 mmWork tableWorking table length 1000 mmSlide length 1000 mmWorking table width 435 mmSlide carriage width 270 mmTable height 900 mmInstallation informationRequired space length 1945 mmMachine body width / depth 710 mmRequired space width / depth 2220 mmWorking area length 1600 mmExplanation of space requirementsThe dimensions take into account maximum travels or useful king area width / depth 1600 mmMachine body length 1000 mmExplanation of the work areaPlease add the specified dimensions with the space required in order to obtain the free installation area recommended for the ctrical dataConnection voltage 400 VMains frequency 50 HzPhase (s) 3 PhDrive motor power 5.0 kWType of current ACMilling spindleSpindle inclination 0 to -45 °Spindle speed (s) 3500/7000/10000 min¯¹Usable length of the spindle 100 mmSpindle mandrel diameter 30 mmSpindle overhang r table 130 mmMilling tool diameter l diameter can be lowered 180 mmTool diameter max. Tenon milling 275 mmTool diameter file milling 210 mmscope of deliveryArc milling protection hoodAnodized aluminum sliding carriageTelescopic miter fenceAluminum stop jawsItem No. 5502045 Itjdpfx Asvwf Ucebnod
