Used Centers (universal) 700-799mm (x-travel) for sale (75)

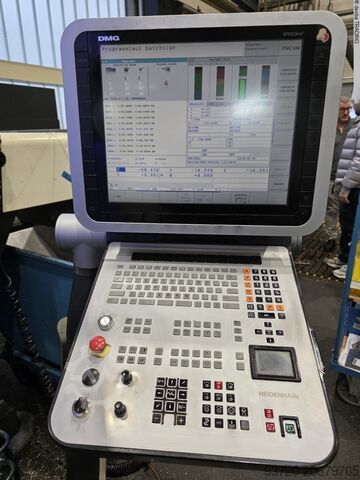

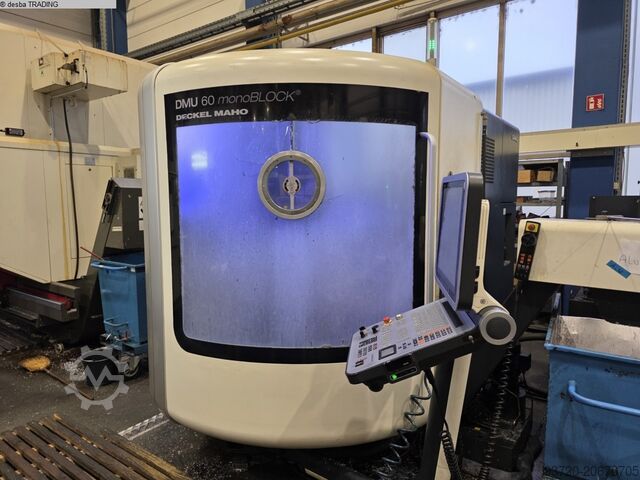

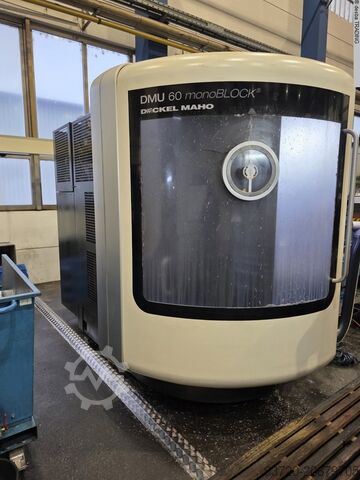

Condition: used, Year of construction: 2010, Operating hours: 8,511 h, Functionality: fully functional, Machine/vehicle number: 11580009783, Travel distance X-axis: 730 mm, Travel distance Y-axis: 560 mm, Travel distance Z-axis: 560 mm, Rotational speed (max.): 18,000 rpm, Number of slots in tool magazine: 24, Swivel angle B-axis (min.): -120 °, Swivel angle B-axis (max.): 30 °, Swivel angle C-axis (max.): 360 °, 5-axis cover Maho DMU 60 monoBLOCK with comprehensive equipment and increased spindle speed TECHNICAL DETAILS X / Y / Z travel: 730 / 560 / 560 mm C-axis: 360° B-axis: -120 / +30° Dpojpr Speed: 18,000 rpm Control system: Siemens 840D solutionline Table clamping surface: 1,000 x 600 mm Table load: 500 kg T-slots: 1 x 14 H7 + 8 x 14 H12 Spindle power: 15 kW (40% ED); 10 kW (100% ED) Tool holder: SK 40 according to DIN 69871 Tool clamping: according to DIN 69872 Magazine slots: 24 pieces MACHINE DETAILS Weight: 6800 kg IKZ: 40 bar / 23 l/min Switch-on time: 30,107 h Spindle hours: 8,511 h EQUIPMENT Chip conveyor 3D path control Manual swivel milling head Tool changing device Pick-up system Controlled NC swivel milling head (B-axis) incl. hydraulic clamping Spindle offset 100 mm 3D measuring probe 3D quickSET toolkit for checking and correcting the kinematic accuracy of 5-axis machine configurations 3D machining, 3D tool correction TRANSMIT lateral surface transformation (milling of cylindrical paths - TRACYL) CompCad compressor function for high-speed machining Operating mode 4 - Manual intervention with open work area doors Documentation Electrostatic air filter LTA air filter series 3000, AC 3001-R year of manufacture 2015 Extensive range of additional accessories, e.g. optional 125 SK40 tool holders, tool cabinets, tool trolleys, etc.

Condition: used, Year of construction: 1998, x-travel:600 mm y-travel:700 mm z-travel:600 mm Cvi8B28E control:TNC 426 HEIDENHAIN toolpiece magazine: chain magazine:30 Pos. milling spindle - taper:SK 40 turning speeds:12000 1/min rapid traverse:24 m/min weight of the machine ca.:9,5 t 5-axis universal machining center, NC-rotary-table, B-axis (milling head) Swarf conveyor,

Condition: excellent (used), Year of construction: 2007, Operating hours: 17,000 h, Mori Seiki NH 5000 DCG / 40 Dprdpr YOM 2007 2007 Mori Seiki NH 5000-DCG 4-Axis Horizontal Machining Centre with MSX710- iii control, CAT 40 14,000 RPM spindle, 60 tool ATC, twin pallet Horizontal with HP 70 Bar Coolant, swarf management and probing. In super condition with 17,000 hours cutting time recorded. Very accurate and well maintained by DMG since new, with the machine having spent its life in a 1st Tier Aerospace sub-contractor. Also supplied with a Full Set of machine manuals. Photo’d on site, but will be delivered to our Bristol showroom on the 3rd September where better pictures will be taken.. Note: Tomb Stones and Mist Extractor have been retained and are NOT included in the sale. Brief Specification Axis X 730 mm Axis Y 560 mm Axis Z 629.9 mm Control MORIC MSX-701II No of Pallets: 2 B Axis- Yes Table length 500 mm Table width 500 mm Max. part weight 500 kg Number of tool pockets 60 Spindle taper CAT 40 Max. spindle speed 14000 rpm Spindle motor power 18.6 kW Length x width x height 2349.5 × 2311.4 × 2616.2 Weight 9582.6 kg

Condition: good (used), Year of construction: 2002, Technical data shown on picture. Dpr0R9 With machine will come infrared 3D touch probe.

Condition: as good as new (ex-display), Year of construction: 2024, Priminer C 500-5X Year of manuf. : 2024 Control : Heidenhain TNC 640 Speed : 15000 rpm Movement X/Y/Z : 700/550/500 mm Tool holder : HSK A63 _____ Description: In General: Year of construction:2024 Control:Heidenhain TNC 640 Traverse paths X/Y/Z:700/550/500 mm Speed:15,000 rpm Workpiece diameter max.:700 mm Spindle: Technology:Inline direct drive Speed :15.000 rpm Power :33,5 kW Torque :135 Nm Tool holder :HSK 63 NC-swivel table: B-axis:+30° / -120° C-axis:360° Table diameter:400 x 500 mm Table load max.:300 kg Tool magazine: Technology:Chain magazine Tool changer:Double gripper Number of stations:60 Tool length max.:300 mm Tool diameter max.:125 (80) mm Cdcyzjc900 Equipment: Measuring systems:Direct in all axes (glass scales) Chip disposal:Chip conveyor Coolant supply:Internal coolant system, 20 bar Workpiece measurement:Touch probe Workpiece measurement:BLUM laser Set-up mode:Electronic handwheel

Condition: new, Year of construction: 2024, Travel distance X-axis: 3,000 mm, Travel distance Y-axis: 1,500 mm, Travel distance Z-axis: 1,400 mm, Rapid traverse X-axis: 30 mm/min, Rapid traverse Y-axis: 30 mm/min, Rapid traverse Z-axis: 30 mm/min, New machine with completion date 02/2024 HDC3000 with 6 axes - travel X=3000 mm, Y=1500 mm, Z=1400 mm - Heidenhain iTNC 640 with handwheel - NC rotary table for 5-sided machining 1250 mm x 1600 mm - 2-axis NC universal drilling and milling head, fully simultaneous and positioning operation - Spindle 10,000 rpm HSK100, S1=220 Nm spindle torque - HSK100 tool changing system / 60 places - 800 mm long tools - Chip conveyor - optimized for 5-sided machining incl. deep-hole drilling - Coolant supply - Internal / external air blow-off device - IKZ 60 bar for deep hole machining - Full enclosure - Large interference circle 2300 mm - incl. fixators Dpq77N - incl. washing gun - incl. warranty - Short delivery time, subject to prior sale

Condition: ready for operation (used), Year of construction: 2019, Operating hours: 4,149 h, Main Drive Dpors7 Spindle speed range 15000 Number of axis 5 Movement X-Axis Movement 762 mm Y-Axis Movement 460 mm Z-Axis Movement 460 mm Table Outer length 400 mm Tools Slots in storage 48 This OKUMA GENOS M460V-5AX Universal Machining center was manufactured in the year 2019. It has 5 axis and a tool magazin with 48 slots. The machine has a spindle speed of 15000 rpm. Application Types Milling

Condition: excellent (used), Siemens Sinumerik 840D control system Travel X/Y/Z: 750 x 600 x 520 mm Spindle speed 12,000 min-1 Tool magazine for 30 tools, SK 40 Cubf2Fqgk3 Swivel rotary table Paper belt filter system CELLRO XCELRATE 10 robot

Condition: good (used), Year of construction: 2008, Heidenhain iTNC530, 18,000 rpm. SK40, IKZ, 120 pos. tool changer, measuring probe, clamping device not included Brsb7Xq8Wg

Condition: used, Year of construction: 2017, travel -x axis 750 mm travel -y axis 600 mm travel -z axis 520 mm control HEIDENHAIN TNC 620 SLIMli max. Spindle speed 12.000 U/min. capacity 32 kVA numbers of positions in the tool changer 32 tool taper SK40 max. workpiece diameter 800 mm max. workpiece height 560 mm max. workpiece weight 350 kg Milling machining centers - universal | DMG - CMX 70 U equipped with ITC (12 bar), chip conveyor, tool changer and tool breakage control Dpoet7 Additional equipment: + B and C axis The machine is in very good condition. Please refer to further technical details in the attachement of the offer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: CMX70U | CMX 70-U | CMX 70U | DMG - CMX 70 U

Condition: excellent (used), Year of construction: 2017, Operating hours: 13,404 h, Functionality: fully functional, Travel distance X-axis: 735 mm, Travel distance Y-axis: 650 mm, Travel distance Z-axis: 560 mm, Equipment: Chip Conveyor, The machine is available for immediate delivery. Reason for sale: New machine with large pallet station Control system: CELOS with Siemens 840D SL Travels: - Max. X-axis: 735 mm - Max. Y-axis: 650 mm - Max. Z-axis: 560 mm - Max. Workpiece diameter: 840 mm - Max. Workpiece height: 500 mm - Max. Workpiece weight: 1000 kg Spindle: HSK-A 63, 20,000 rpm Contact pressure through the spindle: 40 bar Coolant ring around the spindle Spray gun 3bar - 40l/min Interface for oil and emulsion mist separator Signal lamp 4-color Electric handwheel For automation: Clamping: 4 hydraulic and 1 pneumatic Movable control panel Automatic door Dps8W2 Nc swivel rotary table (5axis machine) Table top d660 mm Tool changing system double gripper Magazine 80 places Coolant tank 500l Automatic workpiece setter: Heidenhain TS460 Tools and fixture on the table are included in the scope of delivery. Weight approx.: 12000 kg Dimensions (L x W x H) approx.: 2620 x 4500 x 2900 mm

Condition: used, Year of construction: 1997, x-travel:710 mm y-travel:630 mm z-travel:500 mm turning speed range - spindle:5 - 5000 1/min power - main spindle:11 kW tool taper:SK 40 tool changer:44 Werkzeuge feed:10 m/min surface area:1200 x 600 mm table load:0,5 t total power requirement:15 kVA Bwxgidu9Dk weight of the machine ca.:4,24 t Toolchanger with 44 tools, pendant handwheel for easy setup.

Condition: ready for operation (used), Year of construction: 2016, Control Unit Brand Siemens Model 840D sl FD Operate Main Drive Spindle speed range 1000 Tool taper HSK-A 63 Number of axis 5 Movement X-Axis Movement 735 mm (650 mm) Y-Axis Movement 650 mm Z-Axis Movement 560 mm Dppxh7 Media Internal cooling Yes Additional Equipment 2 X laser safety windows (double window) CELOS® with Siemens 840D sl FD Operate including 21.5 ERGOline® Control Paper belt filter Energy measuring device for CELOS Control Unit Brand Siemens Model 840D sl FD Operate Main Drive Spindle speed range 1000 Tool taper HSK-A 63 Number of axis 5 Movement X-Axis Movement 735 mm (650 mm) Y-Axis Movement 650 mm Z-Axis Movement 560 mm Media Internal cooling Yes Additional Equipment 2 X laser safety windows (double window) CELOS® with Siemens 840D sl FD Operate including 21.5 ERGOline® Control Paper belt filter Energy measuring device for CELOS This 3-axis DMG MORI Lasertec 65 universal machining centre was manufactured in 2016. It features a motorized spindle with a speed of 1,000 rpm, a HSK-A 63 tool holder, and a 30-position kettle magazine. The NC swivelling rotary table supports milling and turning with a permissible load of 600 kg. Additional features include a link belt chip conveyor with a 600-liter coolant system and an external coolant supply. For more information about this universal machining centre, please reach out to us. Application Types Milling

Condition: like new (used), Year of construction: 2019, Operating hours: 1,583 h, Functionality: fully functional, Machine/vehicle number: 297202, Travel distance X-axis: 510 mm, Travel distance Y-axis: 910 mm, Travel distance Z-axis: 510 mm, Nominal power (apparent): 53 VA, Torque: 200 Nm, Workpiece height (max.): 450 mm, Workpiece diameter (max.): 700 mm, Workpiece weight (max.): 500 kg, Total height: 31,870 mm, Total length: 39,800 mm, Total width: 22,000 mm, Rotational speed (max.): 12,000 rpm, Number of slots in tool magazine: 40, Tool diameter: 90 mm, Input voltage: 400 V, Type of input current: three-phase, Power: 15 kW (20.39 HP), Equipment: Chip Conveyor, YAMAZAKI MAZAK VARIAXIS I-600 - SmoothX milling machining center, 5 simultaneous axes, 1583 operating hours, perfect working condition, technically and aesthetically like new. Max. workpiece diameter 700 mm Max. workpiece height 450 mm. Boibkpgmg0M X-axis travel 510mm. Y-axis travel 910mm. Z-axis travel 510mm A-axis swivel -120°+30° B-axis swivel no C-axis swivel +/-360° Mass loading capacity 500 kg ; Motor axes size/torque SK-40/12.000 1/min ; Main motor power 100% /15kW; Torque 200Nm; Travel speed X/Y/Z axis 60/60/56 m/min; Pivoting axis A/C 18000°/min; Axis axis X/Y/Z axis 56 m/min; Tool magazine and tool changer : Number of tools 40; Max tool diameter 90 mm; Max diameter without neighbouring tool 130 mm Tank/tank capacity:Lubricating oil tank 1,80 L; Coolant tank 600 L; Spindle coolant tank 56 L; Precision X/Z axes 0,012/0,012mm Y axes 0,016mm; A axes 14; Repeatability X/Z 0,007mm Repeatability Y 0,009mm Repeatability A 8s Repeatability B no Repeatability C 8s; Machine size : Length 3980 mm Width 2200 mm Max height. 3187 mm; Weight max. 13.000 kg; Current insertion characteristics : Installed power 52,90 kVA; Current frequency 50/60 Hz+/-1Hz; Air intake characteristics: Pressure 0,5-0,9 Mpa; Flow-max 360 L/min

Condition: used, Year of construction: 2006, x-travel 760 mm y-travel 560 mm z-travel 560 mm control 840 D Powerline Siemens tool taper SK 40 numbers of tools in magazin 60 spindle turning speed - stepless 0- 12000 U/min size of pallet 630 x 500 mm total connected load 64,2 KVA feed stepless 20- 15.000 mm/min Dpkfn7 rapid traverse 50 m/min total power requirement 26 kW weight of the machine ca. 12 t dimensions of the machine ca. 5,2 x 4,5 x 2,45 m 5 axes machining center with rotating table (C) and swiveling head (B). Machine has a pallet changing system with 2 pallets and an ATC with 60 positions. Machine has worked 20.000 spindle hours and was always well maintained.

Condition: good (used), Year of construction: 2014, The machine is in good technical condition, after previous agreement the possibility of testing. OKUMA vertical five-axis machining center MU-400VII with OSP-P300M-H 48 tool magazine BT40 (or Big Plus) tool breakage detection incl. auto. Tool length measurement Preparation for aut. Start offset (includes SW) anti-collision system for 4/5-axis milling centres cooling pump 0.8kW instead of std. 0.25kW cooling by rinsing C0U9Cvsn38 aut. function Start shift incl. workpiece measurement, Renishaw OMP60 probe tool edge control for 5X machining super NURBS type A for 5-axis centres

Condition: used, Year of construction: 2008, x-travel 1.600 mm y-travel 1.250 mm z-travel 1.000 mm Control SIEMENS 8400 Powerline 3D numbers of pallets 6 size of pallet 1250 x 1000 mm T-slots DIN 55201-A2 c-axis 0,001 ° spindle 85/65 kW spindle (milling): 0,000 rapid travel x/y/z 60.000 mm/min tool adaptor HSK-A 63 DIN 69893 Speed 20-30.000 U/min turning tools travel - vertical 40/32 mm tool magazin: 120 Internal cooling system 50 bar Chip coveyor Inkl. handwheel SIEMENS 840D total power requirement 139 kWA weight of the machine ca. 55 t dimensions of the machine ca. m DMG DMC 160U duoBLOCK MitAutomatischer Palettenwechsler - RS4 – 4 paletten + 2 - Taster HEIDENHAIN TS640 - BLUM LASER NT-Hybrid - 3D quickSET - Sprühpistole 2bar/40 l/min Clygfays7S

Condition: used, Year of construction: 2011, x-travel:730 mm y-travel:850 mm z-travel:1100 mm control:MSX 711 MAPPS IV Spindle power:22 / 18,5 kW Spindle RPM:12000 1/min Tool magazine:120 HSK-A 63 max. tool diameter:70 mm Max. Tool dia with free space next in magazine:140 mm max. tool length:480 mm max. tool weight:12 kg rapid travel x/y/z:50.000 mm/min A-axis (5th axis) pivoting table:+30° -120° ° N7R2Lfua Rapid Rpm B-axis (rotary table):50 1/min Rapid feed A-axis (tilt axis):20 1/min Pallet changer 2x:500 x 500 mm max. workpiece weight:500 kg workpiece - installed height:700 mm max. workpiece diameter on pallets:700 mm total power requirement:63 kVA weight of the machine ca.:21 t dimensions of the machine ca.:6,0 x 6,1 x 3,3 m Number of coordinate systems:300 Memory:1 MB Registered Programs:1000 Coolant through spindle 50 bar with filter:Frascara Fast state of the art 5-axis machining center with twin 500mm pallet changer, full A- and B-axis, high pressure coolant through spindle Frascara 50 bar, chip conveyor, tool length measurement and tool breakage detector. 120 tool magazine HSK-A 63, Renishaw probe. Machine is in excellent condition with little run hours.

Condition: excellent (used), Year of construction: 2003, Operating hours: 22,217 h, Functionality: fully functional, Travel distance X-axis: 750 mm, Travel distance Y-axis: 600 mm, Travel distance Z-axis: 520 mm, Rapid traverse X-axis: 50,000 mm/min, Rapid traverse Y-axis: 50,000 mm/min, Rapid traverse Z-axis: 20,000 mm/min, Controller manufacturer: Heidenhain, Controller model: iTNC 530, Total height: 2,900 mm, Table width: 500 mm, Table length: 700 mm, Table load: 350 kg, Overall weight: 9,500 kg, Spindle speed (max.): 18,000 rpm, Operating hours of spindle: 22,217 h, Coolant supply: 40 bar, Number of slots in tool magazine: 32, Equipment: Chip Conveyor, Documentation/Manual, Rotational Speed Infinitely Variable, For sale well-maintained 5-axis simultaneous universal machining center DMG DMU70eVolution built in 2003 with 22217 spindle hours (spindle bearing has just been replaced by Kessler, proof is available) Control Heidenhain iTNC 530 Travels: X: 750mm Y: 600mm Z: 520mm B: 180 degrees C: 360 degrees Equipment: Control Heidenhain iTNC 530 Tool magazine 32 positions IKZ 40bar electric handwheel chip conveyor Tool measurement (BLUM laser) Bgpj7Rxv Spindle holder: SK40 Spindle speed: 18000rpm 3D measuring probe Renishaw OMP60 Visiport Accessories: Machine feet complete documentation Machine is ready for immediate use! Machine is immediately available! Machine is loaded by us! Transport can be organized on request!

Condition: good (used), Year of construction: 2009, Operating hours: 32,000 h, Functionality: fully functional, Machine/vehicle number: 0600/5-438, Equipment: Chip Conveyor, Documentation/Manual, Machine comes from a bankruptcy has few hours a lot of tools and has always been maintained 5-fold workpiece changer 50-fold electrode changer 1 graphite extraction unit B0Zledhwy0 1 oil extraction unit

Year of construction: 2005, Condition: excellent (used), Machine-Details Stock-No. 1105-03831 Type of machine Universal Milling Machine Make DECKEL MAHO DMG Type DMU 70 EVolution Year of manufacture 2005 Type of control CNC Storage location HAGUENAU FRANCE Country of origin Deutschland Delivery time according to the arrangement Freight basis ex Works Technical details x-travel 750 mm y-travel 600 mm z-travel 520 mm Control HEIDENHAIN iTNC 530 Additional information Milling Machine - Universal DECKEL MAHO DMG DMU 70eVolution NC swiveling rotary table (700x500) spindle SA 40 18000 RPM NEW IN 2022 ----- Spindle speed: 18,000rpm Tool holder: SK40 F9Lbniurq tool changer ----- Magazine places: 60 Pick up domestic equipments ----- probe chip conveyor 2nd processor card electronic handwheel HR410 IKZ DURCH DIE SPINDEL 40 BARS PAPIERBAND FILTER SYSTEM

Condition: good (used), The machine is in good technical condition. Cone sk 40 C0Sjm2Rhag

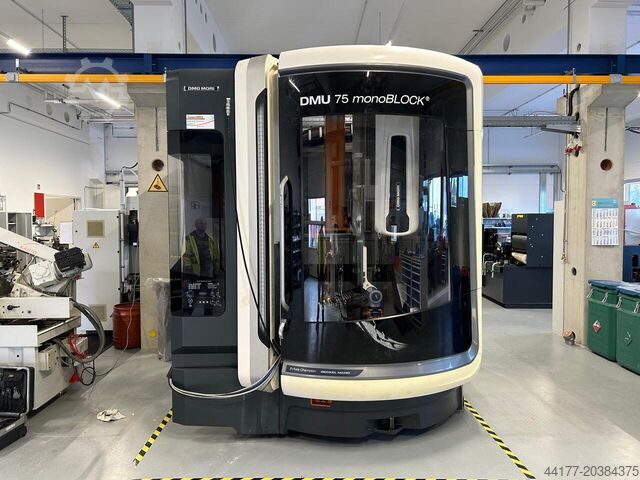

Condition: used, Year of construction: 2014, DMG MORI DMU 75 monoBlock Year of manuf. : 2014 Control : Heidenhain iTNC 530 Speed : 18000 rpm Movement X/Y/Z : 750/650/560 mm Tool holder : SK 40 _____ Description: Spindle: Technology:Motorspindle Dpmgaf Speed:18.000 rpm Power (max.):35 kW Torque (max.):130 Nm Taper:SK 40 NC-Swivelroundtable: A-Axis:+/- 120° C-Axis:360° Clamping surface static table:800 x 650 mm Clamping surface roundtable:ø650 mm Tableloading (max.):600 kg In general: Toolmagazine:60 stations Rapid travers in X/Y/Z:40 m/min Equipment/Accessory: Positionsensor:Direct scales in all Axes Chipmanagement:Chip conveyor Coolingmanagement:Internal cooling unit with paperbeltfilter and high-pressure, 40 bar Workpiecemeasurement:Touch probe, Heidenhain TS 642 Oilmistseparatrion:Mechanical extraction Processobservation:Operation mode 4 Further Equipment:ROTO-Clear, Rinsing pistol Further Accessory:Misc. Toolholder

Condition: used, Year of construction: 2007, x-travel:730 mm y-travel:510 mm z-travel:510 mm control:Mori Seiki MSX 711 MAPPS 3 turning speeds:12000 1/min spindle drive:22/18,5 kW c-axis:360.000 x 0,001° b-axis:+170.000/ -170.000x0,001° rapid travel x/y/z:50 / 50 / 40 m/min Feed x/y/z:50 / 50 / 40 m/min table diameter:500 mm workpiece height max.:450 mm max. workpiece diameter:700 mm workpiece weight:300 kg tool magazin::91 HSK-A 63 C-axis RPM:120 1/min tool diameter:80 mm Tool diameter with no neighbouring tools:125 mm tool length - max.:300 mm Table sensor for tool setting and auto-measuring:Renishaw No. of free M-functions:10 Tool pairs for Tool life management:1024 dimensions of the machine ca.:2,8 x 4,5 x 3,1 m weight of the machine ca.:12 t Blzts9Vjmgk total power requirement:54 kW offsets for parts:54 No. of tool offset pairs:400 Full 5 axis universal high speed machining center with turning and swivelling table and vertical spindle.

Condition: excellent (used), Year of construction: 2016, With B + C axis Working travels 762 x 508 x 508 mm Table diameter 500 mm Cxx2U8Ooqd Spindle taper 40 Spindle speeds -12'000 rpm Tool changer 40 Pos. Control HAAS Coolant through spindle Misc.accessories MARCELS MASCHINEN CH
