Used Centers (universal) 700-799mm (x-travel) for sale (71)

Condition: used, Year of construction: 2007, x-travel 730 mm y-travel 560 mm z-travel 560 mm control iTNC 530 Heidenhain turning speed range - main spindle max. 18.000 min/-1 power capacity - main spindel 10 / 15 kW max. Torque 130 / 87 Nm Ndodpswpw E Nefx Ad Doc tool taper HSK-A63 swivellable NC: ° table surface area 1.000 x 600 mm T-slots 9x 14 x 63 mm table diameter 600 mm rotatable C: 360 ° max. table load 500 kg number of toolpositions 60 pos. tool taper HSK-A63 total power requirement 40 kVA weight of the machine ca. ca. 11,0 t dimensions of the machine ca. 4,5 x 4,5 x 3,5 m CNC - MachiningCenter Universal DECKEL MAHO - DMU 60 monoBLOCK - 5 Axis - NC-Rotary-Table - Swivel-MillingHead

Condition: excellent (used), Year of construction: 2002, 5-Axis Machining Center - Universal DECKEL MAHO DMU 70 EVO Year of manufacture: 2002 Control: MillPlus iT Heidenhain Machine hours: 33,289.6 h Spindle hours: 10,533.5 h Technical Data: Ndedpfxoxf Hlhj Ad Dsc X-axis travel: 750 mm Y-axis travel: 600 mm Z-axis travel: 520 mm Main Spindle: Speed range - main spindle: 20 - 18,000 rpm Drive power - main spindle: 35 / 25 kW Max. torque: 130 / 87 Nm NC Rotary Swivel Table: Clamping surface: 700 x 500 mm Swivel range, B-axis: 180° Rotatable, C-axis: 360° Max. table load: 350 kg Centering bore: 30 H6 mm T-slots: 7x 14H7 x 63 mm Table speed range: 21.5 rpm Tool Magazine: Number of tool positions: 32 Max. tool length: 315 mm Max. tool diameter: 105 mm Max. tool diameter with adjacent pockets empty: 130 mm Max. tool weight: 6 kg

Condition: used, Year of construction: 2024, operating hours: 1,010 h, functionality: fully functional, travel distance X-axis: 720 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 520 mm, rapid traverse X-axis: 48 m/min, rapid traverse Y-axis: 48 m/min, rapid traverse Z-axis: 48 m/min, nominal power (apparent): 35 kVA, torque: 120 Nm, controller manufacturer: Siemens, controller model: 840DSL, table load: 300 kg, rotary table diameter: 720 mm, overall weight: 11,000 kg, spindle speed (max.): 12,000 rpm, Equipment: chip conveyor, rotational speed infinitely variable, Lease return due to payment arrears. Excellent condition. IKZ 30 bar, including cartridge filter Renishaw OMP60 for SK40, workpiece probing system with infrared transmission Renishaw TS27R, tool probing system with infrared transmission for tool measurement Siemens Kinematics Measurement Cycle 996 / 6FC 5800-0AP18-0YB0 incl. Heidenhain calibration sphere KKH 250 Technical data: - 12,000 rpm - Torque: 120 Nm (25% duty cycle) - Drive power: 23 kW (25% duty cycle) - Separate spindle cooling for constant temperature - Tool holder: DIN SK42 with air blast function Rotary table: - Ø 720 mm - Torque drives in C and A axes General: - Travels X/Y/Z: 720/600/520 mm - 48-position tool changer with double-arm gripper - Bed / chip flushing Ndedpfx Aexlchljd Dec - Chip conveyor - Coolant and compressed air gun - Coolant unit - Electronic handwheel - Work area lighting - Cast iron machine bed, 11,000 kg

Condition: ready for operation (used), Year of construction: 2011, Make: DMG Type of machine: DMC 60 T Year of manufacture: 2011 Control system: Heidenhain iTNC 530 Machine's weight: ca. 9 t Tool holder: SK 40 x-travel: 780 mm y-travel: 560 mm z-travel: 560 mm Speed range: 12.000 1/min Number of tools in the magazine: 120 Pl. Internal coolant supply: 40 bar. 3D Measuring probe: Heidenhain TS641 : 360 ° : x Njdpjxg Tdyjfx Ad Dodc

Condition: reconditioned (used), Year of construction: 2010, • Traveling distances X=3100 mm, Y=1950 mm, Z=1390 mm • Heidenhain iTNC 530 with handwheel HR 410 • Machine table for multi side working 3000 mm x 1600 mm • 2-axis NC-universal milling head, for simultaneous and positioning working • Spindel 10.000 U/min HSK 100, 130 Nm Spindle torque • Tool change system HSK 100 / 40 places for 750 mm long tools Ndodpfx Adexbpuks Djc • Chip conveyor (screw type) in X-axis, for transport into • Chip conveyor scraper belt type (traverse conveyor), Fabr. Knoll • Coolant container 900 l, Fabr. Knoll • Outside air at spindle • IKZ 60 bar for deep hole drilling function • Covering with safety glass pane, open at the top for loading by crane • 2 part sliding doors at the operator side • 2 part sliding doors at the front side, for easy loading • Radio-controlled measuring probe RMP 60 • incl. washing gun • incl. podiums at the front side and operator side • complete factory overhauled and painted new • short time delivery after arrangement • used machine • Y-axis ball screw in September 2021 incl. bearings renewed • X-axis new linear guiding system, July 2023 changed, renewed • Spindle overhauled at Mai 2023 (clamping system new, clamping cartridge new, rotation unit new, general tests) (at 23105 spindle hours)) • can be visited under power at 72793 Pfullingen • optional fixators • optional installation at customers plant • optional transport • 23122 spindle hours in total • 53991 machine hours in total • Year of construction 2010 Subject to prior sale

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, machine/vehicle number: 1500050285, travel distance X-axis: 7,800 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 630 mm, rapid traverse X-axis: 70 m/min, rapid traverse Y-axis: 40 m/min, rapid traverse Z-axis: 40 m/min, workpiece length (max.): 7,300 mm, rotational speed (min.): 24,000 rpm, spindle speed (max.): 24,000 rpm, spindle motor power: 15,000 W, number of spindles: 1, number of slots in tool magazine: 14, tool diameter: 100 mm, input voltage: 400 V, type of input current: AC, Equipment: documentation/manual, SBZ 150 | 5-axis Profile Machining Centre 7.800 mm Nedjxdnh Uepfx Ad Dodc 5-axis profile machining centre ● Designed for economical and efficient machining of aluminium and thin-walled steel profiles ● All operations, such as routing, drilling, tapping, thread milling, notching and sawing, are performed while the profile bar is stationary to protect the profile surfaces 6-sided machining ● Operator software with graphic display of workpieces ● The magazine can be equipped with nine standard tools, five special tools and one saw blade ● Ten clamps ● Two separate working zones enable machining in shuttle operation ● 5-axis controller for 3D machining ● 15" colour display, Diskette port ● DOS operating system

Condition: used, Year of construction: 2019, x-travel 550 mm y-travel 305 mm z-travel 460 mm Control Sinumerik 808D adv. Siemens turning speed range - main spindle 10 - 10.000 min/-1 power capacity - main spindel 11 / 7,5 kW max. Torque 70 / 48 Nm tool taper BT 40 table surface area 800 x 320 mm max. table load 300 kg T-slots 3x 14 x 100 mm distance spindle /table 100 - 600 mm number of toolpositions 12 pos. tool taper BT 40 max. tool diameter 70 mm max. tool weight 6,0 kg change-time tool to tool 7,0 sec rapid traverse ( X / Y / Z ) 10 m/min feed speeds max. 10.000 mm/min repeating accuracy +/- 0,008 mm positioning accuracy +/- 0,01 mm total power requirement 15 kVA weight of the machine ca. 2,9 t Ndodpjww Nb Sjfx Ad Djc dimensions of the machine ca. 3,5 x 2,5 x 2,4 m CNC-MachiningCenter Vertical OPTIMUM - OPTImill F 105 CNC - SHOW-ROOM-MACHINE

Condition: used, Year of construction: 2024, controller manufacturer: Heidenhain, controller model: TNC 640, _____ Nodpfx Aow S Ea Eed Dsdc Description: Year of manuf. : 2024 Control : Heidenhain TNC 640 Speed : 15000 rpm Movement X/Y/Z : 700/550/500 mm Tool holder : HSK A63 In General: Year of construction:2024 Control:Heidenhain TNC 640 Traverse paths X/Y/Z:700/550/500 mm Speed:15,000 rpm Workpiece diameter max.:700 mm Spindle: Technology:Inline direct drive Speed :15.000 rpm Power :33,5 kW Torque :135 Nm Tool holder :HSK 63 NC-swivel table: B-axis:+30° / -120° C-axis:360° Table diameter:400 x 500 mm Table load max.:300 kg Tool magazine: Technology:Chain magazine Tool changer:Double gripper Number of stations:60 Tool length max.:300 mm Tool diameter max.:125 (80) mm Equipment: Measuring systems:Direct in all axes (glass scales) Chip disposal:Chip conveyor Coolant supply:Internal coolant system, 20 bar Workpiece measurement:Touch probe Workpiece measurement:BLUM laser Set-up mode:Electronic handwheel

Condition: good (used), Year of construction: 1986, functionality: fully functional, total height: 1,800 mm, total length: 2,500 mm, total width: 1,000 mm, overall weight: 1,000 kg, spindle speed (min.): 1,400 rpm, spindle speed (max.): 7,000 rpm, number of spindles: 1, type of input current: three-phase, TECHNICAL DATA & EQUIPMENT: Serial Number: 765 Operating Voltage: 380 V Frequency: 50 Hz Rated Current: 14 A Voltage Range: Geb Azzknsw D T T Sodoka (context unclear; possibly placeholder or specific manufacturer code) Centre Height Universal Dividing Head: 170 mm Centre Height Tailstock: 120 mm Centre Height Tailstock with Intermediate Bearing: 170 mm Max. Workpiece Diameter Between Centers: 338 mm Max. Workpiece Diameter in Cantilever Mounting: 600 mm Max. Distance Between Centers: 950 mm Internal Taper Dividing Head Spindle: Morse Taper 4 (MT 4) T-slot Size Machine Base: 12 mm T-slot Size Other Parts: 8 mm Movement Range: Grinding Stroke Travel: 190 mm Cross Movement Tool Holder: 100 mm Height Adjustment Grinding Head: 325 mm Grinding Spindle Infeed: 5 mm Coarse Adjustment Travel Tool Holder: 230 mm Grinding Head Slide: 800 mm Universal Dividing Head on Tool Slide: 330 mm Swivel Range Grinding Head Slide: 360° Ndjdpfxow Nn Ake Ad Dec Grinding Head: 360°, Tool Holder: 360° Universal Dividing Head Horizontal and Vertical: 360° Maximum Grinding Length for Helical Grinding: 190 mm Max. Rotation of Dividing Head Spindle for Helical Grinding: 1.5 revolutions Max. Grinding Wheel Diameter: 125 mm Max. Cut-Off Wheel Diameter: 200 mm Spindle Speed: 1,400 – 7,000 rpm The machine is equipped with a two-axis optical measuring system, dressing device, table extension with tailstock, and matching accessories. Contents include tool holders, clamping equipment, a helical grinding device, radius grinding device, a tool post, and various accessories. NOTES ON COLLECTION: Loaded onto truck, forklift available. Available immediately.

Condition: ready for operation (used), Year of construction: 2011, operating hours: 39,737 h, machine/vehicle number: 302E110064, travel distance X-axis: 885 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 500 mm, controller model: HEIDENHAIN iTNC 530, workpiece diameter (max.): 640 mm, workpiece weight (max.): 500 kg, table width: 500 mm, table length: 600 mm, spindle speed (min.): 15,000 rpm, operating hours of spindle: 10,687 h, number of slots in tool magazine: 48, tool length: 280 mm, tool diameter: 125 mm, Equipment: documentation/manual, Machine for sale: Quaser UX600 15C - universal machining center - manufactured in 2011 in Taiwan. - 5-axis machine with direct measurement on all axes - control unit: Haidenhain iTNC 530 Operating hours: 39,737 Purpose: milling Machine length: 3700mm Machine width: 4000mm Nodjwlpywepfx Ad Dsdc Machine height: 3100mm Machine weight: 12,100 kg Number of spindles: 1; spindle speed range: 15,000 1/min Strokes: X axis: 885mm; Z axis: 500mm; Y axis: 800mm Table external length: 600mm external width: 500mm Tool maximum tool length: 280mm maximum tool weight: 7 kg maximum tool diameter: 125mm tool holder: SK 40 internal cooling: yes The machine works in 3 shifts - every day! The machine comes with 20 SK40 holders!

Condition: excellent (used), Year of construction: 2006, operating hours: 32,000 h, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 800 mm, rapid traverse X-axis: 60 m/min, rapid traverse Y-axis: 60 m/min, rapid traverse Z-axis: 60 m/min, feed rate X-axis: 15 m/min, feed rate Y-axis: 15 m/min, feed rate Z-axis: 15 m/min, torque: 121 Nm, controller manufacturer: Siemens, table width: 700 mm, table length: 900 mm, table load: 1,400 kg, rotational speed (min.): 20 rpm, rotational speed (max.): 18,000 rpm, spindle speed (max.): 18,000 rpm, operating hours of spindle: 32,000 h, coolant supply: 40 bar, spindle nose: HSK63A, number of slots in tool magazine: 30, tool length: 350 mm, tool diameter: 100 mm, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, DMG MORI DMU 80P duoBlock Year of manufacture: 2006 Operating hours: 62,000 h Spindle hours: 31,000 h Function tested and cleaned Maintenance performed according to manufacturer's specifications Geometry within new machine tolerance Equipment: 5 axes Swivel head (controlled B-axis) Direct linear measurement in X/Y/Z (glass scales) Chip conveyor Extraction system NC rotary table Tool magazine with 30 positions Heidenhain touch probe BLUM laser Handwheel Rotating viewing window ICS 40 bar (internal coolant supply) Chip flushing Nedpfjw Ht Ibsx Ad Djdc Operating mode 4

Condition: excellent (used), X 885, Y 800, Z 500mm, A 30-120dg, C 360dg. HSK 63 Big Plus, 15,000Rpm, ATC 60 pos, Renishaw probe, Heidenhain TNC 530. Nodpfswzv Igsx Ad Dodc

Year of construction: 2004, condition: excellent (used), TECHNICAL DATA Travel X 760 mm travel Y 510 mm travel Z 610 mm table clamping surface 1020 x 510 mm T-slots / table 5 x 18 mm x 100 mm distance spindle to table min./max. 150/762 mm Spindle mounting steep taper DIN 69871 ISO 40 spindle speeds 10 - 10'000 rpm Drive power (30 min/const. ED) 11 kW Torque max. 236 Nm Power constant from 500 rpm Coolant tank 190 l Ball bearing linear guide in X,Y,Z axes Eilang X / Y / Z 30 / 30 / 20 feeds programmable 3,0 - 7600 mm/min positioning accuracy +/- 0,01 mm repeatability +/- 0,005 mm milling feed rate 3,0 - 11400 mm/min table load 1000 kg Automatic tool changer (double arm) 24 stations Max. Tool diameter 80 mm Ndodpfel Tpmdjx Ad Dsc Max. tool length Tool length 300 mm Max. Tool weight 7 kg Machine weight 4700 kg Space requirement L x W x H (footprint) 3870 x 4170 x 2775 mmINCL. - Coolant system - Coolant spray gun - Chip splash guard cabin - Flushing system to support chip disposal - Machine light - set of machine shoes - rigid thread cutting - spiral conveyor in the chip room - Pocket milling with islands - Electronic handwheel - ULTIMAX 4 control - 2 VGA color screens (text + graphics) - 2 software units (1 x plain text dialog programming + 1 x for ISO code programming) via interface RS-232 C / V24 access for CAD / CAM or external programming station - Pentium technology, 1.6 GB hard disk, 64 MB RAM, parallel and serial data interfaces, DOS compatible 3.5 '' 1.44 MB drive. System internal self-diagnosis, DOS directory structure, software version 2.xx Servo technology DUAL DSP 40MHz

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, travel distance X-axis: 1,140 mm, travel distance Y-axis: 370 mm, travel distance Z-axis: 470 mm, controller model: siemens 840d, number of spindles: 3, number of slots in tool magazine: 20, type of input current: three-phase, Equipment: documentation/manual, This 7-axis multitasking CNC lathe-mill is a very complete machine, made in Italy, with a moving column structure, such as Mori Seiki NT, Mazak Integrex, Dmg Gamma, Biglia Smart Turn, Willemin Macodel, Bumotec, etc. Possibility of working as a lathe from bar material, or as a 5-axis continuous - simultaneous machining centre (also being equipped with a table with T-slots). X,Y,Z,B,C,Z2,C2 axes tilting head +- 115 degrees column travel 1140x370x470mm turning spindle travel 800+800mm milling electrospindle HSK A50, 30,000 rpm, maximum power 14.5Kw, with 20-position disc type tool changer, complete with MARPOSS laser presetting for tool verification 2 turning electrospindles (twins) 6,000 constant rpm and 8,000 peak rpm, maximum power 18.7Kw, 40mm bar passage, with 2 pin groups and 1 165mm hydraulic self-centering chuck with 4 jaws. Turning tools on tilting head 18pcs (9 per side) plus 1 cutting tool; also equipped with a 380x280 fixed table with T-slots for machining from a work center; total weight 6,800 kg. Fully thermostated machine (4 refrigerators) Equipped with HEIDENHAIN CNC Siemens 840D optical scales Built in 2005 and compliant with CE standards; fully accessorized with milling and turning tool holders, complete with manuals and “CE” certification. Nsdpfow Dpnrox Ad Dsdc Machine in excellent condition, it's under power and can be inspected at any time. It was used in the prototype department of a well-known brand in the jewelry sector (BULGARI), worked very little.

Condition: excellent (used), Year of construction: 2015, DMG MORI UNIVERSAL MACHINE CENTER DMU70 – Full 5 axis VMC Year 2015 Control : Siemens 840D SL Travel : X 700 Y 600 Z 520mm Swivel Rotary Table for Simultaneous Machining Ndodpexgpvxjfx Ad Dsc Table Ø800 x 620mm Spindle 18,000rpm ATC 30 – HSK-A63 Direct Measuring System – All Axis Touch Probe Heidenhain TS649 Laser Tool Measurement 3D quick Set Signal Light Electronic Hand-wheel

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, machine/vehicle number: A.1001840.01, travel distance X-axis: 700 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 700 mm, total height: 2,900 mm, total length: 4,200 mm, total width: 2,900 mm, overall weight: 12,500 kg, spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Working Area Max. workpiece contour: 750 × 700 mm Transport load per pallet: approx. 500 kg Clamping surface pallet DIN 55201, Form A2: 500 mm x 500 mm Distance table center to spindle nose in Z: 100 mm Distance table top to spindle nose in Y: 85 mm Ndodpswx Ed Eefx Ad Dsc Working Spindle Standard tool holder: SK 40 Ball bearing in front bearing: 80 mm Standard speed range: 10,000 rpm Feed Feed rate X-, Y-, Z-axis: 1 – 50,000 mm/min Feed force X-, Y-, Z-axis, 40% duty cycle: approx. 5,000 N Rapid traverse X-, Y-, Z-axis: 50 m/min Acceleration: approx. 7 m/s² Ball screw (lead): 40 (20) mm Tool Magazine Chain magazine 40 tool positions: max. quantity 40 Tool change position: via spindle Max. tool diameter: 80 mm Max. tool length: 350 mm Max. tool change time: 2.5 s MACHINE DETAILS Electrics Operating voltage, three-phase, frequency: 400 V, 50 Hz Control voltage, frequency: 230 V, 50 Hz Connected load: 27 kVA Fuse protection: 80 A

Condition: ready for operation (used), Year of construction: 2019, General Data Measurements width 2387 mm Measurements depth 3978 mm Measurements height 2565 mm Machine weight 8200 kg Control Unit Brand HAAS Main Drive Spindle speed range 12000 Tool taper ISO 40 Number of axis 5 Movement X-Axis Movement 762 mm Y-Axis Movement 508 mm Z-Axis Movement 508 mm Table Table load 300 kg Nedew Dv N Ajpfx Ad Dsdc This 5-axis HAAS UMC-750 was manufactured in 2019, featuring a robust universal machining center with a 500 mm table diameter and a maximum table load of 300 kg. It includes a high-speed spindle up to 12,000 rpm, ISO 40 taper, and a 40-position tool changer. Ideal for complex geometries and diverse machining tasks. Contact us for more information about this machine. Application Types Milling

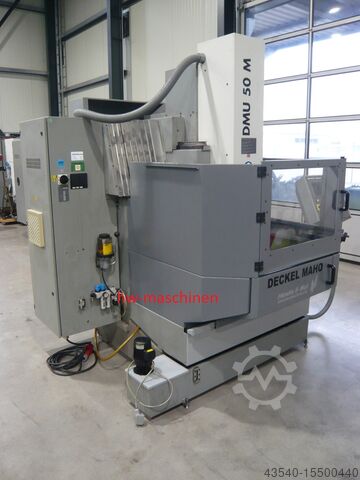

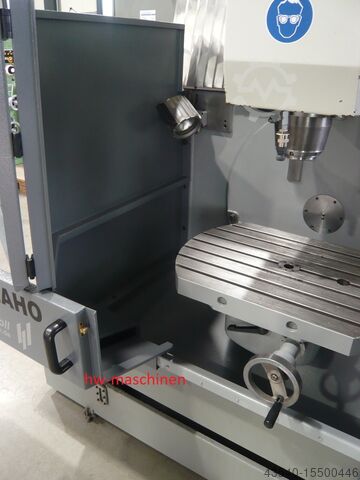

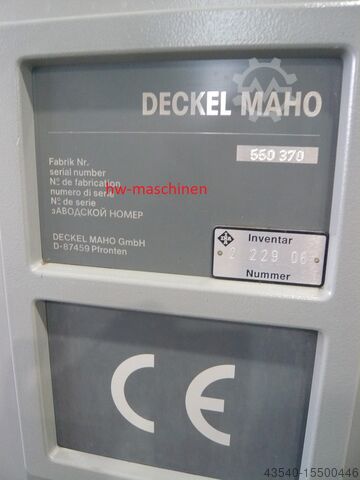

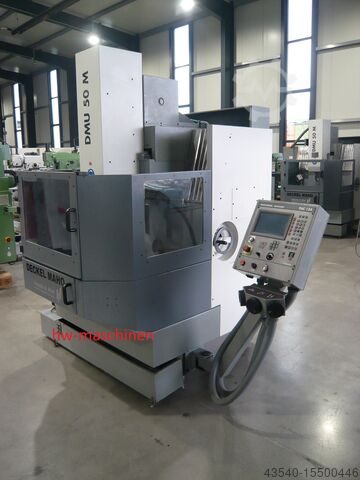

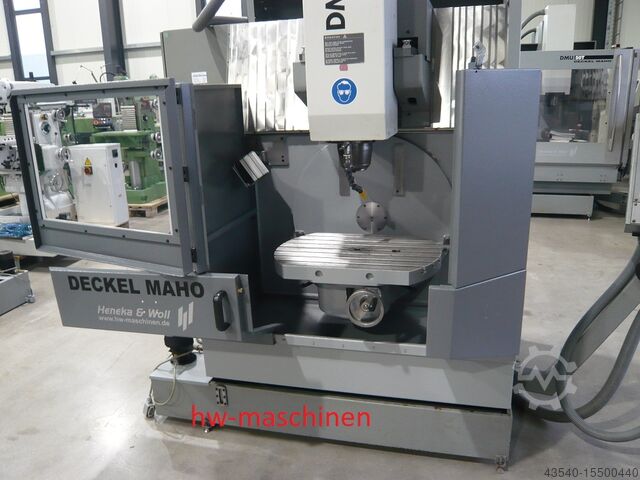

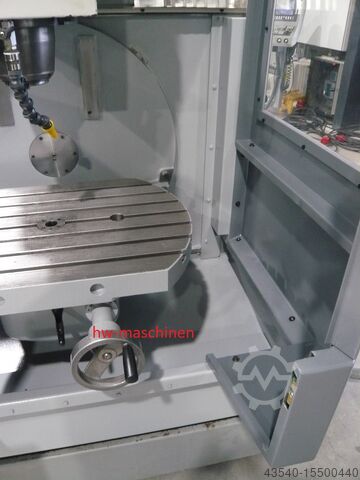

Condition: excellent (used), functionality: fully functional, Universal milling machine Deckel Maho DMU 50M with line control TNC 124 from Heidenhain TOP condition !!! Technical data: >> Year of construction 1998 >> Heidenhain control TNC 124 >> Traverse paths X500/Y400/Z400 >> C and B axis manual with display >> Speed 20- 4500 1/min >> Feed 5000mm/min >> rapid traverse 5m/min >> Tool holder SK 40 >> Table Ø700x500mm >> swivel range +95° /-10° >> electronic handwheel >> Weight 2800Kg >> Machine dimensions approx. 4.0 m x 2.5 m height 2.6 m Nedpfx Ajr Hbf Eed Djdc >> Coolant device >> Power connection 400V 32A About the machine : We are offering a Deckel Maho DMU 50M universal milling machine with a Heidenhain TNC 124 line control in very good condition. The table is manually (digitally) adjustable by two additional axes B and C. A very easy to operate control, it can enter and approach positions, deep and thread drilling, drilling patterns, hole circles, hole rows and rectangular pocket milling. Programs can be entered and read out via an interface. The Heidenhain line control makes work easier and even more precise. The milling machine was used in a large company for training purposes. Take the opportunity to inspect and try out the machine under power on site.

Condition: used, Year of construction: 1997, Technical details: x-travel: 710 mm y-travel: 630 mm z-travel: 500 mm turning speed range - spindle: 5 - 5000 1/min power - main spindle: 11 kW tool taper: SK 40 Nedevb Hzrjpfx Ad Dodc tool changer: 44 Werkzeuge feed: 10 m/min surface area: 1200 x 600 mm table load: 0,5 t total power requirement: 15 kVA weight of the machine ca.: 4,24 t Toolchanger with 44 tools, pendant handwheel for easy setup. *

Condition: ready for operation (used), Year of construction: 2001, operating hours: 27,000 h, functionality: fully functional, travel distance X-axis: 710 mm, travel distance Y-axis: 520 mm, travel distance Z-axis: 520 mm, spindle speed (max.): 18,000 rpm, number of slots in tool magazine: 32, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Travel X-axis: 710 mm Travel Y-axis: 520 mm Travel Z-axis: 520 mm Number of machining axes: 5 Simultaneous CNC axes: 3 Clamping area table: 700 mm Workpiece weight: 350 kg Tool holder: HSK A63 Drive power S1 100%: 15 kW Max spindle speed: 18,000 rpm Spindle type: vertical Max tool diameter: 40 mm Magazine type: chain magazine Number of tool positions: 32 MACHINE DETAILS Overall height: 2,760 mm Overall weight: 6,000 kg Required length: 2,710 mm Required width: 2,750 mm Connected load: 32 kVA Spindle hours: 27,000 h Operating hours: 83,450 h Nodpfx Aewqgrhsd Dedc EQUIPMENT - Coolant system - Fully enclosed working area - CE compliant

Condition: good (used), Year of construction: 2005, travel distance X-axis: 780 mm, travel distance Y-axis: 560 mm, controller manufacturer: Heidenhain, controller model: Mill Plus, table length: 700 mm, spindle speed (max.): 12,000 rpm, 60 tool places. 2-fold pallet change. IKZ spindle with 12000 rpm, 40 bar Nodpfx Adju S A Anj Dedc Operating mode 4 for working with open door. Blum laser, with tool measurement and tool breakage control. Preparation for Blum 3D probe. Probe is not included in the scope of delivery.

Condition: good (used), Year of construction: 2004, operating hours: 64,500 h, functionality: fully functional, machine/vehicle number: 1505709006, travel distance X-axis: 750 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 520 mm, rotational speed (max.): 42,000 rpm, number of slots in tool magazine: 60, swivel angle B-axis (max.): 180 °, Machine in good condition, measurement protocol available Ndodpfxewrz Nwj Ad Djc TECHNICAL DETAILS Travel X: 750 mm Travel Y: 600 mm Travel Z: 520 mm Table Clamping surface: Ø 700 × 500 mm Central/max table load: 350 kg NC rotary-swivel table: 700 × 500 mm B-axis: 180° C-axis: 360° Spindle Spindle speed: 42,000 rpm Tool holder: HSK E50 Spindle cooler: available Control CNC control: HEIDENHAIN iTNC 530 Electronic handwheel: available Preparation for 3D probe HEIDENHAIN TS 641: without probe BA: 4 Tool management Tool changer: 60 positions Speed Rapid traverse: 50 m/min MACHINE DETAILS Machine dimensions (L × W × H): 3,200 × 2,650 × 2,800 mm Machine weight: 9 t Total power requirement: 50 kVA Power supply: 400 V Operating times Power-on hours: 141,300 h Spindle hours: 64,500 h Control on time: 146,100 h EQUIPMENT - 5-axis simultaneous HSC machining center - NC rotary-swivel table with B and C axes - Chip conveyor present - Electronic handwheel for manual operation - Laser for tool measurement - Prepared for 3D probe HEIDENHAIN TS 641 - Oil mist extraction integrated - Spindle cooling available - No internal coolant (IKZ) available

Condition: excellent (used), Year of construction: 1995, travel distance X-axis: 750 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 500 mm, rapid traverse X-axis: 1 m/min, rapid traverse Y-axis: 1 m/min, rapid traverse Z-axis: 1 m/min, total height: 2,690 mm, total length: 2,230 mm, total width: 2,360 mm, spindle speed (min.): 10 rpm, spindle speed (max.): 7,500 rpm, mount diameter: 200 mm, load capacity: 340 kg, Micron VCE 750 - The machine is despite its age in a top maintained hours - was used only in 1-shift operation Manufacturer Mikron Model VCE 750 year of manufacture 1995 Control Mikron CNC (Haas) travel x = 750 Y = 400 Z = 500 Spindle speed 10 - 7,500 rpm drive power 7,5 kw Spindle tool holder SK 40 Tool changer 20 tools rapid traverse 12,7 m/min Max. Working feed rate 5.0 m/min Work table 356 x 914 mm Clamping surface Max. Table load 340 kg Weight 3.620 kg Dimensions 2,230 x 2,360 x 2,690 mm Nodsp Sq Trspfx Ad Dedc (L x W x H)

Condition: excellent (used), functionality: fully functional, Universal milling machine Deckel Maho DMU 50M with line control TNC 124 from Heidenhain TOP condition !!! Technical data: >> Year of construction 1998 >> Heidenhain control TNC 124 >> Traverse paths X500/Y400/Z400 >> C and B axis manual with display >> Speed 20- 4500 1/min >> Feed 5000mm/min >> rapid traverse 5m/min >> Tool holder SK 40 >> Table Ø700x500mm >> swivel range +95° /-10° >> electronic handwheel >> Weight 2800Kg >> Machine dimensions approx. 4.0 m x 2.5 m height 2.6 m >> Coolant device >> Power connection 400V 32A About the machine : We are offering a Deckel Maho DMU 50M universal milling machine with a Heidenhain TNC 124 line control in very good condition. The table is manually (digitally) adjustable by two additional axes B and C. A very easy to operate control, it can enter and approach positions, deep and thread drilling, drilling patterns, hole circles, hole rows and rectangular pocket milling. Programs can be entered and read out via an interface. The Heidenhain line control makes work easier and even more precise. The milling machine was used in a large company for training purposes. Take the opportunity to inspect and try out the machine under power on site. Ndsdpfx Asr Hbf Tsd Doc

Condition: used, Year of construction: 1998, x-travel 710 mm y-travel 630 mm z-travel 500 mm table surface area 1100 x 585 mm rotary table dia. 500 mm spindle taper SK 40 spindle turning speed range 5 - 6300 U/min spindle power 11 kW no. of tools in magazin 2 x 22 control HEIDENHAIN, TNC 426 total power requirement 20 kW weight of the machine ca. 5,8 t Accessories: various tool holders, probe RENISHAW OMP 60, coolant Nedpfxstz Sqhe Ad Dodc
