Centers (universal) over 1000mm (x-travel) for sale
14
Ref. -No.: 10201
Brand: AXA
Type of control: CNC
Control: Siemens 840D
Storage location: Halberstadt
Country of origin: Deutschland
X-Travel: 5000 mm
Y-Travel: 600 mm
Z-Travel: 800 mm
Machine length: 9400 mm
Machine width: 3500 mm
Eqenzmd
Machine Height: 3300 mm
Table Dimensions (Lengthxwidth): 6325 x 1050 mm
Swivelling: +/-90 °
Numbers Of Tools In Magazin: 120
Turning Speeds: 30-9000 RPM
Tool changer: SK 50
Drive Capacity - Spindle Motor: 45 kW
Weight Of The Machine Ca.: 23 t
Tool change time...
8
travel -x axis 1.130 mm
travel -y axis 720 mm
travel -z axis 630 mm
control HEIDENHAIN - iTNC 530
number of spindle speeds 12.000 U/min
numbers of positions in the tool changer 16
spindle taper SK 40
table-size 1.300 x 720 x 630 mm
with NC rotary table 800 mm
max. workpiece weight 700 kg
weight of the machine 8.500 kg
4 + 1 - axis machining center | HERMLE - U 1130
7ahtrf0
4 axes simultaneous:
X + Y + Z + integrated NC rotary table can be moved simultaneously
B-axis (main spindle) manua...
5
x-travel:1250 mm
y-travel:880 mm
z-travel:800 mm
tool taper:SK40
spindle turning speed range:8.000 U/min
magazine place:30 Stück
4 + 1 axis machining center DMG
Automatic swivel milling head
NC rotary table
Coolant system
IMC
chip conveyor
Rotating lens
3D path control Mill Plus
Integrated motor spindle SK 40 / speed 8000 rpm
Universal milling head with controlled B axis SK 50
Electric manual control panel
Hydraulic clamping system for work table and set-up station for connecting hydraulic...
4
Control Unit
Brand FIDIA V5
Main Drive
Spindle speed range 1600
Number of axis 5
Movement
X-Axis Movement 2500 mm
Y-Axis Movement 1270 mm
Z-Axis Movement 900 mm
Tools
Slots in storage 20
B9uzvyf
This Jobs Jomach 131 Universal Machine center was manufactured in 2002. It has a production record of 73532 working hours, of which 15283 are spindle hours. It is equipped with a FIDIA V5 control unit. The 5 axis machine works with a speed of 16000 rpm.
Application Types
Milling
4

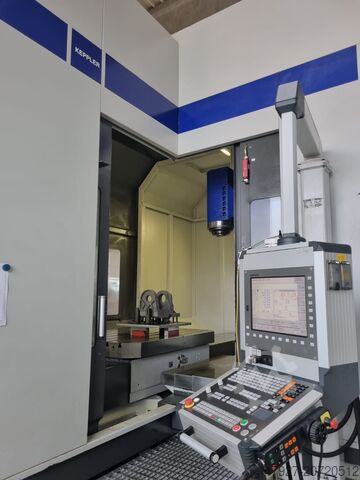

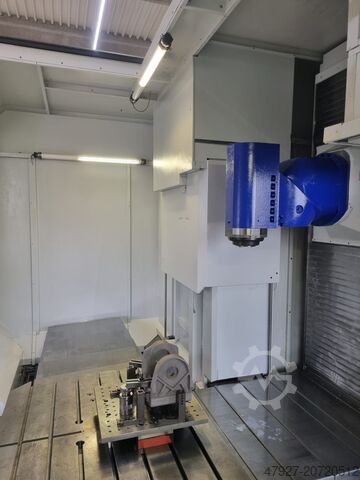

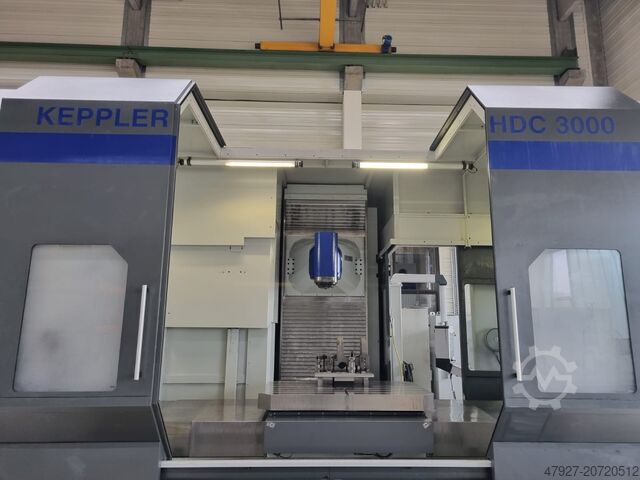

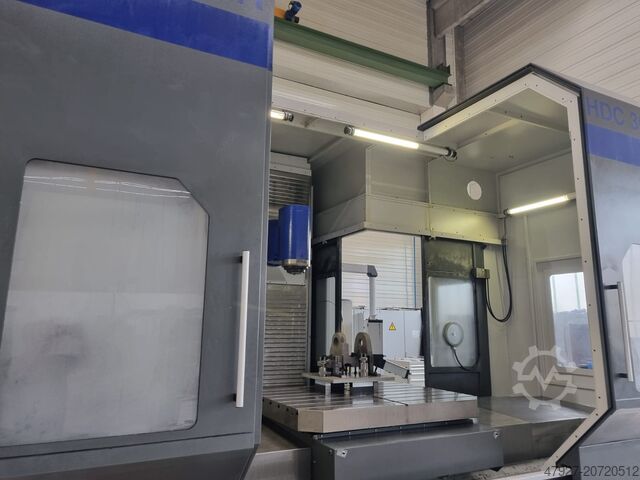

New machine HDC3000 with 6 axes available at short notice
- travels X=3000 mm, Y=1500 mm, Z=1400 mm
- Heidenhain iTNC 640 with handwheel
- NC rotary table for 5-sided machining 1250 mm x 1600 mm
- 2-axis NC universal drilling, milling head, fully simultaneous and positioning operation
- spindle 10.000 rpm HSK100, S1=220 Nm spindle torque

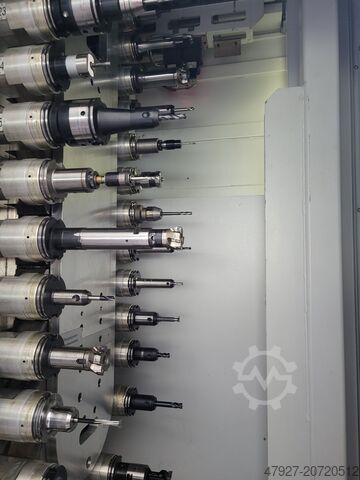

- tool changing system HSK100 / 60 places - 800mm long tools

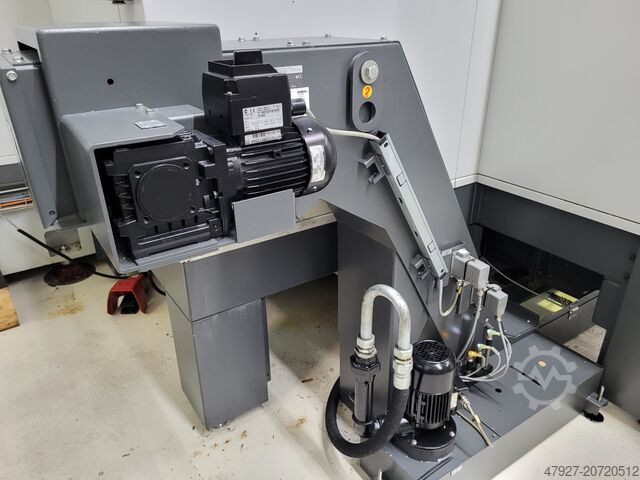

- Chip conveyor
Br8zf8ytmo
- optimized for 5 sides machining incl. deep hole drilling
- coolant sup...
7
5-axis CNC machining center - universal
Manufacturer: DMG
Machine model: DMC 100 U duoBlock
Control: Heidenhain iTNC 530
Year of manufacture: 2007
TECHNICAL DATA
Travels
- X-axis: (mm) 1.000
- Y-axis: (mm) 1.000
- Z-axis: (mm) 1.000
Spindle
- Internal coolant supply (IKZ): bar 40
- Tilting milling head automatic
- Spindle speed max.: (rpm) 10.000
Tool changer Double gripper
Tool magazine
- Tool holder: SK 50
- tool places: 60
Pallet system
- pallet changer
- Number of pallets: 2
- Pallet size: (...
3
Control: MAZATROL MATRIX
Screen: 15”
Axes
X-axis travel mm: 3.000
Y-axis travel mm: 800
Z-axis travel mm: 720
B-axis degrees: +/- 110
C axis degrees: 360 (0.001°)
Distance spindle nose - table surface mm: 140 - 860
Worktable
Table size mm: 3.500 x 820
Table load max. Kg: 2.500
Table configuration: T-slots mm: 7 x 18
Distance mm: 100
Spindle
Spindle speed rpm: 18.000
Spindle drive power kw: (50% / 100%) 35/26
Torque max. Nm: 168
Tooling system
Taper: SK-40 according to DIN 69871A
B2bgis7...
6
CNC- control make HEIDENHAIN, TYPE iTNC530 HSCI FS, travel X- axis 1850 mm, Y- axis 1400 mm, Z- axis 720/905 mm, swivel axis (B- axis) -20° to +120°, rotary table table size 1600 mm x 1350 mm, table load (center) 3000 kg (5000) kg, tool holder HSK-A63, automatic tool changer with 125 tool places, IKZ- cooling system with high pressure pump and additional external cooling of the spindle. Outside cooling of the spindle, connected load 73 KW, machine weight 34000 kg, space requirement L x W x H: 76...
x-travel: 4140 mm
y-travel: 1540 mm
z-travel: 1000 mm
b-axis: +/- 135° °
c-axis: +/- 360°
control: Siemens 840D Solution Line
spindle speed:: 3200 ... 60 000 U/min
tool taper: HSK 32 DIN 69893 (Form F)
tool changer with: für 8 tools (Magazinteller) places
no. of tables: 2 Stück
Table dimensions: links: B.1300 x H:1000 mm
table-size: rechts: B:1300 x H:600 mm
distance spindle /table: 943 mm
table load capacity: 1 000 / pro table kg
feed speed: X+Y: 80 m/min.
feed speed: Z: 40 m/min.
feed speed: B...
15
General Data
Measurements width 3830 mm
Measurements depth 2935 mm
Measurements height 3500 mm
Machine weight 13500 KG
Control Unit
Brand Heidenhain
Model TNC 530
CNC main language English
CNC language customizable Yes
Main Drive
Number of spindles 1
Spindle speed range 20000
Tool taper HSK 63A
Number of axis 5
Movement
X-Axis Movement 1200 mm
Y-Axis Movement 800 mm
Z-Axis Movement 510 mm
A-Axis Movement +110 to -110 Deg
C-Axis Movement 360 Deg
Workpiece
Workpiece X 1200 mm
Workpiece Y 800 m...
7
X-Achse: 2300 mm
Y-Achse: 1200 mm
Z-Achse: 600 mm
SK 40
60-fach WZW
Steuerung Heidenhain TNC 430
Drehzahl: 30-10.000 1/min
CNC-Rundtisch 1100 x 1100 mm
Schwenkkopf Teilung 2,5°
Elektrisches Handrad
Bandfilteranlage
Px0dr
Späneförderer
Automatische Schiebetüren
2 Handpistolen
Tischerhöhung um 150 mm
8
x-travel 1.150 mm
y-travel 710 mm
z-travel 710 mm
CNC-control iTNC 530 HEIDENHAIN
Xbqbpxk
Table dimensions 1.500 x 795 x Ø 800 mm
max. table load 800 kg
spindle taper SK 40
spindle turning speed range 20 - 12.000 U/min
power capacity 19 / 28 kW
feed range 0 - 30.000 mm/min
rapid traverse 30 m/min
tool change unit 32 Pos.
voltage 400 V
total power requirement 44 kVA
weight of the machine ca. 11,0 t
dimensions of the machine ca. 2,60 x 4,60 x 2,55 m
chip conveyor 3,30 x 0,80 x 1,45 m
coolant equi...
1
CONTROLS
.. CNC controls HEIDENHAIN ITNC 530 HCSI
BASIC DESIGN
.. basic design: bed type
WORKING RANGE -CUBIC-
.. number of processing axes (excl parallel axes): 6
.. .. among of them simultaneous CNC axes: 4
.. X-axis travel: 2000 mm
.. Y-axis travel: 1200 mm
.. Z-axis travel: 1330 mm
.. rotating range A-axis from: 0 °
.. rotating range A-axis up to: 180 °
.. rotating range B-axis from: 0 °
.. rotating range B-axis up to: 360 °
.. rotating range C-axis from: 0 °
.. rotating range C-axis...
5
x-travel:1250 mm
y-travel:880 mm
z-travel:800 mm
tool taper:SK50
Bkjrskrfeh
spindle turning speed range:8.000 U/min
magazine place:120 Stück
5 axes - simultaneously
Automatic swivelling milling head
NC - rotary table with pallet carrier
Pallet changer 2 pallets
Coolant system
IMC
chip conveyor
Rotating lens
3D path control Mill Plus
Integrated motor spindle SK 50 / speed 8000 rpm
Universal milling head with controlled B axis SK 50
Clamping hydraulics for work table and set...
5
CNC Universal Milling Machine
Manufacturer: HERMLE
Machine model: U 1000 S
Control: Heidenhain 426
Year of manufacture: 1999
TECHNICAL DATA
Travels
- X-axis: (mm) 1.000
- Y-axis: (mm) 630
- Z-axis: (mm) 550
- B-axis (spindle manually tiltable): degree 90
Feed rate X/Y/Z: (m/min) 20
Pxd37
Rapid traverse: (m/min) 20
Spindle speed max.: (rpm) 7,000
Tool holder: SK40
Machine table L x W: (mm) 1,200 x 630
EQUIPMENT FEATURES
- Milling head manually tiltable
- Splash guard around the working area
- Ele...
7
General Data
Measurements width 3645 mm
Measurements depth 3305 mm
Measurements height 3360 mm
Control Unit
Brand Bosch
Model Rexroth MTX OSA3
Main Drive
Spindle speed range 8000
Spindle motor power 34 kW (40% DC), 24 kW (100% DC)
Number of axis 7
Movement
X-Axis Movement 3000 mm
Y-Axis Movement 600 mm
Turret
Number of tool slots 128 pcs
Tools
Type of tool holder HSK 63
Media
Pxkhn
Main electronic connection 400 V / 50 Hz
Power consumption 65 kW
This Matec 30 HVS Machining center and Turn...
5-Axis Machining Centre with Pallet Pool.
DMG DMC 160U duoBLOCK.
Bfl0l387au
Year of manufacture 2006.
Siemens 840D Powerline CNC.
6 x Pallets 1000 x 1250 mm.
NC-Rotary Table 4th Axis C-Axis 360° / 0.001°.
NC-Swivelling Milling Head 5th Axis A-Axis 120°/-10°.
X 1600 mm.
Y 1250 mm.
Z 1000 mm.
Rapids X,Y,Z 60000 mm/min.
Spindle drive motor rating 68/85 KW.
Spindle speeds to max. 30000 rpm.
Tool taper HSK-A63.
Tool magazine positions 120
High Pressure Coolant through the spindle 40 bar.
Chip conveyo...
3
x-travel 3.000 mm
y-travel 1.000 mm
z-travel 1.100 mm
Control FANUC 31iB
0g0og38
table-size 3.600 x 1.050 mm
table weight 2.000 Kg
rotary table 800 mm
Tool adapter HSK A-100
working feed 30 m/min
Tools place 60 fach
NC rotary head +/-105°
main drive 35 kW
handwheel
Internal cooling system 22 bar
rapid traverse 45 m/min
total power requirement 60 kW
dimensions of the machine ca. 7.350 x 5.615 x 3.600 mm
Ranishaw tool touch probe
Ranishaw piece touch probe
Coolant tank
Cooled electrical ca...
5
CONTROLS
.. CNC controls HEIDENHAIN ITNC 530
WORKING RANGE -CUBIC-
.. number of processing axes (excl parallel axes): 5
.. .. among of them simultaneous CNC axes: 5
.. X-axis travel: 1000 mm
.. Y-axis travel: 800 mm
.. Z-axis travel: 700 mm
TABLE
.. table surface (left-right): 1000 mm
.. table surface (front-back): 800 mm
.. workpiece load (max): 1500 kg
.. rotation axis: C
.. - mode of operation: automatic
MILLING SPINDLE / HEAD
.. spindle revolutions (max): 18000 /min
.. tool fixture...
4
New machine HDC3000 with 6 axes available at short notice
- travels X=3000 mm, Y=1500 mm, Z=1400 mm
- Heidenhain iTNC 640 with handwheel
- NC rotary table for 5-sided machining 1250 mm x 1600 mm
- 2-axis NC universal drilling, milling head, fully simultaneous and positioning operation
- spindle 10.000 rpm HSK100, S1=220 Nm spindle torque
- tool changing system HSK100 / 60 places - 800mm long tools
- Chip conveyor
Br8zf8ytmo
- optimized for 5 sides machining incl. deep hole drilling
- coolant sup...
15
5 axes simultaneous

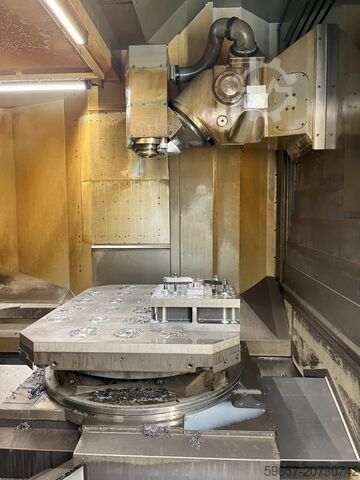

CNC Universal Milling & Drilling Machine DECKEL MAHO DMC 160 U duo Block
With path control Heidenhain iTNC 530
Year of construction: 2008
Travel: X 1600 Y 1250 Z 1000
Speed range: 18000 rpm (HSK 63)
With the following accessories:
NC rotary table 1500 mm x 1250 mm clamping surface
Universal milling head with controlled B axis (HSK 63)
Automatic swivel milling head
180-fold tool changer (HSK 63)
2-fold pallet changer
Tool measurement in the working area Blum Laser NT Hybrid
3...
5
x-travel:3000 mm
y-travel:1000 mm
z-travel:1200 mm
table surface area:3100 x 800 mm
table load capacity:6500 kg
taper ISO:SK 50
Gx92hc
turning speeds:4.000 1/min
spindle drive:22 kW
rapid traverse:15 m/min
tool change unit:24
control:iTNC 530 HEIDENHAIN
weight of the machine ca.:14 t
space requirements approx. LxWxH:8 x 5 x 3,55 m
bed milling machine with toolchanger,
automatic head 2,5° in 2 layers, 144x144 positions,
coolant through spindle 20bar,
el. handwheel
3
5-Axis Double Column Machining Centre as Gantry machine.
Edel Cyport 4020.
Year 2004 with a Heidenhain iTNC 530 CNC Control.
Bzzri0yqi0
Table size 6250 x 2310 mm.
Distance between the columns 2375 mm.
Distance Spindle to Table max. 1350 mm.
Gantry longitudinal travel X-Axis 4000 mm.
Milling ram cross travel Y-Axis 2000 mm.
Milling ram vertical travel Z-Axis 1.080 mm.
2-Axis NC Rotary-/Swivelling milling head.
C-Axis +/- 200°.
A-Axis +/- 110°.
Spindle taper/Tool taper HSK-A63.
Spindle motor power...
7
SEE PDF-DOC IN APPENDIX
Flexible power milling (X/Y/Z) 3600 x 1100 x 900mm and 80 m/min rapid traverse.
High rigidity and long-term stability.
Pw8bn
Spindle variants up to 20,000 min-1
Integrating two NC rotary tables possibel
Center particularly suitable for heavy machining.
SEE PDF-DOC IN APPENDIX
3
Control Heidenhain 415
Travel X / Y / Z 1500 x 600 x 600 mm
Tool magazine for 40 tools SK40
Table size 900 x 700 mm
H0zuo7fbs
Spindle speed 3,150 min-1
Rotary table 360 °
Automatic swivel head 2.5 °
3-D infrared probe head
Chip conveyor with paper filter.
10
- - - - - travels - - - - - - - - - - -
travel -x axis 6.000 mm
travel -y axis 4.600 mm
travel -y axis 3.400 mm
travel -z1 / z2 axis 1.000 mm
- - - - - Clamping areas - - - - - - - - - - -
rotary table diameter 4070 mm
Bryw7rxmi
circular table speeds 60 U/min
max. weight capacity of rotary table 25 t
table dimension (L x W) 4.200 x 2.500 mm
table load 50 t
distance between columns 4.300 mm
column: max. dist. table - spindle nose 1.800 mm
- - - main spindle - - - - - - - - -
spindle turning speed...
7
x travel 1600 mm
y travel 1000 mm
z travel 780 mm
-----
WORKING RANGE -CUBIC-
- number of processing axes (excl parallel axes) 5
- X-axis travel 1600 mm
- Y-axis travel 1000 mm
- Z-axis travel 780 mm
TABLE
- table surface (left-right) 1000 mm
- table surface (front-back) 1000 mm
- workpiece load (max) 6000 kg
- rotation axis: C
- - positioning/indexing 0.001 °
MILLING SPINDLE / HEAD
- spindle type: tilting head
- - positioning/indexing 2.5 °
- - positioni...
10
x-travel 1250 mm
y-travel 840 mm
z-travel 550 mm
control Simens 840 D - SL
main spindle:
turning speed range - main spindle 12000 min/-1
Drive power - main spindle 22,5 kW
tool changer:
Tool bore HSK 63
number of tool places 24 Pos.
Number of working hours 38400 h
spindle hours 4850 h
Pvglh
weight of the machine ca. 9,7 t
In our estimation, the machine is in very good condition
and can be viewed live by appointment.
Technical features:
- 5 axes simultaneously (milling package)
- Laserc...
8
5-Axis Horizontal Machining Centre.
MCM Tank 5-Axis.
Year 2017.
Siemens 840D sl.
2 x Station Pallet Changer 630 x 800 mm.
Pallet load max. 1500 kg.
NC-Rotary table.
Rotary axis C-Axis 360°/0.001°.
NC-Swivelling head (swivelling in Y-Plane).
Swivelling axis A-Axis +80°/-95°.
X 1300 mm. Y 1400 mm. Z 1400 mm.
Rapids X,Y,Z to 50.000 mm/min.
Workpiece swing diameter max. 1400 mm.
Workpiece height max. 1300 mm.
Spindle taper ISO 50.
Spindle drive motor rating 40/52 KW.
Spindle speeds max. 10000 rpm.
T...
3
x-travel: 1000 mm
y-travel: 1000 mm
z-travel: 500 mm
B-axis (table): 360 °
spindle taper: HSK A63
working spindle range of revolution per minute : 15000 U/min
rotary table: 260 mm
control: Andronic 2060PKM
feed: 1 - 5000 mm/min
rapid traverse X,Y: 15 m/min.
rapid traverse Z-axis: 12 m/min
total power requirement: ca. 42 kW
weight of the machine ca.: 6,0 t
dimensions electric cabinet LxWxH: 2,4x0,6x2,2 m
dimension machine xH: 3,5x2,4x3,2 m
5-axis BAZ in parallel kinematics suitable for prototypes...
Catalog No. : 5669
Type: Turbomill 1400g TWIN
Producer: Liechti
Made in: 2010
Characteristic:
Control system: Siemens Sinumerik 840 D
X-Axis travels: 1980 mm
Y-Axis travels: 450 mm
Z-Axis travels: 400 mm
Number of synchronous axles: 5 pcs
Maximum rotary speed of the vertical spindle: 20000 1/min
Maximum feed rate in X-axis: 50 m/min
Maximum feed rate in Y-axis: 50 m/min
Maximum feed rate in Z-axis: 50 m/min
Maximum feed rate in A-axis: 200 1/min
Maximum feed rate in B-axis: 50 1/min
...
11
5-axis CNC machining center - universal
Manufacturer: DMG
Machine model: DMC 160 U duoBlock
Control: Heidenhain iTNC 530
Year of manufacture: 2006
TECHNICAL DATA
Travels
- X-axis: (mm) 1.600
- Y-axis: (mm) 1.250
- Z-axis: (mm) 1.000
Spindle
- Internal coolant supply (IKZ): bar 40 / 80 (2 levels)
- Tilting milling head automatic
- Spindle speed max.: (rpm) 6.300
Tool changer Double gripper
Tool magazine Shelf magazine
- Tool holder: SK 50
- tool places: 120
Pallet system
- pallet changer
- Number...
3
MTrent MT Cut UDY 100 5 A / 5 axles,
Year of manufacture 2019,
control Heidenhain TNC 640,
travel X/Y/Z 1000/1150/700 mm,
NC rotary table 1000 x 800 mm,
NC milling head infinitely variable 0 - 180°,
spindle speed up to 18.000 rpm,
HSK 63,
spindle cooling,
Ww 80 fold,
elketr. handwheel,
IKZ 40 bar,
3 D infrared probe,
Kinematic option,
B2hc3osz2y
Heidenhain tool measurement,
1
NEW MACHINE // NEW MACHINE
control: HEIDENHAIN TNC 640
X-axis: 2.000mm
Z-axis: 1.500mm / optional 2.000mm
Y-axis: 1.300mm
V-axis: 1.000mm / Optional 1.500mm
Carousel rotary table (B-axis): Ø 1.600 or Ø 1.800mm /
Cupalc2
speed 400 rpm // (positioning 0,001°) - load 6.000Kg.
Automatic swivel head orthogonal 1° x 1° (4.000 rpm) - HSK 100T
IKZ - Cooling through the spindle - 36 bar
Tool changer 60-fold
Double - chip conveyor
Full enclosure
x-travel:1800 mm
y-travel:2000 mm
z-travel:1100 mm
pallet table size:1.600 x 1.400 mm
table load capacity:3000 kg
tool taper:HSK 100
spindle drive:44/32 kW
turning speed range - stepless:10.000 1/min
numbers of positions in the tool changer:180
control:iTNC 530 HEIDENHAIN
total connected load:86 kVA
transport dimensions LxWxH:6,1 x 3,4 x 3,8 m
weight of the machine ca.:37 t
5-axis CNC universal maching center, simultaneously,
NC-rotary table with pallet-device (1.600 x 1.400mm),
linear palle...
x-travel: 1220 mm
y-travel: 820 mm
z-travel: 610 mm
c-axis: 360 °
b-axis: 100 °
control: Siemens 840 C
clamping plate: 750x750 / 800 Ø mm
table load: 600 kg
range of rpm - spindle: 20 - 8500 U/min
tool taper: SK 50
distance between columns: 1400 mm
distance spindle nose and table: 90 - 700 mm
number of tool tapers: 60 Stck. / pcs
weight of tools max.: 25 kg
tool length - max.: 400 / Ø 260 mm
tool changing time: 8 sec
feed: 1-15000 mm/min
capacity at 100% load: 15
interface: RS 232
fixed mounted ...
15
CNC drilling machine Alberti Edit 2000/CN
Table dimensions
X axis 2000mm
Y axis 800mm
Table with 4 clamping slides and 8 stops
Power 7.5kw
Machine in unknown technical condition
Machine sold without startup
B080dlnjxj
10
x-travel 1.080 mm
y-travel 710 mm
z-travel 710 mm
control iTNC530
B-axis -91 - +12 °
feed X/Y/Z-axis 20 - 15.000 mm/min
rapid traverse X/Y/Z 30,00 m/min
table surface area 1.500 x 800 mm
table load 0,90 t
number of T-slots 11
T-slots 14H12
T-slot - distance 63 mm
spindle turning speed - stepless 20 - 10.000 U/min
power capacity at 100 % load kW
power capacity at 40 % load 30,00 kW
tool taper SK40 DIN69871
tool magazin: 2 x 16
tool diameter 80 mm
tool diameter with 2 vacant positions 130 mm...
6
number of spindles 1
workpiece length 300-2500 mm
x-travel 3000 mm
y-travel 820 mm
z-travel 1120 mm
I8mxwcwhy
control Siemens 840 D
centre height 520 mm
max. workpiece diameter 740 mm
workpiece weight max. 1600 kg
working spindle
tool taper SK 50
spindle speed 12000 1/min
tool piece magazine with 40 Wkz/tools
max. tool diameter 100 mm
max. tool length 400 mm
total power requirement 63 kW
weight of the machine ca. 19 t
dimensions of the machine ca. 10 x 6 x 3,5 m
9
Travel X / Y / Z 1000 mm x 1000 mm x 1000 mm
Control Heidenhain ITNC 530
Rotating pallet changer
NC rotary table with pallet carrier 1000 mm x 800 mm
Universal swivel milling head B axis
Spindle with gear head SK 50 with 8,000 rpm
Tool magazine with 120 SK 50 spaces
IKZ system with 40/80 bar
Chip conveyor
Infrared master master
Fh9mt22
ATC software
Operating mode 4
Oil and emulsion mist separation system
Tool breakage control SK 50...
5
x-travel:1800 mm
y-travel:2000 mm
z-travel:1100 mm
table-size:D 1700 x 1400 mm
table load capacity:5000 kg
tool taper:SK 50
spindle drive:30 / 20 kW
turning speed range - stepless:10000 1/min
numbers of positions in the tool changer:60
control:TNC 430 HEIDENHAIN
weight of the machine ca.:39 t
transport dimensions LxWxH:ca. 6 x 3,4 x 3,4 m
space requirements approx. LxWxH:8,5 x 9,5 x 4,2 m
5-axis CNC universal maching center, simultaneously,
NC-rotary table 1.700 x 1.400mm (360000 x 0,001° in...
Ref. -No.: 10202
Brand: OKUMA
Type of control: CNC
Control: OSP U100M/ U10M
Storage location: Halberstadt
Country of origin: Japan
Workpiece Diameter At Full Load: 135 mm
Workpiece Diameter With 2 Vacant Positions: 230 mm
Tool Piece Magazine With: 180 Pcs./pcs.
Further information:
-Automatic measuring (OSP)
-Distance Between Columns 2050 mm
-Distance Spindle to Pallet Surface: 1220 mm
-Right Angle Head Attachment Indexing: 15°
Accessories:
- High Column, 600mm
- SLOPE Machining Funct...
6
CNC- control make HEIDENHAIN, 30-fold tool changer, tool holder SK50, travels X- axis 3000 mm, Y- axis 800 mm, Z- axis 900 mm, separate coolant and lubricant preparation with belt filter, chip conveyor, exhaust system and 3 pcs. Magnetic clamping plates, year 2018
B0dwf9fbxb
x-travel 1.080 mm
y-travel 710 mm
z-travel 710 mm
control TNC 530 Heidenhain
Main spindle:
turning speed range - main spindle max. 18.000 min/-1
power capacity - main spindel 20 / 15 kW
max. Torque 286 Nm
tool taper SK 40
swivellable B: -91° / +12 °
work table:
table surface area 1.500 x 800 mm
max. table load 2.000 kg
T-slots 11x 14 H12 x 63
tool magazin:
number of toolpositions 32 pos.
max. tool diameter 80 mm
max. tool-dia with free toolbox 130 mm
max. tool length 315 mm
max. tool we...
7
x-travel 1250 mm
y-travel 880 mm
z-travel 800 mm
control Heidenhain MillPlus
rapid speed 40 m/min
feed speeds 15.000 | mm/min |
table surface area 1000 x 800 mm
table rotating 360.000 x 0,001 °
Bvcsdlqmkd
table load 1,5 t
numbers of pallets 2 Stück
milling-head swivable +/- horizontal/vertikal
turning speed range 0 - 8.000 U/min
tool taper SK 50 | |
power capacity - milling spindle 28 / 19 kW
no. of tools in the magazine 120 Stück
weight of the machine ca. 15 t
dimensions of the machine ca. ...
9
Travel X 3,600 mm
Travel Y 920 mm
Travel Z 820 mm
B0u80vrxfn
rapid traverse X/Y/Z 100/60/60 m/min
table size 4.200 x 900 mm
Spindle mounting HSK 63
Drive power 35 kW
Spindle speed 18,000 rpm
Tool magazine 120 Number
equipment:
- Swivel milling head 0,001°
- NC rotary table Ø 700 mm
- Measuring probe TS 641
- Production package IKZ 40 bar tank 980 L
- Operating mode 4
- chip conveyor
- Oil mist separator
- Clamping hydraulics for rigid table
1
Immediately available Moving column machine FS 1200 optimized for dust machining (carbon, GFK,....), conversion for steel machining possible at any time
- total travel X=12.000 mm, ideal for flexible machining of large parts
- Travel X=12,000 mm, Y=1,500 mm; Z=3500mm
- iTNC 530 control with wireless HR 550 FS handwheel, operator cabin on moving column
- 2-axis NC universal drilling, milling head, fully simultaneous and positioning operation per moving column
- spindle HSK-A 100, 10.000 rpm, 220 ...
3
x-travel:2000 mm
y-travel:800 mm
z-travel:1100 mm
total power requirement:30 kW
Bytvqemdsz
tool taper:HSK 63
spindle speed max.:18000 U/min
max. torque on the spindle:190 Nm
magazine place:36 Stück
head swivability:105 °
bore capacity in steel:60 mm
milling performance:500 cm^3
operating hours:36973
Working spindel hours:17105 h
internal coolant:20 bar
NC- rotary table with direct drive:630 mm
10
x-travel 1080 mm
y-travel 610 mm
z-travel 810 mm
spindle tunring speed 15000 U/min
Control Heidenhain iTNC 530
rapid speed max. 30000 mm/min
rotary table diameter 600 mm
surface area table 1100 x 600 mm
number of tool places 40 Pos.
tool taper BT40
max. workpiece weight 500 kg
weight of the machine ca. 8 t
The 5-axis machining center can be powered by appointment
can be visited.
Equipment and accessories:
- IKZ up to 60 bar
- Compressed air through the center of the spindle
- Glass scales ...
8
