Welding table equipment

WMT Basic-Set 4 - 53teilig

Condition: used, Year of construction: 1994, cutting diameter 520 mm saw band length 7239 mm cutting width 1,3 mm Control POSIMOD cutting range - square - 520 x 520 mm feed length 500 mm feed length: multiple 4500 mm min. cut-off length 6 mm length of rest piece min/max 10 / 100 mm cutting speed 20 - 130 m/min Gksdpfxewm Rm Ij Acfea dimensions of saw-band 7239 x 50 x 1,3 mm sawing motor 5,5 kW total power requirement 10,0 kW weight of the machine ca. 3,8 t dimensions of machine L x W x H 3,42 x 2,30 x 2,40 m - 2 column guided - Accessories: roller track 2500 mm length, chip conveyor, coolant

Condition: used, Year of construction: 1994, Technical details: saw blade diameter: 450 mm revolution per minute: 2820 U/min cutting lenght max.: 5000 mm cutting length min.: 240 mm air pressure - required: 6-8 bar hole of sawblade: 32 mm mitter cutting - both sides: 45+90 ° air-pressure connection: 6 - 8 bar total power requirement: ca. 4,6 kW weight of the machine ca.: 1,1 t dimension machine xH: 6,05x1,49x1,79 m Further features of the machine: - Pneumatic vertical and horizontal tension - pneumatic mist spraying device - height adjustable machine feet - material supports movable with saw - piece counter Cutting diameter according to tabular cutting range diagram, as dependent on speed and saw blade. Gsdpfx Aeu Nigkscfjka Accessories: - 2 spare saw blades Machine can be demonstrated under power. i.D. *

Condition: new, number 80 Positionen weight 150 kg condition neu 28 mm dimensions 0,8 x 0,6 x ,05 m Special 80-piece set, 28mm system Material: Burnished high-quality steel Scope of delivery: see images Table not included!! Godpfjyv I Eyox Acfska

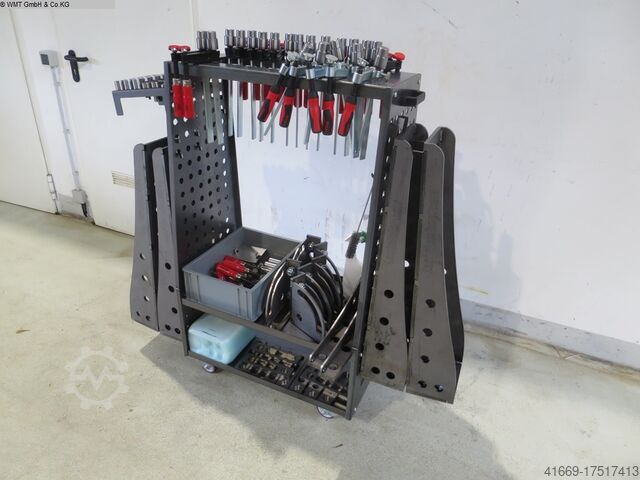

Condition: new, number 100 Positionen 28 mm condition neu Gkedpfju Aw Ngsx Acfja weight 280 kg dimensions 1,2 x 0,5 x 1,3 m XXL starter package, consisting of: - 15x – standard clamping pliers - 5x – multi-clamp pliers - 10x – side tensioners with eccentrics - 15x – Loose cam H30 - 10x – Loose cam H100 - 2x – pipe insertion cam series - 10x – quick release bolts - 10x – stop block 15mm - 4x – Right Angle XL - 6x – Right angle - 6x – angle of attack - 1x – box - 1x – Insert holder - 1x – Allen key - Tool trolley

Condition: good (used), various counter bearing support blocks, rollers 5-fold adjustable for transverse and longitudinal rotation to relieve e.g. the welding rotary table or to transport pipes Gksdpfjl Dwnlsx Acfsa different versions Height adjustment in steps or stepless different heights The carriers themselves have a load capacity of up to 8 tons prices from 480.-€ to 850.-€

Condition: new, Year of construction: 2025, load capacity: 10,000 kg, 10-ton container rotator, roller cradle, self-centering 380 V, speed continuously adjustable from 200 to 1200 mm/min. for diameters from 300 mm to 3500 mm roller diameter 270 mm x 120 mm temperature resistance of the support rollers: 100°C double drive Gjdsg Sz Urspfx Acfeka with hand and foot remote control, complete set digital speed display

Condition: new, Year of construction: 2024, functionality: fully functional, load capacity: 1,000 kg, Column lifting rotating device 1 ton load capacity Protec turning device / positioner Syncrolift Double column, hand-held remote control wireless and manual Column adjustment can be moved twice Load capacity 1000 kg Minimum working height: 600 mm Gkjdpevllfwsfx Acfsa Maximum working height 1500 mm Speed 1 rpm Clamping plate diameter 500 mm Rotating movement 0.37 kW 2 to 10 ton load capacity possible on request

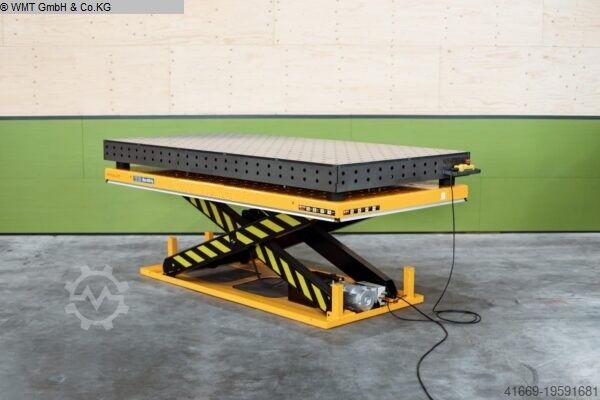

Condition: new, table length 2400 mm table width 1200 mm 4000 kg height of stroke 510 - 1550 mm Gjdpfx Acswz Rubefska total connected load 1,5 kW connected load frequency 400 V weight of the machine ca. 0.95 t Welding table on lifting table: Hole diameter: 28mm The table is made of 15mm thick S355 steel The surface is stained and oiled. Tolerance: +/- 1 mm at the top and +/- 1 degree at the sides. Side panels 150 x 10mm Ribbed bottom for reinforcement.

Condition: like new (used), Year of construction: 2022, functionality: fully functional, load capacity: 1,500 kg, The Siegmund M positioner is ideal for welding, assembly and maintenance work. Positioning is carried out using a manually driven handwheel. Positioner with load capacities of up to 1,500 kg. Torque 900 Nm Handwheel with handle Ø 315 mm U-angle compatibility System 28 Max. length of U-angle 3,000 mm A - Working height 850 mm B - Column height 955 mm C - Total height 1,140 mm D - Width of base plate 600 mm E - Length of base plate 600 mm Price does not include 3D accessories. Prices 3-D accessories, heavy cast parts, wall thickness 28mm, everything processed, special prices New: original angle 28 U-shape 500mm x 200mm x 200mm (surcharge 500.-€) or 2000mm x 200mm x 200mm (surcharge approx. 1000.-€) or 2400mm x 200mm x 200mm (surcharge 1300.-€) or with table top 28 hole, 2000mm x 1000mm x 200mm (surcharge 2000.-€) Gsdpfx Aovlgzascfeka several positioners are available

Condition: excellent (used), Year of construction: 2013, - Tools Ø 500 mm - Blade speed 2800 rpm Gjdsx N R H Tepfx Acfska - Weight approx. 1500 kg
