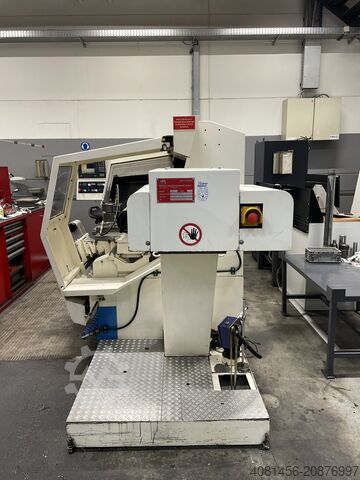

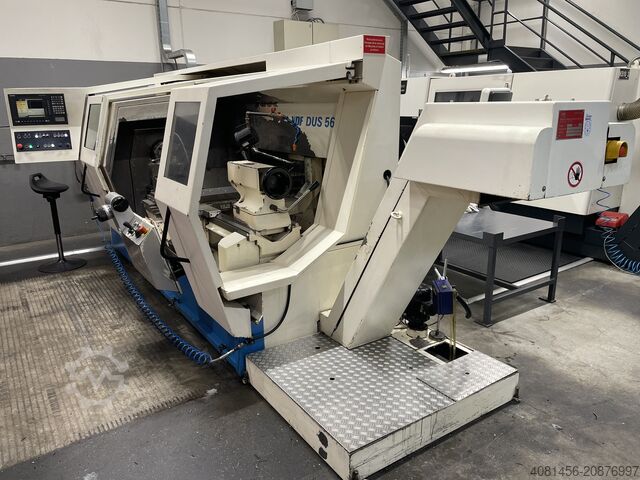

CNC lathe

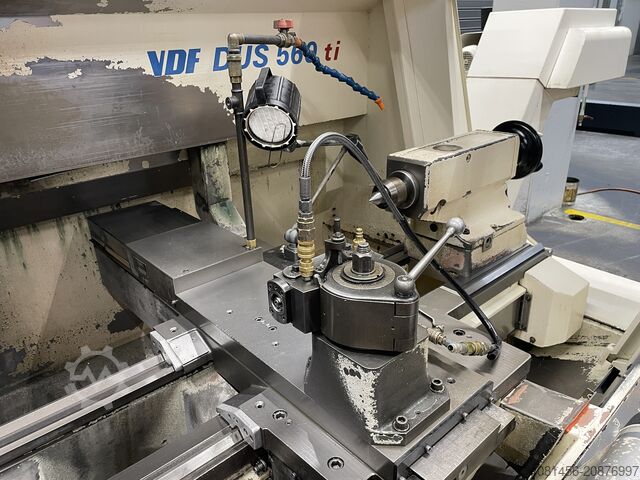

VDF Boehringer DUS 560 Ti

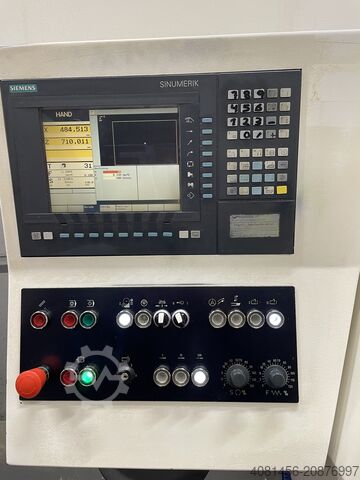

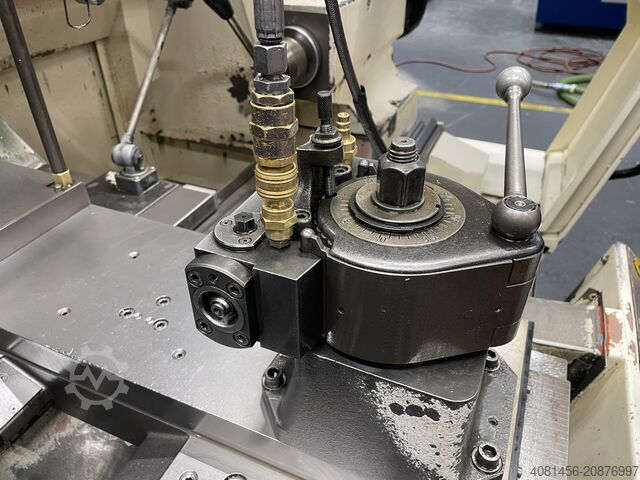

Condition: used, Year of construction: 2000, centre height 280 mm centre distance 1200 mm turning diameter over bed 570 mm turning diameter over slide 365 mm turning length 1000 mm spindle taper DIN 55027 Gr. 8 control Sinumerik 810 D SIEMENS bed width 360 mm Gusdpfxox E Dn Aj Ab Dsa spindle bore 62 mm turning speed range 3 - 2500 U/min feed: 5000 mm / min rapid travel - longitudinal/face 10 m/min 3-jaw-chuck diameter 250 mm quick change toolholder SANDVIK Coromant Capto drive capacity - spindle motor 25 kW taper in tailstock-quill MK 5 dia. of quill 100 mm quill stroke 190 mm voltage 400 V weight of the machine ca. 5,0 t dimensions of the machine ca. 3,55 x 2,20 x 1,95 m - Serial No.: 2022-3742-03 - CNC-Control SIEMENS Sinumerik 810 D - Rapid feed - Coolant equipment - Machine lamp

Condition: good (used), Year of construction: 1999, functionality: fully functional, Machine new white-color in 2014 (order by SIEMENS Energy) Technical Data Working area Max. swing over bed: 570 mm Max. swing over cross slide: 365 mm Max. turning length: 1500 mm Centre height over flat bed: 280 mm Max. workpiece weight: 400 / 1000 kg Max. workpiece clamping length: 1300 mm Work spindle Spindle head DIN 55027, size 8, internal taper 70 Guedex Ahx Djpfx Ab Doa Spindle bore: Ø 62 mm Spindle diameter in front bearing: 100 mm Spindle through-hole (depth): 200 mm Max. chuck size: Ø 315 mm Speed range: 3–2500 rpm Max. faceplate diameter: Ø 560 mm Max. faceplate speed: 700 rpm Max. torque: 1800 Nm Carriage – travel Longitudinal travel (Z-axis): 1160 mm Cross travel (X-axis): 345 mm Tooling system: Parat-3 Tool cross-section DIN 770 (h × b): 32 × 25 mm Tailstock Tailstock movement by hand Quill taper: MK5 (MT5) Quill diameter: 80 mm Quill stroke: 190 mm Accessories / special equipment CNC control: SINUMERIK 810 D 32-bit processor, digital control ManualTurn with cycle support 10.4" colour LCD display Operating manual 094.0003.1330-00 3-jaw chuck Ø 315 mm Faceplate Ø 350 mm (up to Ø 560 for thin workpieces) Radius turning function Turret on support: size 3, Parat 4-station, manually indexable 4 × 90° Chip conveyor Bürener Maschinenfabrik Particularly suitable for: see production spectrum

Condition: good (used), Year of construction: 1999, turning diameter over cross slide: 365 mm, spindle bore: 62 mm, turning length: 2,000 mm, turning diameter: 570 mm, Swing over bed Ø: 570mm Swing over cross slide Ø:365mm DBC Turning Length: 2000mm Spindle bore: 62mm Spindle power: 25kW Tailstock spindle Ø: 100Ø Stroke pinole: 190mm Spindle taper: 4Mk Workpiece weight: 2500 Speeds / ranges: 2500Rpm Feed rate X-Axis: 5000mm/min. Feed rate Z-Axis: 10000mm/min. Length: 5200mm Width: 2200mm Height: 2100mm Weight: 5200kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details! Gedpfx Abjxxh N Us Dsua

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, spindle bore: 62 mm, turning length: 2,340 mm, turning diameter: 570 mm, spindle speed (max.): 2,500 rpm, controller model: SIEMENS SIN 810 D, TECHNICAL DETAILS Turning diameter: 570 mm Turning length: 2,340 mm Turning diameter over support: 345 mm Spindle head according to DIN 55027: Size 8 Spindle bore: 62 mm Tailstock quill taper: MK 5 Spindle speeds: 3 - 2,500 rpm MACHINE DETAILS Control: SIN 810 D Total power requirement: 35 kW Dimensions & Weight Dimensions: approx. 4.85 x 2.10 x 2.00 m Machine weight: approx. 5.60 t EQUIPMENT extended machine bed steady rest chip tray cooling system Gusdpfx Aoxf Dk Ueb Doa 4-jaw chuck
