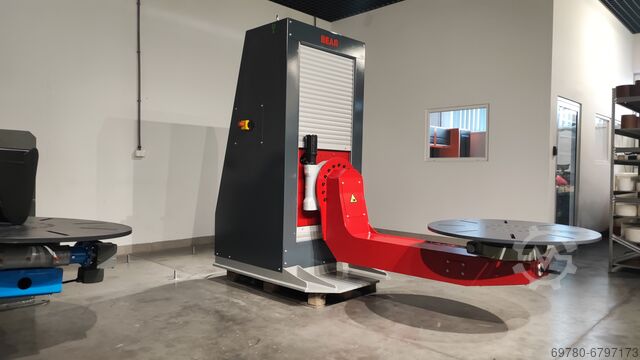

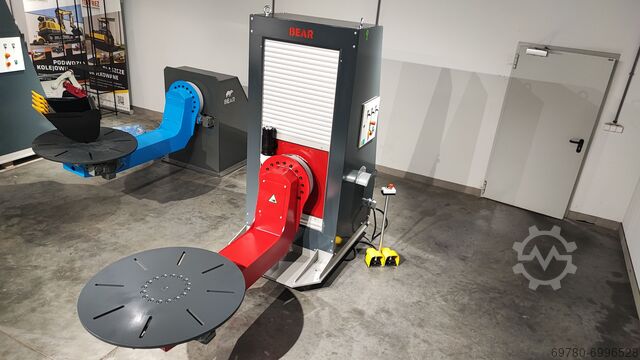

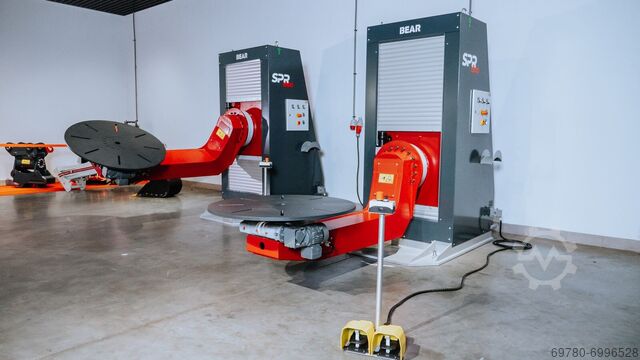

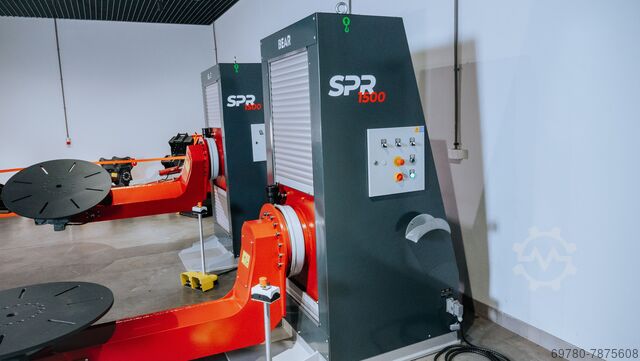

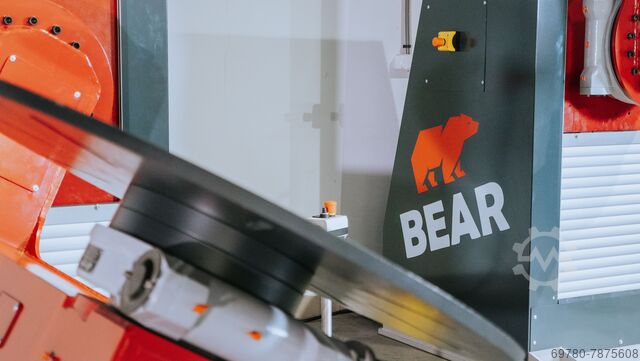

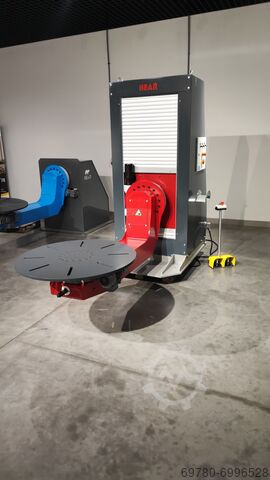

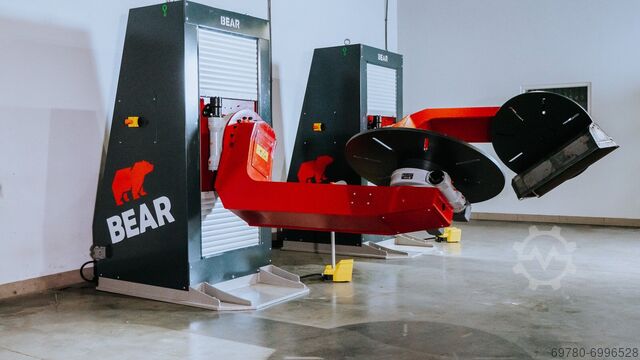

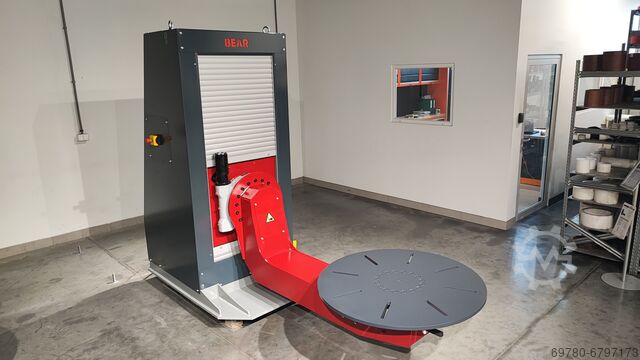

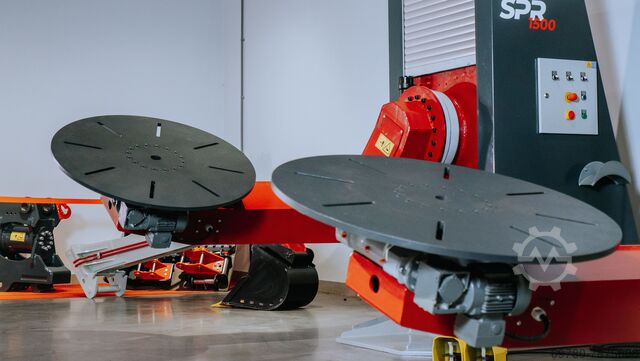

Welding positioner, manipulator 1500kg

TOKFREZ SPR1500

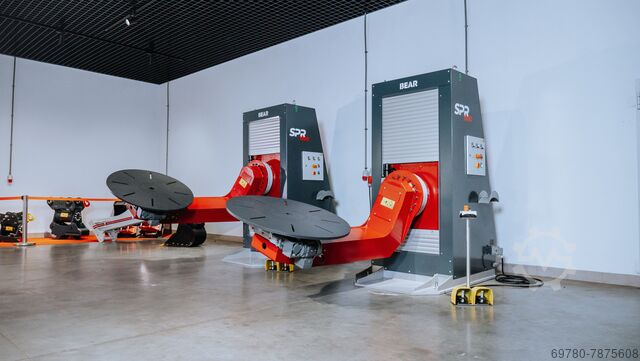

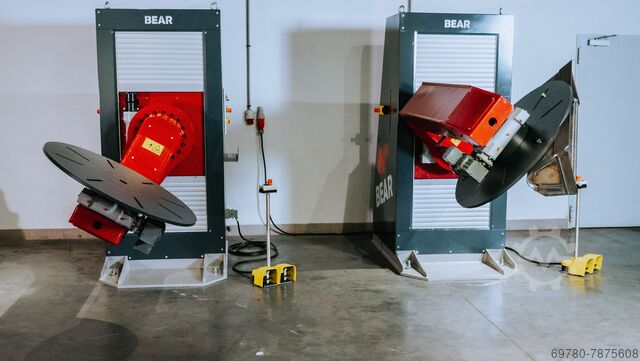

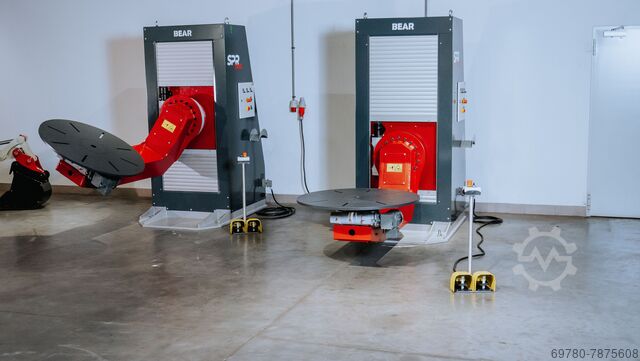

Year of construction: 2023, condition: new, Positioner powered by three-phase current Rotation of table and arm by means of hydraulic swivels Height adjustment of the arm by means of a hydraulic cylinder Controlling functions on the positioner housing Dodoiuna Eopfx Ac Hewd Useful in positioning parts in: welding cleaning assembly Increasing work efficiency up to 40% The use of unlimited rotation in 2 axes and, in addition, vertical and horizontal movement, allows any positioning of the attached workpiece (also "overhead"). The 3-axis positioner provides a significant improvement in work culture compared to traditional pan/tilt positioners (optimal positioning of the workpiece, easy operation). Advantages and benefits: For the employer: increased labor productivity by up to 40% through optimum positioning of workpieces - resulting in short amortization time of the device increased production efficiency does not require additional space on the shop floor better quality of welded joints - always possible to weld in the sub-lower position robust design of the device ensures long-term, trouble-free operation For the operator: ensuring ergonomic posture for the working person minimizing the risk of accidents - no changes in the fixing of objects no interruptions in work caused by waiting for the crane easy installation and operation It is possible to fully automate welding by using Kawasaki welding robots. We also offer positioners with a robot and integrated control system. ADDITIONAL OPTIONS: REMOTE CONTROL WITH CABLE TO OPERATE THE POSITIONER PEDAL WITH CABLE FOR OPERATING THE TABLE ROTATION STEPLESS ADJUSTMENT OF THE SPEED OF TABLE ROTATION AND ARM ROTATION FUNCTION OF CONSTANT TABLE ROTATION LENGTH AND SHAPE OF THE ARM SIZE AND SHAPE OF THE TABLE ROTATIONAL MASS We can make the positioner according to the customer's individual guidelines.

Condition: new, Year of construction: 2024, load capacity: 1,500 kg, Perforated table 1200 x 2400 x 200mm Thickness of the table top 20 mm, diameter of the holes 28 mm Swivel range 360° Height adjustment Hydraulic motor 800 to 1200mm Speed 0.5 rpm Motor power 0.75 KW We offer the tables in many sizes and load capacities: Load capacity 500 Kg, dimensions 1000mm x 1500mm x 200mm, bore 28mm with manual or automatic height adjustment Dwedpsr Uft Dsfx Ac Hjd Load capacity 1000 kg, dimensions 1000 mm x 2000 mm x 200 mm, 28 mm hole with manual or automatic height adjustment Load capacity 1500 kg, dimensions 1200 mm x 2400 mm x 200 mm, 28 mm hole with manual or automatic height adjustment Load capacity 2000 kg, dimensions 1200 mm x 2400 mm x 200 mm, 28 mm hole with manual or automatic height adjustment Load capacity 3000 kg, dimensions 1200 mm x 2400 mm x 200 mm, 28 mm hole with manual or automatic height adjustment Load capacity 5000 kg, dimensions 1500mm x 3000mm x 200mm, bore 28mm with manual or automatic height adjustment

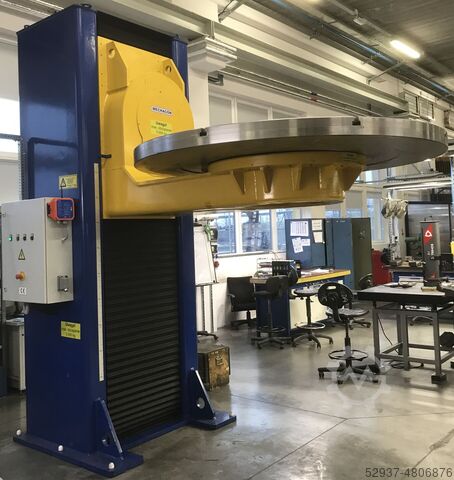

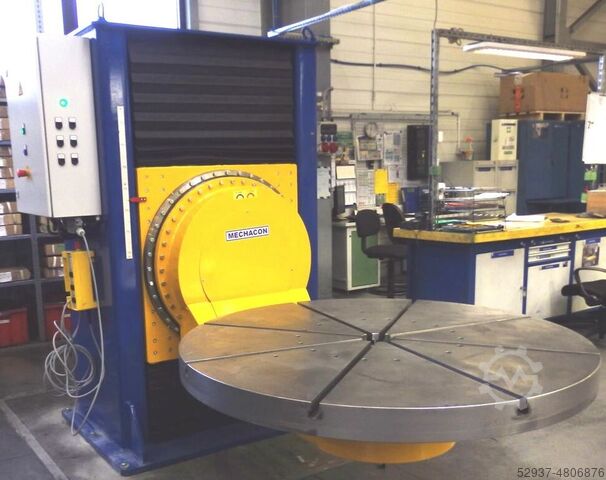

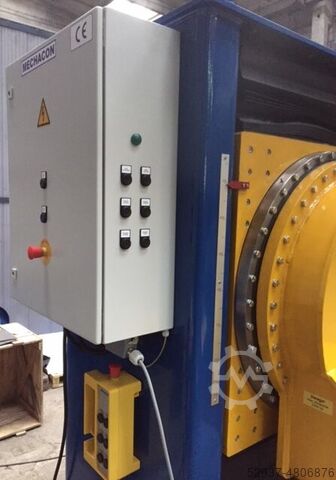

Year of construction: 2022, condition: as good as new (ex-display), Manipulator with hydraulic height adjustment, face plate with clamping slots and manual remote control. Height (face plate horizontal): approx. 532 - 1.132mm Lifting distance/lifting time (hydraulic): approx. s = 600mm, t = 20s Swivel range of face plate: approx. +-300°. Height (Pl.-sch.vertical axis): approx. 709mm Dimensions face plate: Ø1.200mm x 40mm, 6x clamping slots Speed of the main axle: approx. 2.0 rpm (other Torque main axis of rotation: approx. 7,500 Nm Dsdpfx Acefw Ah Rj Hewd Face plate speed: approx. 2.5 rpm Face plate torque: approx. 1,500 Nm

Condition: ready for operation (used), Year of construction: 2020, An unused collaborative welding robot (cobot) Universal Robots with a Migatronic welding power source is available. 1) Cobot Universal Robots UR10, year of manufacture: 2020, load capacity: 10kg, reach: 1300mm, machine dimensions X/Y/Z: approx. 1600mm/600mm/600mm, weight: approx. 30kg, operating hours: 0h. 2) Arc welding power source Migatronic, year of manufacture: 2020. Documentation available. An on-site inspection is possible. Dodsxddayspfx Ac Howd

Condition: new, Year of construction: 2024, load capacity: 1,500 kg, Ideal for welded constructions, fixture construction, welding templates Special price promotion €2000 discount 3-D perforated table 2400 x 1200 x 200 mm Thickness of the table top 20 mm, diameter of the holes 28 mm, grid 100 mm Pivoting range 360° Dodpovlplzofx Ac Howd Height adjustment hydraulic motor 800 to 1200 mm Lifting movement hydraulic, rotation movement 360° Control with hand remote control Speed 0.5 rpm Hydraulic motor AC 2.2 KW Current AC 380 V Motor power 0.75 KW Price includes offered perforated plate 2400 x 1200 x 200 mm Price includes accessories shown, surcharge €2000 We offer the tables in many sizes and load capacities: Load capacity 500 Kg, dimensions 1000mm x 1500mm x 200mm, bore 28mm with manual or automatic height adjustment Load capacity 1000 Kg, dimensions 1000mm x 2000mm x 200mm, bore 28mm with manual or automatic height adjustment Load capacity 1500 Kg, dimensions 1200mm x 2400mm x 200mm, bore 28mm with manual or automatic height adjustment Load capacity 2000 Kg, dimensions 1200mm x 2400mm x 200mm, bore 28mm with manual or automatic height adjustment Load capacity 3000 Kg, dimensions 1200mm x 2400mm x 200mm, bore 28mm with manual or automatic height adjustment Load capacity 5000 Kg, dimensions 1500mm x 3000mm x 200mm, bore 28mm with height adjustment manually or automatically

Year of construction: 1987, condition: excellent (used), machine/vehicle number: Abus 2to MM2, ABUS crane sky crane runway bridge crane indoor crane crane Payload / lifting load 2t - 2000KG, track about 2700mm External dimensions approx. 3100mm approx BJ 1987 with corridor control Overall height from top edge of crane to hook approx. 900mm Head carrier length without buffer approx. 2200mm Crane is dismantled, stored and immediately available. Very good condition There are also pillar slewing cranes and wall slewing cranes Demag KBK and Abus HB systems, as well as Errikla, Hadef, Stahl KT 2000 etc. Dsdpeifyhhsfx Ac Hjwd Shipping by forwarding agency possible, please ask for postal code Collection preferred

Condition: new, Year of construction: 2024, The Durma HD-TC 60220 pipe laser stands for maximum precision and efficiency in the processing of pipe materials. With its impressive maximum pipe diameter of Ø220 mm and the ability to cut both square profiles of 160 x 160 mm and rectangular profiles of 200 x 100 mm, this pipe laser offers exceptional flexibility for a wide range of applications. Thanks to the advanced automatic loading system, which can handle tubes up to Ø170 mm in diameter, and the ability to process materials up to 6500 mm in length, the HD-TC 60220 is ideal for projects that require fast production with consistently high quality. The minimum material length for automatic loading is 3000 mm, which further increases the efficiency of the machine and reduces processing time. Dedpsq Tpkyofx Ac Hjwd Max. Tube diameter: Ø220 mm Laser power: 3 kW Max. Dimensions of the square profile: 160 x 160 mm Max. Dimensions of the rectangular profile: 200 x 100 mm Min. pipe diameter: 20 mm (12 mm with manual loading) Max. Tube diameter for automatic loading: Ø170 mm Max. Profile dimensions for automatic loading: 150 x 100 mm, 120 x 120 mm Max. Material length: 6500 mm Min. material length for automatic loading: 3000 mm Length of the last piece: 4000 / 6000 mm Unloading length: 150 mm Max. Material weight per meter: 52 kg/m Max. Material weight (total length): 340 kg Max. Loaded weight: 3000 kg Profile types: Round, Square, Rectangular, Elliptical Types of open profiles: L, U

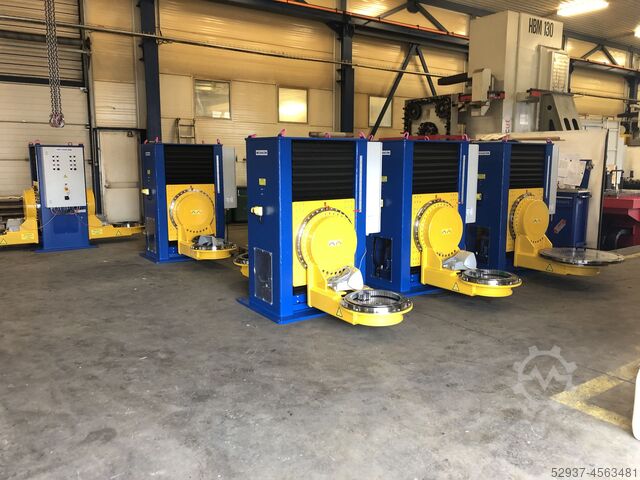

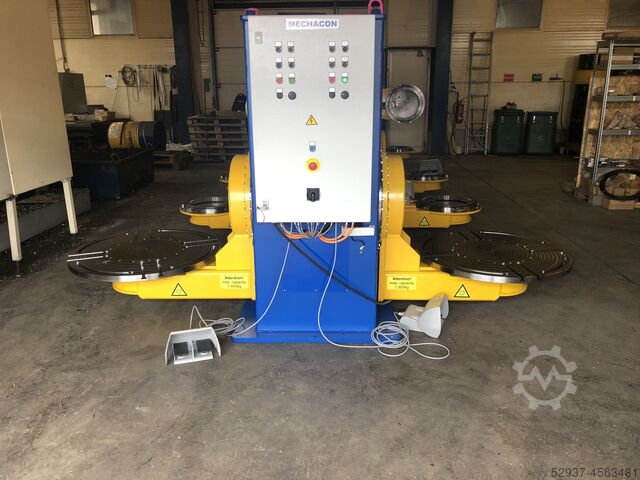

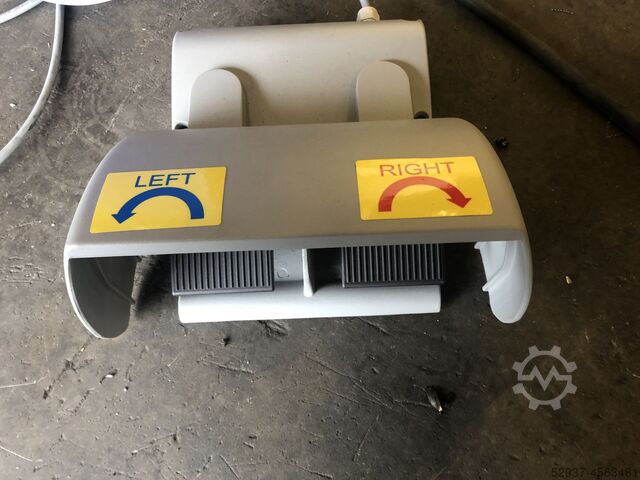

Year of construction: 2022, condition: new, Manipulator with two height adjustable outriggers and face plate. Load: 1.500kg stroke: 800mm Dwjdpsfnku Hofx Ac Hed swivel range: 300 face plate diameter: 1.000mm Welding current: 600A

Condition: as good as new (ex-display), 600 Kg load capacity welding rotary table height adjustable with through hole 100 - 200mm plate diameter 700mm height horizontal min. 0,65m, max. 1,15m height tilted min. 0,45m, max. 0,95m speed from approx. 0,01 - 1,3 rpm digital display Dsdpfx Aodpuapsc Hjwd Tilt up to 135 hand and foot remote control with speed display very robust This turntable is also in stock with 1000 Kg and 3000 Kg load capacity

Condition: new, Year of construction: 2023, Positioner powered by three-phase current Rotation of table and arm by means of hydraulic swivels Height adjustment of the arm by means of a hydraulic cylinder Controlling functions on the positioner housing Useful in positioning parts in: welding cleaning assembly Increasing work efficiency up to 40% The use of unlimited rotation in 2 axes and, in addition, vertical and horizontal movement, allows any positioning of the attached workpiece (also "overhead"). The 3-axis positioner provides a significant improvement in work culture compared to traditional pan/tilt positioners (optimal positioning of the workpiece, easy operation). Advantages and benefits: For the employer: increased labor productivity by up to 40% through optimum positioning of workpieces - resulting in short amortization time of the device increased production efficiency does not require additional space on the shop floor better quality of welded joints - always possible to weld in the sub-lower position robust design of the device ensures long-term, trouble-free operation For the operator: Dedohzuvuspfx Ac Hjwd ensuring ergonomic posture for the working person minimizing the risk of accidents - no changes in the fixing of objects no interruptions in work caused by waiting for the crane easy installation and operation It is possible to fully automate welding by using Kawasaki welding robots. We also offer positioners with a robot and integrated control system. ADDITIONAL OPTIONS: REMOTE CONTROL WITH CABLE TO OPERATE THE POSITIONER PEDAL WITH CABLE FOR OPERATING THE TABLE ROTATION STEPLESS ADJUSTMENT OF THE SPEED OF TABLE ROTATION AND ARM ROTATION FUNCTION OF CONSTANT TABLE ROTATION LENGTH AND SHAPE OF THE ARM SIZE AND SHAPE OF THE TABLE ROTATIONAL MASS We can make the positioner according to the customer's individual guidelines.
