3-axis machining center

Takumi H12E

Condition: ready for operation (used), Year of construction: 2017, operating hours: 29,532 h, General Data Machine weight 27750 kg Control Unit Brand HEIDENHAIN Model iTNC 530 Main Drive Spindle speed range 10000 Tool taper ISO 50 Number of axis 5 Movement Dwsdpfx Acexllmdo Hsd X-Axis Movement 2600 mm Y-Axis Movement 1100 mm Z-Axis Movement 900 mm Table Table load 4000 kg This 5-axis DMG MORI DMF 260-11 Linear was manufactured in 2017. It features a large table (3200 mm x 1100 mm), high load capacity (4000 kg), and extensive axis travel (X: 2600 mm, Y: 1100 mm, Z: 900 mm). With a spindle speed up to 10,000 rpm and a 60-pocket tool magazine, it's ideal for complex machining tasks. If you are looking to get high-quality milling capabilities consider the DMG MORI DMF 260-11 Linear machine we have for sale. Contact us for more information. Application Types Milling

Condition: used, Year of construction: 2006, CNC Heidenhain TNC530 X/Y/Z 1,500/800/1,000 mm Swivel axis 0-180° A-axis C-axis B-axis Max. workpiece weight 1,500 kg Machine weight 18,000 kg Dwjdpfx Aowutxijc Hjd

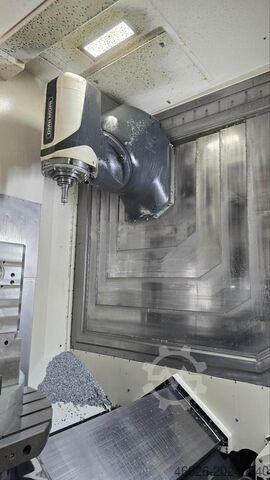

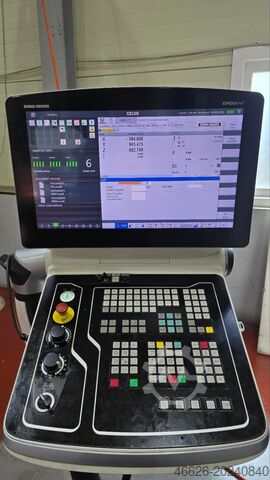

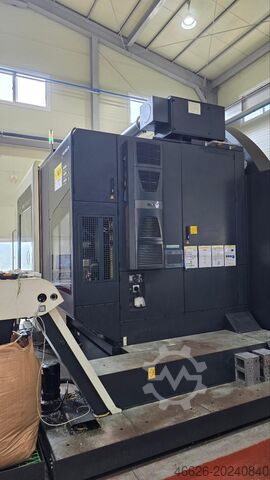

Condition: excellent (used), Year of construction: 2016, operating hours: 26,678 h, functionality: fully functional, This machine is available exclusively through Montrasio GmbH and is being sold on behalf of the authorized parties. DMG DMU 100P duoBLOCK – 5-Axis CNC Machining Centre (2016) Year of manufacture: 2016 Control: SIEMENS CELOS Travel / Capacities X-axis: 1,000 mm Y-axis: 1,250 mm Z-axis: 1,000 mm Workpiece diameter: 1,100 mm Workpiece height: 1,600 mm Workpiece weight: up to 2,200 kg Table / Axes Table size: 1,100 × 900 mm Table rotation speed: 35 rpm Max. table load: 2,223 kg B-axis universal milling head swiveling range: −30° to +180° Spindle / Tool Spindle speed: 0 – 12,000 rpm Spindle motor power: approx. 69 HP (≈ 51.5 kW) Spindle taper: HSK-A100 Tool magazine: 63 positions Machine Dimensions Footprint: approx. 24 m² Machine height: approx. 3,606 mm Machine weight: approx. 24,540 kg Accessories / Equipment CNC-controlled universal milling head (B-axis) Workpiece probe Dsdexl Arkjpfx Ac Hewd Tool measurement system 3D Quickset Chip conveyor

Condition: repair required (used), Year of construction: 1983, functionality: limited functionality, total height: 2,650 mm, total width: 3,640 mm, total length: 4,620 mm, overall weight: 6,800 kg, Technical details: X-axis travel: 1000 mm Y-axis travel: 560 mm Z-axis travel: 800 mm Rapid traverse: 6 m/min Dedpfxsunwd Ts Ac Hewd Working feed: 1- 400 mm/min. Rotary axis resolution (degrees): 0,001 Control unit: Philips 432 Spindle revolutions: 20-2000 RPM Spindle stroke: 125mm Spindle taper: ISO 50 Spindle power: 15kW Feed force axis X and Z: 8000N Feed force axis X and Z: 24000N Table size 1250 x 800 mm Table load: 800kg Programing resolution: 0,001mm Documentation for machine Note: Defect electronic card should be replaced. The machine is mechanicaly in excellent condition, and could easily be retrofitted with modern CNC controls.

Condition: excellent (used), Year of construction: 2016, operating hours: 23,163 h, functionality: fully functional, travel distance X-axis: 1,524 mm, travel distance Y-axis: 660 mm, travel distance Z-axis: 610 mm, rapid traverse X-axis: 3 m/min, rapid traverse Y-axis: 3 m/min, rapid traverse Z-axis: 2 m/min, torque: 118 Nm, controller manufacturer: Hurco, controller model: MAX5, total height: 3,298 mm, total length: 5,662 mm, total width: 3,921 mm, table width: 660 mm, table length: 1,676 mm, table load: 1,360 kg, rotary table diameter: 600 mm, rotational speed (max.): 100 rpm, overall weight: 10,900 kg, spindle speed (max.): 12,000 rpm, distance table center to spindle nose: 622 mm, spindle motor power: 36,500 W, spindle nose: BT40, number of spindles: 1, number of slots in tool magazine: 40, tool length: 249 mm, tool diameter: 75 mm, tool weight: 7 g, input voltage: 400 V, type of input current: three-phase, Equipment: chip conveyor, 🔹 For Sale: 2016 Hurco VMX60SRTi 5-Axis CNC Machining Centre – Excellent Condition, Full Package 🔹 Make: Hurco Model: VMX60SRTi Year: 2016 Machine Type: 5-Axis CNC Machining Centre Condition: Excellent Control System: Hurco WinMax with Touchscreen Location: Ireland 📌 Machine Overview: Available now is a Hurco VMX60SRTi 5-Axis CNC Machining Centre in excellent condition, fitted with high-performance features and Hurco’s flexible swivel-head + rotary table configuration. This 2016 model delivers outstanding part accessibility, powerful milling capability, and robust software for advanced 5-axis work. The large table space supports both full 5-axis and standard 3-axis machining, offering maximum operational flexibility for tooling, mold-making, aerospace, and general precision engineering. ✅ Key Features & Included Options: Touchscreen display with shaded 3D graphics (real-time) 2GB RAM | 120GB SSD | USB ports Ultimotion high-speed software (profiling & data smoothing) S-Curve Acceleration & Look-Ahead Finish Control Coolant Through Spindle (CTS) NC4 Laser Tool Probe Renishaw RMP60 Part Probe Software Add-ons: Mould Maker Suite (3D Swept Surface, Helical Entry, Rest Machining) DXF Import, Ultipocket, Adaptipath Ultimonitor + Ultinet (Networking/Remote Diagnostics) Conversational/NC Merge Swivel B Axis & C Axis Rotary Table Conversational or G-code Programming flexibility 🔧 Technical Specifications: Table Size: 1676 x 660 mm Rotary Table Diameter: 600 mm Max Load (Flat Table): 1360 kg Max Load (Rotary Table): 500 kg X Travel: 1524 mm Y Travel: 660 mm Z Travel: 610 mm B Axis Tilt: ±92° C Axis Rotation: 360° Spindle Nose to Table: 13–622 mm Spindle Speed: 12,000 rpm Spindle Taper: BT40 Spindle Power: 36.5 kW Spindle Torque: 118 Nm - 2,900 rpm Tool Changer: 40 Tools Max Tool Diameter: 75 mm Max Tool Length: 249 mm Max Tool Weight: 7 kg Rapid Traverse Rates: X/Y: 32 m/min | Z: 24 m/min Rotary Table Speed: 100 rpm Power Requirement: 70 kVA Machine Dimensions (LxW): 5662 x 3921 mm Height: 3298 mm Machine Weight: 10,900 kg 📈 Ideal For: Aerospace & Defence Components Dwodeuyt U Tjpfx Ac Hod Mould & Die Work Complex 3D Surface Milling Multi-Side Machining in One Setup High-Precision Part Manufacturing Hurco VMX60SRTi for Sale 5 Axis CNC Machining Centre Used Hurco CNC Machine Hurco 5 Axis CNC Ireland CNC Machining Centre with Rotary Table

Condition: used, Year of construction: 2006, x-travel 1.000 mm y-travel 1.000 mm z-travel 1.200 mm C-axis 360 x 0,001 ° A - axis ° Control SINUMERIK 840D Powerline SIEMENS Size of table plate 900 x 700 mm milling spindle - taper HSK - A100 spindle turning speed - stepless 12000 U/min toolpiece magazine: chain magazine 180 Stück total power requirement 85 kW weight of the machine ca. 20,5 t dimensions of the machine ca. 6,5 x 6,1 x 3,5 m Dwjdpfxew E Nnne Ac Hsd 5-axis machining center with horizontal milling spindle arrangement SIEMENS SINUMERIK 840D Powerline control system Electronic handwheel NC swivel rotary table Rotoclear window Measuring probe ready Blum laser tool measurement Vibration sensor Tool taper cleaning 4th operating mode Internal coolant system with 2 pumps, 40 bar and 80 bar Chip conveyor Belt filter system Mist and smoke separator Cooling/heating unit

Condition: new, BRAND NEW MACHINE HEIDENHAIN TNC 640 digital path control HEIDENHAIN package (motors, measuring systems, and handwheel) X-axis: 3,000 mm Y-axis: 1,300 mm Z-axis: 1,500 mm Rotary table: 1,600 x 1,200 mm Maximum workpiece weight: 6,000 kg Automatic universal diagonal swivel head 1° x 1° (optional with fixed ram Ø 210 mm) Spindle taper: SK-50 DIN 69871/A Max. spindle speed: 6,000 rpm (oil-cooled) Max. spindle motor power: 53 kW ICS – internal coolant supply – 36 bar Rapid traverse X,Y,Z: 30 m/min Dsdpfxjq I Ncqs Ac Hswd Positioning accuracy: 0.015 mm Repeatability: 0.010 mm ATC – tool changer: 40 positions (vertical / horizontal change) 2 x longitudinal hinge-type chip conveyors Perimeter enclosure (open top) Only inquiries from Germany will be answered.

Condition: excellent (used), Year of construction: 2018, Traverses X Y Z; 2134 x 864 x 762mm, table size 2184 x 865mm, table load 2,268 kgs, spindle speed 12,000rpm, spindle taper BT40, spindle power 22Kw, Dedpfxowq Ii Ue Ac Hewd 30 station ATC, hurco control.
