Swiss-type cnc lathe

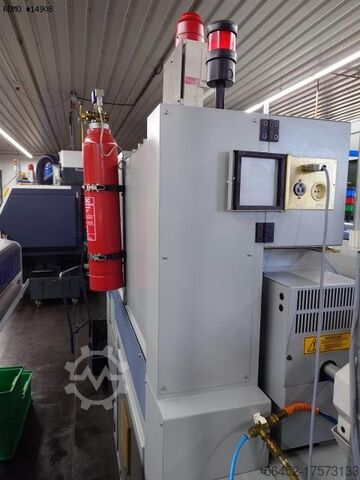

STAR Micronics SA-16R

Condition: used, Year of construction: 2001, STAR sliding headstock automatic lathe S16-R, year of manufacture from 2001. Sliding headstock lathe SA16-R, Ø16mm with FMB Minimag magazine. Sub spindle. Parts conveyor belt. Coolant system has only operated with oil. No chip conveyor. Lhjdoxmurrspfx Ah Nef

Condition: ready for operation (used), Year of construction: 2015, spindle motor power: 7,500 W, spindle speed (max.): 7,000 rpm, overall weight: 2,200 kg, total height: 1,700 mm, workpiece diameter (max.): 32 mm, number of axes: 7, This 7-axis Star SR-20J type C Swiss Type Turning was manufactured in 2015. It features a maximum machining diameter of 32mm, headstock stroke of 310mm, and spindle speeds up to 7,000rpm. Equipped with a Hydrajet BF20-2000 high-pressure coolant system and an Absolent A.Mist 10S mist extraction unit, the Star SR-20J type C represents a robust addition to any machining setup. Contact us for further details regarding this Swiss Type Turning. Additional equipment • High Pressure Coolant System: Hydrajet BF20-2000 • Mist Extraction Unit: Absolent A.Mist 10S • Fire Suppressor: Stat X • Signal Production Tower: Werna Machine Benefits Qualitative Machine Benefits • Includes comprehensive safety and environmental management systems (fire suppressor, mist extraction) Technical Machine Benefits • Rapid feed rate 24m/min, maximum spindle speed 7000 rpm, maximum driven tool speed 6000 rpm Lhsdjyi Emtjpfx Ah Njf Extra Information Manuals included Machine still under power Dimensions Machine Depth 2250 mm

Condition: used, Year of construction: 2015, X/Y/Z - 350/550/510 mm A-axis (tilting) +30 deg./-120 deg. Lodpsywi Dtofx Ah Nohf C-axis 360 deg. Table size 500 mm dia. Max. table load 300 kg. Spindle taper SK 40 Spindle speeds 18.000 rpm Internal high pressure coolant through spindle 35 bar Number of stations in tool changer 40 pcs. Control: Siemens Sinumerik 840 D SL Equipped with: Renishaw RMP 600 Chip conveyor

Condition: used, TECHNICAL DETAILS - Number of axes : 7 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 32 [mm] - Travel : 310 [mm] - Spindle speeds : 7.000 [rpm] - Spindle power : 7,5 [kW] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Max. bar diameter : 32 [mm] - Spindle speeds : 7.000 [rpm] - Spindle power : 3,7 [kW] - C axis indexing precision : 0,001 [°] GUIDE BUSH HOLDER 1 - Number of positions : 11 - Number of motorized positions : 5 - Live tools speed : 5.000 [rpm] - Live tools power : 1,2 [kW] END ATTACHMENT - Number of positions : 4 SECONDARY OPERATION - Number of positions : 4 - Number of motorized positions : 4 POWER SUPPLY - Supply voltage : 200 [V] - Total installed power : 6,2 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2.711 x 1.275 [mm] Lhjdpfxsyxr Uqe Ah Nsf - Machine height : 1.705 [mm] MACHINE HOURS - Number of working hours : 18436 [h] - Number of spindle hours : 14949 [h] EQUIPMENT - CNC : Fanuc 32i-B - 3 colors status lamp - Rotating guide bush - Coolant tank - Bar loader : FMB TURBO 3- 36 - Ejection of workpiece - Parts catcher - Parts conveying strip - Fire extinguisher * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. - Electric transformer

Condition: excellent (used), Year of construction: 2001, spindle bore: 20 mm, Machine in perfect condition. Lhjdpfx Aheu Ivw Ts Nef Can be inspected during production any time

Condition: excellent (used), Year of construction: 2008, turning diameter over bed 32 mm Lhedpfxevwgmys Ah Nof spindle passage 32 mm turning length 125 mm Control YASKAWA SIEMENS 840 DI V2 clamping diameter 32 mm spindle turning speed range 7000 U/min workpiece length - max. 150 mm feed 0 - 2000 mm/min weight of the machine ca. 5,7 t dimensions of the machine ca. 10,5 x 2 x 1,9 m The sliding headstock automatic lathe is in good condition and ready for immediate use. with tool holders and spare parts. >> Two identical STAR 32T sliding headstock lathes are available

Condition: ready for operation (used), Year of construction: 2009, General Data Machine weight 2200 kg Measurements height 1752 mm Lhjdex D Ic Eopfx Ah Nsf Dimensions Machine Length 2120 mm Main Drive Spindle Speed 8000 RPM This Citizen A20 7PL was manufactured in 2009. It features a max turning diameter of Ø 20 mm and a length of 55/200 mm. Spindle speeds reach up to 8,000 rpm with 21 tool stations and rotary tools at 6,000 rpm. Includes an Iemca Boss 332 E/R bar loader. Dimensions are 2,120 x 1,226 x 1,752 mm, weighing 2,200 kg. Contact us for more information about this machine. Application Types Turning

Condition: good (used), Year of construction: 2018, KSI TCM 38 CNC sliding headstock lathe, Year of manufacture 2018, Fanuc Oi-TF control system, Bar machining up to 38 mm, LNS XH 552 loading magazine, Lhjdpouixvfsfx Ah Nsf Counter spindle up to 6,000 rpm, spindle speed main spindle up to 8,000 rpm, 2 x C axis, tools attached, 16 tools, max. turning length 300 mm,

Condition: used, STAR SW 20 is a CNC automatic (Swiss-type) lathe offering high precision, strong accuracy and reliable performance. Capacities: 11 axes, 2 spindles, max machining Ø 20 mm, back spindle up to 10,000 t/min. Specs: spindle 3.7 kW, driven tools 1.2 kW (8,000 t/min), carriages with 7 and 5 positions, counter-operation 8 tools (6 driven), rapid traverse 35 m/min, 50 Hz 3x380 V, ~3400 kg, L2600×W1150×H1765 mm. Accessories: bar loader, lamp, 150 l coolant system, ELBARON oil-mist extractor, interface for bar loader. Achieves tight tolerances; typical uses: automotive, watchmaking, tooling, aerospace, medical. Lsdjyxnwnjpfx Ah Nehf

Condition: good (used), Year of construction: 2015, Main and counter spindle 3 turrets Lhjdpfx Aoyx Tk Teh Nof Backside machining Fire extinguishing system Kraft & Bauer High-pressure system Büchele Bar feeder FMB Turbo 2-20
