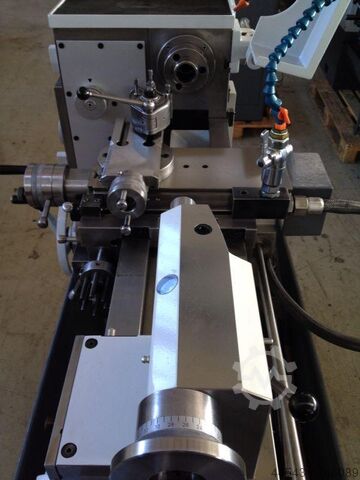

Universal Lathe

Schaublin 125 C

Condition: excellent (used), Center height 125 mm Distance between centers 500mm Spindle speeds 40-3000 rpm Several accessories Lhedpfolyrciox Aaxjb MARCELS MASCHINEN CH

Year of construction: 2013, condition: ready for operation (used), A Rehm Invertig Pro 350 AC DC and a Rehm Invertig Pro 450 DC are available, used and in good condition. 1) Invertig Pro 350 AC DC, standards: IEC 60 974-1 IEC 60 974-2, welding current range TIG: 3-350A, output voltage U₂ at maximum current: approx. 24V, open circuit voltage U₀: approx. 91V, duty cycle 100 percent for TIG at 350A, mains voltage input: three phase 400V 50Hz, protection class: IP23S, protection category: S, setting range: 3-350A for TIG in this AC DC version, duty cycle 100 percent at 40°C 350A for TIG 100 percent duty cycle, input fuse protection: 32A at 3x400V for the 350 AC DC version, length: 520mm, width: 360mm, height: 460mm, weight: 29.5kg for AC DC version. 2) Invertig Pro 450 DC, standard: IEC 60 974-1, welding current range TIG: 3-450A, output voltage U₂ at maximum current: approx. 28V, open circuit voltage U₀: approx. 91V, duty cycle 100 percent at 450A TIG, lower for electrode welding approx. 60 percent, mains input: 3x400V 50Hz, protection class: IP23S, duty cycle at 100 percent 450A TIG at 40°C, electrode welding current approx. 360A at 100 percent duty cycle for electrode in the 450 DC version, input fuse protection: 32A at 400V three phase for 450 versions, length: 520mm, width: 360mm, height: 460mm, weight: approx. 28kg. An on-site inspection is possible. Lhedpfexddamox Aaxob

Condition: excellent (used), Center height 125 mm Lsdstzxh Tepfx Aaxohb Center width 500 mm Speed 45 - 3000 rpm Feed rate 4 - 260 mm/min Spindle nose Camlock D1-3" Tailstock cone MK 2 Turning diameter over bed 250 mm Turning diameter over face slide 120 mm Top slide travel 100 mm Cross slide travel 180 mm Dimension (W x D x H) 1500 x 850 x 1300 mm Weight approx. 950 kg

Condition: new, swing diameter: 400turning length: 1000speed range: 70 - 2.000 min¯¹weight approx.: 500 Lhsdpfxed Eaukj Aaxsb

Condition: used, Year of construction: 1977, roll diameter 320 mm throat 310 mm workpiece height 230 mm table-size 505 x 505 mm cutting speed 12 - 375 m/min turning speeds U/min saw band length 2 mm voltage 400 V total power requirement 1,3 kW weight of the machine ca. 420 kg dimensions of the machine ca. 0,80 x 0,80 x 1,65 m Lhedpfx Aasvnv S Toxjb - serial-no.: 22600-77/14 - with stepless feed - welding equipment IDEAL - grinding wheel - machine lamp

Condition: new, Center length ----- 1000 mm Center height ----- 230 mm Turning diameter ----- 460 mm Passage of main spindle ----- 58 mm Bed width ----- 300 mm Spindle speed ----- 25-2000 rpm Motor ----- 5.5 KW Weight ----- 1750 kg INCLUDING * 3-axis digital readout brand SINO * Quick-change chisel holder type Multifix TOOB2 with 4 attachments * Self-centering 3 chuck 250 mm * Independent 4 chuck 320 mm * chuck 350 mm * Fixed and moving grips * LED work light and cooling system Lhodpjk Iug Tefx Aaxjb * Electric brake (CE) * Foot brake * Box with various tools

Condition: excellent (used), Year of construction: 1996, functionality: fully functional, Swing dia over bed 400 mm Swing dia over crosss slide 220 mm Between centers 1500 mm Spindle hole 50 mm Spindle speed 12,5 – 3150 rpm Spindle power 5,5 kW Power required 16 kVA Dimensions L x W x H = 2900 x 1000 x 2200 mm Weight cca 1600 kgs Accessories, features - 3 jaws chuck, D200 mm chuck - 4-fold tool holder - Tailstock - Display motor load - Rapid speed - Driwing system by clutch - Spindle break - Splash wall - Hardened and ground linear guides are in perfect condition - Steady rest Lhedpfjxiymtex Aaxob - Coolant unit - Manual The machine is in great and original technical condition. It was barely used. No DRO system on it.

Condition: new, Year of construction: 2025, One of our best-selling conventional lathes, this lathe can be used for many tasks such as turning internal and external surfaces as well as tapers, polishing, modular and DP threading, drilling and internal broaching. Machine features Lathes from this series can be used for many tasks such as turning internal and external surfaces, tapers turning, buffing, modular and DP threading, drilling and internal broaching By default equipped with a 3 axes digital readout Modern and precise spindle bearings 52 mm large spindle bore Heavy bed made of cast iron, ground and inductively hardened Gear wheels strengthened through hardening and precise grinding Removable bridge allows for greater machining capabilities Protection guards compliant with the newest regulations Machining accuracy: circularity deviation below 0.01 mm, cylindricality deviation no more than 0.02 mm for 200 mm long measurement, perfect surface finish Equipped with a mechanical foot mechanical brake Possibility of equipping the lathe with a ruler for turning tapers Optional VARIO model with a smooth spindle speed adjustment and a digital indicator Technical data Swing over bed 410 mm Swing over cross slide 255 mm Swing over gap bridge 580 mm Turning length in gap bridge 190 mm Centres distance 1000 mm Centres height 205 mm Bed inductively hardened Bed width 250 mm Lhedpfx Aasiz Tf Ssxob Spindle bore diameter 52 mm Spindle tip D1-6 Spindle mount MK6 Spindle speed (16) 45–1800 rpm Maximum tool dimensions 20 mm×20 mm Longitudinal feed range (17) 0.05–1.7 mm/turn Transverse feed range (17) 0.025 – 0.85 mm/turn Metric thread (42) 0.2–14 mm Inch thread (45) 2–72 T.P.I. Modular thread 0.3–3.5 M.P (18) D.P. thread 8–44 D.P. (21) Tailstock quill diameter 50 mm Tailstock quill extension 120 mm Tailstock quill tip MK 4 Digital readout in 3 axes Main motor power (S1/S6) 2.2/3.3 kW Flood coolant pump power 0.1 kW Dimensions 1940×850×1320 mm Weight 1590 kg Default equipment 200 mm 3-jaw lathe chuck 250 mm 4-jaw lathe chuck 3 axes digital readout Face plate Steady rest Follow rest Spindle reducing sleeve Dead centre Change gears for the swing-frame of the gear train Cooling system Lighting installation Thread indicator (gauge) Lathe equipped with an electromechanical foot brake compliant with EC regulations Chips container Set of handling tools Protective guards compliant with the newest EC regulation User manual EC declaration of conformity Factory new machine under full warranty Factory new machine, under warranty For more information you can visit our web page.

Condition: good (used), Year of construction: 1993, turning diameter over bed 400 mm turning diameter over slide rest 210 mm turning length 1060 mm centre height 200 mm spindle bore 58 mm spindle taper: Camlock D 1-6 Drive 3,2/4,9 kW spindle turning speed range 16, von 55 bis 1600 U/min feeds - longitudinal 0,039-0,541 mm/U Lodpfx Aaextfx Aoxjhb feeds cross 0,019-0,271 mm/min. weight of the machine ca. 1,45 t dimensions of the machine ca. 1900 x 870 x 1700 mm High-quality machine with induction-hardened guideways, torsionally rigid bed, main spindle made of chrome-nickel steel, surface-hardened and ground gears, automatic circulating lubrication in the spindle housing, slip clutch in the support, bed lubrication via hand pump, Siemens electrical system. Thread feeds for metric, inch, module, and diametral pitch. 3-axis digital readout: 2 scales are mounted, the scale on the top slide has been replaced but still needs to be mounted. The display unit is for lathes and therefore, with the appropriate setting, adds the slide travel to the top slide travel. The machine was only used in a prototype workshop for sporadic applications. Machine dealer with own stock of 1600 m².

Condition: used, Technical details: power consumption: 240 A voltage: 3x400 V open-circuit voltage: 91 V power consumption: 9,3 kVA weight of the machine approx.: 28 kg dimensions of machine: 1,0 x 0,6 x 1,0 m Lhodpfou U Iixox Aaxob Welding rectifier (inverter) TIG (steel/VA) and manual electric welding Direct current TIG = up to 240 A / 19.6 V Electric welding = up to 240 A / 19.6 V 2/4-cycle switchover, stepless switchover to pulse Protection class IP 23 Water-cooled and frost protection Shielding gas / solenoid valve Gas-cooled torch head with remote control for welding current Equipment: Hose package 7.4 meters Ground clamp and ground cable 4.2 meters *
