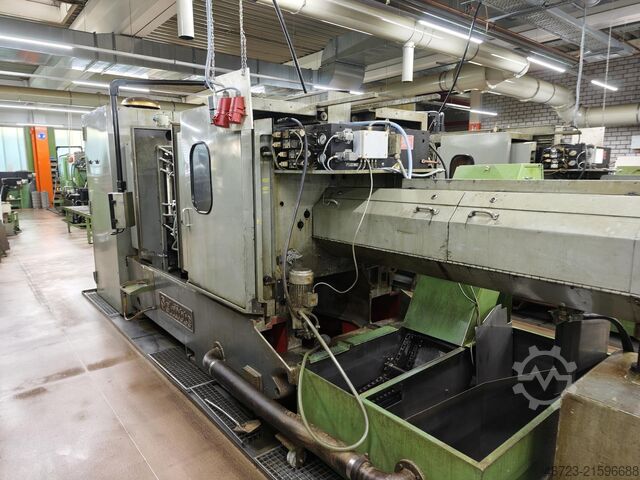

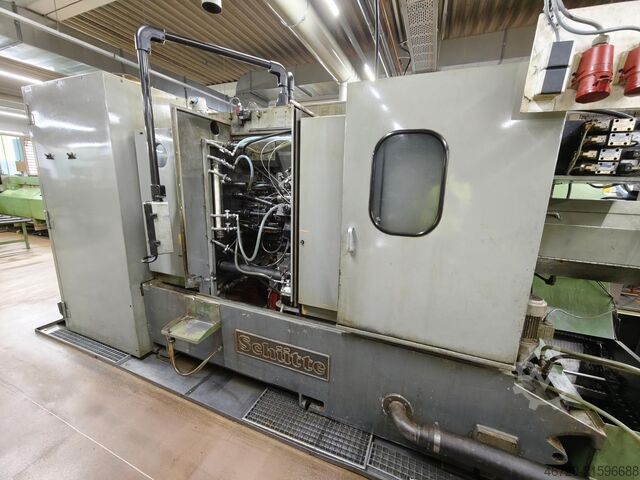

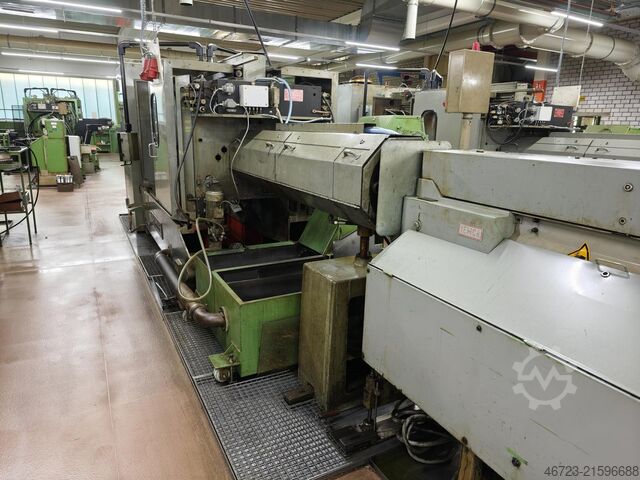

Multi-spindle machine

Schütte SF 32

Condition: used, Year of construction: 1988, SCHÜTTE SF 32 Ncodpfxjyxcuue Ab Esp Maximum bar diameter round / square: 32 / 22 mm Spindle circle diameter: 300 mm Bar feed: 125 mm Longitudinal travel (total / working): 100 / 80 mm Cross slide travel (total / working): Top: 50 / 33 mm Middle: 50 / 30 mm Bottom: 60 / 37.5 mm Spindle speeds (49 steps): Range I: 450 – 3,150 rpm Range II: 200 – 1,400 rpm Workpiece feed per cycle: Normal: 60 – 425 Short: 33.5 – 236 Long: 95 – 670 Main times (35) per spindle revolution: Min. / Max.: 0.63 – 200 s Normal: 1.12 – 125 s Short: 0.63 – 71 s Long: 1.8 – 200 s Secondary times: 0.7 – 1.25 s Main drive: 18.5 kW Dimensions (incl. bar guide): approx. L x W 6.5 x 1.5 m Weight: approx. 8.3 t Voltage: 400 V / 50 Hz

Condition: used, Year of construction: 1986, SCHÜTTE SF 32 DNT Maximum bar diameter, round / square: 32 / 22 mm Spindle pitch diameter: 300 mm Bar feed: 125 mm Longitudinal travel (total / working): 100 / 80 mm Cross slide travel (total / working): Upper: 50 / 33 mm Middle: 50 / 30 mm Lower: 60 / 37.5 mm Spindle speeds (stepless): 450 – 3,150 rpm Main times (stepless): min. / max. 0.8 – 100 s Secondary times: 1 – 1.25 seconds Creep speed: 3 rpm Main drive: 22 kW Dimensions (incl. bar loader): approx. L x W: 7.3 x 1.6 m Weight: approx. 8.3 t Voltage: 400 V / 50 Hz Scope of supply: Ncedpfx Ajyxcpleb Ejp SCHÜTTE SF 32 DNT machine Bar loader

Condition: used, Year of construction: 1989, SCHÜTTE SF 32 DNT Max. bar diameter round/square: 32 / 22 mm Spindle circle diameter: 300 mm Bar feed: 125 mm Longitudinal slide travel (total/operational): 100 / 80 mm Cross slide travel (total/operational): - Lateral: 50 / 33 mm - Center: 50 / 30 mm - Lower: 60 / 37.5 mm Spindle speeds (stepless): 450 – 3,150 rpm Main times (stepless): min. / max. 0.8 – 100 s Secondary times: 1 – 1.25 s Creep feed: 3 rpm Ncsdpfx Asyxckceb Eep Main drive: 22 kW Dimensions (incl. bar feeder): approx. L x W 7.3 x 1.6 m Weight: approx. 8.3 t Voltage: 400 V / 50 Hz Contents consist of: SCHÜTTE SF 32 DNT machine Bar loader

Condition: not inspected (used), Year of construction: 1996, functionality: unexamined, machine/vehicle number: 43, turning diameter over cross slide: 32 mm, number of spindles: 6, spindle speed (max.): 3,150 rpm, bar diameter (max.): 32 mm, overall weight: 8,000 kg, TECHNICAL DETAILS Swing diameter over cross slide: 32 mm Max. spindle speed: 3,150 rpm Number of spindles: 6 Round bar capacity: 32 mm Square bar capacity: 22 mm Hexagonal bar capacity: 27 mm Max. bar feed: 125 mm Max. travel long slide: 100 mm Maximum number of parts: 35 Machining speed: from 1.12 s to 125 s Spindle speeds: from 200 rpm to 3,150 rpm Number (steps): 49 Machining time: from 0.63 s to 200 s MACHINE DETAILS Voltage: 50 Hz, 3x 380 V Power: 18.5 kW Dimensions & Weight Njdpoyuxq Aofx Ab Eocp Dimensions (L x W x H): 3,850 x 1,390 x 2,200 mm Weight: approx. 8,000 kg EQUIPMENT Knoll AE 1114 high-pressure system Filtration system 5-bar and 40-bar pumps individually adjustable for processing stages Plate heat exchanger Lifting pump for chip conveyor

Condition: used, Year of construction: 2000, Technical details: number of spindles: 6 spindle passage: 32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: SF32 S Dnt Yob: 2000 Eight-spindle automatic lathe with 6 main spindles max. nominal diameter: D=32mm pick-up unit, Spindle drum with hirth coupling, Elbaron oil mist filter, sorting chute, Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F); coolant tank with hinged chip conveyor; Schimpke KSS active cooler, control: Siemens S7-300 PLC; tooling included in delivery may differ from the images Ncodjyqwviopfx Ab Eop Please, contact us for getting more information and pictures on mail(at) or *

Condition: used, Year of construction: 2001, Technical details: number of spindles: 6 spindle passage: 32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: SF32 S Dnt Yob: 2003 Eight-spindle automatic lathe with 6 main spindles max. nominal diameter: D=32mm Spindle drum with hirth coupling, Elbaron oil mist filter, sorting chute, Nodoyqvlvopfx Ab Ejcp Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F); coolant tank with hinged chip conveyor; Schimpke KSS active cooler, control: Siemens S7-300 PLC; tooling included in delivery may differ from the images Please, contact us for getting more information and pictures on mail(at) or *

Condition: used, Year of construction: 2003, Technical details: number of spindles: 6 spindle passage: 36 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: SF32 S Dnt Yob: 2003 Eight-spindle automatic lathe with 6 main spindles max. nominal diameter: D=36mm!!! Spindle drum with hirth coupling, Elbaron oil mist filter, sorting chute, Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F); coolant tank with hinged chip conveyor; Njdpfxsyqpqxe Ab Eecp Schimpke KSS active cooler, control: Siemens S7-300 PLC; tooling included in delivery may differ from the images; various collets are included in delivery up to D36mm Please, contact us for getting more information and pictures on mail(at) or *

Condition: repair required (used), Year of construction: 1989, 6 spindles Nsdpfxev R Uqtj Ab Ejcp Thread cutting Cross drilling Thread rolling Milling attachment Many accessories Feed motor (curves) defective! with IEMCA PRA 40/32 P bar loader

Condition: ready for operation (used), Year of construction: 1980, functionality: fully functional, The machine has been partially refurbished! EQUIPMENT Thread cutting gearbox Ncjdpfxsw Smmyo Ab Esp Pickup device
