Used Bernardo Bs 260 G for sale (192)

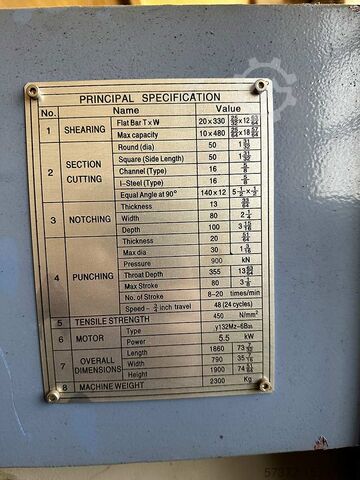

Condition: ready for operation (used), Year of construction: 2018, Width: 1860mm, depth: 800mm, height: 1900mm, weight: approx. 2.3t Rectangular notchers: 57 x 100mm, triangular notchers: 5 x 5 x 7.5mm. Notching station width: 330mm, working height: 915mm Nsdperxflcofx Ad Dsdc

Condition: used, Year of construction: 2005, Used machine Year of manufacture: 2005 Electrical equipment: 400V/50Hz with CE-compliant safety circuit and motor brake The jointer tables fold to the rear, allowing for space-saving installation Ndodewzzyuspfx Ad Doc Integrated, foldable chip extraction hood, connection diameter 120 mm The infeed table is adjusted via a parallelogram mechanism Both jointer tables feature noise-reducing table lips Precision bearing cutterhead with reversible knives Thicknessing table with centrally guided column and support Adjustable spirally serrated feed roller for optimum planing results Technical data: Jointer width: 410 mm Table length: 1800 mm Table height: 850 mm Cutterhead speed: 4500 rpm 4-knife cutterhead Cutterhead diameter: 100 mm Jointer fence tiltable: 90 - 45° Max. cutting depth: 5 mm Motor power: 4 kW Thicknessing: Thicknessing table length: 700 mm Planing width: 405 mm Workpiece clearance min./max.: 3 - 225 mm Max. cutting depth: 5 mm Feed speed: 8 m/min Net weight: approx. 420 kg Space required: 1800 x 850 mm Availability: short notice Location: Röllbach

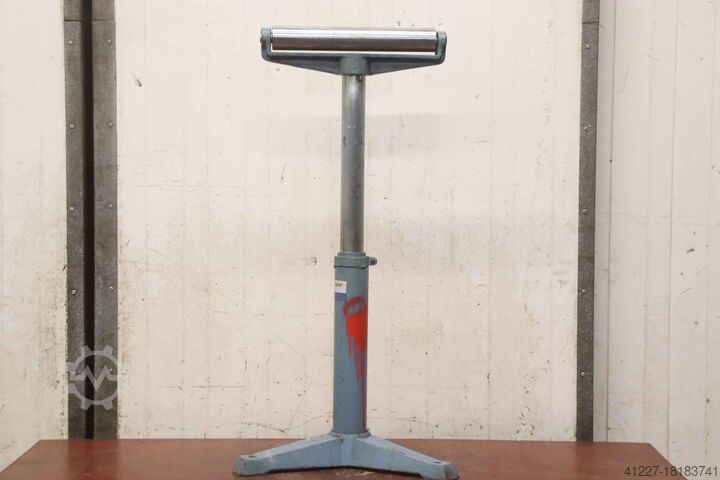

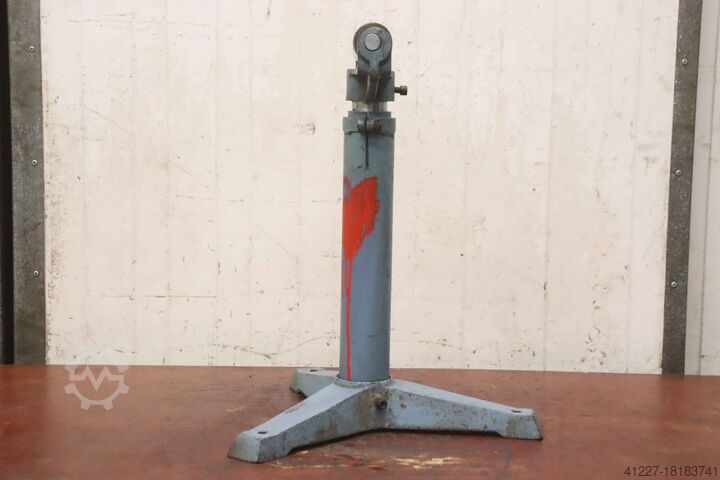

Condition: good (used), Saw roller stand, saw roller stand, sawhorse, roller conveyor stand, roller stand Nsdpfx Aowvfmbod Dedc -Roller stand: Roller stand for hacksaw, band saw, cold circular saw.... -Roll height: 445 to 565 mm -Roll: Ø 55 x 270 mm -Dimensions: 370/315/H445 mm -Weight: 22 kg

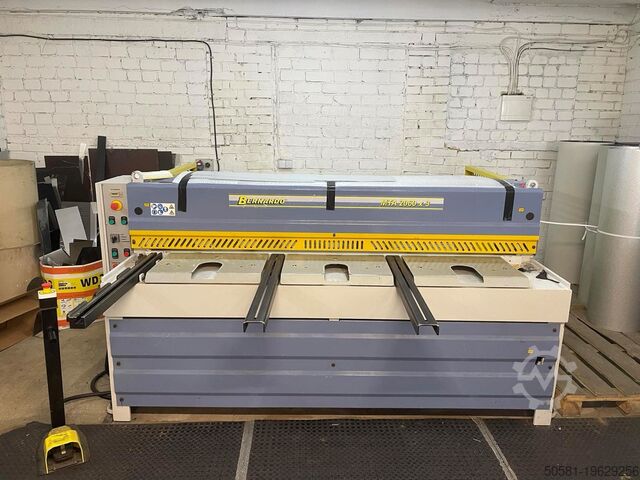

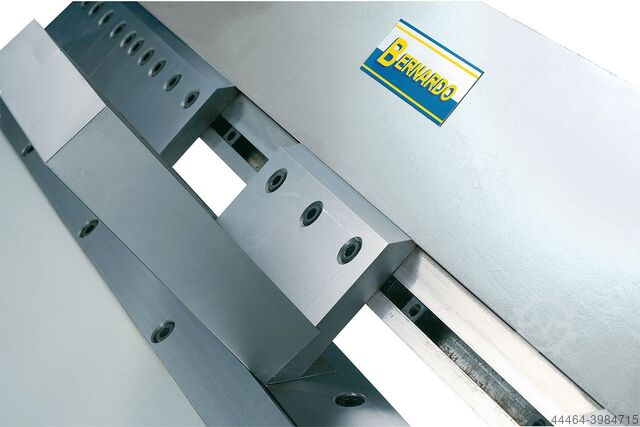

Condition: used, Year of construction: 2019, functionality: fully functional, Bernardo guillotine/ plate shear MTA 2060 x 3 mm for sale! Fully operating! Cutting length 2060 mm Max sheet thickness 3 mm Njdsw Dbhkopfx Ad Dodc Cutting angles 1,3 Motor 4,0 kW V 400V 3 LP Hz 50 A 9 (C16) Weight 1750 kg

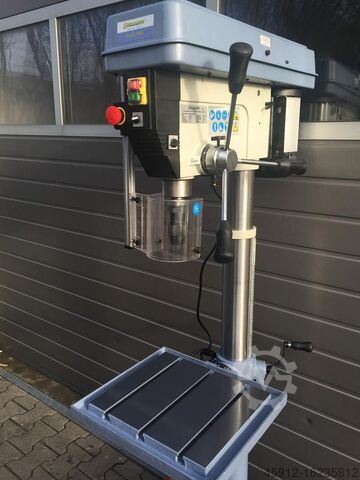

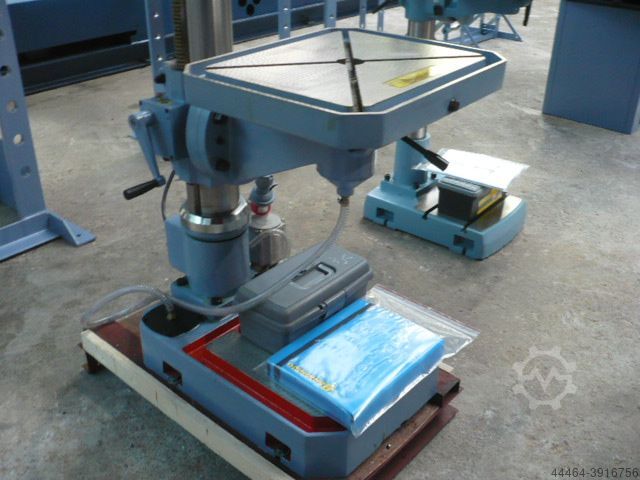

Condition: new, drilling capacity: 32 mm, - MK4 - 80/2130 tons - 2-speed engine - Rotates clockwise and counterclockwise - Table 385 x 335 mm - Table can be rotated - Emergency stop - Protective cap - Documentation Nsdpfetttlfox Ad Dedc - 400V

Condition: new, Bernardo frame saw Topcut 3200 ER Technical Specification Table dimension 1100 x 735 mm Format table 3200 x 400 mm Trimming length 3200 mm Max saw blade diameter 400 x 30 mm Max cutting height 90° / 45°125 / 88 mm Cutting width at the parallel stop 1300 mm Table height 890 mm Table extension 600 x 615 mm Table widening 825 x 750 mm Boom table with roll 1240 x 860 mm Speed Main saw blade 3000 / 4000 / 5000 rpm Speed scoring saw blade 8000 rpm Scribble saw blade 120 x 20 mm Suction connection of 100 mm Engine power S1 100% 5.5 kW (7.5 hp) Engine recording power S6 40% 7.5 KW (10.0 hp) Scoring motor power 0.75 kW Voltage 400 V Machine dimensions (W x D x H) 3420 x 3600 x 1610 mm Weight approx. 850 kg Delivery • Electric saw blade height adjustment • Digital cutting height display • Saw blade cover with inlet roller • Miter stop • Eccentric tensioner • Table widening Nsdod N S T Depfx Ad Dodc • Extendable telescopic stop • Longitudinal stop flaps • Boom table with roller • Sliding stick • Scoring unit with independent motor • Operating tool Properties • High-torque drive motor (5.5 kW) powerful drive motor, designed for optimum cutting performance • Smooth-running double roller trolley with center and end position locking for precise cuttings • Maximum saw blade diameter 400 mm for cutting heights up to 125 mm • Boom table with roller for simplified handling of larger workpieces • Foldable parallel stop with mik

Condition: good (used), Saw roller stand, saw roller stand, sawhorse, roller conveyor stand, roller stand -Manufacturer: Bernardo, roller stand for hacksaw, band saw, cold circular saw Ndodpevm Sv Sefx Ad Dec -Roll height: 570 to 970 mm -Roll: Ø 52 x 355 mm -Dimensions: 500/420/H570 mm -Weight: 14 kg

Condition: used, Year of construction: 2017, functionality: fully functional, Sheet metal folding machine Bernardo TB2020 for sale! Fully operating! Width 2750 mm Depth 560 mm Height 1260 mm Working height920 mm Ndsdpfx Aew Dbvued Djc Working length2020 mm Sheet thickness max. (400 N / mm2) 2,0 mm Bending angle 0 - 135° Weight approx. ca.1025 kg Max. opening with segments 122 mm Max. opening without segments144 mm Max. clearance closed 22 mm Properties Segmented upper beam for a large number of bending possibilities Universal bending machine for plumbers and repair shops High upper beam for the production of high folded profiles Quick and easy bending process by means of bow handle Easy adjustment of the upper beam for efficient work Setting of the bending angle by means of scale Separately removable segments for bending boxes Large opening for machining large workpieces Solid construction in modern design Standard accessories Segmented upper beam Bending segments 25 | 30 | 35 | 40 | 50 | 75 | 100 | 150 | 200 | 300 | 500 | 510 mm

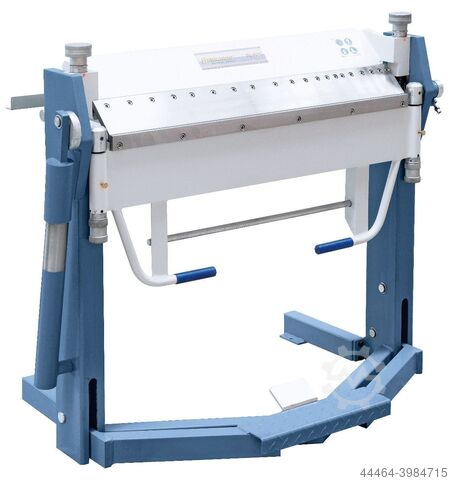

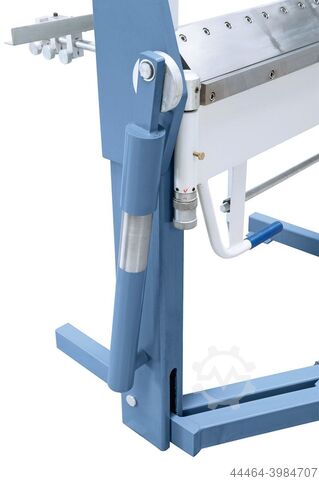

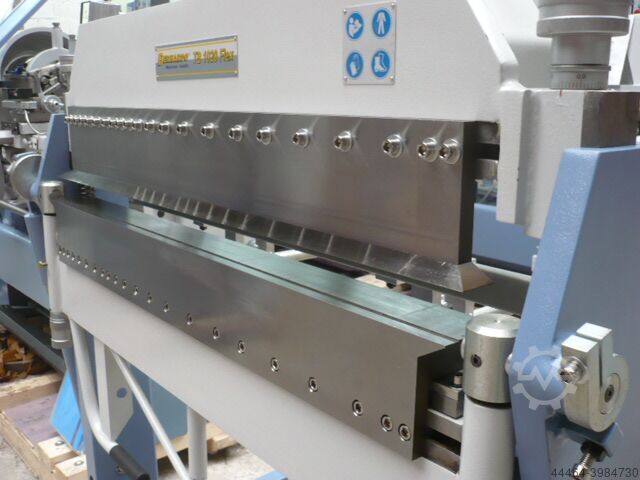

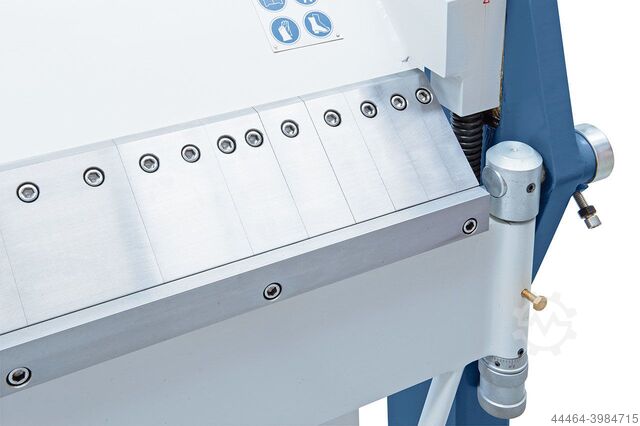

Condition: new, Bernardo swivel bending machine with segmented top -, bottom - and beam TB 1020 Flex Working length 1020 mm Max thickness of sheet metal (400 N / mm2) 2.0 mm Maximum opening width with segments 48 mm Maximum opening width without segments 150 mm Maximum clearance height 125 mm closed Bending angle 0-135 ° Backgauge 600 mm Working height 900 mm Width 1400 mm Depth * 1070 mm Height 1260 mm Weight 430 kg * with Backgauge Properties Piano inserts in the top, bottom and beam results in a large number of bending possibilities Tapes and special sections with opposite bends are easily achievable with these models Ndjdpfx Adjd Hxm Is Dec Universal bending machines for sheet metal working and repairers Simple swivel movement of the beam by means of handle Slight adjustment of the upper beam for efficient working High upper beam for the manufacture of highly bent profiles Large-sized flat Guide for precise work A cylinder of help helps the edges off the bending process Scope of delivery Segmented top - sub and bending flange Backgauge Corner segment left / right side 75 mm | 25. 30. 35. 40. 45. 50. 75. 100. 200. 270 mm

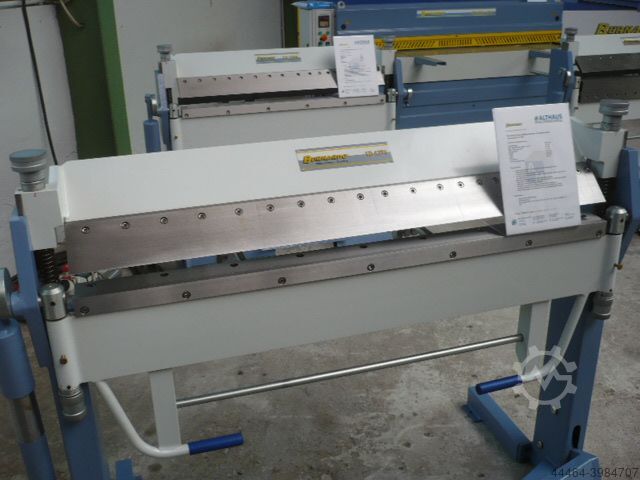

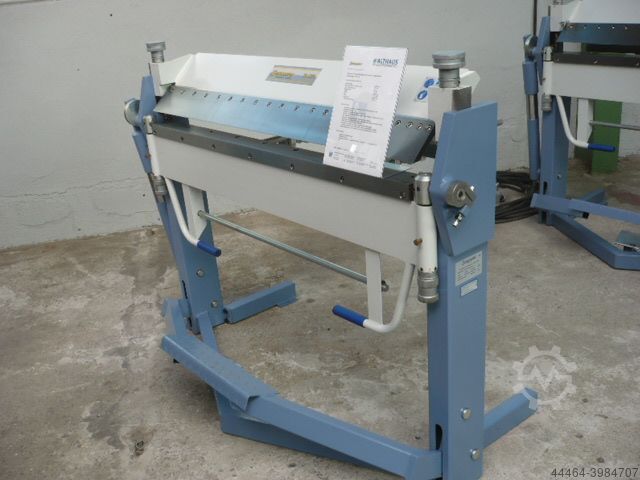

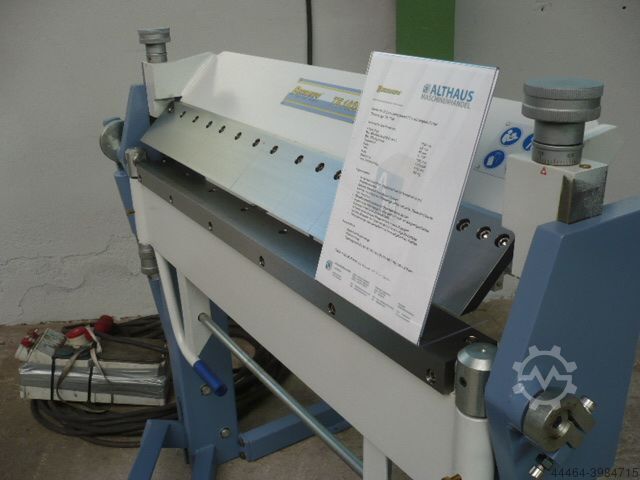

Condition: new, Folding machine with segmented clamping beam TB 1020 Technical specifications Working length 1020 mm Max thickness of sheet metal (400 N / mm2) 2.5 mm Maximum opening width 48 mm Bending angle 0-135 ° 1350 mm wide Depth * 1115 mm Height 1140 mm Weight approx. 290 kg Ndodped Hxmnsfx Ad Doc * with Backgauge Properties Universal bending machine for sheet metal working and repairers Robust construction in modern design Slight adjustment of the upper beam by means of foot pedal, hands are free for the workpiece Manual bending machine for standard bending tasks Segmented clamping beam for a large number of bending possibilities Optimal price-performance ratio Faster and easier bending operation via handle Easy setting of the lower beam on the corresponding thickness High upper beam for the manufacture of highly bent profiles Scope of delivery Segmented clamping beam Backgauge Bending segments 25 | 30. 35. 40. 45. 50. 75. 100. 150. 200. 270 mm

Condition: new, Bernardo swivel bending machine with segmented clamping beam TB 1270 Working length 1270 mm Max thickness of sheet metal (400 N / mm2) 2.0 mm Njdpfed Hxmdox Ad Dsdc Maximum opening width 45 mm Bending angle 0-135 ° Width 1620 mm Depth * 1115 mm Height 1150 mm Weight approx. 340 kg * with Backgauge Properties Universal bending machine for sheet metal working and repairers Robust construction in modern design Slight adjustment of the upper beam by means of foot pedal, hands are free for the workpiece Manual bending machine for standard bending tasks Segmented clamping beam for a large number of bending possibilities Optimal price-performance ratio Faster and easier bending operation via handle Easy setting of the lower beam on the corresponding thickness High upper beam for the manufacture of highly bent profiles Scope of delivery Segmented clamping beam Backgauge Bending segments 25 | 30. 35. 40. 45. 50. 75. 100. 150. 200. 250. 270 mm

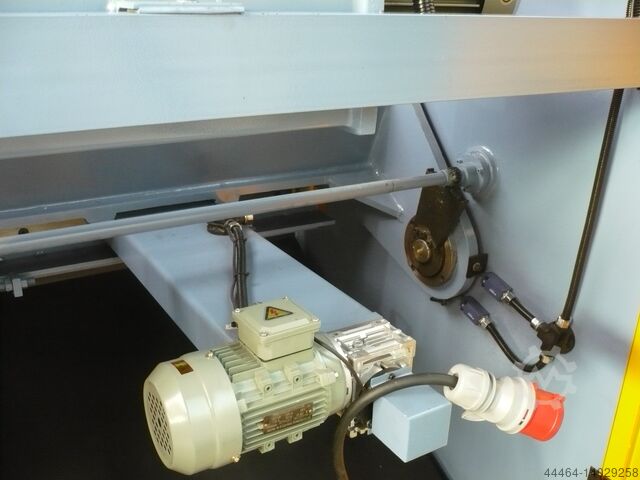

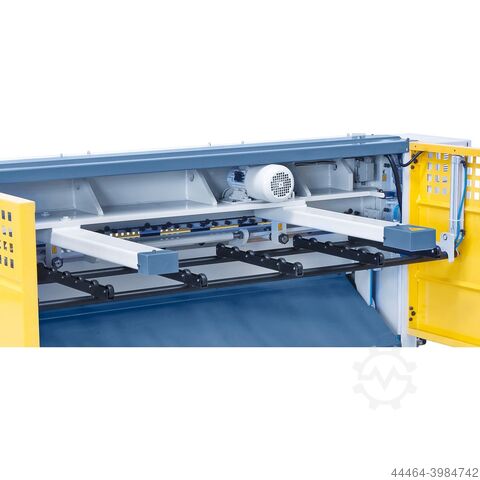

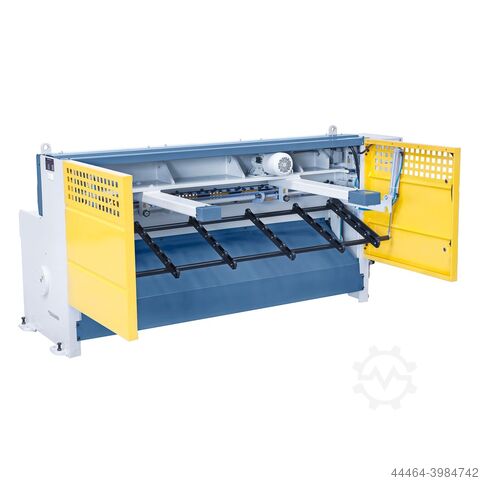

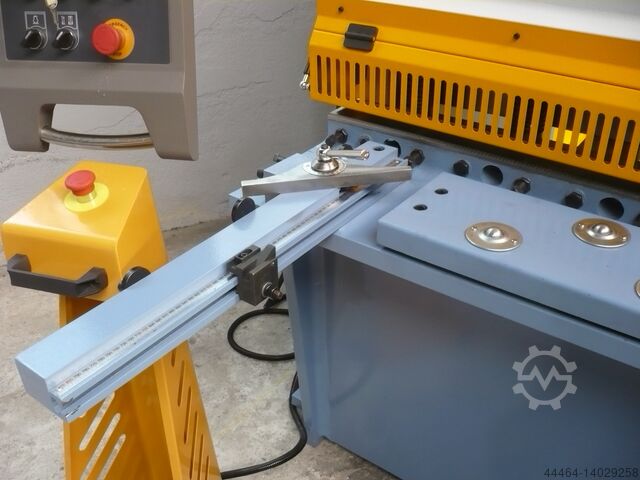

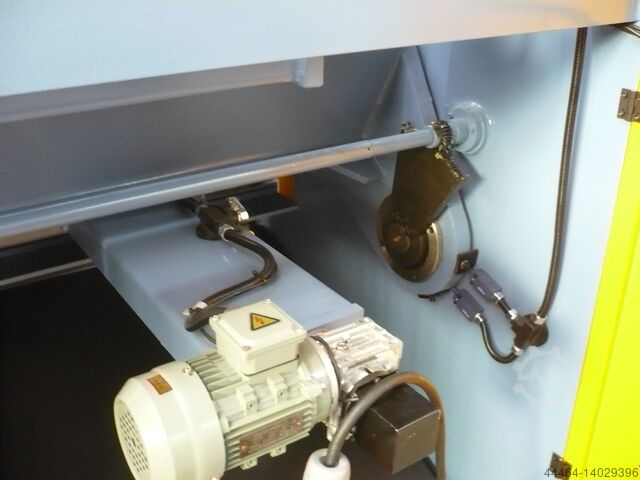

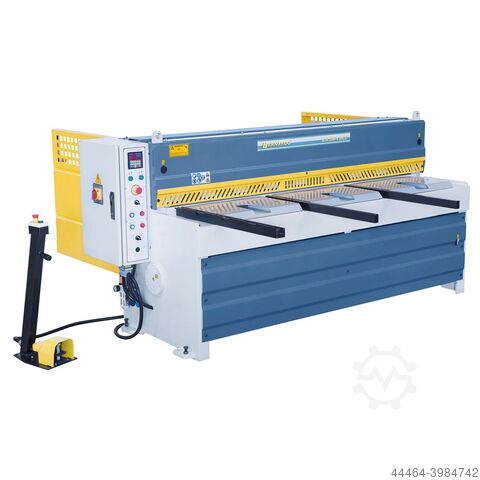

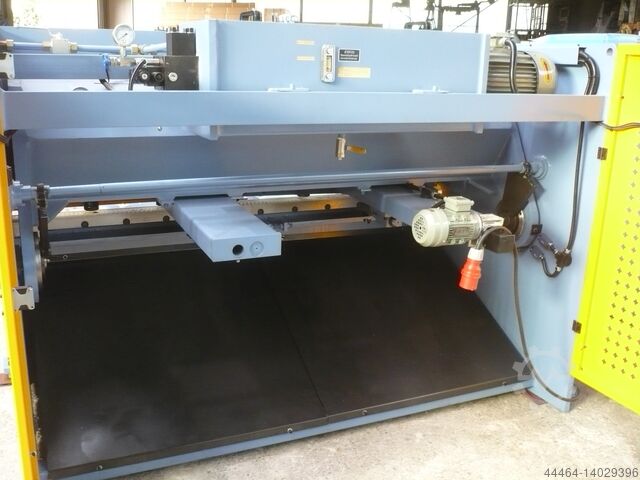

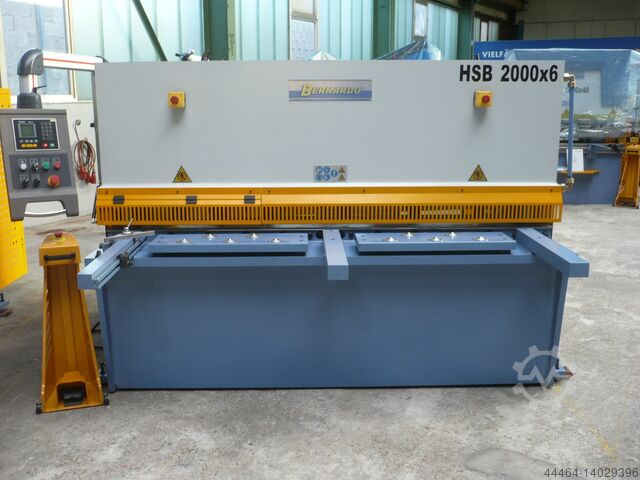

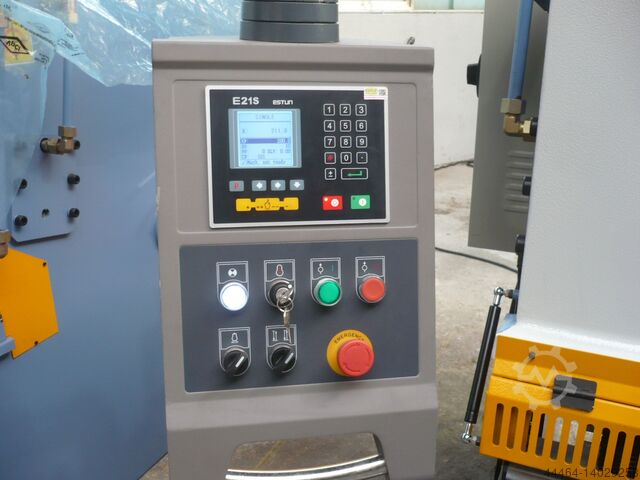

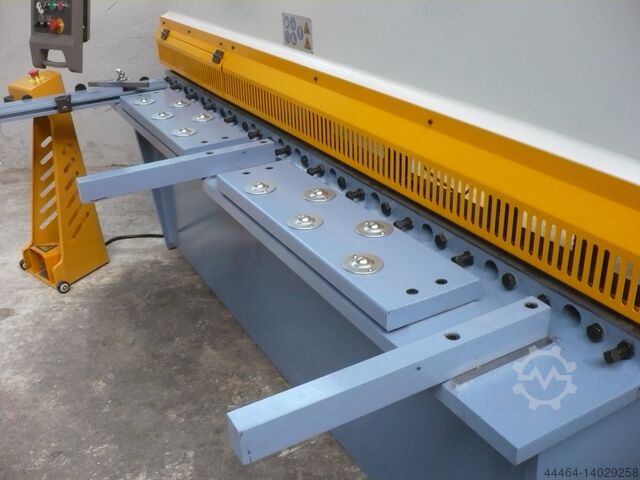

Condition: new, Bernardo Hydraulic guillotine shear HSB 2000 x 6 Cutting length 2000 mm Max. sheet thickness * 6 mm Ndjdpfx Ajqpfwyjd Djc Cutting angle 1° 45' Motorized backgauge 0 - 600 mm Strokes / min 12 Number of hold-down devices 8 pcs. Table height 800 mm Support arms 3 pcs. Oil tank 100 liters Motor power 7.5 kW Length 2800 mm Depth 2800 mm Height 1670 mm Weight approx. 3925 kg * Material strength 400 N/mm² Scope of delivery: - Cutting gap adjustment - Cutting line lighting - Motorized NC backgauge - Front sheet supports - Lateral stop - Angle stop - Protective plate with photocells - E21S control unit - Foot pedal with emergency stop - Tool steel blade

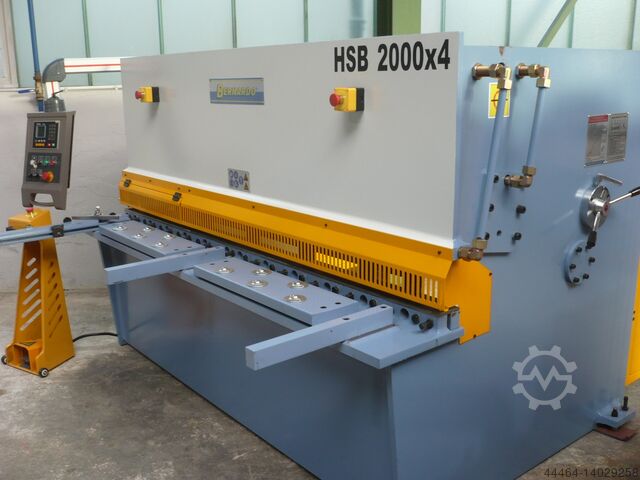

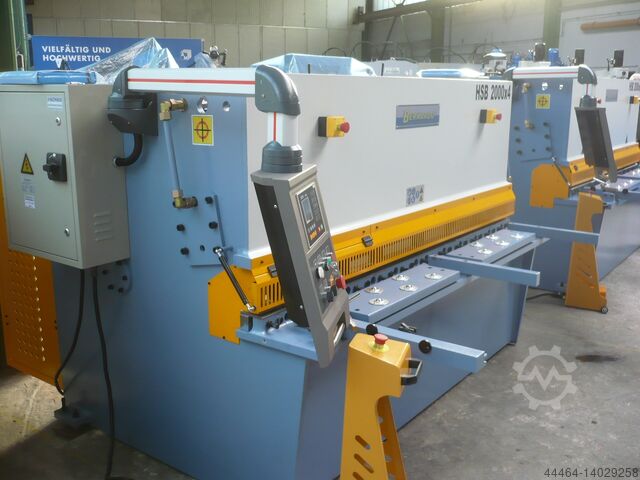

Condition: new, Bernardo Hydraulic guillotine shear HSB 2000 x 4 Cutting length 2000 mm Max. sheet thickness * 4 mm Cutting angle 1° 30' Motorized backgauge 0 - 600 mm Strokes / min 12 Number of hold-down devices 8 pcs. Table height 760 mm Support arms 3 pcs. Oil tank 100 liters Motor power 4.0 kW Length 2700 mm Depth 2600 mm Njdpfx Adoqpfrms Dedc Height 1600 mm Weight approx. 3015 kg * Material strength 400 N/mm² Scope of delivery: - Cutting gap adjustment - Cutting line lighting - Motorized NC backgauge - Front sheet supports - Lateral stop - Angle stop - Protective plate with photocells - E21S control unit - Foot pedal with emergency stop - Tool steel blade

Condition: new, Bernardo motor plate shear MTA 2060 x 3 mm NCC Cutting length 2060 mm Maximum sheet thickness * 3 mm Cutting angles 1° 30' Strokes / min 31 Working height 810 mm Back gauge 0-750 mm Table width 390 mm Motor 4,0 kW Width 2600 mm 2100 mm deep Height 1260 mm Weight CA. 1710 kg Material I a tensile strength 400 N / mm² Properties Fitted with metal high restraint, optimal for thin sheet metal Support arms on the front panel for easy editing of large panels Motorized Backgauge, precise method of Ballscrews Clearly structured control panel with integrated controller Robust steel sheeting construction for vibration-free operation Support table with erected fence on both sides High operator safety protection coverage and photo cells at the back of the machine 2-edged blade made of quality steel guarantee a clean and grafreies cutting Automatic hold-down device for the fixation of the plate Scope of delivery Cutting line illumination Njdpod Hxnhjfx Ad Dedc Motor NC Backgauge Front trays Side attacks Fender with photo cells NC BRL 401.2 Pneumatic sheet high retaining device Foot pedal with emergency stop Blades made of tool steel

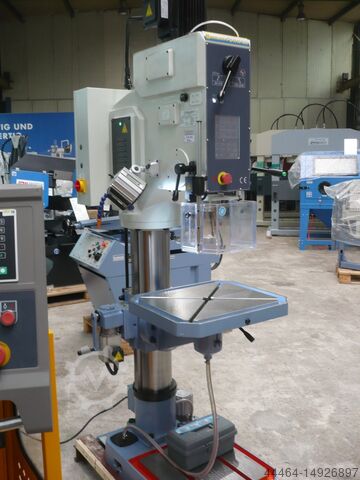

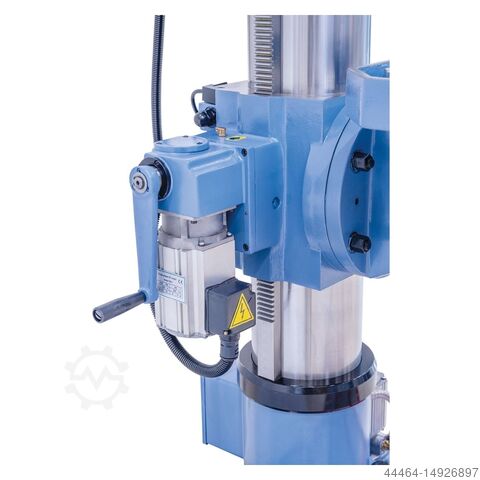

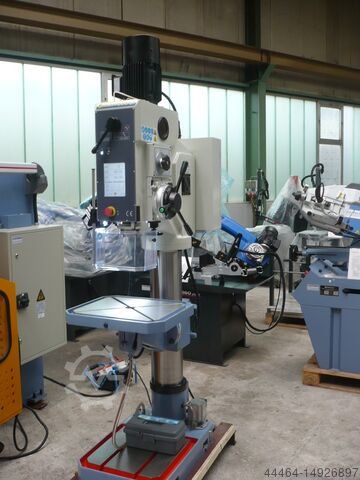

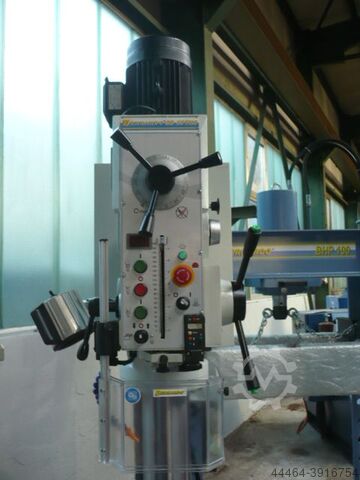

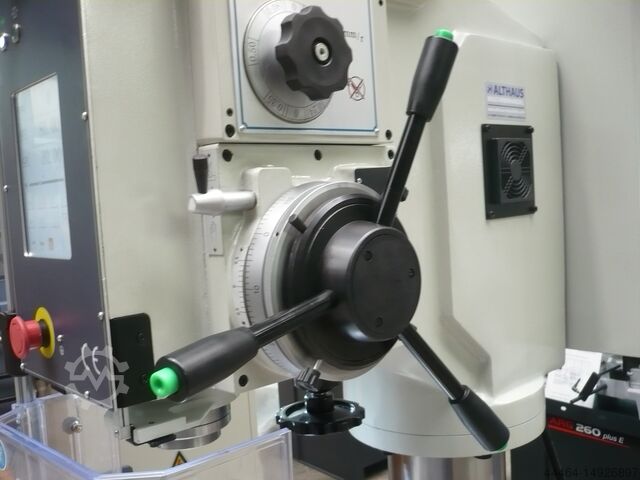

Condition: new, Bernardo geared drill GB 35 Vario Technical specifications Drilling capacity in steel 35 mm Ndjdpfx Aded Du Tyj Dec Drilling capacity in cast 40 mm Thread cutting max. M24 Drill Chuck 1-13 mm / B-16 Dome MK 4 Spindle speed / 2 levels 65-460 / 460 - 3250 RPM Feed range 0.1 / 0.2 / 0.3 mm / Rev Throat depth 320 mm Distance from spindle / table max 580 mm Distance from spindle / base plate 1145 mm Quill stroke 160 mm Column diameter 120 mm Table size / T - slot size 500 x 420 mm / 14 mm Desktop Base 365 x 370 mm S1 motor power output 100% 1,5 kW Motor power S6 40% 2,2 kW Machine dimensions (W x D x H) 600 x 870 x 2170 mm Weight 375 kg Scope of delivery • Keyed Chuck 1-13 mm / B-16 • Drill Chuck Arbor MK 4 / B-16 • Reducing bushing MK 4 / 3, MK 4 / 2 • Coolant system • Thread cutting device • Electromagnetic spindle feed • Automatic tool ejector • LED machine luminaires • Initial filling with Shell Tellus 46 • Digital speed display • Height-adjustable guard

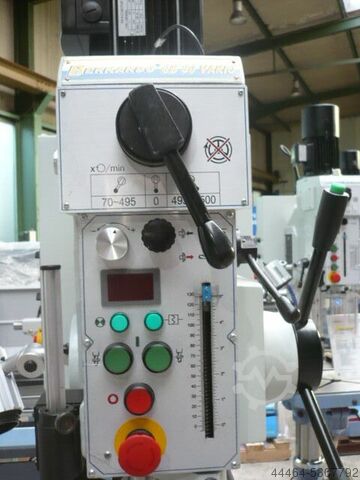

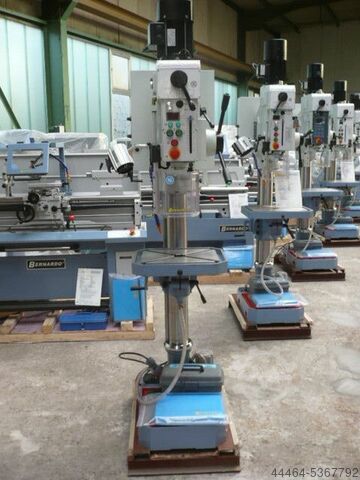

Condition: new, Bernardo Gear Drilling Machine GB 30 Vario Technical specifications Drilling capacity in steel 32 mm Drilling capacity in cast iron 35 mm Thread cutting max. M22 drill chuck 1 - 13 mm / B 16 Morse taper MK 3 Spindle speed / 2 steps 70 - 495 / 495 - 3500 rpm feed range 0,1 / 0,2 / 0,3 mm/rev throat 280 mm distance spindle / table max. 650 mm distance spindle / base plate 1120 mm spindle sleeve stroke 125 mm column diameter 110 mm table size / T-slot size 450 x 380 mm / 14 mm Working surface base plate 340 x 330 mm Motor output power S1 100% 1.1 kW Motor input power S6 40% 1,5 kW Machine dimensions (W x D x H) 500 x 800 x 2100 mm Weight approx. 320 kg Scope of delivery - Drill chuck mandrel MK 3 / B 16 - Reducing sleeve MK 3 / 2, MK 3 / 1 - Gear rim drill chuck 1 - 13 mm / B 16 - Coolant device - Electromagnetic spindle feed - Tapping device - Automatic tool ejector - LED machine light - Digital speed display - Initial filling with Shell Tellus 46 - Height adjustable protective cover Ndjdpfogd H Uujx Ad Dec

Condition: new, Bernardo geared drill GB 35 THS Technical specifications Drilling capacity in steel 35 mm Drilling capacity in cast 40 mm Thread cutting max. M24 Drill Chuck 1-13 mm / B-16 Dome MK 4 Spindle speed (12) 43-2355 U/min Feed range 0.1 / 0.2 / 0.3 / 0.4 mm / Rev Throat depth 340 mm Distance from spindle / table max 580 mm Distance from spindle / base plate 1185 mm Quill stroke 200 mm Column diameter 160 mm Table size / T - slot size 540 x 440 mm / 14 mm Work surface of bottom plate 430 x 440 mm Engine power 1,3 / 1,8 kW Machine dimensions (W x D x H) 660 x 900 x 2240 mm Weight approx. 553 kg Scope of delivery • Drill Chuck 1-13 mm / B-16 • Drill Chuck Arbor MK 4 / B-16 • Reducing bushing MK 4 / 3, MK 4 / 2 / MK 3 / 1 • Motorized table hub • Electromagnetic spindle feed • Initial filling with Shell Tellus 46 • Automatic tool ejector • Thread cutting device • Digital speed display • LED machine luminaires Njdpfxsd Du Twj Ad Dsdc • Coolant system • Digital drill depth indicator • Height-adjustable guard

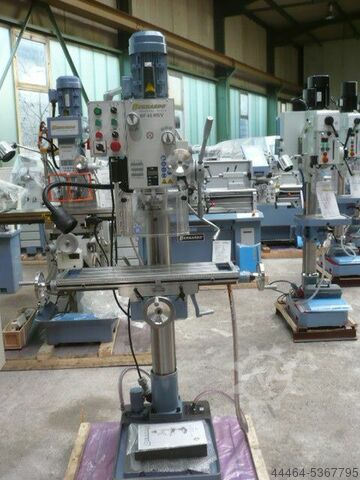

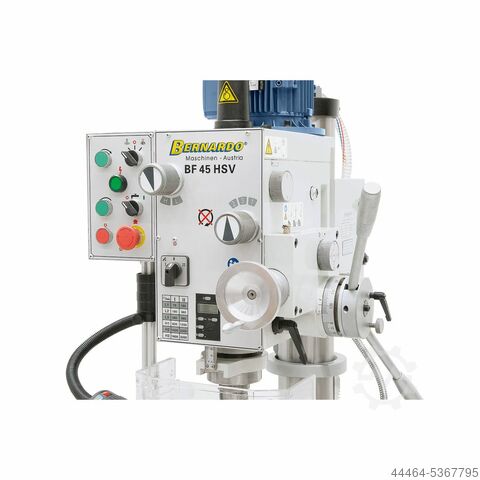

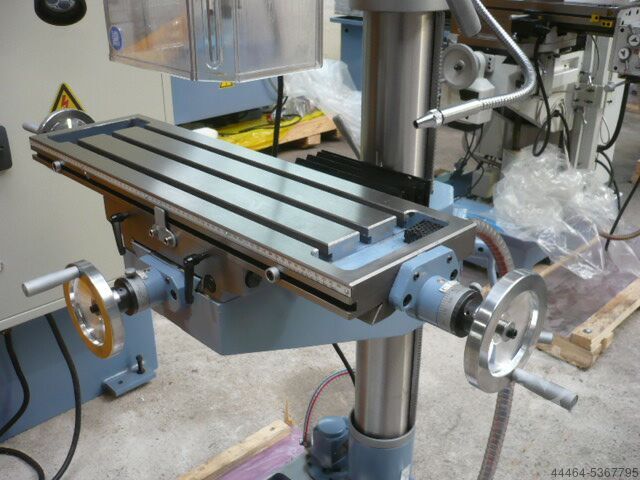

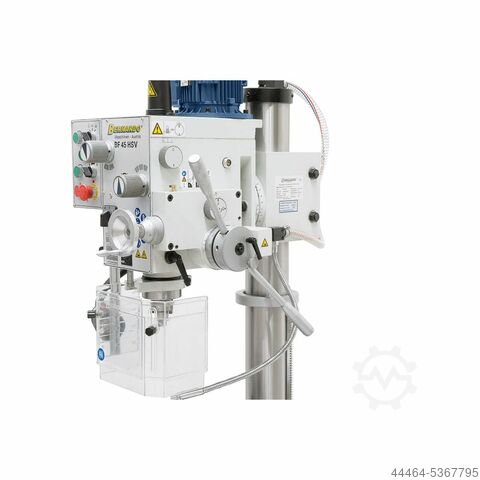

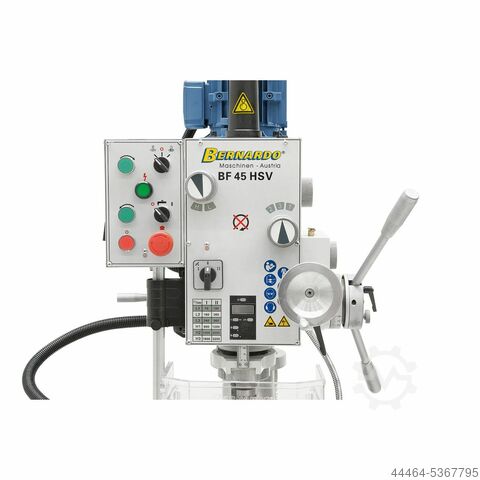

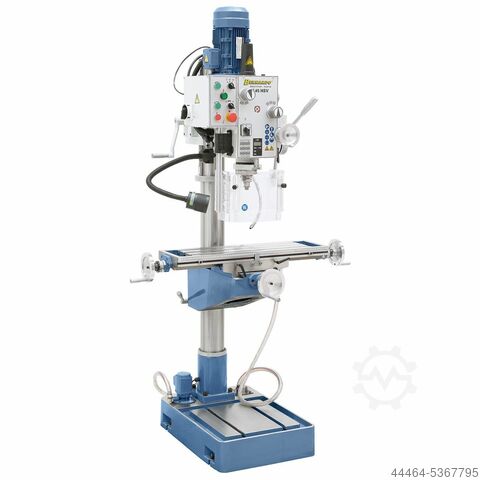

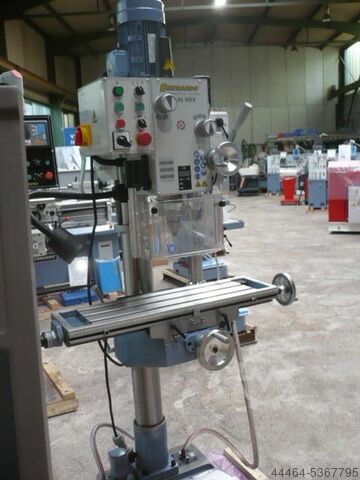

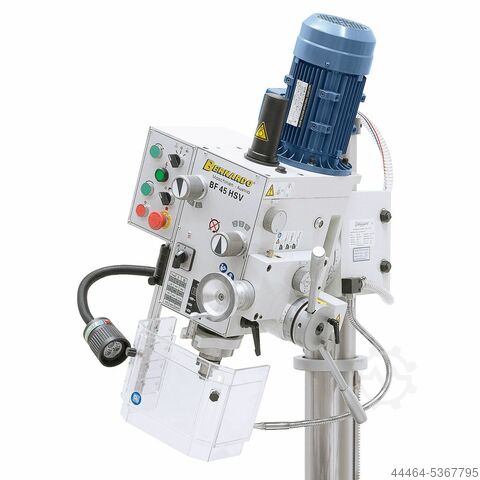

Condition: new, Bernardo BF 45 HSV Drilling and milling machine Technical specifications Drilling capacity in steel 32 mm Drilling capacity in cast iron 40 mm cutter head max. 80 mm throat 280 mm Spindle speed (12) 75 - 3200 rpm Spindle mounting MK 4 quill stroke 120 mm spindle sleeve feed (3) 0,10 / 0,18 / 0,26 mm/rev table size 730 x 210 mm T-slot size 14 mm Distance spindle / table max. 640 mm distance spindle / base plate max. 1190 mm Travel (x / y) 495 / 200 mm milling head swivelling -90° to +90° Height adjustment of milling head 260 mm column diameter 115 mm Working surface base plate 365 x 375 mm Motor output power S1 100% 1.1 / 1.5 kW (400 V) Motor input power S6 40% 1.5 / 2.2 kW (400 V) Machine dimensions (W x D X H) 1070 x 800 x 2060 mm Weight approx. 362 kg Scope of delivery - Quick-action drill chuck 3 - 16 mm / B 16 - Drill chuck mandrel MK 4 / B 16 - Tightening spindle M 16 - Reducing bushing MK 4 / 3 Ndsdogd H Uxjpfx Ad Dsc - Combination arbor MK 4 / 27 mm - Automatic quill feed - Height-adjustable protective cover - Digital quill stroke display - Thread cutting device - Coolant device - LED machine light - Longitudinal measuring scale - Operating tool

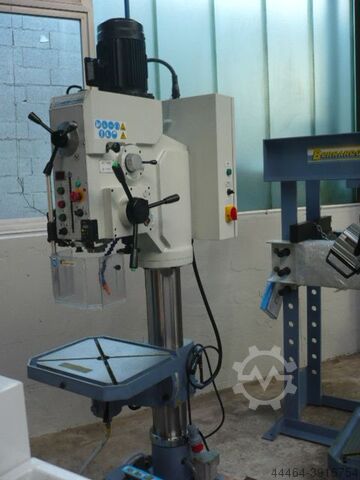

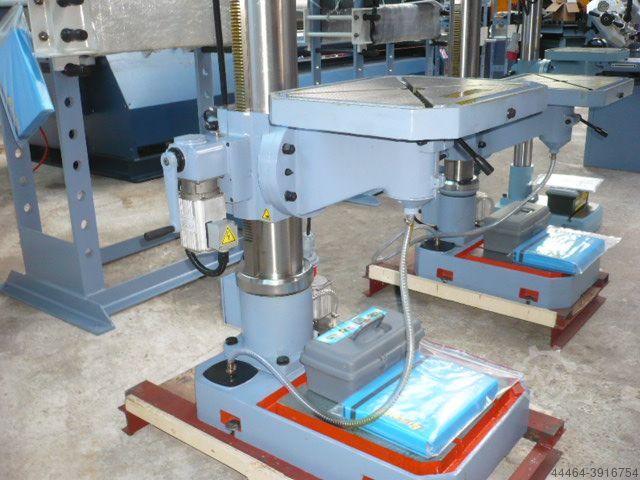

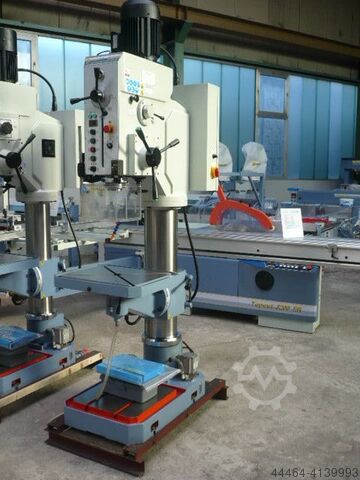

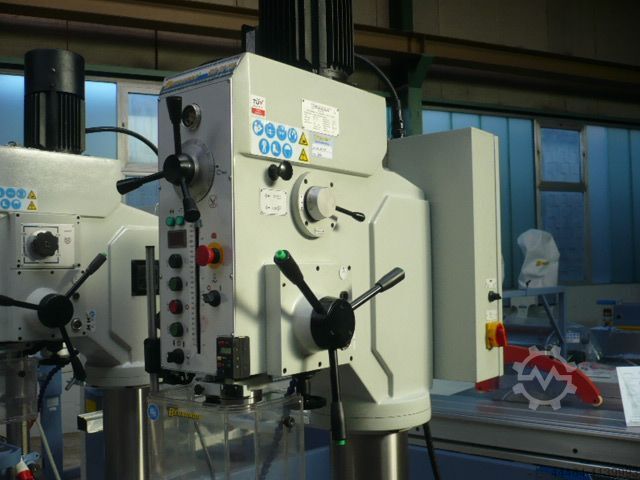

Condition: new, Bernardo Gear column drilling machine GB 50 HS Drilling capacity in steel50 mmDrilling capacity in cast iron60 mmThread cutting max.M42Drill chuck1 - 13 mm / B 16Morse coneMK 4Spindle speed / number of steps40 - 2100 rpm / 12feed range0,1 / 0,2 / 0,3 / 0,4 mm/reach370 mmDistance spindle / table max.600 mmDistance spindle / base plate 1190 mmSleeve stroke 250 mmPillar diameter200 mmTable size / T-slot size 600 x 500 mm / 14 mmMotor power2,2 / 2,8 kWMachine dimensions (W x D x H) 700 x 1050 x 2350 mmWeight approx. 670 kgScope of supply - Toothed ring drill chuck 1 - 13 mm / B 16 drill chuck mandrel MK 4 / B 16 reduction sleeve MK 4 / 3, MK 4 / 2 - Motorised table stroke coolant device - Electromagnetic spindle feed - Thread cutting device - Automatic tool ejector LED machine light - Initial filling with Shell Tellus 46 - Digital speed display - Digital drilling depth display - Height-adjustable protective cover Ndedpfxjd Tm T Hj Ad Dsc

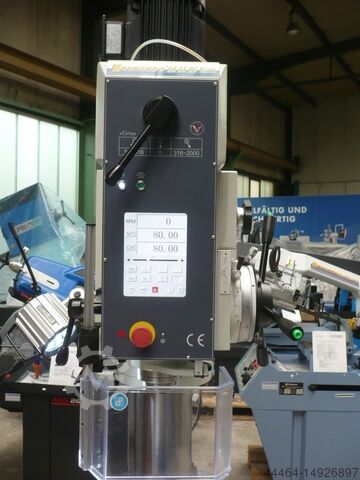

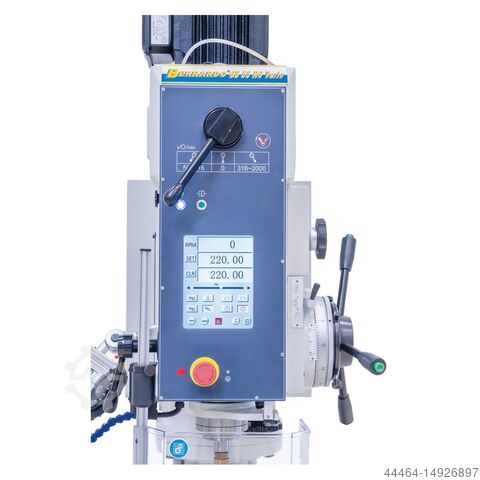

Condition: new, Bernardo GB 55 NC Vario geared pillar drilling machine Technical specifications Drilling capacity in steel 50 mm Drilling capacity in cast iron 60 mm Thread cutting max.M42 Drill chuck 1 - 13 mm / B 16 Morse taper MK 4 Spindle speed / 2 steps 50 - 316 / 316 - 2200 rpm Feed range 0.08 / 0.12 / 0.17 / 0.24 / 0.35 / 0.50 mm/rev Projection 360 mm Distance spindle / table max. 580 mm Distance spindle / base plate 1185 mm Quill stroke 225 mm180 mm Column diameter Table size / T-slot size 570 x 480 mm / 14 mm Working surface base plate 435 x 445 mm Motor power 3.0 kW Machine dimensions (W x D x H) 750 x 1020 x 2340 mm Weight approx. 630 kg Scope of delivery Sprocket chuck 1 - 13 mm / B 16 Drill chuck arbor MK 4 / B 16 Reducing sleeve MK 4 / 3, MK 4 / 2, MK 3 / 1 Motorized table stroke Coolant device Touch screen Ndodpfx Adorivbvj Dec Automatic tool ejector Electromagnetic spindle feed Thread cutting device Initial filling with Shell Tellus 46 LED machine light Digital speed display Digital drilling depth display Height-adjustable protective cover

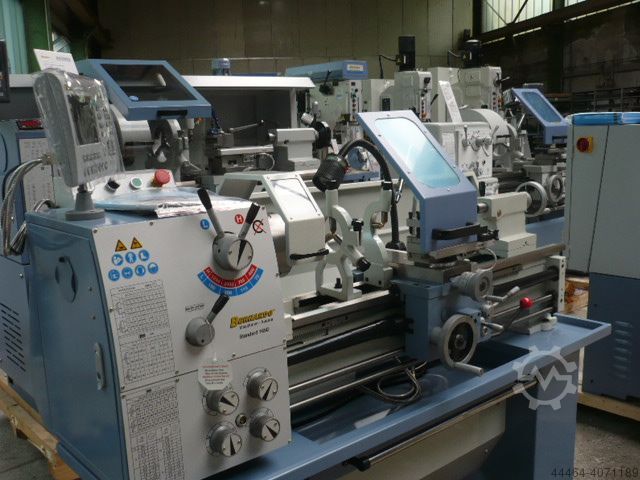

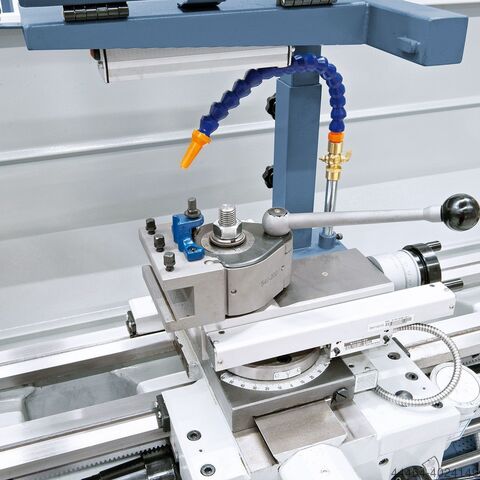

Condition: new, Guide and pull spindle lathe Bernardo Standard 165 D Technical specifications Tip width: 1000 mm Tip height: 175 mm Circulation diameter over bed: 350 mm Circulation diameter over crumpling*: 450 mm Orbit diameter via flat slide: 190 mm Bed width: 180 mm Spindle bore: 40 mm Spindle holder: DIN 55029, D1-4 Speed range: (8) 70 - 2000 rpm Range of longitudinal feeds: (40) 0.053 - 1.29 mm/U Area of plan feeds: (40) 0.013 - 0.31 mm/U Metric threads: (32) 0.4 - 7 mm Inch Thread: (36) 4 - 60 Gg/1" Pinole path: 110 mm Pinole holder: MK 3 Engine power: S1 100% 1.5 kW (400 V) Motor recording power: S6 40% 2.2 kW (400 V) Machine dimensions (W x D x H) 1730 x 700 x 1340 mm Weight approx. 514 kg * Bed length removable Delivery • 3-axis i200 digital display with LCD display • 3-jaw chuck DK11-160 mm / D4 • Flat disc 200 mm / D4, according to DIN 55029 • Fixed bezel - pass diam. max. 60 mm • Running bezel - pass diam. max. 60 mm • Clamping disc 250 mm • Quadruple steel holder • Shaft fixing device • Protective device for steel holders • Slip clutch • Micrometer longitudinal stop • Coolant device • Extendable chip newfir • Motor with magnetic brake according to CE standard • Foot pedal with brake function according to CE • Spray wall • Threaded watch • LED machine light • Reducing sleeve Ndjdpfx Asd Ri Ezod Dec • Interchangeable wheels • 2 centering tips • Base • Operating tool

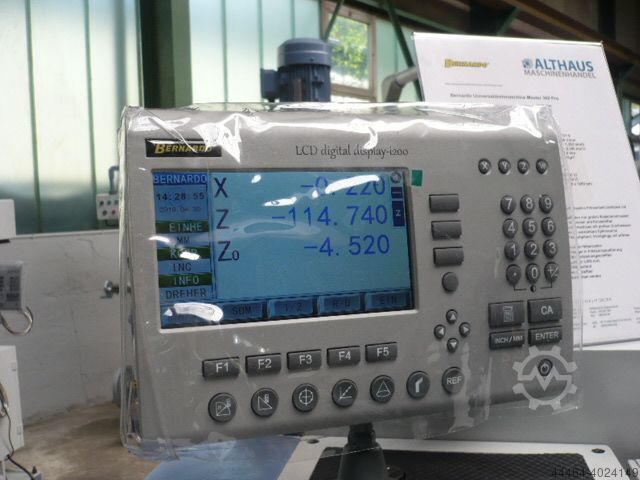

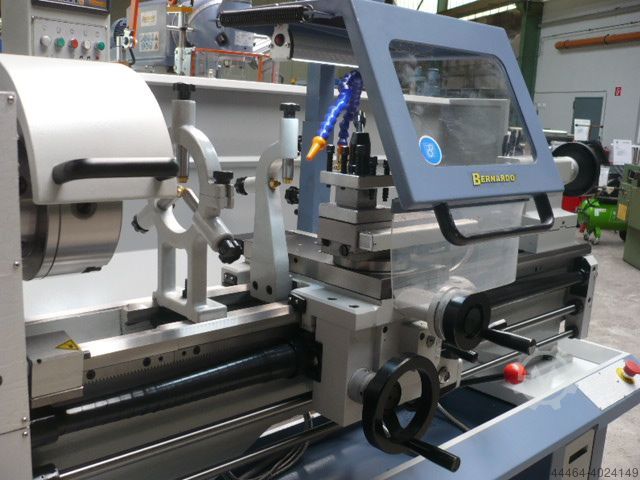

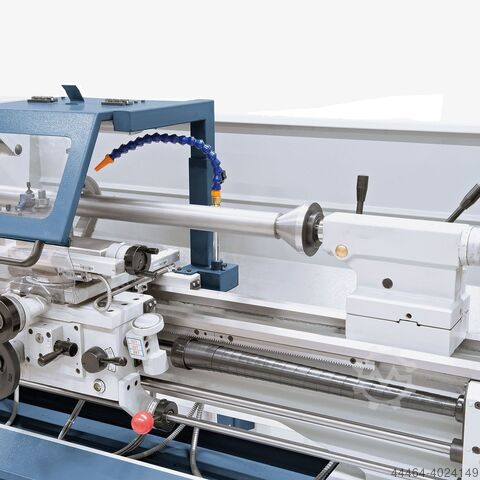

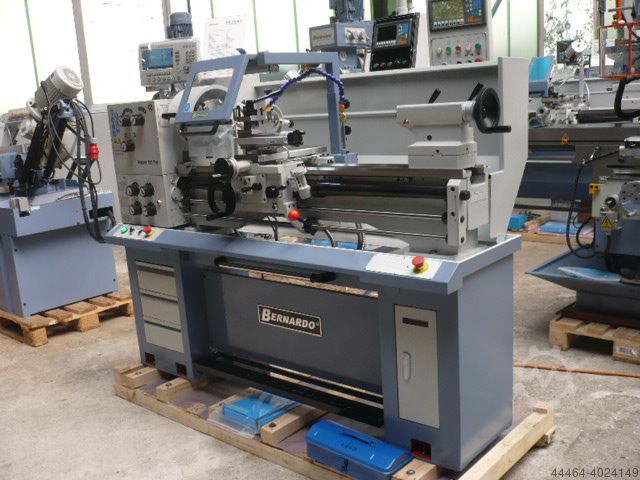

Condition: new, Bernardo Center and lathe master 180 incl. 3-axis digital display Top width 1000 mm Tip height 180 mm Swing over bed 360 mm Swing over bend * 480 mm Swing over cross slide 220 mm Bed width 185 mm Spindle bore 51 mm Spindle mount DIN 55029, D1-5 Speed range (8) 70-2000 RPM Range of longitudinal feeds (32) 0,052-1,392 mm / Rev Ndjdpfed Du Tiox Ad Djc Area plan feeds (32) 0.014 - 0.380 mm / Rev Metric threads (26) 0.4-7.0 mm Inch thread (34) 4-56 Gg/1 " Quill diameter 42 mm Quill trail 110 mm Spindle mount MT 4 S1 engine power output 100% 1.5 kW (400 V) Motor power S6 40% 2,2 kW (400 V) Machine dimensions (W x D x H) 1920 x 750 x 1600 mm Weight approx. 540 kg Bed length removable: 225 mm Scope of delivery • 3-axis digital display i200 with LCD display • 3 - jaw Chuck DK11-200 mm / D5 • Face plate 200 mm / D5, according to DIN 55029 • Fixed bezel - forward diam. maximum 70 mm Diam bezel with • ongoing - forward. maximum 50 mm • Coolant system • Initial filling with Shell Tellus 46 • Pull-out chip tray • Face plate 320 mm • Four-way steel bracket • protective device while the four-way tool post • Slipping clutch • Mikrometerlängsanschlag • Thread watch • LED machine luminaires • Reducing bushing • Change gears • 2 centres • Foot pedal with brake function after CE • motor with magnetic brake according to CE standard • base

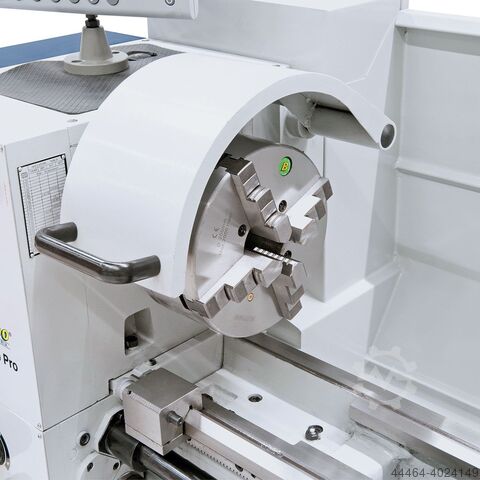

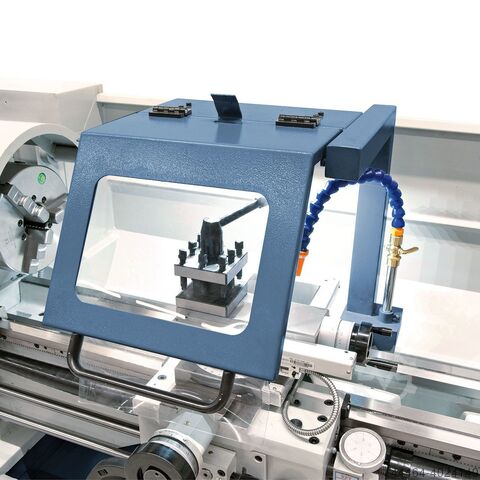

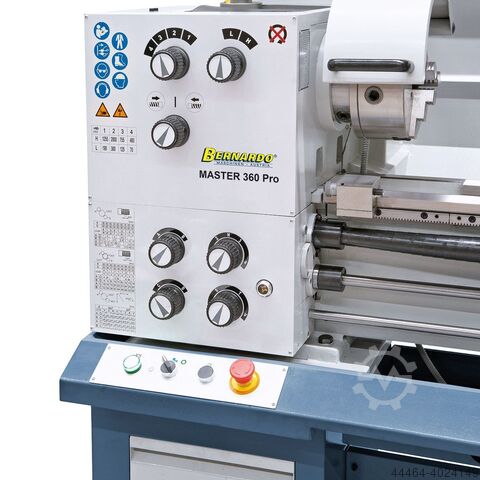

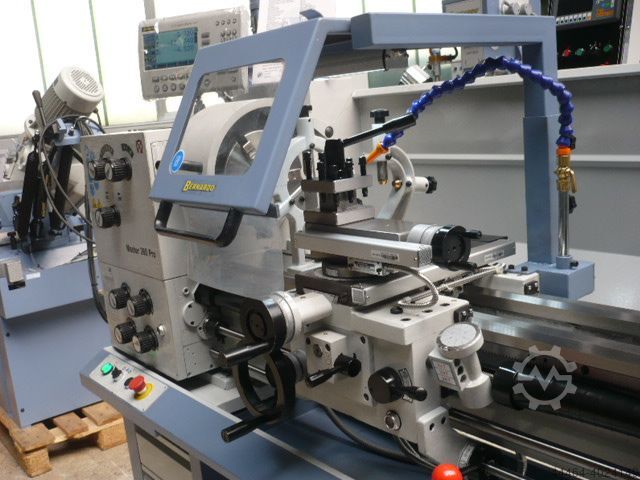

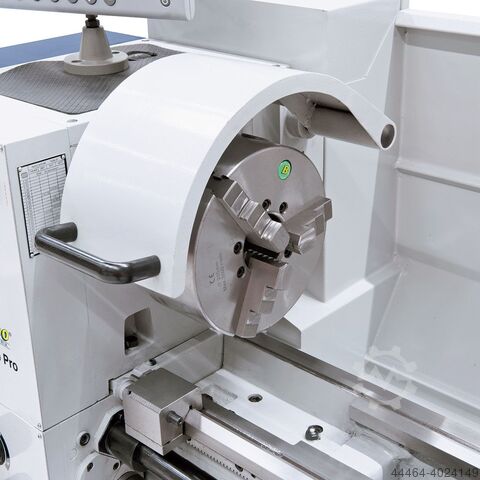

Condition: new, Bernardo Universal Turning Machine Master 360 Pro Peak 1000 mm Peak height 180 mm Orbital diameter via bed 360 mm Orbital diameter via creation * 502 mm Orbital diameter via paddling sled 220 mm Bed width 185 mm Spindle hole 52 mm Spindle intake A4 55029, D1-5 Speed range (8) 70-2000 U/min Area Longitudinal Pros (32) 0.052-1,392 mm/U Area of planning precurs (32) 0.014-0.380 mm/U Metric threads (26) 0.4-7.0 mm Customs thread (34) 4-56 Gg/1 " Pinol diameter 42 mm Pinoline path 100 mm Pinol intake MK 3 Engine drop-off power S1 100% 1.5 kW (400 V) Engine recording power S6 40% 2.2 kW (400 V) Machine Measurement (B x T x H) 1825 x 750 x 1600 mm Weight about 576 kg * Bed length removable: 205 mm Delivery • 3-axis digital display i200 with LCD display • 3-baking lining DK11-200 mm/D5 • Planboard 200 mm/D5, according to A4 55029 • Fixed bezel-passage diam. max 70 mm • Running bezel-passage diam. max 60 mm • Coolant equipment • First filling with Shell Tellus 46 • Extractable late newfir • Tension 280 mm • Quadruple steel holders • Protection device for quadruple steel holders • Slip clutch Nedpfxod I H Izj Ad Dsdc • Micrometer longest strike • Thread watch • LED machine light • Reducer sleeve • Changes • 2 centering tips • Foot pedal with braking function according to CE • Engine with magnetic brake according to CE standard • Unterdesigned with drawers • Operating tool

Condition: new, Bernardo universal lathe Compact 400 V Technical specifications Top width 850 mm Tip height 200 mm Swing over bed 400 mm Swing over cross slide 245 mm Bed width 260 mm Spindle hole 52 mm Spindle mount DIN 55029, D1-5 Speed range, 2 levels 50-450 / 450-2500 RPM Range of longitudinal feeds (20) 0.025 - 2 mm / Rev Area plan feeds (20) 0.012 1 mm / Rev Metric threads (26) 0,2-14 mm Inch thread (42) 1-80 Gg/1 " Quill diameter 50 mm Tailstock runner way 120 mm Spindle mount MT 3 Power 5,5 kW (7,5 HP) Machine dimensions (W x D x H) 1900 x 1000 x 1610 mm Weight approx. 1185 kg Properties Standard with Delta frequency inverters for high torque in the lower revs and nearly constant speed under load Infinitely variable speed control, the set speed can be read off on a digital display To minimize vibration influences the massive Prism bed is equipped in addition with ribs Versatile applications in general engineering, production, item creation... Modern main spindle bearings with angular contact ball bearings in precision design The machine bed, cast in one piece, is extremely rigid and vibration, which satisfies an essential prerequisite for precise turning Nodpfod Ertrox Ad Dodc Space-saving installation possibility through to the front pull-out chip tray Standard with 52 mm spindle bore for manipulating large wave

Condition: new, Bernardo universal lathe Smart 410 x 1000 Vario Technical specifications center distance 1000 mm center height 205 mm Swing diameter over bed 410 mm Swing diameter over offset 580 mm Swing diameter over the cross slide 255 mm Bed width 250 mm Spindle bore 52 mm Spindle holder DIN 55029, D1 - 6 Speed range, 2 stages 30 - 550 / 550 - 3000 rpm Range of longitudinal feeds (17) 0.05 - 1.7 mm/rev Face feed range (17) 0.025 - 0.85 mm/rev Metric threads (42) 0.2 - 14 mm Inch thread (45) 2 - 72 Gg/1" Quill diameter 50 mm Quill travel 120 mm Quill holder MK 4 Motor power 5.5 kW (7.5 hp) Machine dimensions (W x D x H) 2030 x 1000 x 1450 mm Weight approx. 1220 kg Scope of delivery - 3-axis digital readout ES-12 V with LCD display - 3-jaw steel chuck PO3-200 mm / D6 - Clamping disk 350 mm - Fixed steady rest - diam. max. 135 mm - Rotating steady rest - opening diam. max. 65 mm - Foot pedal with brake function according to CE - Quadruple steel holder - Protective device for quadruple steel holder - Micrometer longitudinal stop - Turret stop with fine adjustment - Frequency converter - Initial filling with Shell Tellus 46 - Coolant device - Slipping clutch - Thread timer - LED machine light Njdsg Hzhaepfx Ad Dodc - Change gears - Reducing sleeve - 2 centering points - Chip back plate - Operating tool Built-in special accessories: Quick-change steel holder system Multifix size B Steel holder set consisting of: Steel holder head, 3 straight inserts, 1 prism insert/ Price € 681.00 net Factory assembly quick-change holder € 113.00 net
