Used Bernardo Gbs 180 G for sale (200)

Condition: new, turning length 1000 mm turning diameter 360 mm turning dia. in gap 480 mm spindle bore 51,0 mm turning speeds 70 - 2000 U/min bed width 185 mm spindle taper 55029 D 1-5 taper in tailstock 4 MK quill travel 110 mm total power requirement 1,5 kW weight of the machine ca. 540 kg. range L-W-H 1920 x 750 x 1600 mm Equipment: - 3-axis digital display i200 with LCD display - 3-jaw chuck DK11-200 mm / D5 - Faceplate 200 mm / D5, according to DIN 55029 - Fixed steady rest - passage diameter max. 70 mm Lhsdpsxaawajfx Ahwec - Follow-on steady rest - passage diameter max. 50 mm - Coolant system - Initial filling with Shell Tellus 46 - Extendable chip tray - Clamping disk 320 mm - Quadruple tool holder - Protective device for quadruple tool holder - Slip clutch - Micrometer longitudinal stop - Thread gauge - LED machine light - Reducing sleeve - Change gears - 2 centering points - Foot pedal with brake function according to CE - Motor with magnetic brake according to CE standard - Base frame - Operating tools

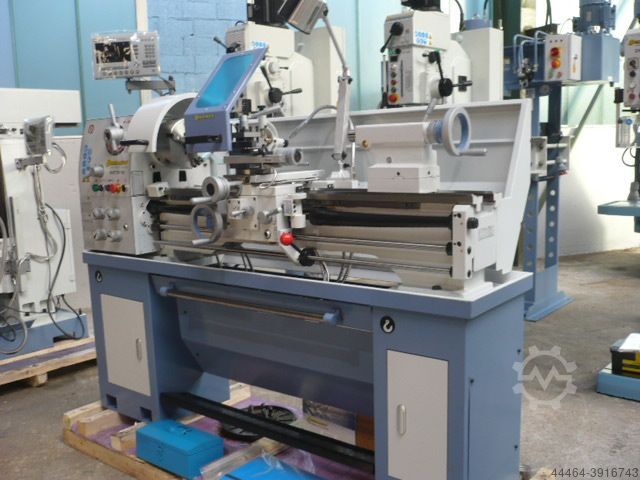

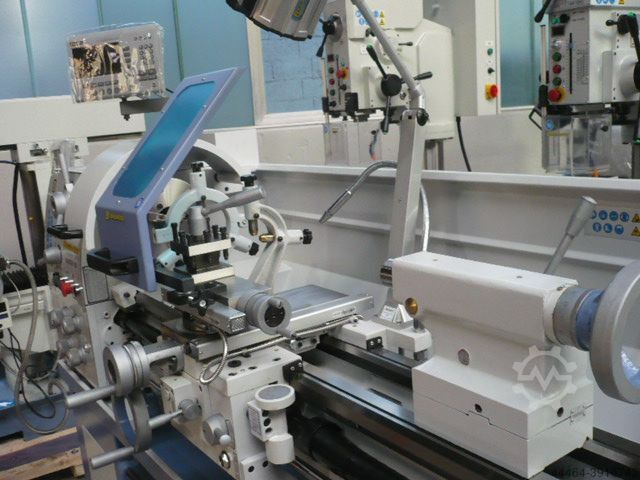

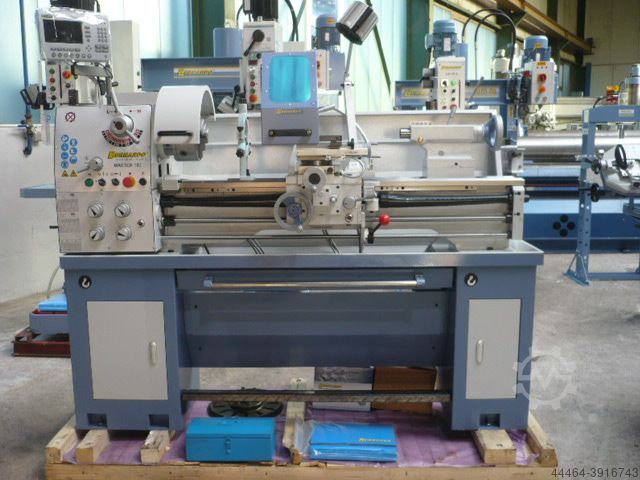

Condition: new, Bernardo Center and lathe master 180 incl. 3-axis digital display Top width 1000 mm Tip height 180 mm Swing over bed 360 mm Swing over bend * 480 mm Swing over cross slide 220 mm Bed width 185 mm Spindle bore 51 mm Spindle mount DIN 55029, D1-5 Speed range (8) 70-2000 RPM Range of longitudinal feeds (32) 0,052-1,392 mm / Rev Area plan feeds (32) 0.014 - 0.380 mm / Rev Metric threads (26) 0.4-7.0 mm Inch thread (34) 4-56 Gg/1 " Quill diameter 42 mm Quill trail 110 mm Spindle mount MT 4 S1 engine power output 100% 1.5 kW (400 V) Motor power S6 40% 2,2 kW (400 V) Machine dimensions (W x D x H) 1920 x 750 x 1600 mm Weight approx. 540 kg Bed length removable: 225 mm Scope of delivery • 3-axis digital display i200 with LCD display • 3 - jaw Chuck DK11-200 mm / D5 • Face plate 200 mm / D5, according to DIN 55029 • Fixed bezel - forward diam. maximum 70 mm Diam bezel with • ongoing - forward. maximum 50 mm • Coolant system • Initial filling with Shell Tellus 46 • Pull-out chip tray Lsdjd Du Tijpfx Ahwohc • Face plate 320 mm • Four-way steel bracket • protective device while the four-way tool post • Slipping clutch • Mikrometerlängsanschlag • Thread watch • LED machine luminaires • Reducing bushing • Change gears • 2 centres • Foot pedal with brake function after CE • motor with magnetic brake according to CE standard • base

Condition: used, Year of construction: 2015, Lot consists of: (1) Surface grinding machine Technical Details: Power supply: 400 V; Frequency: 50 Hz; Rated current: 4 A; 1.5 kW; Net weight: 920 kg Lhjdpfjylaizsx Ahwec

Condition: new, bore capacity in steel (diameter) 32,0 mm threading 22 M bore stroke 125 mm throat 280 mm morse taper 3 MK table: 450 x 380 mm / 14er Nut Ljdpfsxabiqox Ahwshc turning speeds 70 - 3.500 U/min feed 0,1 / 0,2 / 0,3 mm/U column diameter 110 mm weight 320 kg range L-W-H 500x800x2.100 mm total power requirement 1,1 / 2,2 kW characteristics Infinitely variable speed, ideal for setting the desired one Cutting speed. Automatic tool ejector and Thread cutting device as standard. Electromechanical drilling feed, adjustable from 0.1 - 0.3 mm / rev Solid gray cast iron table with rotating and swiveling support surface T-slots in the machine base enable high workpieces to be clamped. Guaranteed concentricity = 0.02 mm, measured in the quill Hardened and ground gears ensure smooth running Adjustable drilling depth stop with an easily readable scale Scope of delivery: - Drill chuck arbor MK 3 / B 16 - Reducing sleeve MT 3/2, MT 3/1 - Key chuck 1 - 13 mm / B 16 - coolant device - Electromagnetic spindle feed - Thread cutting device - Automatic tool ejector - LED machine light - Digital speed display - First filling with Shell Tellus 46 - Height-adjustable protective cover

Condition: new, bore capacity in steel (diameter) 28,0 mm threading 12 M bore stroke 130 mm Ljdpfx Ahjxaa T Iewshc throat 250 mm table: 375 x 375 mm morse taper 3 MK turning speeds 75 - 3.200 U/min total power requirement 1,1 / 1,5 kW weight of the machine ca. 215 kg. range L-W-H 450 x 600 x 2.020 mm Description : - 12 switchable speeds thanks to the powerful 2-stage motor - Direction of rotation switch for clockwise and counterclockwise rotation for thread cutting - Solid work table (rotatable 360 ??°), swiveling from -45 ° to + 45 ° - Machined machine base for clamping particularly high workpieces - Quality ball bearings ensure high concentricity - Easy tool change thanks to the automatic tool ejector - Adjustable drilling depth stop, drilling depth can be read off using a scale - Stable and polished steel column, designed for heavy use - Very smooth running thanks to ground gears in the gearbox - High level of safety thanks to the height-adjustable chuck guard with microswitch Scope of delivery: - Key chuck 1 - 13 mm / B 16 - Drill chuck arbor MK 3 / B 16 - Reduction sleeve MK 3/2 - Automatic tool ejector - Thread cutting device - Right-left rotation device - Height-adjustable protective cover - work light

Condition: new, bore capacity in steel (diameter) 35,0 mm bore capacity in cast iron 40,0 mm throat 320 mm threading M 24 in Stahl morse taper 4 MK bore stroke 160 mm turning speeds 65 - 3250 U/min table: 500 x 420 mm throat 320 mm weight 375 kg range L-W-H 600 x 870 x 2.170 mm Furnishing: - Infinitely variable speed, ideal for - Set the desired cutting speed. - Automatic tool ejector and thread cutting device as standard - Electromechanical drilling feed, adjustable from 0.1 - 0.3 mm / rev - Solid gray cast iron table with rotating and swiveling support surface - T-slots in the machine base enable high workpieces to be clamped - Guaranteed concentricity 0.02 mm, measured in the quill - Hardened and ground gears ensure smooth running - Adjustable drilling depth stop with an easily readable scale Scope of delivery: - Key chuck 1 - 13 mm / B 16 - Drill chuck arbor MK 4 / B 16 - Reducing sleeve MT 4/3, MT 4/2 - coolant device - Thread cutting device - Electromagnetic spindle feed - Automatic tool ejector Lodpfexaabrox Ahwehc - LED machine light - First filling with Shell Tellus 46 - Digital speed display - Height-adjustable protective cover

Condition: new, drill diameter 2.0 - 20.0 mm lip angle 90 - 135 ° turning speeds 4800 U/min Lhodpfx Ahjxablxjwjc voltage 230 Volt engine output 0.12 kW weight 8.6 kg range L-W-H 285 x 130 x 170 mm The handy DG 20 M drill grinding machine is ideal for grinding twist drills made of HSS, cobalt and hard metal. Thanks to the adjustable tip angle of 90° to 135°, this model can be used universally for 2-edged twist drills. Properties: - For grinding HSS and hard metal twist drills from 2 - 20 mm - ER 20 and ER 25 collets also enable clamping of intermediate sizes - Optimum grinding result thanks to the specially guided collet - Includes device for sharpening the drill tip - Universally adjustable tip angle from 90° - 135° - Fast and easy grinding process Scope of delivery: - CBN grinding wheel - ER 20 collets, 3 - 12 mm * 11 pieces (3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 11 /12 / 13 mm) - ER 25 collets, 14 - 20 mm * 7 pieces (14 / 15 / 16 / 17 / 18 / 19 / 20 mm) - Collet holder ER 20 or ER 25

Condition: good (used), functionality: fully functional, overall weight: 550 kg, Metal band saw Bandsaw machine Bandsaw Saw (used) Manufacturer: Bernardo Lhodoylbkmjpfx Ahwoc Model: MBS 350 DG Cutting capacity: see photo Blade dimensions: 2925 x 0.9 x 27 mm Blade speeds: 36 / 72 m/min Total power: 2.2 kW Weight: approx. 550 kg Space requirement: L 1200 mm x W 700 mm x H 1400 mm Coolant system Saw pressure hydraulically steplessly adjustable Mitre device 45° / 60° Including roller conveyor with 4000 mm measuring scale and 2170 mm infeed The machine is in good condition and ready for immediate use. Forklift available, free loading onto truck Affordable shipping possible Machine location: 48477 Hörstel

Condition: like new (used), Year of construction: 2018, operating hours: 200 h, functionality: fully functional, Table dimensions 405 x 815 mm Lhodpfx Ahsxlcmnjwoc Magnetic table 400 x 800 mm Table travel length/cross 830 / 450 mm Distance between spindle center and table surface 580 mm Grinding wheel dimensions 350 x 40 x 127 mm Motor power 4.0 kW Weight 3400 kgs Equipment, Accessories - Siemens PLC controller with touch screen - 2-axis digital readout system - Hardened and ground bed guides - Automatic infeed - Hydraulic oil tank cooler - Electric magnetic table with demagnetization - Flange-mounted grinding wheel - Built-in diamond dressing unit - Grinding wheel balancing stand - Balancing mandrel - Coolant system - Halogen lamp - Machine feet - Magnetic chip separator - Machine manuals The machine is in original condition and barely used (approx. 100-200 hours). No defects. It is being sold due to company closing.

Condition: new, Bernardo Gear-driven pillar drilling machine GB 32 STi Technical specifications drilling capacity in steel 32 mm Drilling capacity in cast iron 35 mm Thread cutting max. M20 drill chuck 1 - 13 mm / B 16 Morse taper MK 4 Spindle speed / number of steps 125 - 3030 rpm / 12 feed range 0,1 / 0,2 / 0,3 mm/rev throat 325 mm distance spindle / table max. 690 mm distance spindle / base plate 1250 mm spindle sleeve stroke 160 mm Column diameter 120 mm table size / T-slot size 500 x 420 mm / 14 mm Working surface base plate 365 x 370 mm Motor output power S1 100% 1.0 / 1.2 kW Motor input power S6 40% 1.5 / 1.8 kW Lodpsg Hwmxofx Ahwjhc Machine dimensions (W x D x H) 570 x 900 x 2200 Weight approx. 415 kg Scope of delivery - Gear rim drill chuck 1 - 13 mm / B 16 - Drill chuck mandrel MK 4 / B 16 - Reducing sleeve MK 4 / 3, MK 4 / 2 - Coolant device - Electromagnetic spindle feed - Tapping device - Automatic tool ejector - LED machine light - Digital speed display - Height adjustable protective cover - Initial filling with Shell Tellus 46

Condition: good (used), Year of construction: 2020, Drill, pillar drill, column drill, tapping machine -Manufacturer: Bernardo, Gearbox - Pillar Drill Type GB 35 Vario -Spindle mount: MK3 -Motor: 1.5 kW -Speeds: 65 - 460 rpm / 460 - 3250 rpm, continuously variable right-left rotation -Feed: 0.1/0.2/0.3 mm/rev. Ljdpswrbpdofx Ahwshc -Clamping table: 420 x 345 mm / swiveling -Travel: 340 mm -Spindle stroke: 160 mm -Projection: 320 mm -Column Ø: 120 mm -Thread cutting device -Coolant system: 20 l/min -Dimensions: 870/560/H2340 mm -Weight: 401 kg

Condition: new, turning length 1000 mm turning diameter 400 mm turning dia. in gap 560 mm spindle bore 52,0 mm turning speeds 45 - 2.000 U/min bed width 210 mm spindle taper 55029 D 1-5 taper in tailstock 4 MK quill travel 100 mm total power requirement 2,0 / 2,4 kW weight of the machine ca. 810 kg. range L-W-H 1.890x800x1.600 mm Equipment: - 3-axis digital display i200 with LCD display - 3-jaw chuck DK11-200 mm / D5 - Faceplate 200 mm / D5, according to DIN 55029 - Fixed steady rest - passage diameter max. 90 mm - Follow-on steady rest - passage diameter max. 70 mm - Coolant system - Initial filling with Shell Tellus 46 - Extendable chip tray - Clamping disk 320 mm - Quadruple tool holder - Protective device for quadruple tool holder - Slip clutch - Micrometer longitudinal stop - Thread gauge - LED machine light - Reducing sleeve - Change gears - 2 centering points - Foot pedal with brake function according to CE Ledexaau Sopfx Ahwohc - Motor with magnetic brake according to CE standard - Operating tool

Condition: new, bore capacity in steel (diameter) 50.0 mm throat 360 mm bore stroke 225 mm morse taper 4 MK table: 570 x 480 mm threading M 42 Stahl turning speeds 50-316 / 316-2200 U/min feed 0.08 - 0.50 mm/U column diameter 180 mm distance spindle /table max. 580 mm distance spindle/base plate max. 1185 mm Lsdpfxsxacc So Ahwohc total power requirement 3.0 kW weight 630 kg range L-W-H 1020 x 750 x 2340 mm Scope of delivery - Keyed drill chuck 1 - 13 mm / B 16 - Drill chuck arbor MK 4 / B 16 - Reducing sleeve MK 4 / 3, MK 4 / 2, MK 3 / 1 - Motorized table stroke - Coolant device - Touchscreen - Automatic tool ejector - Electromagnetic spindle feed - Thread cutting device - Initial filling with Shell Tellus 46 - LED machine light - Digital speed display - Digital drilling depth display - Height-adjustable protective cover

Condition: new, turning length 3000 mm turning diameter 660 mm turning dia. in gap 900 mm turning diameter over slide 460 mm turning speeds 25 - 1600 U/min quill: 5 MK quill travel 235 mm spindle bore 105,0 mm engine output 7,5 kW spindle taper DIN 55029 D 1-8 weight of the machine ca. 3.300 kg. dimensions 4.630 x 1.200 x 1.529 mm Scope of delivery - 3-axis digital display ES-12 V with LCD display - Slip clutch - Rapid traverse longitudinal and planar - LED machine light - 3-jaw steel chuck PO3-315 mm / D8 - Clamping disk 450 mm Ledpfx Aoxaahljhwshc - Fixed steady rest - passage diameter max. 180 mm - Follow-on steady rest - passage diameter max. 120 mm - 2 centering points - Motor with magnetic brake in accordance with CE standard - Foot pedal with brake function in accordance with CE - Initial filling with Shell Tellus 46 - Coolant system - Quick-change tool holder with 4 inserts - Protective device for quick-change tool holder - Change gears - Reduction sleeve - Chip back wall - Cable routing via energy chain - Operating tool

Condition: new, turning length 1000 mm turning diameter 380 mm turning dia. in gap 490 mm spindle bore 51,0 mm turning speeds 70 - 2000 U/min bed width 185 mm spindle taper 55029 D 1-5 taper in tailstock 4 MK quill travel 120 mm total power requirement 1,5 / 2,2 kW weight of the machine ca. 575 kg. Lhsdpfsxabv Rsx Ahwjc range L-W-H 1920 x 800 x 1660 mm Equipment: - 3-axis digital display i200 with LCD display - 3-jaw chuck DK11-200 mm / D5 - Faceplate 200 mm / D5, according to DIN 55029 - Fixed steady rest - passage diameter max. 70 mm - Follow-on steady rest - passage diameter max. 50 mm - Coolant system - Initial filling with Shell Tellus 46 - Extendable chip tray - Clamping disc 320 mm - Quadruple tool holder - Protective device for quadruple tool holder - Slip clutch - Micrometer longitudinal stop - Thread gauge - LED machine light - Reducing sleeve - Change gears - 2 centering points - Foot pedal with brake function according to CE - Motor with magnetic brake according to CE standard - Base frame with drawers - Operating tools

Condition: new, x-travel 1000 mm y-travel 360 mm z-travel 400 mm spindle taper ISO 40 ISO table: 1370 x 320 mm feed: H 80 - 830 / V 23-625 mm/min. Lsdpfx Aoxaagnehwshc turning speeds H 35 - 1500 / V 45 - 1660 U/min distance spindle /table H 30 - 430 / V 210-610 mm rapid traverse Z Achse 750 mm/min throat 305 - 805 mm T-slots 3 x 14.0 mm table - swivable ° workpiece weight max. 300 kg coolant pump 25.0 L/min. total power requirement 7.6 kW weight of the machine ca. 1540 kg range L-W-H 1840 x 1830 x 2050 mm - Large rectangular guide in y and z axes - ensure increased stability - 8x automatic feeds and rapid traverse in all axes - driven by servo motor - Universal milling head system "Huron", adjustable to all angular positions - Swiveling control panel with ergonomically placed switches - Heavy machine stand made of gray cast iron for vibration-free work - Very smooth running thanks to ground gears running in an oil bath - Upper arm with clearly structured gear box for the spindle speed - Digital position display for x, y and z axes included in delivery - Precisely surface-machined cross table with T-slots Scope of delivery - 3-axis digital display ES-12 H with LCD display - Drawbar spindle M16 - LED machine light - Feed for x, y and z axes - Coolant system - Counter bearing - Long milling arbor ISO 40 / 27 mm - Combined milling arbor ISO 40 / 27 mm - Coolant tray - Adjustable protective device - Central lubrication for x, y and z axes - Operating tool

Condition: new, bore capacity in steel (diameter) 50.0 mm throat 370 mm bore stroke 250 mm morse taper 4 MK table: 600 x 500 mm threading M 42 Stahl turning speeds 40 - 2100 U/min feed 0.1 - 0.4 mm/U column diameter 200 mm Ljdpfexaay Ijx Ahwjhc distance spindle /table max. 600 mm distance spindle/base plate max. 1190 mm total power requirement 2.2 / 2.8 kW weight 670 kg range L-W-H 1020 x 750 x 2340 mm Scope of delivery - Keyed drill chuck 1 - 13 mm / B 16 - Drill chuck arbor MK 4 / B 16 - Reducing sleeve MK 4 / 3, MK 4 / 2 - Motorized table stroke - Coolant device - Electromagnetic spindle feed - Thread cutting device - Automatic tool ejector - LED machine light - Initial filling with Shell Tellus 46 - Digital speed display - Digital drilling depth display - Height-adjustable protective cover

Condition: new, x-travel 600 mm y-travel 250 mm z-travel 400 mm spindle taper ISO 40 ISO table: 1120 x 260 mm feed: 24 - 402 mm/min. turning speeds 45.0 - 1660 U/min distance spindle /table 175 - 520 mm rapid traverse Z Achse 660 mm/min throat 0 - 550 mm total power requirement 2.2 kW weight of the machine ca. 1380 kg range L-W-H 1570 x 1470 x 1660 mm Equipment: - Universal milling head, adjustable to all angle positions - Swiveling control panel with ergonomically positioned switches - Heavy machine stand made of gray cast iron for vibration-free work - Dovetail guide with adjustable wedge strips in all 3 axes - Very smooth running thanks to ground gear wheels running in an oil bath - Positioning motor for z-axis included in delivery - Automatic table feed in x and y axes as standard - Precisely surface-machined cross table with T-slots - Digital position display for x, y and z axes included in delivery Scope of delivery - 3-axis digital display ES-12 H with LCD display - LED machine light Ledpfx Ahexaa Hzjwehc - Coolant system - Central lubrication - Counter bearing - Long milling mandrel 32 mm - Feed for x and y axes - Positioner motor for z-axis - Coolant pan - Adjustable protective device - operating tool

Condition: new, turning length 3000 mm turning diameter 800 mm turning dia. in gap 1000 mm turning diameter over slide 540 mm turning speeds 25 - 1600 U/min quill: 5 MK quill travel 235 mm spindle bore 105,0 mm engine output 7,5 kW spindle taper DIN 55029 D 1-8 weight of the machine ca. 3820 kg. dimensions 4800 x 1320 x 1580 mm Scope of delivery - 3-axis digital display ES-12 V with LCD display - Cable routing via energy chain - 3-jaw chuck PS3-315 mm / D8 - Clamping disc 500 mm - Fixed steady rest - passage diameter max. 180 mm - Follow-on steady rest - passage diameter max. 100 mm - 2 centering points - Motor with magnetic brake in accordance with CE standard - Foot pedal with brake function in accordance with CE - Initial filling with Shell Tellus 46 - Rapid traverse lengthwise and facewise - Slip clutch - Coolant system - Quick-change tool holder with 4 inserts - Protective device for quick-change tool holder - LED machine light Lhsdpoxabcdjfx Ahwoc - Change gears - Reduction sleeve - Chip back wall - Operating tool

Condition: new, turning length 3000 mm turning diameter 660 mm turning dia. in gap 870 mm Lhodpoxabycjfx Ahwjc turning diameter over slide 420 mm turning speeds 36 - 1600 U/min quill: 5 MK quill travel 150 mm spindle bore 105,0 mm engine output 7,5 kW spindle taper DIN 55029 D 1-8 weight of the machine ca. 3990 kg. dimensions 4500 x 1280 x 1650 mm Scope of delivery - Slip clutch - Rapid traverse longitudinal and planar - LED machine light - 3-axis digital display ES-12 V with LCD display - 3-jaw chuck PS3-315 mm / D8 - Clamping disk 630 mm - Fixed steady rest - passage diameter max. 250 mm - Follow-on steady rest - passage diameter max. 110 mm - 1 centering point / 1 follow-on punch point - Motor with magnetic brake in accordance with CE standard - Foot pedal with brake function in accordance with CE - Initial filling with Shell Tellus 46 - Coolant system - Quick-change tool holder with 4 inserts - Protective device for quick-change tool holder - Reducing sleeve - Chip back wall - Operating tool

Condition: new, bore capacity in steel (diameter) 25.0 mm throat 255 mm bore stroke 120 mm morse taper 3 MK turning speeds 105 - 2900 U/min table: 395 x 420 mm column diameter 100 mm threading max. M10 voltage 400 / 50 Hz V Ljdpfoxaa Daex Ahwshc weight 140 kg range L-W-H 500 x 570 x 1100 mm Furnishing : - Keyless chuck 1 - 16 mm / B 16 - Drill chuck arbor MK 3 / B 16 - Reducing sleeve MT 3/2, MT 3/1 - Digital drilling depth display - Automatic tool ejector - Right-left rotation device - Height-adjustable protective cover

Condition: new, bore capacity in steel (diameter) 28,0 mm throat 320 mm bore stroke 150 mm morse taper 3 MK table: 500 x 350 mm turning speeds 75 - 3010 U/min total power requirement 1,35 / 1,7 kW weight 290 kg range L-W-H 600 x 700 x 1900 mm Description: - Standard with automatic quill feed (0.04 - 0.3 mm / rev) - Helical gear for optimal power transmission - High efficiency and smooth running thanks to helical gears - in combination steel against reinforced fiber material - Automatic quill feed - is deactivated when the set drilling depth is reached - Direction of rotation switch for clockwise and counterclockwise rotation for thread cutting - Stable and polished steel column, designed for heavy use - Quality ball bearings ensure high concentricity - 8 switchable speeds through powerful 2-stage drive motor - Adjustable drilling depth stop with mm scale Scope of delivery: - Keyless chuck 1 - 16 mm / B 16 - Drill chuck arbor MK 3 / B 16 - Reducing sleeve MT 3/2, MT 3/1 - Automatic tool ejector Lhjdpexaba Asfx Ahwoc - Right-left rotation device - Height-adjustable protective cover

Condition: new, turning length 1500 mm turning diameter 460 mm swing diameter over bed slide 270 mm turning dia. in gap 690 mm spindle bore 80.0 mm turning speeds 25 - 1700 U/min bed width 300 mm spindle taper DIN 55029 D 1-8 taper in tailstock 4 MK quill travel 130 mm total power requirement 5.5 kW weight of the machine ca. 1845 kg. range L-W-H 2750 x 1080 x 1600 mm Scope of delivery: - 3-axis digital display ES-12 V with LCD display - 3-jaw chuck PS3-250 mm / D8 - Clamping disk 450 mm - Coolant system - Initial filling with Shell Tellus 46 - Fixed steady rest - passage diameter max. 150 mm - Follow-on steady rest - passage diameter max. 110 mm - Quick-change tool holder with 4 inserts - Protective device for quick-change tool holder - Motor with magnetic brake according to CE standard - Foot pedal with brake function according to CE - Slip clutch Lhedpexab Nqefx Ahwjc - Rapid traverse lengthwise and facewise - Change gears - 2 centering points - Reducing sleeve - Thread gauge - LED machine light - Chip back wall - Operating tool

Condition: new, x-travel 1000 mm y-travel 360 mm z-travel 400 mm spindle taper ISO 40 ISO table: 1370 x 300 mm feed: 30-830 / 23-625 mm/min. turning speeds 45 - 1660 U/min distance spindle /table 60 - 460 mm rapid traverse Z Achse 750 mm/min throat 95 - 575 mm total power requirement 3.0 kW weight of the machine ca. 1505 kg range L-W-H 1740 x 1860 x 1900 mm - Large rectangular guide in y and z axes - ensure increased stability - 8x automatic feeds and rapid traverse in all axes - driven by servo motor - Universal milling head system "Huron", adjustable to all angular positions - Swiveling control panel with ergonomically placed switches - Heavy machine stand made of gray cast iron for vibration-free work - Very smooth running thanks to ground gears running in an oil bath - Upper arm with clearly structured gear box for the spindle speed - Digital position display for x, y and z axes included in delivery - Precisely surface-machined cross table with T-slots Scope of delivery - 3-axis digital display ES-12 H with LCD display - Drawbar spindle M16 - LED machine light - Feed for x, y and z axes - Coolant system - Counter bearing Lhedpfx Aexaak Tshwjc - Long milling arbor ISO 40 / 27 mm - Combined milling arbor ISO 40 / 27 mm - Coolant tray - Adjustable protective device - Central lubrication for x, y and z axes - Operating tool

Condition: new, turning length 1000 mm Ljdpfxjxab H Ae Ahwohc turning diameter 460 mm swing diameter over bed slide 270 mm turning dia. in gap 690 mm spindle bore 80.0 mm turning speeds 25 - 1700 U/min bed width 300 mm spindle taper DIN 55029 D 1-8 taper in tailstock 4 MK quill travel 130 mm total power requirement 5.5 kW weight of the machine ca. 1675 kg. range L-W-H 2300 x 1080 x 1600 mm Scope of delivery: - 3-axis digital display ES-12 V with LCD display - 3-jaw chuck PS3-250 mm / D8 - Clamping disk 450 mm - Coolant system - Initial filling with Shell Tellus 46 - Fixed steady rest - passage diameter max. 150 mm - Follow-on steady rest - passage diameter max. 110 mm - Quick-change tool holder with 4 inserts - Protective device for quick-change tool holder - Motor with magnetic brake according to CE standard - Foot pedal with brake function according to CE - Slip clutch - Rapid traverse lengthwise and facewise - Change gears - 2 centering points - Reducing sleeve - Thread gauge - LED machine light - Chip back wall - Operating tool
