Used Bernardo Bs 260 G for sale (195)

Condition: like new (used), Year of construction: 2018, operating hours: 200 h, functionality: fully functional, Table dimensions 405 x 815 mm Magnetic table 400 x 800 mm Table travel length/cross 830 / 450 mm Distance between spindle center and table surface 580 mm Grinding wheel dimensions 350 x 40 x 127 mm Motor power 4.0 kW Weight 3400 kgs Nwedpfx Aaexlcmnshsb Equipment, Accessories - Siemens PLC controller with touch screen - 2-axis digital readout system - Hardened and ground bed guides - Automatic infeed - Hydraulic oil tank cooler - Electric magnetic table with demagnetization - Flange-mounted grinding wheel - Built-in diamond dressing unit - Grinding wheel balancing stand - Balancing mandrel - Coolant system - Halogen lamp - Machine feet - Magnetic chip separator - Machine manuals The machine is in original condition and barely used (approx. 100-200 hours). No defects. It is being sold due to company closing.

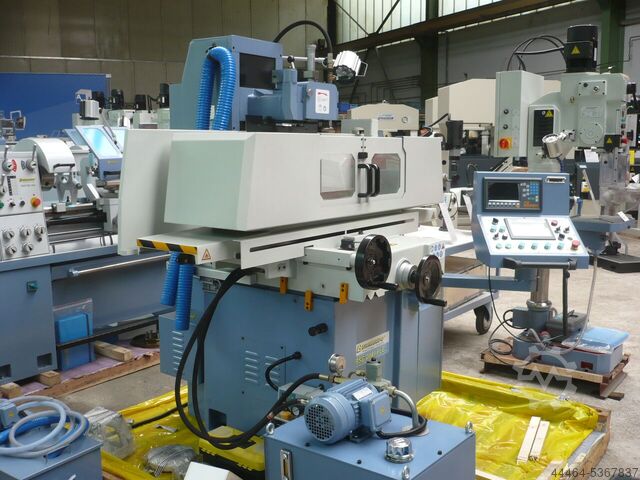

Condition: new, Bernardo surface grinding machine BSG 2040 PLC Technical specifications Table clamping surface 200 x 500 mm T-slots number / width 1 / 14 mm Electro-magnetic clamping plate 200 x 460 mm Max. Travel, longitudinal 560 mm Max. travel travel, crosswise 240 mm Distance spindle center / table max. 450 mm Max. workpiece weight workpiece weight* 180 kg Grinding wheel 200 x 20 x 31,75 mm Table speed, hydraulic 7 - 25 m/min Cross adjustment Automatic feed, transverse 0.1 - 8 mm / stroke Rapid feed, cross 990 mm/min Cross feed per handwheel rotation 4 mm/rev. Graduation on handwheel 0.02 mm Vertical infeed Automatic feed, vertical 0.005 / 0.01 / 0.02 / 0.03 / 0.04 / 0.05 mm Rapid feed, vertical 480 mm/min Vertical infeed per handwheel revolution 2 mm/rev. Scale division on handwheel 0.005 mm Nwedjgd Ia Sspfx Aahjb Grinding spindle motor 2.2 kW Spindle speed 2850 rpm Hydraulic pump motor 0,75 kW Vertical feed motor 0,5 kW Length 2160 mm depth 1650 mm height 1840 mm Weight approx. 1640 kg * with magnetic clamping plate Scope of delivery - 2-axis digital display ES-12 H with LCD display - Siemens SMART panel IE V3 with touch operation - Electronic handwheel - grinding wheel - Wheel flange - LED work light - Magnetic clamping plate - Balancing stand - Balancing shaft Protective covers - Parallel puller - Demagnetizing device - Coolant device - Extraction diamond - Machine shoes - Central lubrication - operating tool

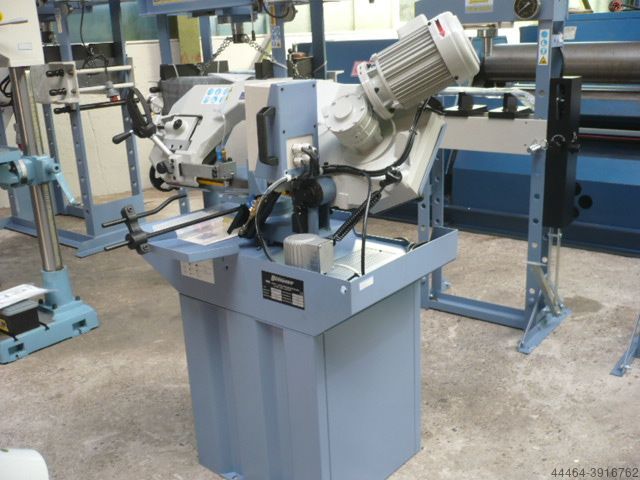

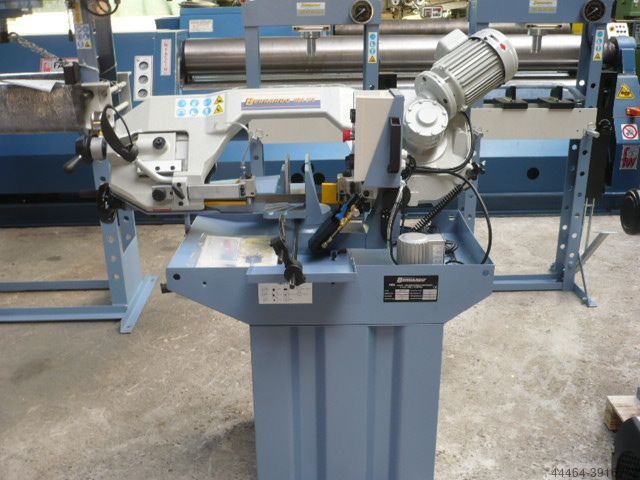

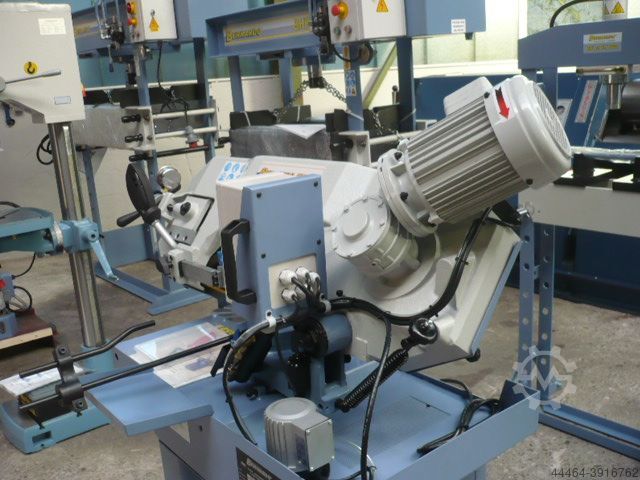

Condition: new, Bernardo twin band saw MITRE MBS 300 DG-V PRO Technical specifications Cutting capacity round / square 90 ° 255 mm / 210 x 210 mm Section flat 90 ° 310 x 210 mm Cutting capacity round / square 45 ° R 220 mm / 210 x 210 mm Section flat 45° R 220 x 200 mm Cutting capacity round / square 45 ° L 230 mm / 200 x 200 mm Section flat 45° L 230 x 200 mm Cutting capacity round / square 60 ° R 135 mm / 135 x 135 mm Section 135 x 135 mm flat 60 ° R Working height 930 mm Band saw blade dimensions 2750 x 27 x 0,9 mm Cutting speeds, variable 20 - 80 m/min Coolant pump 100 W S1 motor power output 100% 1,5 kW Motor power S6 40% 2,2 kW Nwsdped Hzbwofx Aahjb Voltage 400 V Machine dimensions (L x D x H) 2000 x 1250 x 1900 mm Weight 350 kg Scope of delivery • Band saw blade • Workpiece stop • Base • Belt tension gauge • Blade guide with tungsten carbide inserts • Quick clamping Vice • Coolant system • Hydraulic lowering cylinder • Motor protection switch • Automatic shut-off

Condition: good (used), Year of construction: 2020, Drill, pillar drill, column drill, tapping machine -Manufacturer: Bernardo, Gearbox - Pillar Drill Type GB 35 Vario -Spindle mount: MK3 -Motor: 1.5 kW -Speeds: 65 - 460 rpm / 460 - 3250 rpm, continuously variable right-left rotation -Feed: 0.1/0.2/0.3 mm/rev. -Clamping table: 420 x 345 mm / swiveling -Travel: 340 mm -Spindle stroke: 160 mm Nodpfx Ajwrbpdoahjwb -Projection: 320 mm -Column Ø: 120 mm -Thread cutting device -Coolant system: 20 l/min -Dimensions: 870/560/H2340 mm -Weight: 401 kg

Condition: new, turning length 1000 mm turning diameter 400 mm turning dia. in gap 560 mm spindle bore 52,0 mm turning speeds 45 - 2.000 U/min bed width 210 mm spindle taper 55029 D 1-5 taper in tailstock 4 MK quill travel 100 mm total power requirement 2,0 / 2,4 kW weight of the machine ca. 810 kg. range L-W-H 1.890x800x1.600 mm Equipment: - 3-axis digital display i200 with LCD display - 3-jaw chuck DK11-200 mm / D5 - Faceplate 200 mm / D5, according to DIN 55029 - Fixed steady rest - passage diameter max. 90 mm - Follow-on steady rest - passage diameter max. 70 mm - Coolant system - Initial filling with Shell Tellus 46 - Extendable chip tray - Clamping disk 320 mm - Quadruple tool holder - Protective device for quadruple tool holder - Slip clutch - Micrometer longitudinal stop - Thread gauge Nedpfx Asxaau Soahjwb - LED machine light - Reducing sleeve - Change gears - 2 centering points - Foot pedal with brake function according to CE - Motor with magnetic brake according to CE standard - Operating tool

Condition: new, bore capacity in steel (diameter) 50.0 mm throat 360 mm bore stroke 225 mm morse taper 4 MK table: 570 x 480 mm threading M 42 Stahl turning speeds 50-316 / 316-2200 U/min feed 0.08 - 0.50 mm/U column diameter 180 mm distance spindle /table max. 580 mm distance spindle/base plate max. 1185 mm total power requirement 3.0 kW weight 630 kg range L-W-H 1020 x 750 x 2340 mm Nwsdpexacc Ssfx Aahjb Scope of delivery - Keyed drill chuck 1 - 13 mm / B 16 - Drill chuck arbor MK 4 / B 16 - Reducing sleeve MK 4 / 3, MK 4 / 2, MK 3 / 1 - Motorized table stroke - Coolant device - Touchscreen - Automatic tool ejector - Electromagnetic spindle feed - Thread cutting device - Initial filling with Shell Tellus 46 - LED machine light - Digital speed display - Digital drilling depth display - Height-adjustable protective cover

Condition: new, bore capacity in steel (diameter) 32,0 mm threading 22 M bore stroke 125 mm throat 280 mm morse taper 3 MK table: 450 x 380 mm / 14er Nut turning speeds 70 - 3.500 U/min feed 0,1 / 0,2 / 0,3 mm/U column diameter 110 mm weight 320 kg range L-W-H 500x800x2.100 mm total power requirement 1,1 / 2,2 kW Nsdpfoxabiqex Aahowb characteristics Infinitely variable speed, ideal for setting the desired one Cutting speed. Automatic tool ejector and Thread cutting device as standard. Electromechanical drilling feed, adjustable from 0.1 - 0.3 mm / rev Solid gray cast iron table with rotating and swiveling support surface T-slots in the machine base enable high workpieces to be clamped. Guaranteed concentricity = 0.02 mm, measured in the quill Hardened and ground gears ensure smooth running Adjustable drilling depth stop with an easily readable scale Scope of delivery: - Drill chuck arbor MK 3 / B 16 - Reducing sleeve MT 3/2, MT 3/1 - Key chuck 1 - 13 mm / B 16 - coolant device - Electromagnetic spindle feed - Thread cutting device - Automatic tool ejector - LED machine light - Digital speed display - First filling with Shell Tellus 46 - Height-adjustable protective cover

Condition: new, turning length 3000 mm turning diameter 660 mm turning dia. in gap 900 mm turning diameter over slide 460 mm turning speeds 25 - 1600 U/min quill: 5 MK quill travel 235 mm spindle bore 105,0 mm engine output 7,5 kW spindle taper DIN 55029 D 1-8 weight of the machine ca. 3.300 kg. dimensions 4.630 x 1.200 x 1.529 mm Scope of delivery - 3-axis digital display ES-12 V with LCD display - Slip clutch - Rapid traverse longitudinal and planar - LED machine light - 3-jaw steel chuck PO3-315 mm / D8 - Clamping disk 450 mm - Fixed steady rest - passage diameter max. 180 mm - Follow-on steady rest - passage diameter max. 120 mm - 2 centering points - Motor with magnetic brake in accordance with CE standard - Foot pedal with brake function in accordance with CE - Initial filling with Shell Tellus 46 - Coolant system - Quick-change tool holder with 4 inserts Nodpfsxaahlex Aahewb - Protective device for quick-change tool holder - Change gears - Reduction sleeve - Chip back wall - Cable routing via energy chain - Operating tool

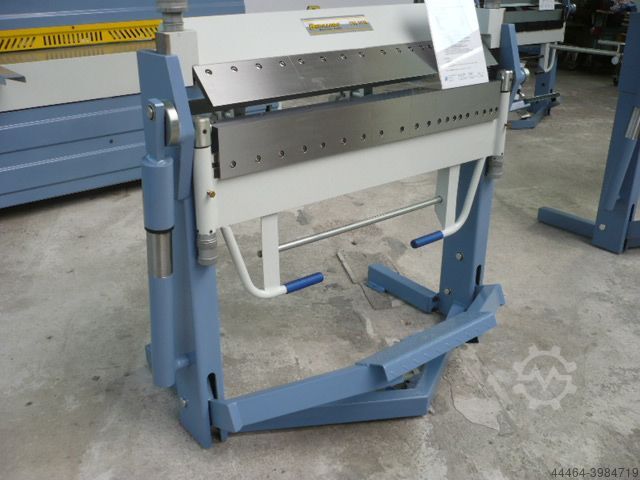

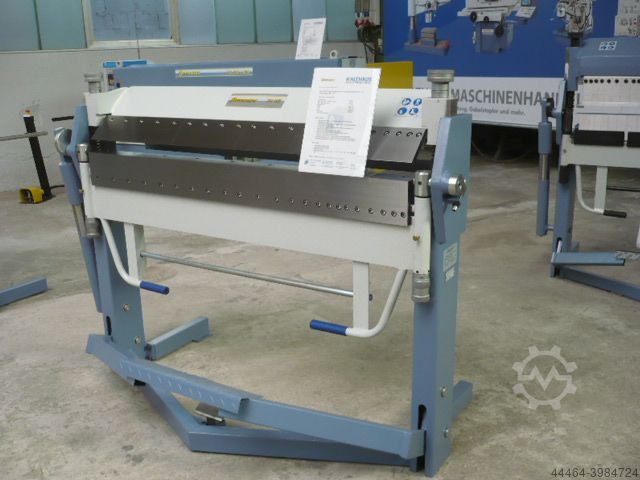

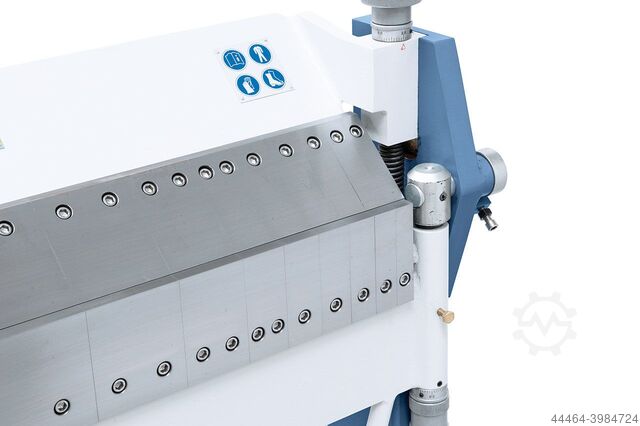

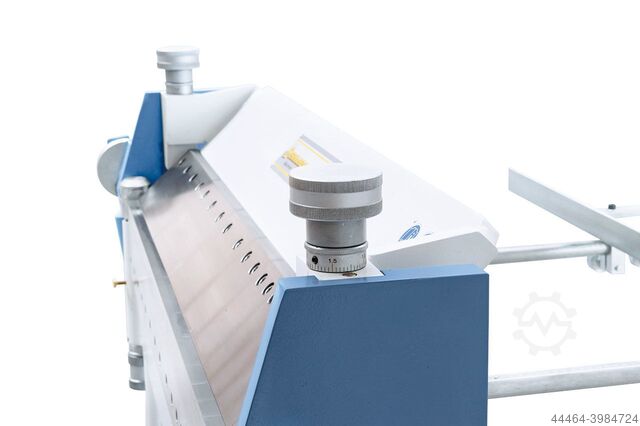

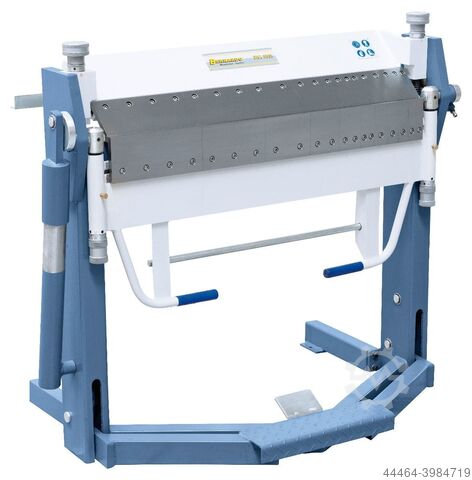

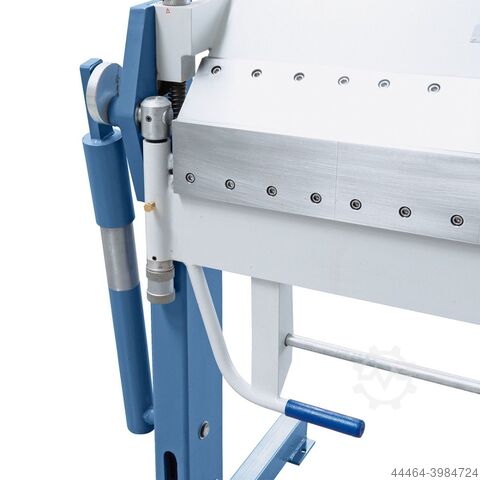

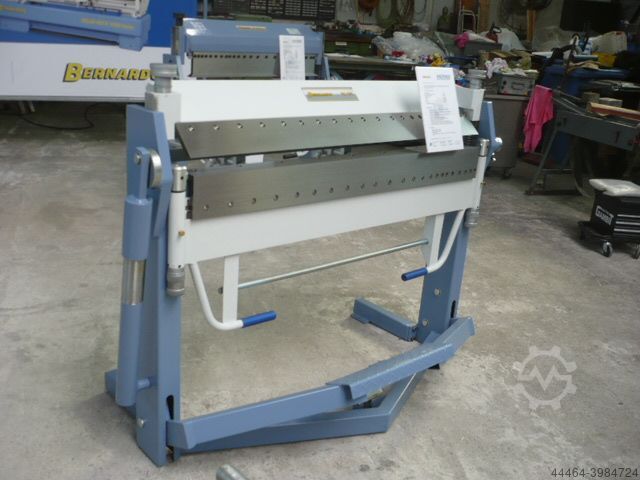

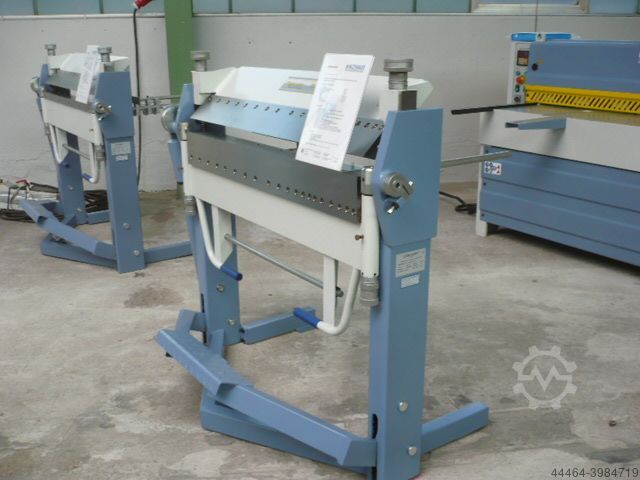

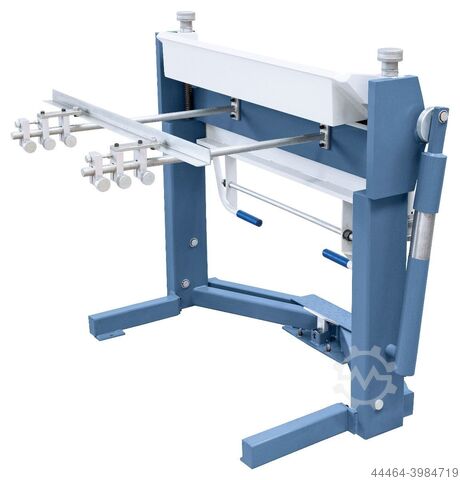

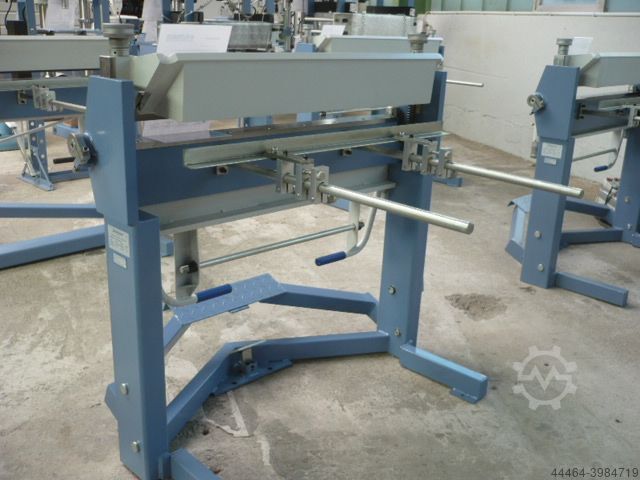

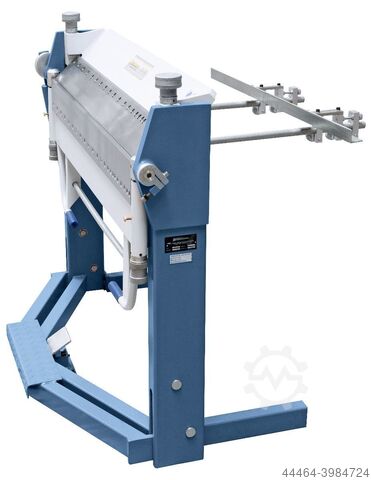

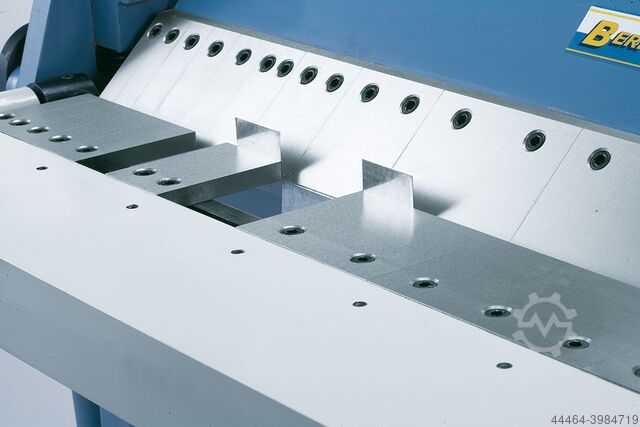

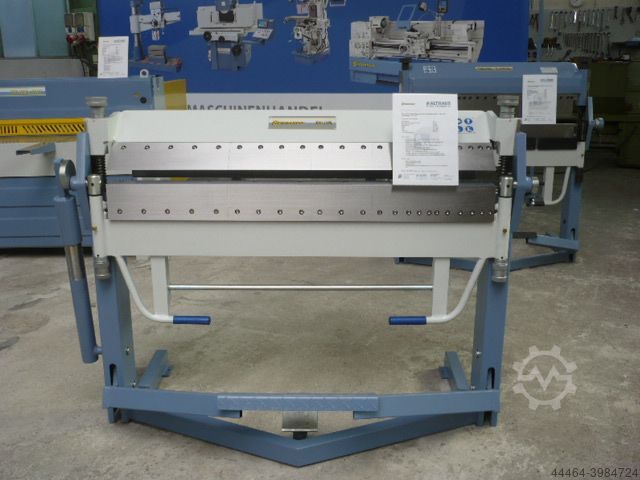

Condition: new, sheet width 1020 mm plate thickness 2,0 mm daylight opening 48 mm bending angle max. 0 - 135 ° work height max. 900 mm total power requirement von Hand kW weight of the machine ca. 285 kg dimensions of the machine ca. 1350 x 820 x 1140 mm Nedpfx Aasxaaufohjwb Furnishing: - Segmented upper and bending beam for a wide variety of bending options - Clamping by means of a foot pedal - Hands remain free for optimal positioning of the sheet - Universally applicable bending machine for plumbing and repair shops - Robust construction in a modern design - Manual bending machine for standard bending tasks - Segmented upper beam for a large number of bending options - Optimal price-performance ratio - Quick and easy bending process using a bow handle - Non-slip rubber coating on the foot pedal for safe working - Easy adjustment of the lower beam to the respective sheet thickness - High upper beam for producing high-edged profiles Scope of delivery : - Segmented upper cheek - Segmented lower cheek - manual backgauge - bending segments 25 | 30 | 35 | 40 | 45 | 50 | 75 | 100 | 150 | 200 | 270 mm

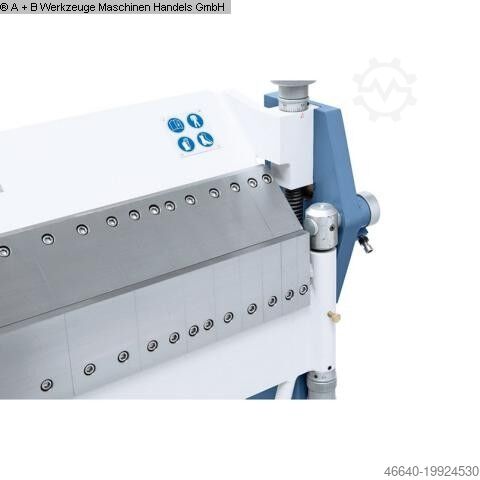

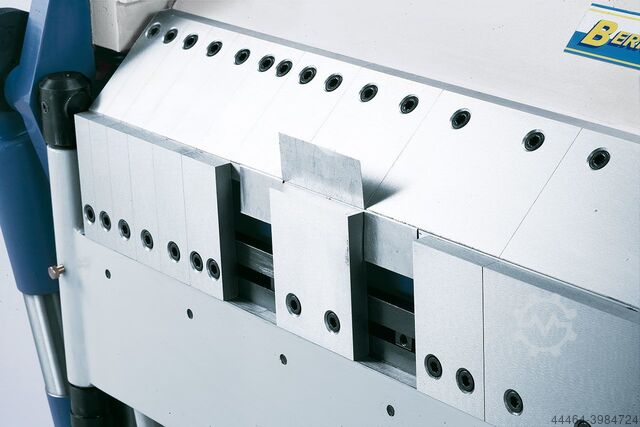

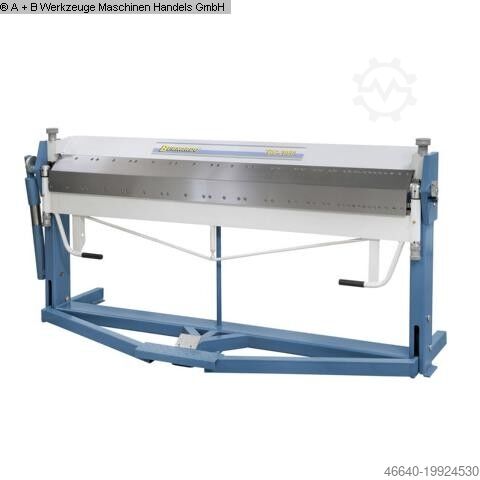

Condition: new, sheet width 2065 mm plate thickness 1,20 mm daylight opening mit WZ 35,0 mm daylight opening ohne WZ 60,0 mm bending angle max. 0 - 135 ° total power requirement manuell weight of the machine ca. 520 kg. dimensions of the machine ca. 2400 x 1115 x 1150 mm - Segmented upper beam for a large number of bending options - Universally applicable bending machine for plumbing and repair shops - High upper beam for the production of high-edged profiles - Quick and easy bending process using a bow handle - Easy adjustment of the upper beam for efficient work - The bending angle is set using a scale - Individually removable segments for bending boxes - Robust construction in a modern design Furnishing : - segmented upper beam + bending beam - Foot clamp - Fixed stop for angle adjustment - back gauge Nwedpfxoxabvwo Aahsb - bending segments 38 | 38 | 38 | 50 | 50 | 50 | 50 | 76 | 76 | 101 | 127 | 152 | 203 | 254 | 254 | 254 | 254 mm

Condition: new, turning length 1000 mm turning diameter 380 mm turning dia. in gap 490 mm spindle bore 51,0 mm turning speeds 70 - 2000 U/min bed width 185 mm spindle taper 55029 D 1-5 taper in tailstock 4 MK quill travel 120 mm total power requirement 1,5 / 2,2 kW weight of the machine ca. 575 kg. range L-W-H 1920 x 800 x 1660 mm Equipment: - 3-axis digital display i200 with LCD display - 3-jaw chuck DK11-200 mm / D5 - Faceplate 200 mm / D5, according to DIN 55029 - Fixed steady rest - passage diameter max. 70 mm - Follow-on steady rest - passage diameter max. 50 mm - Coolant system - Initial filling with Shell Tellus 46 - Extendable chip tray - Clamping disc 320 mm - Quadruple tool holder Nwodpfx Aajxabv Rjhob - Protective device for quadruple tool holder - Slip clutch - Micrometer longitudinal stop - Thread gauge - LED machine light - Reducing sleeve - Change gears - 2 centering points - Foot pedal with brake function according to CE - Motor with magnetic brake according to CE standard - Base frame with drawers - Operating tools

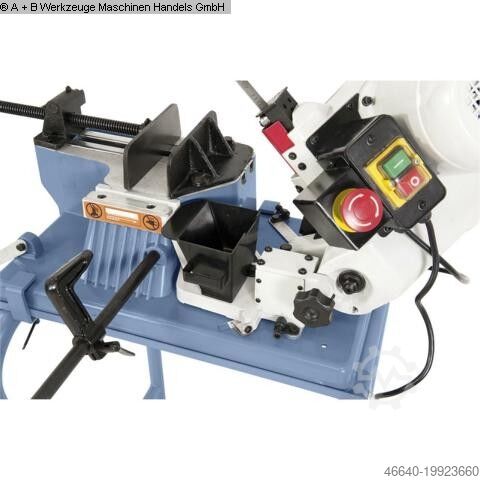

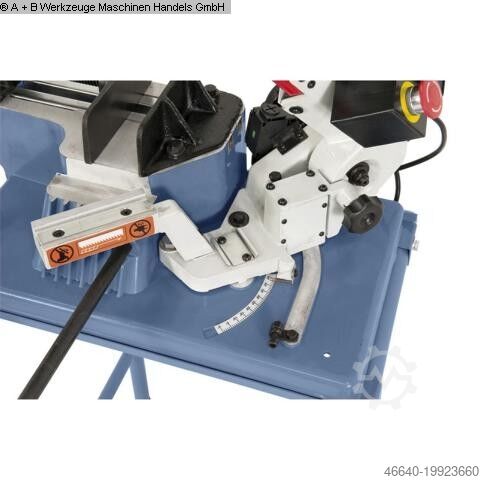

Condition: new, capacity 90 degrees: round 100 mm capacity 45 degrees: round 65,0 mm capacity 90 degrees: flat 100 x 150 mm capacity 45 degrees: flat 60 x 100 mm dimensions of saw-band 1470 x 13,0 x 0,65 mm Nodpfx Aasxaa Apjhewb volt 230 V 45,0 m/min weight 26,0 kg range L-W-H 700 x 320 x 420 mm scope of delivery - saw band - workpiece stop - Quick release vice - Ergonomic handle - Chip collector

Condition: new, bore capacity in steel (diameter) 35,0 mm bore capacity in cast iron 40,0 mm threading M 24 in Stahl throat 320 mm morse taper 4 MK bore stroke 160 mm turning speeds 65 - 3250 U/min table: 500 x 420 mm throat 320 mm weight 375 kg range L-W-H 600 x 870 x 2.170 mm Furnishing: - Infinitely variable speed, ideal for - Set the desired cutting speed. - Automatic tool ejector and thread cutting device as standard - Electromechanical drilling feed, adjustable from 0.1 - 0.3 mm / rev - Solid gray cast iron table with rotating and swiveling support surface - T-slots in the machine base enable high workpieces to be clamped - Guaranteed concentricity 0.02 mm, measured in the quill - Hardened and ground gears ensure smooth running - Adjustable drilling depth stop with an easily readable scale Scope of delivery: - Key chuck 1 - 13 mm / B 16 - Drill chuck arbor MK 4 / B 16 - Reducing sleeve MT 4/3, MT 4/2 - coolant device Nwedoxaabrspfx Aaheb - Thread cutting device - Electromagnetic spindle feed - Automatic tool ejector - LED machine light - First filling with Shell Tellus 46 - Digital speed display - Height-adjustable protective cover

Condition: new, x-travel 1000 mm y-travel 360 mm z-travel 400 mm spindle taper ISO 40 ISO table: 1370 x 320 mm feed: H 80 - 830 / V 23-625 mm/min. turning speeds H 35 - 1500 / V 45 - 1660 U/min Nedpfxjxaagno Aahswb distance spindle /table H 30 - 430 / V 210-610 mm rapid traverse Z Achse 750 mm/min throat 305 - 805 mm T-slots 3 x 14.0 mm table - swivable ° workpiece weight max. 300 kg coolant pump 25.0 L/min. total power requirement 7.6 kW weight of the machine ca. 1540 kg range L-W-H 1840 x 1830 x 2050 mm - Large rectangular guide in y and z axes - ensure increased stability - 8x automatic feeds and rapid traverse in all axes - driven by servo motor - Universal milling head system "Huron", adjustable to all angular positions - Swiveling control panel with ergonomically placed switches - Heavy machine stand made of gray cast iron for vibration-free work - Very smooth running thanks to ground gears running in an oil bath - Upper arm with clearly structured gear box for the spindle speed - Digital position display for x, y and z axes included in delivery - Precisely surface-machined cross table with T-slots Scope of delivery - 3-axis digital display ES-12 H with LCD display - Drawbar spindle M16 - LED machine light - Feed for x, y and z axes - Coolant system - Counter bearing - Long milling arbor ISO 40 / 27 mm - Combined milling arbor ISO 40 / 27 mm - Coolant tray - Adjustable protective device - Central lubrication for x, y and z axes - Operating tool

Condition: new, bore capacity in steel (diameter) 50.0 mm throat 370 mm bore stroke 250 mm morse taper 4 MK table: 600 x 500 mm threading M 42 Stahl turning speeds 40 - 2100 U/min feed 0.1 - 0.4 mm/U column diameter 200 mm distance spindle /table max. 600 mm distance spindle/base plate max. 1190 mm total power requirement 2.2 / 2.8 kW weight 670 kg range L-W-H 1020 x 750 x 2340 mm Scope of delivery - Keyed drill chuck 1 - 13 mm / B 16 - Drill chuck arbor MK 4 / B 16 - Reducing sleeve MK 4 / 3, MK 4 / 2 - Motorized table stroke - Coolant device Nwedpfx Aasxaay Ijheb - Electromagnetic spindle feed - Thread cutting device - Automatic tool ejector - LED machine light - Initial filling with Shell Tellus 46 - Digital speed display - Digital drilling depth display - Height-adjustable protective cover

Condition: new, x-travel 600 mm y-travel 250 mm z-travel 400 mm spindle taper ISO 40 ISO table: 1120 x 260 mm feed: 24 - 402 mm/min. turning speeds 45.0 - 1660 U/min distance spindle /table 175 - 520 mm rapid traverse Z Achse 660 mm/min throat 0 - 550 mm total power requirement 2.2 kW weight of the machine ca. 1380 kg range L-W-H 1570 x 1470 x 1660 mm Nwsdpexaa Hzsfx Aahsb Equipment: - Universal milling head, adjustable to all angle positions - Swiveling control panel with ergonomically positioned switches - Heavy machine stand made of gray cast iron for vibration-free work - Dovetail guide with adjustable wedge strips in all 3 axes - Very smooth running thanks to ground gear wheels running in an oil bath - Positioning motor for z-axis included in delivery - Automatic table feed in x and y axes as standard - Precisely surface-machined cross table with T-slots - Digital position display for x, y and z axes included in delivery Scope of delivery - 3-axis digital display ES-12 H with LCD display - LED machine light - Coolant system - Central lubrication - Counter bearing - Long milling mandrel 32 mm - Feed for x and y axes - Positioner motor for z-axis - Coolant pan - Adjustable protective device - operating tool

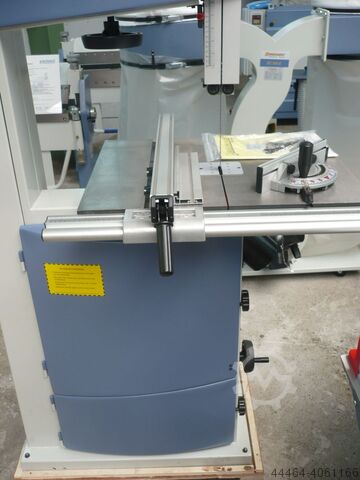

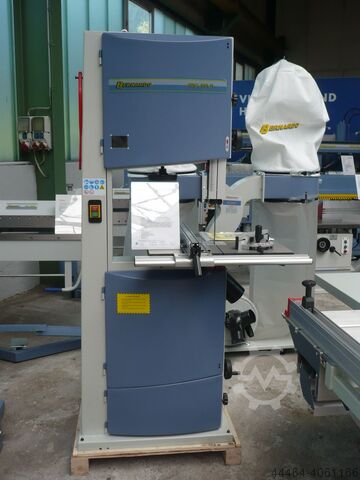

Condition: new, cutting diameter 225 mm saw band length 2480 mm table height 910 mm capacity 90 degrees: flat 245 x 150 mm capacity 90 degrees: square 200 x 200 mm capacity 45 degrees: round 160 mm Nwodpfsxaa Tbjx Aahjb capacity 45 degrees: square 160 x 160 mm capacity 60 degrees: round 100 mm capacity 60 degrees: square 100 x 100 mm turning speed range: 45/90 m/min dimensions of saw-band 2480x27x0,9 mm total power requirement 1,5 kW weight of the machine ca. 200 kg dimensions of the machine ca. 1430x720x1700 mm Scope of delivery : - saw band - workpiece stop - underframe - Manometer for belt tension - Vice with quick lock - coolant device - Hydraulic lowering cylinder - Motor protection switch - Automatic limit switch-off

Condition: new, turning length 3000 mm turning diameter 800 mm turning dia. in gap 1000 mm turning diameter over slide 540 mm turning speeds 25 - 1600 U/min quill: 5 MK quill travel 235 mm spindle bore 105,0 mm engine output 7,5 kW spindle taper DIN 55029 D 1-8 weight of the machine ca. 3820 kg. dimensions 4800 x 1320 x 1580 mm Scope of delivery Nwodexabcdjpfx Aahsb - 3-axis digital display ES-12 V with LCD display - Cable routing via energy chain - 3-jaw chuck PS3-315 mm / D8 - Clamping disc 500 mm - Fixed steady rest - passage diameter max. 180 mm - Follow-on steady rest - passage diameter max. 100 mm - 2 centering points - Motor with magnetic brake in accordance with CE standard - Foot pedal with brake function in accordance with CE - Initial filling with Shell Tellus 46 - Rapid traverse lengthwise and facewise - Slip clutch - Coolant system - Quick-change tool holder with 4 inserts - Protective device for quick-change tool holder - LED machine light - Change gears - Reduction sleeve - Chip back wall - Operating tool

Condition: new, turning length 3000 mm turning diameter 660 mm turning dia. in gap 870 mm turning diameter over slide 420 mm turning speeds 36 - 1600 U/min quill: 5 MK quill travel 150 mm spindle bore 105,0 mm engine output 7,5 kW spindle taper DIN 55029 D 1-8 weight of the machine ca. 3990 kg. dimensions 4500 x 1280 x 1650 mm Scope of delivery - Slip clutch - Rapid traverse longitudinal and planar - LED machine light - 3-axis digital display ES-12 V with LCD display - 3-jaw chuck PS3-315 mm / D8 - Clamping disk 630 mm - Fixed steady rest - passage diameter max. 250 mm - Follow-on steady rest - passage diameter max. 110 mm - 1 centering point / 1 follow-on punch point - Motor with magnetic brake in accordance with CE standard Nodpfxexabycj Aahowb - Foot pedal with brake function in accordance with CE - Initial filling with Shell Tellus 46 - Coolant system - Quick-change tool holder with 4 inserts - Protective device for quick-change tool holder - Reducing sleeve - Chip back wall - Operating tool

Condition: new, x-travel 1000 mm y-travel 360 mm z-travel 400 mm spindle taper ISO 40 ISO table: 1370 x 300 mm feed: 30-830 / 23-625 mm/min. turning speeds 45 - 1660 U/min distance spindle /table 60 - 460 mm rapid traverse Z Achse 750 mm/min throat 95 - 575 mm total power requirement 3.0 kW weight of the machine ca. 1505 kg range L-W-H 1740 x 1860 x 1900 mm - Large rectangular guide in y and z axes - ensure increased stability - 8x automatic feeds and rapid traverse in all axes - driven by servo motor - Universal milling head system "Huron", adjustable to all angular positions - Swiveling control panel with ergonomically placed switches - Heavy machine stand made of gray cast iron for vibration-free work - Very smooth running thanks to ground gears running in an oil bath - Upper arm with clearly structured gear box for the spindle speed - Digital position display for x, y and z axes included in delivery - Precisely surface-machined cross table with T-slots Scope of delivery Nwedpoxaak Tefx Aahjb - 3-axis digital display ES-12 H with LCD display - Drawbar spindle M16 - LED machine light - Feed for x, y and z axes - Coolant system - Counter bearing - Long milling arbor ISO 40 / 27 mm - Combined milling arbor ISO 40 / 27 mm - Coolant tray - Adjustable protective device - Central lubrication for x, y and z axes - Operating tool

Condition: new, turning length 1000 mm turning diameter 360 mm turning dia. in gap 480 mm spindle bore 51,0 mm turning speeds 70 - 2000 U/min bed width 185 mm spindle taper 55029 D 1-5 taper in tailstock 4 MK quill travel 110 mm total power requirement 1,5 kW weight of the machine ca. 540 kg. range L-W-H 1920 x 750 x 1600 mm Equipment: - 3-axis digital display i200 with LCD display - 3-jaw chuck DK11-200 mm / D5 - Faceplate 200 mm / D5, according to DIN 55029 - Fixed steady rest - passage diameter max. 70 mm - Follow-on steady rest - passage diameter max. 50 mm - Coolant system - Initial filling with Shell Tellus 46 - Extendable chip tray - Clamping disk 320 mm - Quadruple tool holder - Protective device for quadruple tool holder - Slip clutch - Micrometer longitudinal stop - Thread gauge - LED machine light - Reducing sleeve - Change gears - 2 centering points - Foot pedal with brake function according to CE Njdexaawaspfx Aahjwb - Motor with magnetic brake according to CE standard - Base frame - Operating tools

Condition: new, bore capacity in steel (diameter) 25.0 mm throat 255 mm bore stroke 120 mm morse taper 3 MK turning speeds 105 - 2900 U/min table: 395 x 420 mm column diameter 100 mm threading max. M10 voltage 400 / 50 Hz V weight 140 kg range L-W-H 500 x 570 x 1100 mm Furnishing : - Keyless chuck 1 - 16 mm / B 16 Njdpfx Aoxaa Dajahjwb - Drill chuck arbor MK 3 / B 16 - Reducing sleeve MT 3/2, MT 3/1 - Digital drilling depth display - Automatic tool ejector - Right-left rotation device - Height-adjustable protective cover

Condition: new, bore capacity in steel (diameter) 28,0 mm threading 12 M bore stroke 130 mm throat 250 mm table: 375 x 375 mm morse taper 3 MK turning speeds 75 - 3.200 U/min total power requirement 1,1 / 1,5 kW weight of the machine ca. 215 kg. range L-W-H 450 x 600 x 2.020 mm Description : - 12 switchable speeds thanks to the powerful 2-stage motor - Direction of rotation switch for clockwise and counterclockwise rotation for thread cutting - Solid work table (rotatable 360 ??°), swiveling from -45 ° to + 45 ° - Machined machine base for clamping particularly high workpieces - Quality ball bearings ensure high concentricity - Easy tool change thanks to the automatic tool ejector - Adjustable drilling depth stop, drilling depth can be read off using a scale - Stable and polished steel column, designed for heavy use - Very smooth running thanks to ground gears in the gearbox - High level of safety thanks to the height-adjustable chuck guard Nwjdexaa T Ijpfx Aahjb with microswitch Scope of delivery: - Key chuck 1 - 13 mm / B 16 - Drill chuck arbor MK 3 / B 16 - Reduction sleeve MK 3/2 - Automatic tool ejector - Thread cutting device - Right-left rotation device - Height-adjustable protective cover - work light

Condition: new, bore capacity in steel (diameter) 28,0 mm throat 320 mm bore stroke 150 mm morse taper 3 MK table: 500 x 350 mm turning speeds 75 - 3010 U/min total power requirement 1,35 / 1,7 kW weight 290 kg range L-W-H 600 x 700 x 1900 mm Description: - Standard with automatic quill feed (0.04 - 0.3 mm / rev) - Helical gear for optimal power transmission - High efficiency and smooth running thanks to helical gears - in combination steel against reinforced fiber material Nsdpexaba Asfx Aahewb - Automatic quill feed - is deactivated when the set drilling depth is reached - Direction of rotation switch for clockwise and counterclockwise rotation for thread cutting - Stable and polished steel column, designed for heavy use - Quality ball bearings ensure high concentricity - 8 switchable speeds through powerful 2-stage drive motor - Adjustable drilling depth stop with mm scale Scope of delivery: - Keyless chuck 1 - 16 mm / B 16 - Drill chuck arbor MK 3 / B 16 - Reducing sleeve MT 3/2, MT 3/1 - Automatic tool ejector - Right-left rotation device - Height-adjustable protective cover

Condition: new, drill diameter 2.0 - 20.0 mm lip angle 90 - 135 ° turning speeds 4800 U/min voltage 230 Volt engine output 0.12 kW weight 8.6 kg range L-W-H 285 x 130 x 170 mm The handy DG 20 M drill grinding machine is ideal for grinding twist drills made of HSS, cobalt and hard metal. Thanks to the adjustable tip angle of 90° to 135°, this model can be used universally for 2-edged twist drills. Properties: - For grinding HSS and hard metal twist drills from 2 - 20 mm - ER 20 and ER 25 collets also enable clamping of intermediate sizes - Optimum grinding result thanks to the specially guided collet - Includes device for sharpening the drill tip - Universally adjustable tip angle from 90° - 135° - Fast and easy grinding process Scope of delivery: - CBN grinding wheel Nwodexablxjpfx Aahjb - ER 20 collets, 3 - 12 mm * 11 pieces (3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 11 /12 / 13 mm) - ER 25 collets, 14 - 20 mm * 7 pieces (14 / 15 / 16 / 17 / 18 / 19 / 20 mm) - Collet holder ER 20 or ER 25
