Used Bernardo Msb 350 H for sale (220)

Condition: used, Year of construction: 2018, Used machine Year of manufacture: 2018 Bdodpfx Asxllwceb Nsd Features and technical data: - Drill depth adjustment via maintenance-free linear guide - Efficient and economical operation thanks to rapid feed system, eliminating the need for tedious cranking - Smooth and stepless movement of the drilling unit - Height adjustment with fine tuning and gas pressure cylinder for weight compensation - Cross travel and height adjustment with scales and adjustable stops - Vibration-free operation due to robust steel construction - Drill depth adjustable using scale and stop - Drill head height adjustment can be fully used for vertical slotting - Large, high-quality cast iron table with ground surface - Motor power: 1.5 / 1.9 kW - Voltage: 400 V - Speed: 1,400 / 2,850 rpm - Westcott drill chuck: 0–20 mm - Maximum drilling depth: 220 mm - Drilling width: 340 mm - Height adjustment: 145 mm - Drill head swivel range: -60° to +60° - Drill table size: 595 × 315 mm - Table extension: 2 × 200 × 220 mm - Drill table height: 830 mm Dimensions: 1,200 × 1,050 × 1,300 mm Weight: approx. 240 kg Availability: short-term Location: Flörsheim

Condition: new, Bernardo Manual Metal Cut-off Saw CS 315 H Technical Specifications Saw blade diameter 315 x 40 mm Speed 19 / 38 RPM Maximum clamping capacity (open) 150 mm Working height 920 mm Motor output S1 100% 0.75 / 1.5 kW Motor input S6 40% 1.0 / 2.1 kW Voltage 400 V Machine dimensions (W x D x H) 530 x 1000 x 1740 mm Weight approx. 235 kg Solid material, round 90°: 80 mm 45°: 70 mm Pipe, round 90°: 80 mm 45°: 70 mm Profile, square 90°: 80 x 80 mm 45°: 70 x 70 mm Solid material, square 90°: 80 x 80 mm 45°: 70 x 70 mm Profile, rectangular 90°: 90 x 80 mm 45°: 80 x 70 mm Solid material, rectangular 90°: 90 x 80 mm 45°: 80 x 70 mm Bdedpjd Id Ugjfx Ab Ned Features Gear head for slotting, swivels 90° to the left and right Removable coolant tank integrated in the robust base frame Gearbox with hardened and ground worm shaft and bronze worm gear Safety guard opens automatically during cutting Precise, 4-way guided, self-centering double clamping vice Ergonomically shaped handle with push-button for fatigue-free sawing Low saw blade speed (19 / 38 RPM) ideal for cutting solid materials Reduction gearbox runs quietly in an oil bath Scope of supply Coolant system with filter Self-centering vice Base frame

Condition: excellent (used), Professional dividing table / dividing head BERNARDO BS-1 equipped with a high-quality BISON Ø160 mm lathe chuck. This set is designed for milling machines and precision machining requiring angular division and indexing of parts. Technical data: • Dividing head manufacturer: Bernardo • Model: BS-1 Bdodpfoza Hidsx Ab Nod • Lathe chuck: BISON 3-jaw • Chuck diameter: 160 mm • Maximum chuck speed: 3000 rpm • Precise angular scale • Dividing plate with indexing crank • Robust cast iron construction • Ability to perform accurate angular divisions Applications: • Milling polygons • Manufacturing gears • Machining shafts and rotating components • Drilling holes at a specific angle • Tooling and production work Condition: • Used item • Fully complete • Normal signs of use visible in the photos • BISON chuck operates smoothly and securely clamps the part • Scales and dividing mechanism are clear and functional The set includes: • BERNARDO BS-1 dividing head • BISON Ø160 mm lathe chuck • Indexing crank The item being sold is exactly the one shown in the pictures.

Condition: excellent (used), Year of construction: 2023, functionality: fully functional, Technical details: Clamping table surface: 300 x 700 mm Electro-magnetic chuck: 300 x 600 mm Bdedpfx Abjyut A Ts Njd Maximum travel: 640 mm x 320 mm Max. distance spindle center / table: 520 mm Max. workpiece weight*: 200 kg Grinding wheel: 300 x 30 x 75 mm Table speed, hydraulic: 2 - 18 m/min Automatic cross feed: 0.5 – 10 mm/stroke Rapid traverse, cross: 990 mm/min Graduation on handwheel: 0.02 mm Automatic vertical feed: 0.01 / 0.1 mm Rapid traverse, vertical: 360 mm/min Graduation on handwheel: 0.01 mm Grinding spindle motor: 4.0 kW Spindle speed: 1,440 rpm Hydraulic pump motor: 1.5 kW Length x width x height: 2,000 x 1,650 x 1,850 mm Weight approx.: 1,400 kg Surface Grinding Machine Bernardo FSM 3060 AHD 2-axis digital readout ES-12 H with LCD display Control with touch operation Electronic handwheel Grinding wheel Wheel flange LED work light Electro-magnetic chuck Balancing stand Balancing arbor Protective covers Demagnetizing unit Coolant system Diamond dresser Machine mounts Central lubrication Operating tools

Condition: excellent (used), Year of construction: 2021, functionality: fully functional, Slot drilling machine, like new, hardly used. Bdodjy Tk Ufepfx Ab Njd

Condition: new, The machine does not include a stand. The BF3 Deluxe stand is available separately under item no. 56-1017. Technical specifications: Drilling capacity in steel: 32 mm Drilling capacity in cast iron: 40 mm Max. cutter head diameter: 80 mm Throat: 220 mm Spindle speed: (12) 75 - 3200 rpm Spindle mount: MT4 Quill stroke: 120 mm Quill feed: (3) 0.10 / 0.18 / 0.26 mm / rev Table size: 800 x 240 mm Travel (x / y): 555 x 205 mm Milling head tilting: -60° to +60° Distance spindle to table: 95 - 485 mm Milling head height adjustment: 390 mm T-slot size: 14 mm Lifting motor: 90 W Motor power output S1 100%: 1.1 / 1.5 kW (400 V) Motor - Input power S6 40%: 1.5 / 2.2 kW (400 V) Machine dimensions: 1140 x 970 x 1460 mm Approx. weight: 322 kg Scope of delivery: - 3-axis digital readout ES-12 V with LCD display - Keyless drill chuck 3 - 16 mm / B 16 - Drill chuck arbor MT 4 / B 16 - Drawbar spindle M 16 - Reducing sleeve MT 4 / 3 - Combined milling arbor MT 4 / 27 mm - Height-adjustable protective cover - Automatic spindle sleeve feed - Lifting motor for milling head - LED machine light - Digital spindle sleeve stroke display - Thread cutting device - Lamellar protective cover - Longitudinal measuring scale - Operating tools Bdedpov N Uyrsfx Ab Nod Without base frame

Condition: new, Special offer price for in-stock items! Only while supplies last! Price net from warehouse, free loading. The machine does not include a base. The BF3 Deluxe base is available separately under article number 56-1017. Bodpfx Ajdh Hbceb Njdd Drilling capacity in steel: 32 mm Drilling capacity in cast iron: 40 mm Maximum cutter head milling: 80 mm Overhang: 220 mm Spindle speed: (12) 75 - 3200 rpm Spindle taper: MK 4 Quill stroke: 125 mm Table size: 800 x 240 mm Travel (x / y): 555 / 225 mm Tilting milling head: -90° to +90° Distance spindle / table: 60 - 485 mm Height adjustment milling head: 425 mm T-slot size: 14 mm Motor output S1 100%: 1.1 / 1.5 kW (400 V) Motor input S6 40%: 1.5 / 2.2 kW (400 V) Machine dimensions (W x D x H)*: 1140 x 770 x 1500 mm Weight approx.: 287 kg * without base Features: - Simple and quick speed change via gear selector switch - Versatile applications such as drilling, milling, threading, etc. - High smoothness due to ground gears running in an oil bath - Right and left-hand operation for threading - Quill adjustment via handle, fine adjustment via handwheel - Dovetail guide for x, y and z axes, adjustable via wedge strips - Tilting milling head on both sides for angle drilling, milling chamfers, etc. - Solid, large cross table, precisely surface-treated - Optimal price-performance ratio for the cost-conscious user Scope of delivery: Quick-change drill chuck 3 - 16 mm / B 16 Drill chuck arbor MK 4 / B 16 Draw spindle M 16 Reducing sleeve MK 4 / 3 Combination milling arbor MK 4 / 27 mm Height-adjustable guard Threading device LED machine light Digital quill stroke display Slotted guard Longitudinal measuring scale Operating tool

Condition: new, Special offer price for in-stock items. Only while supplies last. Price ex warehouse, plus VAT. Workshop press WK 50 FH Pro Pressing force: 50 t Stroke: 200 mm Table width: 260 mm Throat (E): 730 mm Throat (F): 205 mm Distance cylinder - table (F1): 75 mm Distance cylinder - table (F2): 1050 mm Cylinder displacement (M): 240 mm Width (A): 1040 mm Depth (B): 800 mm Height 1 (C): 1835 mm Bodpfx Abob Elgue Nsdd Height 2 (D): 1880 mm Weight approx.: 287 kg Features: - With winch for easy height adjustment of the support table - Self-regulating hydraulics for gentle piston movement - Powerful workshop presses for trades and repair shops - Optimal price-performance ratio due to efficient design - The standard foot pedal keeps hands free for the workpiece - Increased range of applications thanks to the optionally available pressure mandrel set (10-piece) - Pressure cylinder with integrated return spring for piston retraction - Welded steel frame for high loads and stability - Versatile due to the pressure cylinder that can be shifted to the left and right PROMOTIONAL PRICE ex warehouse Mindelheim. Only for in-stock items. While supplies last.

Condition: new, pressure 30 t stroke 150 mm Bedsxabg Njpfx Ab Nedd table surface area 185 mm Breite column travel between the guideways 530 mm weight of the machine ca. 162 kg dimensions of the machine ca. 800 x 700 x 1805 mm

Condition: new, 6.0 mm ST 40 3.0 mm VA 30 - 140 Grad blade length 200 x 200 mm table: 900 x 990 mm work height max. 940 mm Punching capacity 35.0 in 6.0 mm ST 40 Throat / punching unit 135 mm engine output 4.0 kW weight 1020 kg range L-W-H 900 x 990 x 1200 mm Characteristics : - Notching with a burr-free cut, without deformation of the cut edges - Blades made of surface-hardened tool steel - Operation by means of a foot pedal, so both hands are free for the workpiece - Large dimensioned work table with built-in scales - T-slots for precise guidance of the swiveling stops - Protective cover in front of the cutting blade for high security scope of delivery - hydraulic Notching machine with adjustable angle & punching station - 1 set of cutting knives - Round punch with die 12 mm - 2 swiveling material stops Bdsdjxcuybjpfx Ab Ned - Plexiglas protective cover - Foot pedal with emergency stop

Condition: new, sheet width 1050 mm plate thickness 2,0 mm distance between columns 1050 mm down holder 1 Stück fence Tisch 80 - 480 mm fence Breiten 0 - 600 mm table-size 1300 x 600 mm work height max. 760 mm total power requirement manuell kW weight of the machine ca. 413 kg. range L-W-H 2,0 x 1,04 x 1,6 m - Including adjustable stop on the work table for miter cuts - The knife can be lifted easily thanks to the counterweight on the back Bdjdpfx Absxabdhj Njd - Large work table for safe placement of the sheet metal plates - Sheets can be pushed through, i.e. longer sheets can be cut - Handwheel on the front to adjust the back gauge - Comes with a robust cast iron base as standard - Long service life thanks to knives made of quality steel - Standard with hold-down device including quick-release clamp - Robust machine construction for high stability Furnishing: - manual lever shears - stable execution - hold-down bars - Side scale with unit of measurement - Table stop / width stop

Condition: new, pressure 20,0 t stroke 185 mm table surface area 170 mm Breite Bdjdpjxaapcefx Ab Njd column travel between the guideways 510 mm weight of the machine ca. 112 kg dimensions of the machine ca. 1630 x 560 x 730 mm Furnishing: - Standard with pressure cylinder that can be moved to the left and right - For aligning, pressing, bending, assembling gears, discs, etc. - Standard with foot pedal and hydraulic hand pump for piston delivery - Standard with support prism for aligning shafts - With automatic piston retraction by integrated return spring as standard - Height-adjustable press table with locking bolts - Large manometer for reading the compressive force - Including two-stage hydraulic pump - Robust construction with welded steel frame

Condition: new, 6,5 mm ST 40 3,5 mm VA 90° Grad blade length 250 x 250 mm table: 810 x 750 mm work height max. 950 mm engine output 4,0 weight 630 kg range L-W-H 810 x 750 x 1150 mm Bedpfx Ajxcux Dsb Nodd Characteristics : - Notching with a burr-free cut, without deformation of the cut edges - Blades made of surface-hardened tool steel - Operation by means of a foot pedal, so both hands are free for the workpiece - Large dimensioned work table with built-in scales - T-slots for precise guidance of the swiveling stops - Protective cover in front of the cutting blade for high security scope of delivery - 1 set of cutting knives - 2 swiveling material stops - Plexiglas protective cover - Foot pedal with emergency stop

Condition: new, bore capacity in steel (diameter) 50.0 mm throat 370 mm bore stroke 250 mm morse taper 4 MK table: 600 x 500 mm threading M 42 Stahl turning speeds 40 - 2100 U/min feed 0.1 - 0.4 mm/U column diameter 200 mm distance spindle /table max. 600 mm distance spindle/base plate max. 1190 mm total power requirement 2.2 / 2.8 kW weight 670 kg range L-W-H 1020 x 750 x 2340 mm Scope of delivery - Keyed drill chuck 1 - 13 mm / B 16 - Drill chuck arbor MK 4 / B 16 - Reducing sleeve MK 4 / 3, MK 4 / 2 - Motorized table stroke - Coolant device - Electromagnetic spindle feed - Thread cutting device - Automatic tool ejector - LED machine light - Initial filling with Shell Tellus 46 Bedpfx Asxaay Ijb Nedd - Digital speed display - Digital drilling depth display - Height-adjustable protective cover

Condition: new, cutting diameter 225 mm saw band length 2480 mm table height 910 mm capacity 90 degrees: flat 245 x 150 mm capacity 90 degrees: square 200 x 200 mm capacity 45 degrees: round 160 mm Bdsdoxaa Tbepfx Ab Nod capacity 45 degrees: square 160 x 160 mm capacity 60 degrees: round 100 mm capacity 60 degrees: square 100 x 100 mm turning speed range: 45/90 m/min dimensions of saw-band 2480x27x0,9 mm total power requirement 1,5 kW weight of the machine ca. 200 kg dimensions of the machine ca. 1430x720x1700 mm Scope of delivery : - saw band - workpiece stop - underframe - Manometer for belt tension - Vice with quick lock - coolant device - Hydraulic lowering cylinder - Motor protection switch - Automatic limit switch-off

Condition: new, turning length 3000 mm turning diameter 660 mm turning dia. in gap 870 mm turning diameter over slide 420 mm turning speeds 36 - 1600 U/min quill: 5 MK quill travel 150 mm spindle bore 105,0 mm engine output 7,5 kW spindle taper DIN 55029 D 1-8 weight of the machine ca. 3990 kg. dimensions 4500 x 1280 x 1650 mm Scope of delivery - Slip clutch - Rapid traverse longitudinal and planar - LED machine light - 3-axis digital display ES-12 V with LCD display Bedpfoxabycex Ab Nodd - 3-jaw chuck PS3-315 mm / D8 - Clamping disk 630 mm - Fixed steady rest - passage diameter max. 250 mm - Follow-on steady rest - passage diameter max. 110 mm - 1 centering point / 1 follow-on punch point - Motor with magnetic brake in accordance with CE standard - Foot pedal with brake function in accordance with CE - Initial filling with Shell Tellus 46 - Coolant system - Quick-change tool holder with 4 inserts - Protective device for quick-change tool holder - Reducing sleeve - Chip back wall - Operating tool

Condition: new, tube diameter 1/2 - 2.0 Zoll wall strength 2.75 - 4.5 mm ST pressure 10.0 t Bodpfxjxaac Ne Ab Nsdd weight of the machine ca. 46.0 kg With a hinged bending frame for efficient work - Various bending dies included - Universally applicable for gas, boiler, and water pipes - Fast work thanks to rapid feed - With a tripod stand for safe work - Also ideal for copper and coated pipes - Bends up to 90° can be created Features: - Bending dies: ½" - ¾" - 1" - 1 ¼" - 1 ½" - 2"

Condition: new, bore capacity in steel (diameter) 25.0 mm Bdedjxaa Daepfx Ab Nod throat 255 mm bore stroke 120 mm morse taper 3 MK turning speeds 105 - 2900 U/min table: 395 x 420 mm column diameter 100 mm threading max. M10 voltage 400 / 50 Hz V weight 140 kg range L-W-H 500 x 570 x 1100 mm Furnishing : - Keyless chuck 1 - 16 mm / B 16 - Drill chuck arbor MK 3 / B 16 - Reducing sleeve MT 3/2, MT 3/1 - Digital drilling depth display - Automatic tool ejector - Right-left rotation device - Height-adjustable protective cover

Condition: new, Pressing force: 30 tons Piston stroke: 150 mm Table width: 185 mm Through-opening (E): 535 mm Through-opening (F): 140 mm Distance cylinder - table (F1): 40 mm Distance cylinder - table (F2): 1100 mm Cylinder displacement (M): 200 mm Width (A): 800 mm Depth (B): 700 mm Height 1 (C): 1770 mm Bdedpfeb Ibdlex Ab Njd Height 2 (D): 1800 mm Weight: approx. 168 kg Features: - Two adjustable speeds for piston movement via hydraulic pump - Powerful workshop presses for craft and repair businesses - Optimal price-performance ratio due to rational design - The standard foot pedal keeps both hands free for working on the workpiece - Increased range of applications with the optional pressure mandrel set (10-piece) - Pressing cylinder with integrated return spring for piston retraction - Welded steel frame for high load capacity and high stability - Versatile application due to the pressure cylinder, which can be moved to the left and right

Condition: new, Special offer price for in-stock items. Only while supplies last. Price ex works, plus VAT. Round bending machine HRM 610, Bernardo Roller length: 610 mm Max. sheet metal thickness (400 N/mm2): 2.0 mm Roller diameter: 60 mm Length: 1200 mm Depth: 550 mm Height: 1030 mm Weight approx.: 166 kg Features: - Top roller with horizontal insertion groove for producing tight radii - Convenient pre-bending thanks to asymmetrical roller arrangement - Easy removal of the finished workpiece by pivoting the top roller - Lower and rear rollers equipped with wire insertion grooves as standard - Optimal price-performance ratio, supplied with a base frame as standard - Roller drive via a robust gear system - Adjustable rear roller for conical rounding - Bending rollers made of high-quality steel - For producing cones, tubes, cylinders, etc. Scope of delivery: - Conical bending attachment Bdjdpfehmbpqjx Ab Ned - Lower and rear rollers with wire insertion grooves - Base frame

Condition: new, Bernardo Production Lathe Goliath 660 x 3000 incl. 3-Axis Digital Readout Bdedexxaxnjpfx Ab Nod Technical Specifications Centre distance: 3000 mm Centre height: 330 mm Swing over bed: 660 mm Swing over gap*: 870 mm Swing over cross slide: 420 mm Bed width: 400 mm Spindle bore: 105 mm Spindle mounting: DIN 55029, D1-8 Speed range (16 steps): 36 – 1600 rpm Longitudinal feed range (65 steps): 0.063 – 2.52 mm/rev Cross feed range (65 steps): 0.027 – 1.07 mm/rev Metric threads (22): 1 – 14 mm Inch threads (26): 2 – 28 TPI (G/1") Quill diameter: 75 mm Quill travel: 150 mm Quill taper: MT 5 Motor power: 9.0 kW (12.0 HP) Machine dimensions (W x D x H): 4500 x 1280 x 1650 mm Approx. weight: 3990 kg * Removable bed gap: 240 mm Features • Versatile applications in general engineering, production, single-part manufacturing, etc. • The one-piece cast machine bed offers extremely high rigidity and low vibration, fulfilling a key requirement for precision turning • Modern headstock bearing with precision angular contact ball bearings • Central, user-friendly control for feeds and threading, with lead and feed screws • Rapid traverse (longitudinal and cross) as standard to minimize non-productive times • Large-dimensioned, hardened, and precision-ground gears • Removable gap bridge enables machining of large-diameter workpieces • Adjustable tailstock for taper turning, handwheel with adjustable fine scale (0.02 mm) • Electromechanical foot brake to reduce non-productive times • Excellent machining performance even during facing operations Scope of delivery • Slip clutch • Rapid traverse (longitudinal and cross) • LED machine lamp • 3-axis digital readout ES-12 V with LCD display • 3-jaw chuck PS3-315 mm / D8 • Face plate 630 mm • Fixed steady rest – max. bore diameter 250 mm • Travelling steady rest – max. bore diameter 110 mm • 1 live centre / 1 revolving centre • Motor with magnetic brake according to CE standard • Foot pedal with brake function to CE standard • Factory fill with Shell Tellus 46 • Coolant device • Quick-change toolpost with 4 holders • Safety guard for quick-change toolpost • Reducing sleeve • Chip guard (swarf back panel) • Operating tools

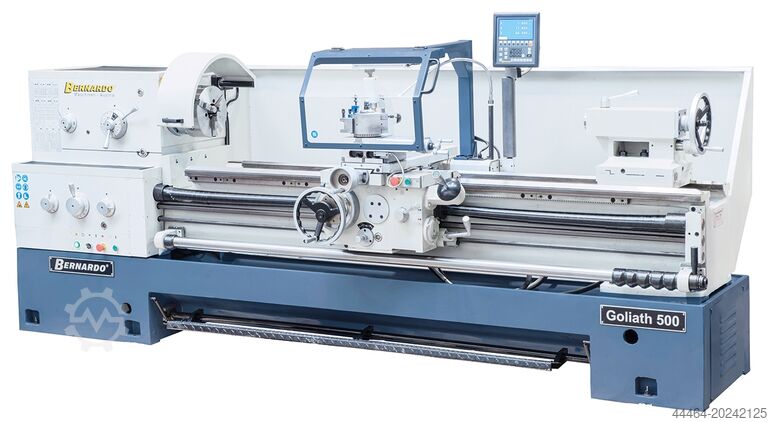

Condition: new, Bernardo Production Lathe Goliath 500 x 2000 Technical Specifications Distance between centers: 2000 mm Center height: 250 mm Swing over bed: 500 mm Swing over gap*: 720 mm Swing over cross slide: 310 mm Bed width: 400 mm Spindle bore: 80 mm Spindle mount: DIN 55029, D1-8 Spindle speed range (24): 9 – 1600 rpm Longitudinal feed range (80): 0.063 – 6.43 mm/rev Cross feed range (80): 0.027 – 2.73 mm/rev Metric threads (46): 1 – 224 mm Inch threads (44): 1/8 – 28 tpi Quill diameter: 75 mm Quill stroke: 150 mm Quill taper: MT 5 Motor power: 7.5 kW (10.0 HP) Machine dimensions (W x D x H): 3520 x 1240 x 1550 mm Weight approx.: 3375 kg * Removable gap section: 200 mm Features • Versatile applications in general mechanical engineering, production, single-part manufacturing, etc. • Machine bed cast in one piece is extremely torsion-resistant and low in vibration, providing the essential requirement for precise turning • Modern main spindle bearing with precision angular contact ball bearings • Central, user-friendly control for feeds and threads, with lead and feed screw • Rapid traverse for longitudinal and cross feeds as standard, to reduce auxiliary times • Large dimensioned, hardened, and precision-ground gears • Removable gap bridge allows machining of large-diameter workpieces • Sliding tailstock for taper turning, handwheel with adjustable fine scaling (0.02 mm) • Electromechanical foot brake to minimize non-productive time • Excellent machining performance also in facing operations Scope of delivery • Slip clutch • Rapid traverse, longitudinal and cross • LED machine lamp • 3-axis ES-12 V digital readout with LCD display • 3-jaw chuck PS3-250 mm / D8 • Faceplate 400 mm • Fixed steady rest – max. passage diameter 200 mm • Traveling steady rest – max. passage diameter 110 mm • 1 live center / 1 revolving center • Motor with magnetic brake, CE-compliant • Foot pedal with brake function, CE-compliant • Initial fill with Shell Tellus 46 • Coolant system • Quick-change toolpost with 4 tool holders • Safety guard for quick-change toolpost • Reducing sleeve Bjdpfx Abjxl D Aqe Nsdd • Chip guard • Service tools

Condition: new, Bernardo Horizontal Bandsaw HBS 275 - 400 V Technical Specifications Cutting capacity, round, 90°: 225 mm Cutting capacity, square, 90°: 200 x 200 mm Cutting capacity, rectangular, 90°: 245 x 150 mm Cutting capacity, round, 45°: 160 mm Cutting capacity, square, 45°: 160 x 160 mm Cutting capacity, round, 60°: 100 mm Cutting capacity, square, 60°: 100 x 100 mm Working height: 910 mm Bandsaw blade dimensions: 2480 x 27 x 0.9 mm Cutting speeds, 400 V: 45 / 90 m/min Coolant pump, S1 100%: 100 W Motor output, S1 100%: 1.1 kW Motor input, S6 40%: 1.5 kW Voltage: 400 V Machine dimensions (L x W x H): 1430 x 720 x 1700 mm Weight, approx.: 190 kg Scope of supply • Bandsaw blade • Workpiece stop Bdodjd Du T Ispfx Ab Ned • Base frame • Manometer for belt tension • Vise with quick-release mechanism • Coolant system • Hydraulic lowering cylinder • Motor protection switch • Automatic end-of-cut shut-off

Condition: new, Bernardo geared pillar drill GB 50 HS Drilling capacity in steel: 50 mm Drilling capacity in cast iron: 60 mm Maximum threading size: M42 Drill chuck: 1 - 13 mm / B 16 Morse taper: MK 4 Spindle speed / number of stages: 40 - 2100 rpm / 12 Feed range: 0.1 / 0.2 / 0.3 / 0.4 mm/rev Overhang: 370 mm Distance spindle / table (max.): 600 mm Distance spindle / base plate: 1190 mm Quill stroke: 250 mm Column diameter: 200 mm Table size / T-slot size: 600 x 500 mm / 14 mm Motor power: 2.2 / 2.8 kW Machine dimensions (W x D x H): 700 x 1050 x 2350 mm Weight (approx.): 670 kg Scope of supply • Gear-type drill chuck 1 - 13 mm / B 16 Bjdpjd Tm T Hofx Ab Nedd • Drill chuck arbor MK 4 / B 16 • Reducing sleeve MK 4 / 3, MK 4 / 2 • Motorized table lift • Coolant system • Electromagnetic spindle feed • Threading device • Automatic tool ejector • LED machine light • Initial filling with Shell Tellus 46 • Digital speed indicator • Digital depth indicator • Height-adjustable protective shield

Condition: new, Bernardo BF 45 HSV Drilling and Milling Machine Technical Specifications Drilling capacity in steel: 32 mm Drilling capacity in cast iron: 40 mm Milling cutter arbor max.: 80 mm Overhang: 280 mm Spindle speed: (12) 75 – 3200 rpm Spindle taper: MK 4 Quill stroke: 120 mm Quill feed: (3) 0.10 / 0.18 / 0.26 mm/rev Table size: 730 x 210 mm T-slot size: 14 mm Distance spindle / table max.: 640 mm Distance spindle / base plate max.: 1190 mm Travel (x / y): 495 / 200 mm Milling head swivel: -90° to +90° Height adjustment milling head: 260 mm Bdjdpegd H Uxjfx Ab Ned Column diameter: 115 mm Working area base plate: 365 x 375 mm Motor output S1 100%: 1.1 / 1.5 kW (400 V) Motor input S6 40%: 1.5 / 2.2 kW (400 V) Machine dimensions (W x D x H): 1070 x 800 x 2060 mm Weight approx.: 362 kg Scope of supply • Quick-change drill chuck 3 – 16 mm / B 16 • Drill chuck arbor MK 4 / B 16 • Draw spindle M 16 • Reducing sleeve MK 4 / 3 • Combination milling arbor MK 4 / 27 mm • Automatic quill feed • Height-adjustable protective shield • Digital quill stroke indicator • Thread cutting device • Coolant system • LED machine light • Longitudinal measuring scale • Operating tool
