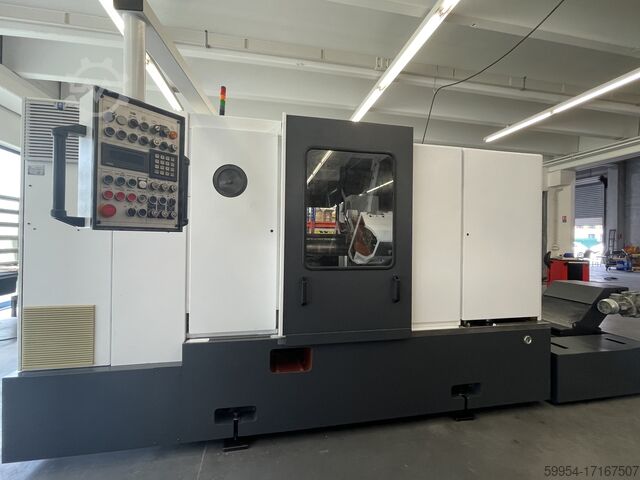

MORI-SAY 6/32

Condition: ready for operation (used), Year of construction: 2017, functionality: fully functional, machine/vehicle number: 100281518, total height: 2,260 mm, total width: 1,550 mm, total length: 1,685 mm, product height (max.): 310 mm, product width (max.): 150 mm, No reserve price – guaranteed sale to the highest bidder! The original price was over 100,000 EUR! The device is ready for loading & packed for transport! Loading can be handled by the seller. Bedpfx Aoy Ath Hjbbedb TECHNICAL DETAILS Maximum inspection width: 150 mm Maximum inspection height: 310 mm CONVEYOR SYSTEM Conveyor type: Turn table Speed: 12 – 45 m/min MACHINE DETAILS X-ray Generator Voltage: 30 – 75 kV Current: 1 – 8 mA Power: max. 300 W Dimensions (L x W x H): 1,685 x 1,550 x 2,260 mm Protection class: IP65 / IP66 Electrical data Power supply: 200 – 240 V Frequency: 50 / 60 Hz EQUIPMENT Rotary table conveyor Hermetic air cooling X-ray inspection system

Condition: ready for operation (used), Year of construction: 2011, functionality: fully functional, machine/vehicle number: 110532, turning length: 1,980 mm, spindle bore: 105 mm, spindle speed (max.): 2,500 rpm, turning diameter over bed slide: 600 mm, controller model: Siemens 840DSL mit ShopTurn, TECHNICAL DETAILS Swing diameter over bed: 600 mm Distance between centers: 2,000 mm Turning length: 1,980 mm Spindle bore: 105 mm Speed: 2,500 rpm Power: 18.5 kW MACHINE DETAILS Control: Siemens 840DSL with ShopTurn Bdsdsy Ex Hmjpfx Abbjb Number of gear stages: 2

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, cutting length (max.): 760 mm, cutting range round steel at 90°: 400 mm, saw band length: 5,920 mm, working height: 720 mm, No reserve price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Saw band dimensions: 5,920 x 41 x 1.3 mm Cutting speed: infinitely adjustable (1:7) Working range (round): max. 400 mm Bedpfx Asy Ex E Nebbsdb Working range (square): 400 x 370 mm Cut length (single stroke): 10 - 760 mm Cut length (multiple stroke): max. 9,999.9 mm Working height: 720 mm Clamping force: 3,600 N Min. finished part length: 10 mm (35 mm vertical) Note: Disassembly and loading can be offered by the seller at an additional cost. The roller conveyor is not included in the offer.

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, workpiece length (max.): 3,048 mm, workpiece width (max.): 1,524 mm, sheet thickness (max.): 3 mm, table load: 5,000 kg, The machine's control system and software have been renewed! TECHNICAL DETAILS Sheet thickness for blanks with tensile strength 400 N/mm² max.: 3.5 mm Minimum sheet thickness: 0.5 mm Punch head force max.: 40 presses with max. force 7 t & 4 presses with max. force 26 t Lower cylinder force max.: 6 t Double punch force: 12 t (2 hydraulic punches) Minimum input table length: 370 mm Maximum input table length: 3,048 mm Minimum input table width: 300 mm Maximum input table width: 1,524 mm Maximum input table diagonal: 3,408 mm Minimum output table length: 250 mm Maximum output table length: 3,048 mm Minimum output table width: 60 mm Maximum output table width: 1,524 mm Vertical stroke of scissor lift table: 550 mm Usable load capacity of scissor lift table: 5,000 kg Minimum size of transportable sheet stacks: 300 x 100 mm MACHINE DETAILS Electrical Data Voltage: 380 V Frequency: 50 Hz Current: 119 A Rated power: 61 kW Cooling capacity of the unit: 32.2 kW Bdodoy Emr Depfx Abbsb EQUIPMENT Scissor lift table TC27155C Motorized roller conveyor PRL3814F Universal destacking device DUF15 Punch head H2 Hydraulic power unit C1515 (3-unit pump system) Lower cylinder EI09 Double rotary punch P2R36 Water-air cooling unit R121 Refrigerant R407C Software RIO Control and management system MMACHNT-MICROMach Processor PENTIUM INTEL II 400 MHz WINDOWS NT Documentation

Condition: ready for operation (used), Year of construction: 1994, functionality: fully functional, machine/vehicle number: 14219, travel distance X-axis: 1,250 mm, travel distance Y-axis: 900 mm, travel distance Z-axis: 560 mm, spindle diameter: 75 mm, spindle speed (max.): 1,800 rpm, With digital position display! Bjdpsy Emq Tsfx Abbodb TECHNICAL DETAILS X-axis: 1,250 mm Y-axis: 900 mm Z-axis (or W-axis): 560 mm Spindle diameter: 75 mm Spindle speeds: 18–1,800 rpm Spindle taper: SK-40 Table size: 950 mm x 950 mm MACHINE DETAILS Weight: 10,000 kg EQUIPMENT All accessories shown in the photos, including tools, tool cabinets, and clamping devices

Condition: ready for operation (used), Year of construction: 2018, functionality: fully functional, machine/vehicle number: 7001203, turning diameter over cross slide: 438 mm, spindle bore: 152 mm, turning diameter over bed slide: 860 mm, center width: 2,300 mm, spindle speed (max.): 680 rpm, bed width: 510 mm, TECHNICAL DETAILS Centre distance: 2,300 mm Swing diameter over bed: 860 mm Swing diameter over cross slide: 438 mm Bed width: 510 mm Bjdpfxoy Edw Rj Abbedb Spindle mounting: A2-11 Spindle bore: 152 mm Spindle speed range: 8 - 680 rpm Number of speeds: 12 Tailstock quill diameter: 120 mm Tailstock quill travel: 165 mm Quill taper: MT6 MACHINE DETAILS Motor power: 22 kW

Condition: ready for operation (used), Year of construction: 2010, operating hours: 5,002 h, functionality: fully functional, machine/vehicle number: NT100JG0126, turning length: 424 mm, turning diameter: 370 mm, travel distance X-axis: 380 mm, bar passage: 52 mm, controller model: FANUC FS-31iA5 (MAPPS 4), TECHNICAL DETAILS Turning length: 424 mm Maximum turning diameter: 370 mm (270 mm with turret 2) Bar capacity: 52 mm Turn-mill spindle Full indexing specifications: Yes X-axis travel: 380 mm Y-axis travel: ±105 mm Z-axis travel: 460 + 155 mm (ATC) B-axis: ±120º Spindle speed: 12,000 rpm Drive power: 9/5.5 kW Tool magazine Bdodpsy Edc Hefx Abbob Magazine positions: 38 Tool holder: Capto C5 Maximum tool length: 250 mm (210 mm for tools under Ø70 mm) Maximum tool diameter: Ø70/Ø130 mm (with/without adjacent tools) Maximum tool weight: 5 kg Lower Turret X-axis travel: 155 mm Z-axis travel: 610 mm Number of tool stations: 10 Tool rotational speed: 6,000 min⁻¹ Driven tool power: 1.5/1.2 kW Main Spindle Spindle speed: 6,000 rpm Drive power: 11/7.5 kW Spindle bore: 73 mm Chuck type: Hollow chuck (8") Manufacturer: KITAGAWA Spindle nose: JIS A2-5 Maximum torque: 223 Nm Sub Spindle Spindle speed: 1,000 rpm BW axis: 4 fixed positions, 0º, -30º, -180º (-225º for overhang to conveyor, if equipped) MACHINE DETAILS Control: FANUC FS-31iA5 (MAPPS 4) Potential rated output: 39.24 kVA Dimensions & Weight Dimensions (L x W x H): 2,705 x 2,425 x 2,385 mm Weight: 8,800 kg Operating Hours Powered on: 54,061 hours Spindle 1 operating hours: 9,813 hours Spindle 2 operating hours: 5,002 hours EQUIPMENT Chip conveyor Signal lamp High-pressure pump Air blower outside the spindle Foot switch (double) for main and sub spindle

Condition: ready for operation (used), Year of construction: 2005, operating hours: 19,229 h, functionality: fully functional, machine/vehicle number: 8043943123C, turning length: 1,050 mm, turning diameter: 465 mm, travel distance X-axis: 300 mm, travel distance Z-axis: 1,050 mm, controller model: Siemens 840 D, TECHNICAL DETAILS Turning diameter: 465 mm Turning length: 1,050 mm Swing diameter: 680 mm Chuck diameter: 325 mm X-axis travel: 300 mm Z-axis travel: 1,050 mm Spindle speed range: 3,500 rpm Rapid traverse X/Z: 30 m/min MACHINE DETAILS Bdsdpjy D I Ttefx Abbob Control: Siemens 840 D Number of tool positions: 12 positions Tool holder: VDI 40 Weight: 7,500 kg Operating hours Spindle hours: 19,229 h Power-on hours: 81,347 h Note: The machine can be inspected under power upon request.

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2004, laser power: 4,000 W, sheet thickness steel (max.): 22 mm, sheet thickness aluminum (max.): 9 mm, travel distance X-axis: 3,420 mm, travel distance Y-axis: 1,550 mm, CO2 laser cutting machine with pallet changer, loading/unloading system, and sheet metal storage TECHNICAL DETAILS X travel: 3,420 mm Y travel: 1,550 mm Z travel: 200 mm Working area: 3,070 x 1,550 x 200 mm Laser power: 4,000 W Cutting thickness steel / stainless / aluminum: 22 / 12 / 9 mm Table load: 920 kg Traverse speed X/Y/Z: 80 / 80 / 60 m/min MACHINE DETAILS Control unit: Fanuc 160 iLB Machine weight: 15,500 kg Bodpfxsy D Izqe Abbjdb EQUIPMENT Double storage tower LKI UL300FO TWIN, year of manufacture 2004 Extraction and filter unit Torit Chiller unit MTA 201

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2007, operating hours: 15,000 h, controller model: BySOFT, laser power: 2,200 W, travel distance X-axis: 1,562 mm, travel distance Y-axis: 772 mm, travel distance Z-axis: 100 mm, TECHNICAL DETAILS Bdodpfxey D Ikls Abbsb X-axis travel: 1,562 mm Y-axis travel: 772 mm Z-axis travel: 100 mm Material thickness (iron): 15 mm Rapid traverse X-Y-Z: 100 - 100 m/min Working area: 1,500 x 3,000 mm MACHINE DETAILS Control unit: BySOFT Laser source: Bylaser 2200 Laser power: 2,200 W Weight: 13,500 kg Operating hours: 15,000 h
