Lathe 1900 x 2500 mm

Leopoldo Pontiggia SFE 950

Condition: used, Year of construction: 2010, Technical details: x-travel: 6500/13500 mm y-travel: 4000 mm z-travel: 1500 mm Dsdpfxeway I Uj Ac Hjwd w-axis: 2250 mm table surface area: 5500/12500 x 3000 mm max. workpiece weight: 50.000/75.000 kg ram head dimension: 520 x 625 mm milling spindle motor: 67,4 ( s1/100% ) kW max. torque on the spindle: 2900 Nm tool taper: DIN 69893 HSK-A 100 milling head speed: 1 - 1000 / 5 - 5000 U/min feed speeds: 1 - 24000 mm/min w-axis: 1 - 6000 mm/min. distance between columns: 3500 mm passage: 3000 mm total power requirement: 120 kW weight of the machine ca.: 250 t dimensions of the machine ca.: 29,5 x 9,5 x 8,2 m with CNC SIEMENS 840 D autom. tool magazine for 212 tool stations autom. milling head magazine for 6 milling heads 1 milling head -straight- 67 kW, 2900 Nm, 5000 rpm, HSK-A 100 2 milling head -straight extended- 40 kW, 1700 Nm, 5000 rpm, HSK-A 100 3 milling head -angular head extended- 40kW, 4000 rpm, 1800 Nm, HSK-A 100 4 milling head -angular head - 67 kW, 4000 rpm, 2900 Nm, 360 x 1°, HSK-A 100 5 milling head -angular head - 67 kW, 4000 rpm, 2900 Nm, 360 x 1°, HSK-A 100 6 milling head -universal Index head - 40 kW, 4000 rpm, 2100 Nm, C-axis 360 x 1°, B-axis +/- 110 x 1°, HSK-A 100 coolant attachment, chip conveyor *

Condition: good (used), Year of construction: 1973, functionality: fully functional, total height: 3,760 mm, pressing force: 1,250 t, total length: 6,400 mm, total width: 4,365 mm, table length: 820 mm, operating pressure: 7 bar, table width: 260 mm, throat depth: 700 mm, overall weight: 135,000 kg, pressure: 7 bar, stroke length: 220 mm, Upset slide nominal force: 12 500 kN /1 250 ton/ Maximal diameter of work piece: 140 mm Maximal diameter of upset flange: 180 mm Dwedpfx Asuby N Dec Hsd Upset slide stroke: 460 mm Slide continuous idle strokes in minute: 35 Electric motor power: 75 kW Overall dimensions: - L-R: 6 400 mm - F-B: 4 3650 mm - Height: 3 760 mm Total weight, circa: 135 000 kg.

Condition: used, Year of construction: 1979, spindle diameter 80 mm ja facing slide ja Ja Dedpfx Acswhq Dvj Hjwd weight of the machine ca. 8,8 t

Condition: repair required (used), functionality: not functional, workpiece weight (max.): 300 kg, grinding length: 2,000 mm, Used Cylindrical grinding machine TOS BHU 32A/2000 grinding diameter 320 mm, grinding length 2,000 mm, without electrics, in need of repair, ideal for companies specializing in general overhauls. Dodpfxswbiw Ij Ac Hjwd

Condition: used, Year of construction: 2007, Nominal length (workpiece length) mm 3500 Swing diameter over bed slide left mm 720 Swing diameter over bed left mm 760 Swing diameter over bed slide right mm 720 Swing diameter over bed right mm 760 Working height mm 1,223 Slide travel flat (left/right) mm 305 / 435 Slide travel longitudinal (left/right) mm 3151 / 3154 Control Siemens 840 D Dedpjvyamxofx Ac Hewd

Condition: used, Year of construction: 1998, turning length 3500 mm swing diameter 1000 mm centre height 500 mm turning diameter over slide 600 mm Dsdjv Hhv Iepfx Ac Hewd weight of the machine ca. ca. 8,5 t including 2 lynettes and 900mm faceplate

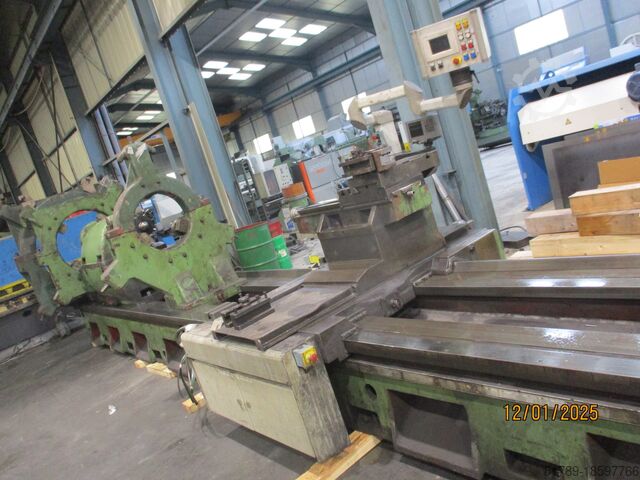

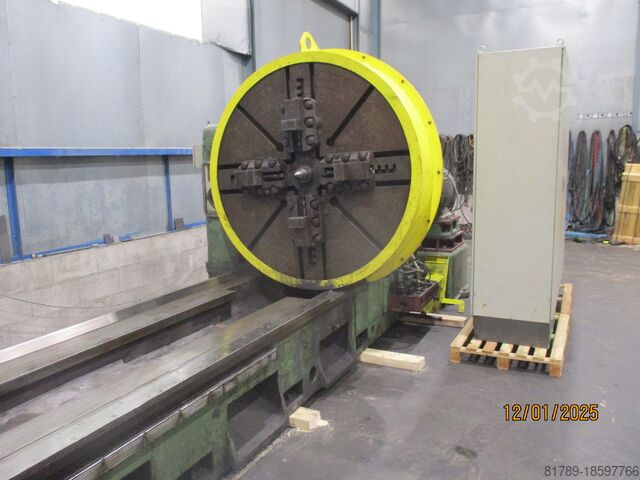

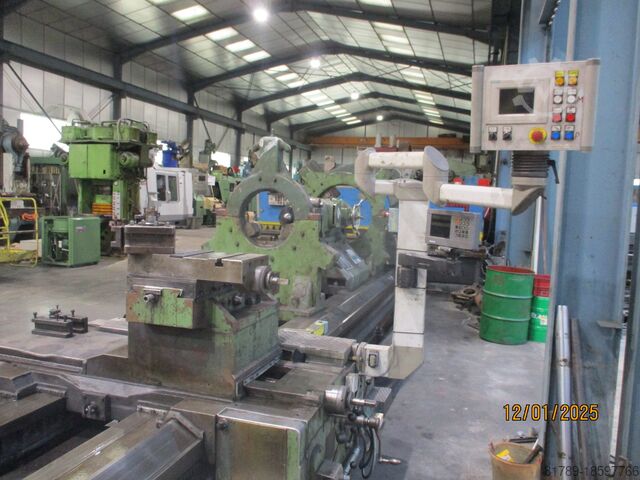

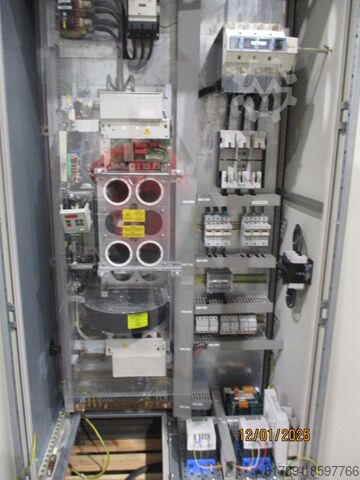

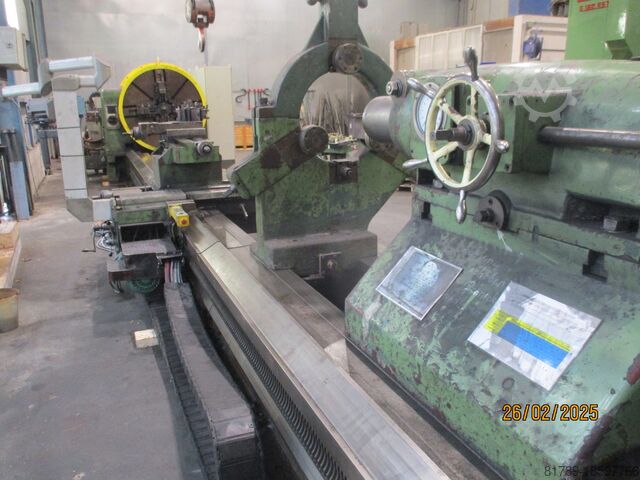

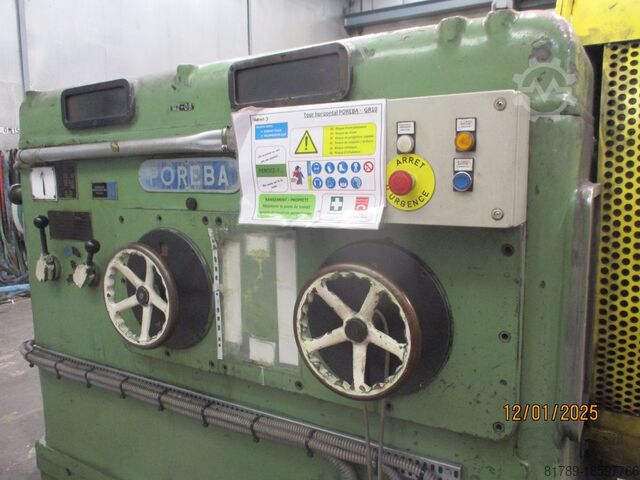

Condition: ready for operation (used), POREBA parallel lathe TCC 160 type chuck diameter 1600 point height 900 max turning diameter 1800 turning diameter on the carriage 1200 between centers 10 meters documentations Dwedpfx Acev Dv Rho Hed visual 3 glasses electricity

Condition: used, Year of construction: 1979, total height: 1,700 mm, total length: 4,900 mm, total width: 1,900 mm, Empty weight: 8.000 kg Price: On request Metal turning lathe Model: Conventional Manufacturer: TOS Type: SU-100 Centerdistance: 2000mm Turningdiameter above bed: 1050mm Spindle-hole: 105mm Motorpower: 22kW Spindle-speed: 2,24-450rpm Max. workpiece weight: 5000kg Including 4-jaw-chuck + lynette Machine-dimensions: 4900x1900x1700mm Machine-weight: 8000kg Machine has been tested, in very good condition Video is available - Year: 1979 - Documentation available: No - Serial number: 0429412 - Drive system: Conventional - Power [kW]: 22.0 - Swing over bed [mm]: 1050 - Distance between centres [mm]: 2000 - Spindle bore [mm]: 105 - Min. spindle speed [rpm]: 2.24 - Max. spindle speed [rpm]: 450 - Options: Four-jaw chuck, Fixed steady Dwsdpfx Acjwnhf Ro Hed - Transport dimensions: 4900mm x 1900mm x 1700mm (l x w x h) - Transport weight [kg]: 8000kg Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: good (used), Year of construction: 1990, functionality: fully functional, Center high 290 mm Between centers 1000 mm Swing dia over bed 580 mm Swind dia over cross slide 380 mm X travel 295 mm Travel of hand slide 135 mm Spindle speed 20-2000 rpm (21 ranges) Motor power 7,5/11 kW Spindle hole D70 mm Spindle nose DIN55027 (8-er) Tailstock sleeve MT5 Feedrate longitudinal 0,04-12 mm/rev. (120 ranges) Feedrate cross 0,02-6 mm/rev. (120 ranges) Weight cca 2860 Kgs Dwjdpewdvmzsfx Ac Hjd Accessories - Steady rest - Following rest - Faceplate - 3 jaws chuck - Machine working light - Rapid feed

Condition: used, Year of construction: 1980, max. wheel diameter 2500 mm gear width 1200 mm max. module 32 min. module 3 total power requirement 25 kW weight of the machine ca. 60 t dimensions of the machine ca. m Gear , min. / max. 180 / 2,500 mm Module 3 - 32 Helix angle, max. 10 - 35 ° Gear width for straight gears 1,200 mm Stroke length, approx. 100 - 1,200 mm No. of strokes 80 - 350 /min Stroke position adjustable 300 mm Stroke speed 4 - 40 mm Max. weight of workpiece, approx. 18,000 kg Min. / max. no. of teeth 16 / 576 Table size x bore 1,400 x 500 mm Dwjdpfxot Hwqqj Ac Hed Grinding wheel Ø, approx. 500 mm Grinding wheel peripheral speed 34 m/s Total electrical load, approx. 45 kW - 380 V - 50 Hz Weight of machine, approx. 60,000 kg Accessories / Special Features: * Hydrostatic guides in grinding slide, table and in all other guideways. * Completely covered working area with sliding doors. * Automatic grinding process for various cycles, with settings for roughing, finishing, fine finishing and automatic dressing cycle after preset number of teeth. * Profile correction is possible via appropriate dressing, as well as additional movement of grinding slide (depth and width crowning). * Approx. 50 change gears. * Grinding slideTilt display device. * Large coolant device with band filter and oil mist exhaust. * Separate switch cabinet. * Separate hydraulic unit. * Separate oil cooling unit. Condition : Very good. Machine can soon be inspected in our showrooms. It is not under power at present. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract. The machine comes directly from a first class gear factory, where it was grinding Quality 5 - 6. Grinding diagrams are available. This type and quality of machine is rarely available. Thank you for your interest. We always have a good selection of gear machines available. Please let us know what you need.
