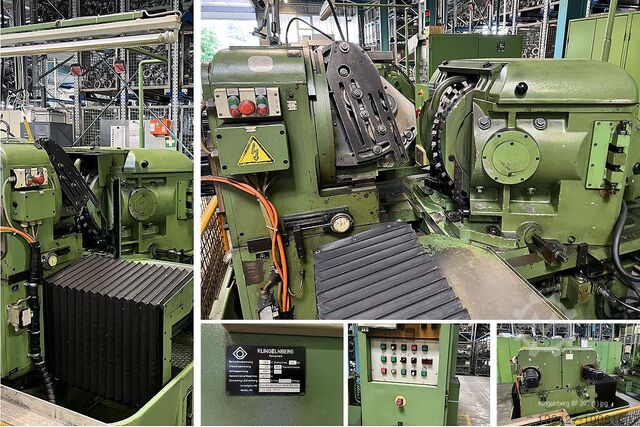

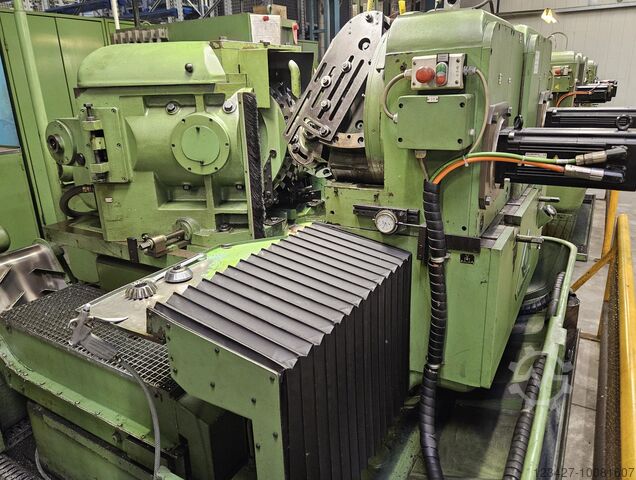

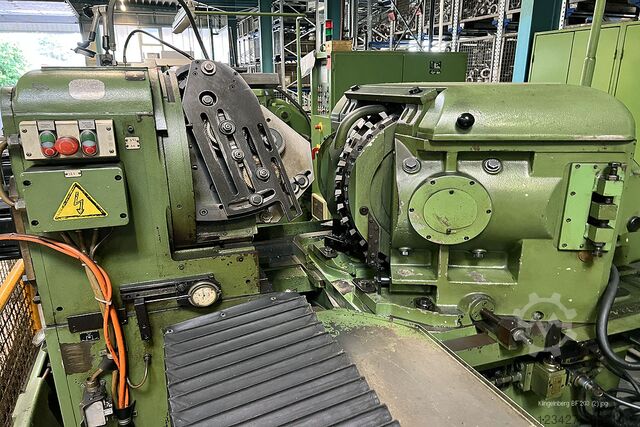

Bevel gear machine

Klingelnberg BF 203

Condition: good (used), Year of construction: 2015, Swing over bed 720mm, maximum machining diameter 420mm, maximum machining length 1274mm, bar capacity 77mm, spindle speed 4,000rpm, milling speed 4,000rpm, 12 station turret, Mazatrol smart control, swarf conveyor, parts catcher, tool setter, and 3 jaw chuck, magazine barfeed unit. Bsdpfx Asvgz D Eeaqswh

Condition: excellent (used), Year of construction: 2011, operating hours: 5,040 h, functionality: fully functional, turning length: 1,250 mm, turning diameter over cross slide: 420 mm, turning diameter: 420 mm, spindle speed (min.): 35 rpm, spindle speed (max.): 4,000 rpm, spindle bore: 80 mm, travel distance Z-axis: 1,250 mm, rapid traverse X-axis: 33 m/min, rapid traverse Z-axis: 33 m/min, bar diameter (max.): 80 mm, MAZAK QUICK TURN 300 Smart Operating Hours: Automatic Operation: 5,040 hours Condition: Very good condition, regularly serviced and meticulously maintained! Capacity & Working Area Max. swing diameter: Ø 720 mm Max. turning diameter: Ø 420 mm Max. bar stock diameter: Ø 80 mm Max. machining length: 1,200 mm Main Spindle Max. spindle speed: 4,000 rpm Spindle nose: JIS A2-8 Rated power (40% duty cycle): 26 kW Max. torque: 750 Nm Turret Number of tool stations: 12 Tool cross-section: 25 mm (external), 50 mm (internal) Feed Axes Rapid traverse (X / Z): 30 / 33 m/min Travel (X / Z): 240 mm / 1,314 mm Tailstock Taper: MK NC axis, pressure controlled via M-codes Max. axial pressure: 10,000 N Dimensions & Weight Machine dimensions (L x W x H): 3,770 x 1,810 x 1,900 mm Weight: 7,100 kg (without chip conveyor and coolant) Chuck: Kitagawa BB210 with through-hole Chip Management Bedpfewzkvfjx Aaqswh Mayfran hinged belt chip conveyor Coolant pump 8 bar & chip flush General Specifications: SD MEMORY I/F (1P) + USB MEMORY I/F (1P) Mazak standard colour NC controlled tailstock Tailstock pressure adjustment Tailstock with fixed quill (650U/1250U) Operator door with safety interlock switch Double foot switch Fully enclosed work area Work area lighting Safety devices according to global standards Complete coolant system Chuck status notification Automatic tool setter (Tool Eye) 10.4" colour display EIA/ISO package LAN interface

Condition: ready for operation (used), Year of construction: 1980, Gleason Hypoid cutter Sharpener 13A -1 pcs Milling diameter 89-500 mm Grinding wheel dimensions 305x19x102 mm Feed 0,05-0,18 mm Grinding wheel drive motor - 1800 rpm (60 Hz) Bwjdpfor Elpvsx Aaqeh - 1500 rpm (50 Hz) Floor space 1240x2310 mm Height 1422 mm Machine weight 4083 kg Gleason 19 revacicle cutter checking machine - 1 pcs

Condition: used, Year of construction: 2007, ratio of transmission 10:1 min. number of teeth 3 max. number of teeth 200 range of tooth size 20 mm Bedpsvxwnqefx Aaqewh tooth width max. 58 mm diameter of tools min 69,85 mm diameter of tools max. 230 mm x-axis 325 mm y-axis 350 mm z-axis 470 mm work piece table - Ø 212,71 mm b-axis + 90,1 / - 1 ° Control 160 i - MB FANUC total power requirement 75 kW weight of the machine ca. 10.000 Kg dimensions of the machine ca. 6,10 x 4,40 x 3,30 m WAGURI With EWAB robot cell (KUKA robot) without coolant filter system Fire extinguishing system without CO2 bottles Cooling oil return with various pumps / collecting basins Threading device A1/B2 axes with measuring probe Clamping device for a pinion shaft External spindle oil cooler Extraction system "pinion shaft"

Condition: excellent (used), Year of construction: 1991, swing diameter 400 mm Q U O T A T I O N We are pleased to offer you ex our stock, subject to prior sale, and error in technical data : WMW - GLAUCHAU Hydraulic Internal Grinding Machine with Face Grinding Device model SI 6/1 AS-N x 315 year 1991 Internal grinding diameter 40 - 400 mm Internal Grinding depth, max. 315 mm Max. grindable External dia. 400 mm Weight of workpiece without steady, max. 630 kg Bwedpfxexyllvj Aaqoh Workpiece Swing Ø, with / without safety hood, max. 500 / 600 mm Height of centre above table 360 mm 16 step workpiece spindle speeds 40 – 400 rpm Workpiece spindle bore, approx. 53 mm Workpiece headstock swivelling max. 30 ° Adjustment of workpiece headstock position crosswise, max. 400 mm Automatic cross traverse of grinding head 70 mm Adjustment of grinding head position on slide crosswise, approx. 100 mm Feed of grinding head, intemittendly 0.001 – 0.025 mm/stroke Feed of grinding head, continually 0,1 – 1 mm/min Table stroke, max. 630 mm Table speeds infinitely variable 0,1 – 8 m/min (10 m/min) Distance workpiece headstock and grinding slide, max. 1,250 mm Adjustment of Grinding spindel stock on table 520 mm Spindle drive, approx. 7.5 kW Total electrical load, approx. 17 kW - 380 V - 50 Hz Weight, approx. 6,000 kg Accessories / Special Features: • Universal internal grinding spindle head with automatic cycles to grind cylindrical and conical bores with one or multiple diameters, external diameters and grinding of narrow end-faces. • Face grinding device, hydraulic swivel-in, with automatic cycles to grind end-faces, multiple end-faces and two tiered end-faces simultaneously • Electronic cycle control with control tableau to set up all the grinding and dressing cycles including ampere-meters for internal grinding spindle and face grinding spindle • Belt-type grinding spindle drive with mounted grinding spindle and 5 pieces separate interchangeable grinding spindles along with various pulleys with various diameters. • Dressing device for both grinding spindles • HEIDENHAIN Digital Read-Out for the cross adjustment of the Workpiece headstock • A large amount of operating tooling and accessories as : 4-jaw Faceplate Ø approx. 520 mm, 3-jaw chuck Ø approx. 380 mm, 3-jaw-chuck Ø approx. 130 mm, pulleys, spindle sleeves, grinding flanges, foot switch, • Separate hydraulic unit, built on switch cabinet, coolant device with magnetic separator. Condition : very good, universal machine for all sorts of grinding tasks ! Please click here to view a video of the machine running : ! Delivery : immediately available, FCA Metzingen Payment : 100 % Net, after conclusion of contract, before loading

Condition: excellent (used), Year of construction: 2006, operating hours: 53,244 h, functionality: fully functional, Technical Data – Gleason Phoenix II 600HC (CNC Hypoid Gear Cutting Machine) Working Area Max. workpiece diameter: Ø 600 mm Max. tooth depth: 24.6 mm Max. gear width: 110 mm Number of teeth: 1–300 Cutterhead size face milling (FM): 18" diameter Cutterhead size hobbing (FH): 210 mm radius Max. cutter spindle speed: 600 min⁻¹ Work Spindle Bedoxwzu Iepfx Aaqjwh Front taper diameter: Ø 203 mm Taper bore diameter: Ø 181 mm Bore depth: 884 mm Max. work spindle speed: 600 min⁻¹ Dimensions and Weight Footprint L × W × H: 4.4 × 3.5 × 3.5 m (incl. peripherals) Machine weight: 26,000 kg Connection Data Total connected load: 139 kVA Main fuse: 200 A Operating voltage: 400 V Mains frequency: 50 Hz Control voltage: 24 V DC

Condition: used, Single column eccentric press KRUPP type PEKRD 125 h Machine No. 2861 Year of construction 1977 pressure force 125 ton. Bodpfx Aaedzqddoqswh throat 400 mm table size 950 x 750 mm ram area 800 x 540 mm table opening 100 x 250 mm stroke adjustment 8 to 160 mm ram adjustment 100 mm Installation height of largest stroke at top max. 550 mm Stroke rate 60 strokes/min. Table height above floor 800 mm Motor power 10 kW Mains connection 380 Volt, 50 Hz - Hydraulic overload in ram - Compressed air clutch-brake combination ORTLINGHAUS - ram weight balancing cylinder - motorized ram adjustment - Table plate with ball rollers - Two-hand operation - grease central lubrication HELIOS - stroke counter - UVV 7n 5.1 §4a, paragraph 2 No. 3b for manual insertion work Space requirement L x W x H 2300 x 1800 x 3200 mm weight approx. 10 ton. good condition (very little used)

Condition: excellent (used), grinding length: 500 mm, The machine is in good condition. Bwjdex N A Agepfx Aaqeh

Condition: ready for operation (used), Year of construction: 2011, functionality: fully functional, CNC Spiral Bevel Gear Cutting Machine Gleason No 631 Year of manufacture: 2011 Control: SIEMENS 840d Retrofitted in 2011/2012 with new control, drives, etc. The machine was fully overhauled in 2011. Bedpfx Ajw Tfb Seaqewh A new control system and drives were installed.

Condition: ready for operation (used), Year of construction: 2005, A bevel gear rolling test machine Gleason is available. Workpiece diameter: 330mm, max. center distance: 203mm, driver spindle nose distance range: 100mm-250mm, max. offset range upper/lower: 203mm/50mm, driver spindle bore: 99mm, driver spindle taper per meter: 15.5mm/m, counter spindle bore: 58mm, counter spindle taper per meter: 12.7mm/m, spindle speed: 1500rpm, test angle range: 0°-180°, driver spindle repeatability: +/-0.004mm, runout: +/-0.003mm, machine dimensions X/Y: approx. 1550mm/2050mm, weight: approx. 2400kg. An on-site inspection is possible. Bwedjxltu Nspfx Aaqjh
