Machining Center - Universal

GROB G550

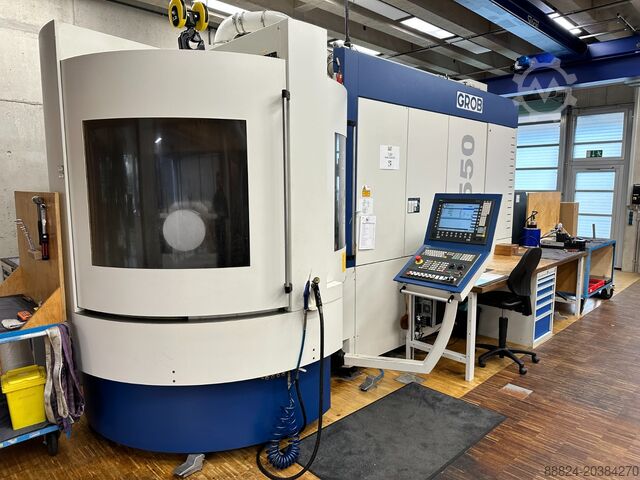

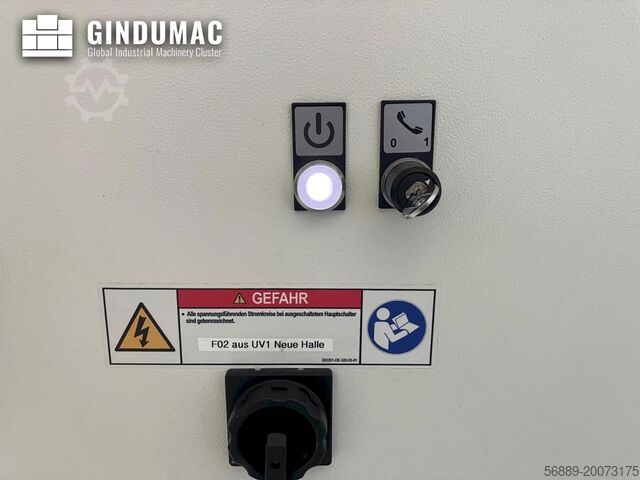

Condition: ready for operation (used), Year of construction: 2020, operating hours: 8,700 h, Control Unit Brand HEIDENHAIN Model TNC 640 Hedoxfw A Dopfx Abxow Movement X-Axis Movement 800 mm Y-Axis Movement 950 mm Z-Axis Movement 1020 mm Additional Equipment Accessories: Additional pallet + coolant cooling unit This 5-axis GROB G550a universal machining centre was manufactured in 2020. It offers advanced capabilities for complex machining tasks. Consider the opportunity to buy this GROB G550a universal machining centre. Contact us for more information. Application Types Milling

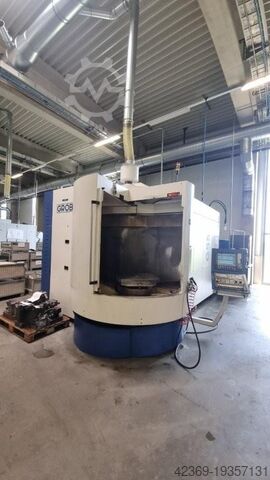

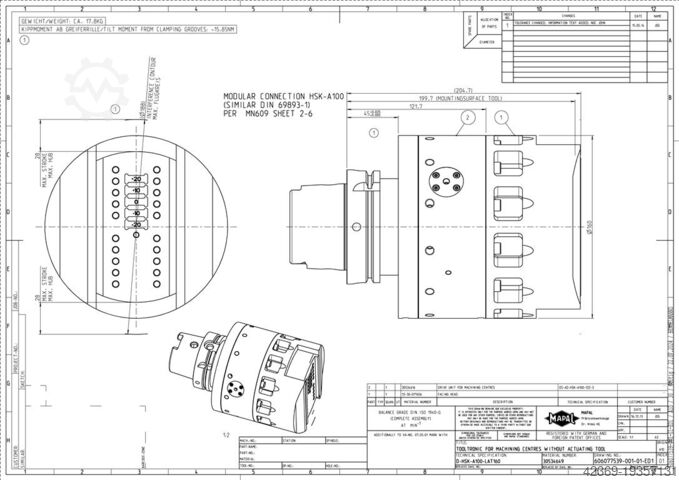

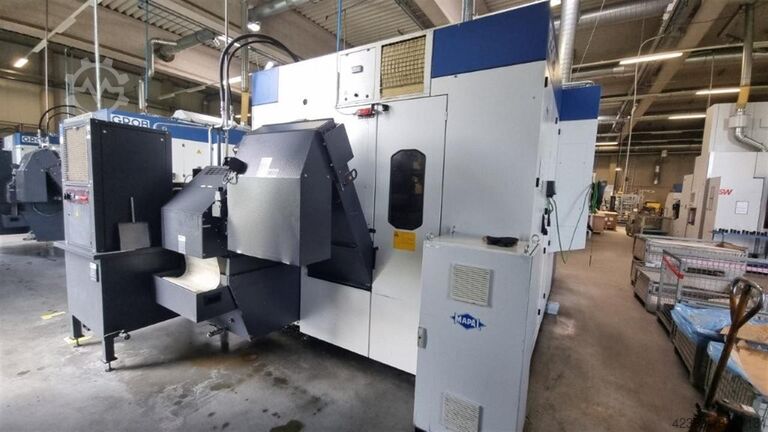

Condition: used, Year of construction: 2011, Technical details: x-travel: 800 mm y-travel: 950 mm z-travel: 1020 mm control: Sinumerik 840D sl MDynamics Operate turning speeds: 10.000 1/min Hjdpfewr Drnsx Abxsw Spindle power: 26/20 kW max. torque on the spindle: 340/262 Nm tool taper: HSK-A 100 tool change unit: 120 (2x60) Pos. Pallet changer 2x: 630 x 630 mm table load capacity: 800 kg weight of the machine ca.: 20 t dimensions of the machine ca.: 3,3 x 6,15 x 3,2 m 6-axis simultaneous horizontal machining center with controlled swivel-rotary table (A/B-axis), Swivel table can swing overhead (180°), that means the part is hanging down overhead and chips don’t accumulate on pallet, they can fall free into the chip conveyor CNC controlled U-axis enables radial movement of tool for variable spindling diamenter. twin pallet changer 630 x 630 mm 6 hydraulic couplings for pallet fixture clamping with rotary joint in A and B-axis special hydraulic pump for fixture coolant through spindle (10-80bar), one channel with proportional valve for pressures 10-200 bar, electromech. tool-length measuring device GROB, BLUM laser for tool measuring, tool coding, chip conveyor, 3D touch probe M&H, el. handwheel Siemens HT8 coolant gun, coolant shower, air gun, oilskimmer, automatic door Remote diagnosis A 6th axis MAPAL Tooltronic U-axis system comes with the machine with two heads: 1. LAT125-HSK100 2. LAT160-HSK100 *

Condition: excellent (used), Year of construction: 2010, travel distance X-axis: 800 mm, travel distance Y-axis: 950 mm, travel distance Z-axis: 1,020 mm, controller model: Siemens 840D sl, spindle speed (max.): 9,000 rpm, operating hours of spindle: 10,590 h, spindle motor power: 65,000 W, SLIDE Working travels in X- / Y'- / Z-axis [mm] 800 / 950 / 1020 B-axis 360° A-axis -185°/+45° Max. speeds in X- / Y'- / Z-axis [m/min] 90 / 50 / 90 Max. acceleration in X- / Y'- / Z-axis [m / s2] 8.5 / 4.5 / 14 Max. feed force in X- / Y'- / Z-axis [kN] 8 / 8 / 12 Hodpfx Abexrcuroxow MAIN SPINDLE Tool interface for short hollow taper tools acc. to ISO 12164-1 HSKA100 Diameter at front bearing of spindle bearing [mm] 110 Speed nmax [rpm] 9000 Max. drive power at 100% / 40% duty cycle [kW] 54 / 65 Max. spindle torque at 100% / 40% duty cycle [Nm] 470 / 575 PART Table diameter [mm] 770 Table load [kg] (with / without pallet) 700 / 800 Interference diameter [mm] 900 EQUIPMENT LEVELS Automatic pallet changer 2-fold Pallet size [mm] 630 x 630 Pallet change time [s] 13.0 Tool magazine expansion TM180 (HSK-A100)

Condition: used, Year of construction: 2019, x-travel 800 mm y-travel 950 mm z-travel 1020 mm Control TNC640 B - axis 360 x 0,001 ° A - axis -185 / +45 x 0,001 ° feed x-axis 1 - 65.000 mm/min feed y- axis 1 - 50.000 mm/min Feed z- axis 1 - 80.000 mm / min. rapid traverse X/Y/Z 60 / 50 / 80 m/min spindle turning speed - stepless 1 - 16.000 U/min power capacity at 100 % load 25,00 kW power capacity at 40 % load 32,00 KW max. torque at 40% / 100% load 206,00 / 159,00 Nm tool taper HSK-A63 tool magazin: 70 tool length - max. 500 mm tool diameter 118 mm tool diameter with 2 vacant positions 260 mm tool total weight 22,00 kg Chip to chip time 4,2 sec. size of pallet 630x630 mm interference diameter 900 mm total power requirement 35,00 kW weight of the machine ca. 25,00 t dimensions of the machine ca. 7,00 x 3,50 x H3,50 m 5-axis machining center with Heidenhain TNC640 control, integrated KNOLL coolant system KF220, coolant high-pressure 23bar, Hedpfxoxn Amae Abxsw coolant through the spindle, chip conveyor, measuring probe Heidenhain TS640, electromechanical tool length check, BLUM-Laser, GROB Spindle-diagnosis (GSD), kinematics-set.

Condition: new, Year of construction: 2025, functionality: fully functional, machine/vehicle number: N2758355210385, travel distance X-axis: 800 mm, travel distance Y-axis: 1,020 mm, travel distance Z-axis: 970 mm, controller manufacturer: Siemens, controller model: ONE, spindle speed (max.): 16,000 rpm, coolant supply: 40 bar, number of slots in tool magazine: 126, input voltage: 400 V, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Highlights: - powerful Motorized spindle HSK-A 63, 16,000 rpm, 159/206 Nm, 25/32 kW - 126 tools in the system - latest machine generation _____ Basic machine G550 AB generation 2 Travel path X-axis 800 mm Travel path Y'-axis 1020 mm Travel path Z-axis 970 mm Hsdpfxexqlmbs Abxjw Power supply 400 V, 50 Hz, TN-S Basic machine G550 AB generation 2 Travel path X-axis 800 mm Travel path Y'-axis 1020 mm Travel path Z-axis 970 mm Power supply 400 V, 50 Hz, TN-S Work area door with anti-trap protection, automatic, for manual and automatic loading/unloading Decentralized work area mist collector SIEMENS ONE with GROB4Pilot Tilting table unit (A'-axis) Rotary table with pallet clamping system GROB (B'-axis) Motorized spindle HSK-A 63, 16,000 rpm, 159/206 Nm, 25/32 kW oil-air lubrication Double disk-type tool magazine HSK-A 63 for extra-long tools with 126 pockets in total Tool cleaning device Electromechanical tool breakage detection device Tool lift Palette 630 x 630 mm, grid holes, without pallet changer hook Scraper-type conveyor, discharge height 1,100 mm High-pressure cutting fluid system (5-40 bar, IKZ) Compressed air feed through spindle center Air gun at the work area Flush gun at the work area Flushing unit (Z-axis) Preparations for use of a machine accuracy package Remote machine diagnostics with access control switch 12-month warranty

Condition: good (used), Year of construction: 2012, Control Heidenhain iTNC 530 Working area: 800 mm x 1020 mm x 970 mm (x/y/z) Table diameter: 630 x 630 mm Table load: 700 kg Workpiece diameter - max.: 900 mm Rotary table (A-/B-axis) A-axis: -185 / +45 ° B-axis: 360 ° Total power requirement: 42 kVA Hsdperx N Tzefx Abxow Machine weight approx.: 22 t Chip conveyor Belt filter system - Motor spindle: 16,000 rpm Drive power: 25/35 kw Max. Torque: 160/223 Nm Spindle holder: HSK-A63 Tool changer: 120-position - Measuring probe - Kinematics package - Tool length checking device - BLUM laser measuring system Tool monitoring - electric handwheel - Suction - 80 bar IKZ system

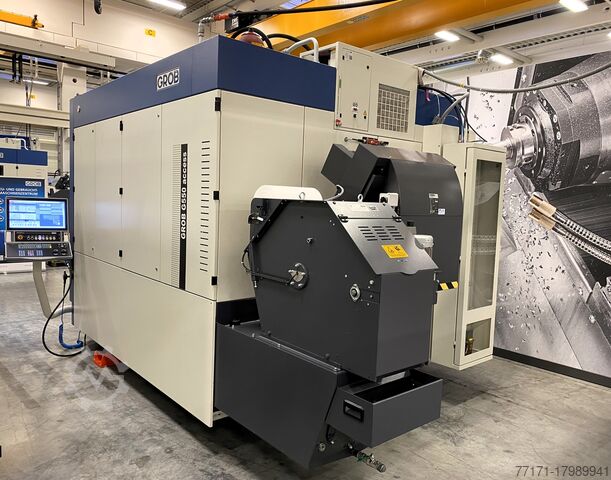

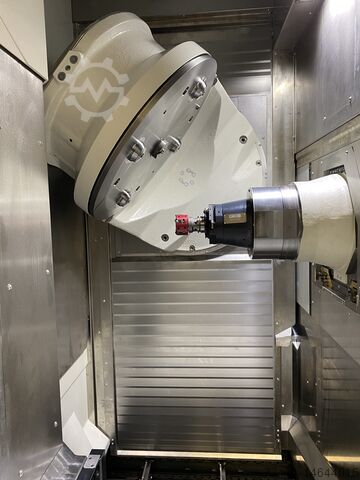

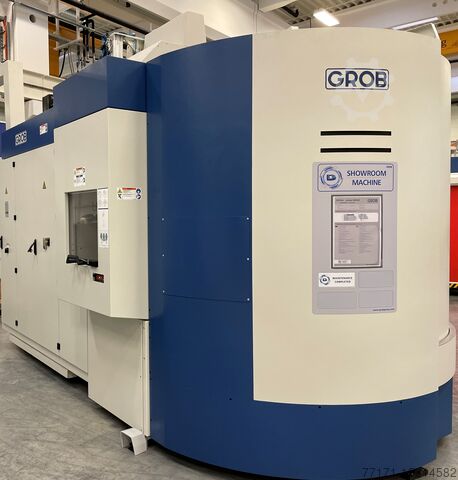

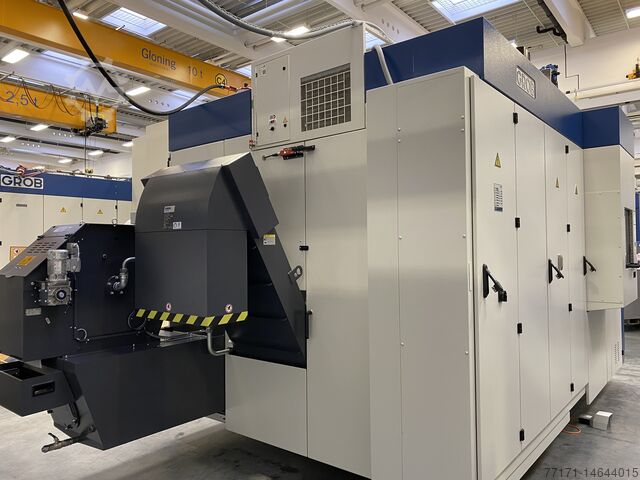

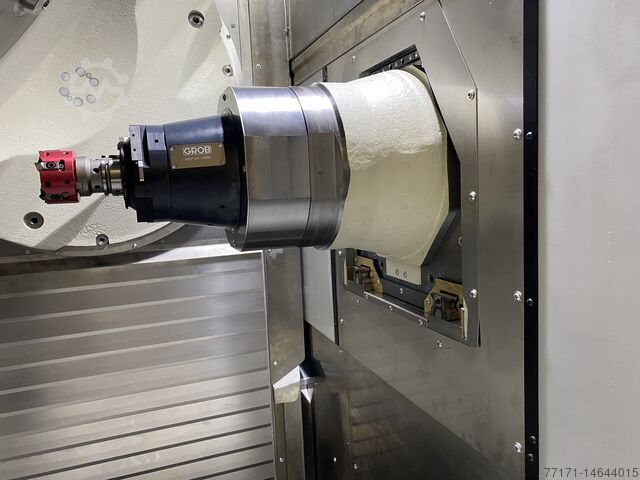

Condition: as good as new (ex-display), Year of construction: 2019, machine/vehicle number: S216405501002, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Highlights: - powerful motor spindle HSK-A 100 with 9,000 rpm - lasermeasurement system BLUM LC-DIGILOG - 46 tools in the system _____ Basic machine G550 access-SERIE Travel path of the X-axis 800.0 mm Travel path of the Y'-axis 950.0 mm Travel path of the Z-axis 1020.0 mm Power supply 400 V, 50 Hz, TN-S Decentralized work area mist collector Stainless-steel internal work area enclosure Fluid cabinet doors Hedpfx Aborul U Aexew SIEMENS SINUMERIK 840D sl with GROB4Pilot access Swivel axis calibration GSC Classic Hand-held controller HT 2 (SIEMENS) SINUMERIK MDynamics technology package - milling Tilting table unit (A'-axis) Rotary table with T-slots (B'-axis) Motorized spindle HSK-A 100, 9,000 rpm, 470/575 Nm, 54/65 kW *spindle new replaced GROB spindle diagnostics GSD Compact double disk-type magazine HSK-A 100 with 46 tool pockets Tool cleaning device Electromechanical tool breakage detection device Blum Lasermeasuringsystem LC50-DIGILOG, A‘=0° High-pressure cutting fluid system (5-40 bar, IKZ) Continuous cooler for cutting fluid with an air cooled cooling unit (13 kW) Compressed air feed through spindle center Oil skimmer for cutting fluid care Air gun at the work area Flush gun at the work area Compressed air cleaner bar for safety screen in work area door Radio touch probe OMP 60 (RENISHAW) machine status lamp 12 month warranty

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, machine/vehicle number: U255805501002, travel distance X-axis: 800 mm, travel distance Y-axis: 950 mm, travel distance Z-axis: 1,020 mm, controller manufacturer: HEIDENHAIN, controller model: iTNC 530, spindle speed (max.): 12,000 rpm, coolant supply: 23 bar, number of slots in tool magazine: 60, input voltage: 400 V, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Highlights: - Geometrie replaced - A/B axis replaced - Ready 2 Go ___ Basic machine G550 Generation 0 Travel path of the X-axis 800.0 mm Travel path of the Y'-axis 950.0 mm Travel path of the Z-axis 1020.0 mm Power supply 400 V, 50 Hz, TN-S Compressed air system, operating pressure 5 bar, minimum inlet pressure 5 bar Decentralized mist collector unit for the work area Work area door, manually operated, for manual loading/unloading HEIDENHAIN iTNC 530 machine control Tilting table unit (A'-axis) Rotary table with T-slots (B'-axis) Motorized spindle HSK-A 63, 12,000 rpm, 64/83 Nm, 40/52 kW Single disk-type tool magazine HSK-A 63 with 60 tool pockets Tool cleaning device Electromechanical tool breakage detection device High-pressure cutting fluid system (23 bar, ICS) Cutting fluid low-pressure system Cutting fluid recirculation on weekends Oil skimmer for cutting fluid care Air gun at the work area Flush gun at the work area Work area lighting Machine paintwork according to GROB standard Machine cooling system with air-cooled cooling unit Operating/environmental conditions according to GROB standard Electrical equipment according to EU GROB standard Optimizing the machine kinematics with KinematicOpt Hjdew El N Iepfx Abxsw Infrared measuring probe OMP60 (RENISHAW) Remote machine diagnostics 3-month warranty

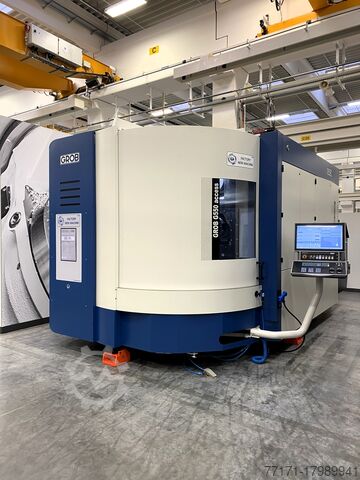

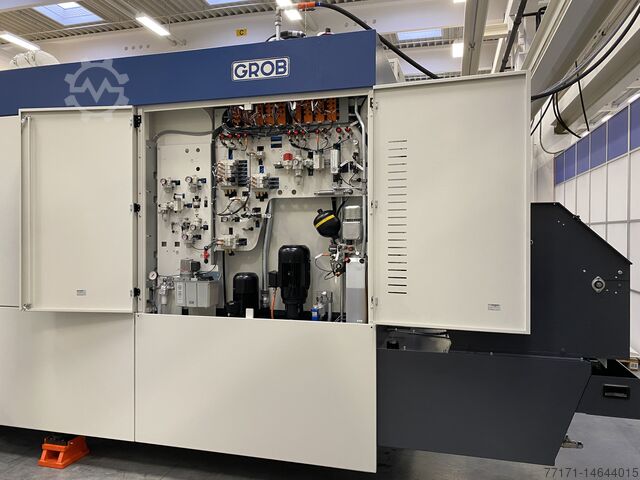

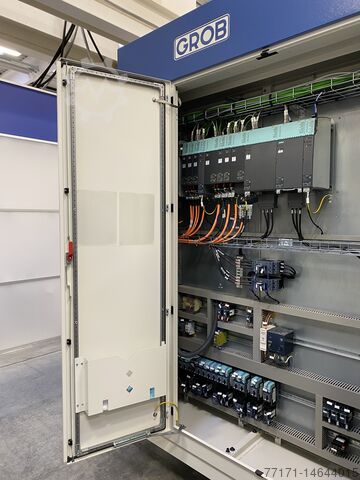

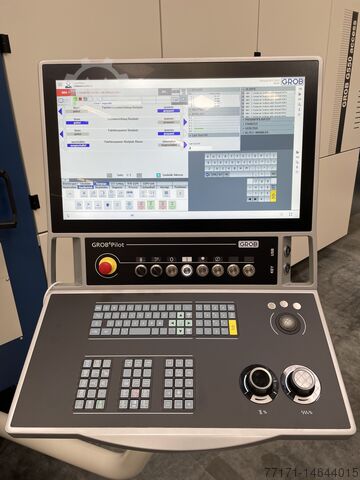

Condition: new, Year of construction: 2025, functionality: fully functional, machine/vehicle number: N2495255010011, travel distance X-axis: 800 mm, travel distance Y-axis: 950 mm, travel distance Z-axis: 1,020 mm, Highlights: - powerful motor spindle - pallet clamping system Hsdpfxovgalzo Abxjw - 90 tools in the system _____ Basic machine G550 access-SERIE Travel path of the X-axis 800 mm Travel path of the Y'-axis 950 mm Travel path of the Z-axis 1020 mm Power supply 400 V, 50 Hz, TN-S Decentralized work area mist collector Stainless-steel internal work area enclosure Fluid cabinet doors SIEMENS SINUMERIK 840D sl with the machine control panel GROB⁴Pilot Generation 2 Tilting table unit (A'-axis) Rotary table with pallet clamping system (B‘- axis) Motorized spindle HSK-A 63, 16,000 rpm, 159/206 Nm, 25/32 kW, oil-air lubrication Compact double disk-type magazine HSK-A 63 with 90 tool pockets Tool cleaning device Electromechanical tool breakage detection device Palette 630 x 630 mm, grid holes, without pallet changer hook Scraper conveyor , discharge height 1,100 mm High-pressure cutting fluid system (5-40 bar, IKZ) Compressed air feed through spindle center Air gun at the work area Flush gun at the work area Flushing unit (Z- axis) Compressed air cleaner bar for safety screen in work area door Remote machine diagnostics with access control switch 12 month warranty

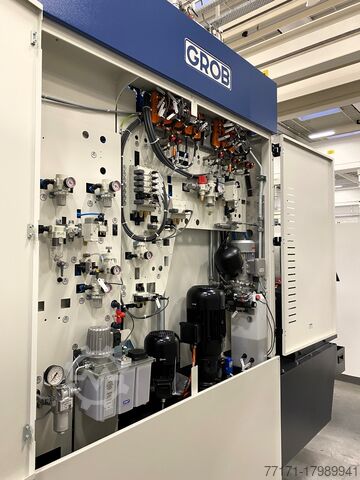

Condition: new, Year of construction: 2025, machine/vehicle number: N2154755010009, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Highlights: - powerful motor spindle - Pallet change system - 90 tools in the system _____ Basic machine G550 access-SERIE Travel path of the X-axis 800.0 mm Travel path of the Y'-axis 950.0 mm Travel path of the Z-axis 1020.0 mm Power supply 400 V, 50 Hz, TN-S Decentralized work area mist collector Stainless-steel internal work area enclosure Fluid cabinet doors SIEMENS SINUMERIK 840D sl with GROB4Pilot Generation 2 Motorized spindle HSK-A 63, 16,000 rpm, 159/206 Nm, 25/32 kW, oil-/ air lubrication Compact double disk-type magazine HSK-A 63 with 90 tool pockets Tool cleaning device Electromechanical tool breakage detection device Pallet change system for 2 630 x 630 mm pallets Palette 630 x 630 mm, grid holes, with pallet changer hook Pallet equipped with 6 fluid connections Scraper-type conveyor, discharge height 1,100 mm Hjdpfx Aeq T R Htebxow High-pressure cutting fluid system (5-40 bar, IKZ) Compressed air feed through spindle center Air gun at the work area Flush gun at the work area Compressed air cleaner bar for safety screen in work area door Part clamping system in work area KP1: Pressure oil, manual pressure reduction, 30-200 bar (H1.1) KP2: Pressure oil, manual pressure reduction, 30-200 bar (H1.1) KP3: Pressure oil, manual pressure reduction, 30-200 bar (H1.1) KP4: Pressure oil, manual pressure reduction, 30-200 bar (H1.1) Part clamping system in setup station of pallet changer KP1: Pressure oil, manual pressure reduction, 30-200 bar (H1.1) KP2: Pressure oil, manual pressure reduction, 30-200 bar (H1.1) KP3: Pressure oil, manual pressure reduction, 30-200 bar (H1.1) KP4: Pressure oil, manual pressure reduction, 30-200 bar (H1.1) KP5: Compressed air, manual pressure regulation, 0.5-5 bar (P1.1) KP6: Compressed air, manual pressure regulation, 0.5-5 bar (P1.1) Remote machine diagnostics with access control switch 12 month warranty
