CNC Lathe two spindle

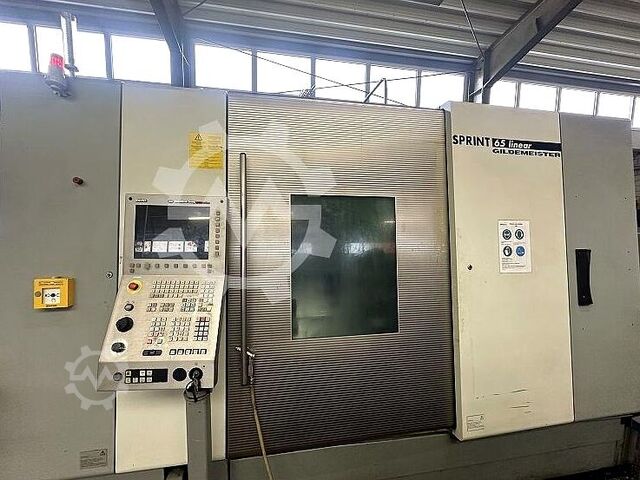

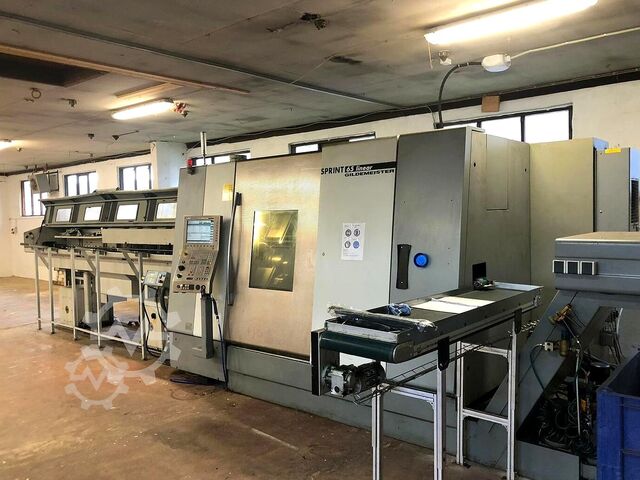

GILDEMEISTER SPRINT 65 Linear

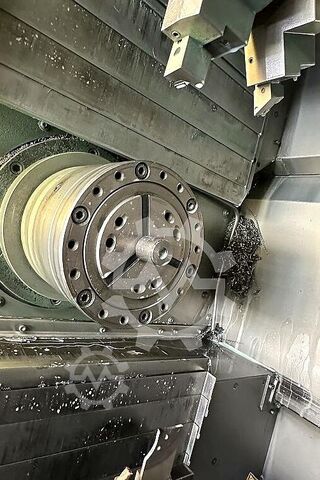

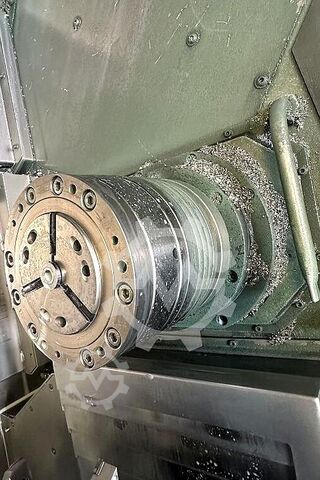

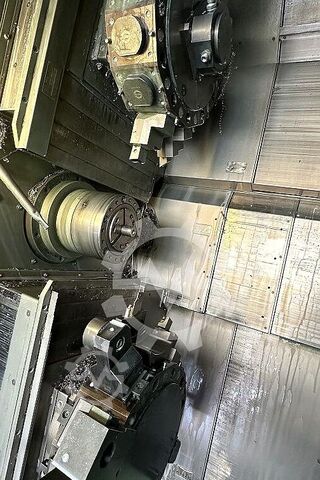

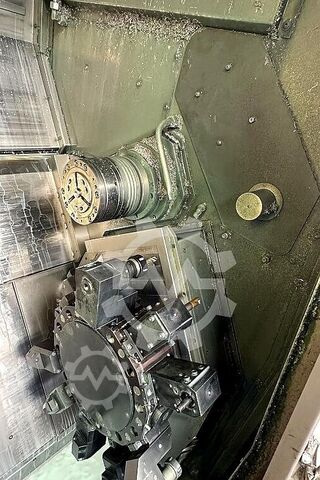

Year of construction: 2006, condition: ready for operation (used), General Data Measurements width 1700 mm Measurements depth 4500 mm Measurements height 1900 mm Machine weight 6000 kg Control Unit Brand SIEMENS Model Sinumerik 840D Main Drive Spindle speed range 6000 rpm Lhjdpfxex D R Anj Af Sor Spindle motor power 18.5 kW Number of axis 6 Media Chip conveyor Yes Additional Equipment Number of Tools: 12 Tools (including driven tools) Three turrets with 12 positions each, all positions support driven tools (VDI30 mount). Upper turret equipped with a Y-axis. Part catcher device with conveyor for part unloading Collet Chucks SK80: 18 units Angular Driven Tool Holders: 5 units Tool Holders for External Turning: Approx. 12 units for square 20 mm Angular Holders for Hole Turning: Approx. 12 units This 6-axis Gildemeister DMG GILDEMEISTER SPRINT Linear 65 was manufactured in 2006. A robust CNC Lathe with Linear Technology, it features a maximum turning diameter of 65 mm and length of 600 mm. Equipped with Siemens Sinumerik 840D control, three turrets, and Y-axis capabilities, it ensures precision and flexibility. If you are looking to get high-quality turning capabilities consider the Gildemeister DMG GILDEMEISTER SPRINT Linear 65 machine we have for sale. Contact us for more information about this machine. Application Types Turning

Condition: good (used), Manufacturer ESTARTA Model 301 MV Condition Used Stock number 4576 Location Badajoz, Spain Dimensions 1520x1020x1260mm Weight 1550 kg Opening between grinding wheels 1,5/50mm Max. grinding wheel width in plunge grinding plunge 125mm Dimensions of the working wheel (od x id x width) 300x125x175mm Øext.min. working wheel working wheel Lhedjr Ezfpopfx Af Ser 220mm Max. depth of profile of working profile depth 8mm Dimensions of the driving wheel (od x id x width) 220x125x125mm Øext.min. of driving wheel drive wheel 165mm Max. depth of profile of the driving wheel profile depth 8mm Grinding wheel motor power motor power 7,5Kw Motor power of grinding wheel driving motor power 0.75Kw Tilting angle angle of working working +/- 5º

Condition: ready for operation (used), Year of construction: 2007, operating hours: 23,567 h, functionality: fully functional, spindle speed (max.): 5,000 rpm, travel distance X-axis: 165 mm, travel distance Y-axis: 80 mm, travel distance Z-axis: 678 mm, bar passage: 70 mm, controller model: Fanuc 310i, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS X1 travel: 165 mm Y1 travel: 80 mm (+50/-30 mm) Z1 travel: 678 mm X2 travel: 165 mm Z2 travel: 640 mm Main spindle Max. speed: 5,000 rpm Max. bar capacity: 70 mm Draw tube bore: 75 mm Torque: 191 Nm Power: 20 kW Sub-spindle Max. speed: 5,000 rpm Draw tube bore: 42 mm Torque: 108 Nm Power: 17 kW Turret 1 & 2 Tool stations per turret: 12 live Live tools: 4,000 rpm MACHINE DETAILS Control: Fanuc 310i Number of controlled axes: 8 Dimensions & Weight Machine dimensions: 4,400 mm x 2,000 mm x 2,300 mm Machine weight: 8.8 t Chip conveyor weight: 750 kg Lhodox Af Dkspfx Af Sor Operating Hours Automatic mode: 23,567 h Power-on hours: 51,273 h EQUIPMENT Chip conveyor 2 x collet chucks Parts conveyor Extraction unit Bar feeder FMB Turbo 8-80 / 3200

Condition: good (used), Year of construction: 2007, - SIEMENS 840 D control - Bar capacity 65 mm - Main and sub spindle with speed 5,000 rpm - C-axis, Y-axis - 3 turrets, each with 12 stations (all driven) - Driven tool speed 4,000 rpm - Tool holder VDI 30 with drive according to DIN 5480 Lhodpfx Afjuw Izvs Ssr TRAVELS X1= 165, Z1= 220 mm X2= 165, Z2= 150 mm X3= 165, Z3= 650, Y3= 80 (+50/-30) mm ACCESSORIES Coolant system Chip conveyor Bar loader TOP Automazioni XF 375

Condition: used, TECHNICAL DETAILS - Number of spindles : 2 - Number of axes : 2 MAIN SPINDLE - Spindle speeds : 6500 [rpm] - Max. bar diameter : 42 [mm] - Max. turning diameter : 120 [mm] - C axis indexing precision : 0.1 [°] COUNTER-SPINDLE - Spindle speeds : 6500 [rpm] - Max. bar diameter : 42 [mm] - C axis indexing precision : 0.1 [°] POWER SUPPLY - Supply voltage : 230 [V] - Total installed power : 7.5 [kW] WEIGHT & DIMENSIONS - Machine floor space : 5.400 x 1.900 [mm] Lodpfx Afou E U Ufo Sehr - Machine height : 2.000 [mm] - Machine weight : 5.000 [kg] MACHINE HOURS - Number of hours under power : 33912 [h] - Number of working hours : 21069 [h] EQUIPMENT - CNC : FANUC 160i - Coolant tank - Chips conveyor - Parts catcher - Parts conveying strip

Condition: ready for operation (used), Year of construction: 2005, operating hours: 52,455 h, functionality: fully functional, machine/vehicle number: 2501-0154, turning length: 600 mm, turning diameter over cross slide: 140 mm, turning diameter: 300 mm, spindle motor power: 25,000 W, spindle speed (min.): 5,000 rpm, spindle speed (max.): 5,000 rpm, travel distance Z-axis: 900 mm, rapid traverse X-axis: 3 m/min, rapid traverse Y-axis: 3 m/min, rapid traverse Z-axis: 3 m/min, rotational speed (max.): 4,000 rpm, rotational speed (min.): 4,000 rpm, torque: 239 Nm, bar passage: 80 mm, feed rate X-axis: 165 m/min, feed rate Y-axis: 165 m/min, feed rate Z-axis: 220 m/min, overall weight: 10,500 kg, Equipment: documentation/manual, Machine is still in use and can be seen working at VOVU Machining in Uden. In total there are 6 identical machines here. Fanuc 310is controller Lhodpsur Hfzefx Af Ssr

Condition: used, Year of construction: 2006, spindle speed (max.): 5,000 rpm, total width: 45,000 mm, total length: 19,900 mm, total height: 23,000 mm, travel distance X-axis: 165 mm, travel distance Y-axis: 80 mm, bar length: 600 mm, CNC Lathe (with 2nd spindle, 3 turrets and Y-axis) Lhedpfx Asxnmxmef Ssr Spindle bore diameter 65 mm Spindle speed 5.000 R/min Spindle motor 25/20 kW Spindle speed counter spindle 5.000 R/min X-axis movement 165 / 165 / 165 Y-axis movement 80 mm Z-axis movement 220 / 150 / 650 mm W-axis movement (subspindle to mainspindle) 690 mm C-axis indexing 0,0001° Number of turret 3 Number of tools on turret 12 (3x 12) Tool taper VDI 30 Bar feeder LNS Quick Load Servo 65 If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: used, Year of construction: 2013, controller manufacturer: Siemens, controller model: 840Dsl, _____ Description: Year of manuf. : 2013 Control : Siemens 840Dsl Turning diam. : 430 mm Turning length : 744 mm Mainspindle: Technology:Motorspindle Speed:5.000 rpm Power (max.):29 kW Torque (max.):250 Nm Ledpfx Ajw Tg Adef Sohr Barcapacity:65 mm Workpiececlamping:Collet chuck, Hainbuch Spanntop nova Kombi Axzug Gr. 65 Subspindle: Technology:Motorspindle Speed:7.000 rpm Power (max.):22 kW Torque (max.):130 Nm Workpiececlamping:3-Jaw chuck, SMW Autoblok KNCS-N-225-66 Ejector:Pneumatic Movement in Z:750 mm Toolcarrier I (X/Y/Z): Technology:Turret with 12 stations Taper:VDI30 Tooldrive:4.000 rpm, 6,7 kW, 25 Nm Movement in X/Y/Z:270/100/750 mm Eilgang in X/Y/Z:24/10/30 m/min Toolcarrier II (X/Z): Technology:Turret with 12 stations Taper:VDI30 Tooldrive:4.000 rpm, 6,7 kW, 25 Nm Movement in X/Z:205/750 mm Eilgang in X/Z:24/30 m/min Equipment/Accessory: Chipmanagement:Chip conveyor Coolingmanagement:Internal coolant pumps with High-pressure, 14 bar Rawmaterialfeed:Barloader, EMCO LM 1200 Finishedpartremoval:Workpiece unloading device (pneumatic) with conveyor belt Oilmistseparation:Mechanical extraction, Absolent Toolholder:Misc. static and driven toolholder Further Accessory:Spindlechiller

Condition: good (used), Year of construction: 2013, functionality: fully functional, Gildemeister SPRINT 65 Linear IRCO Breuning bar feeder Chip conveyor High-pressure unit with integrated paper belt filter system and cooling unit Lsdpfx Afjwwa U Ao Sohr Fanuc 310 control Operating hours: approx. 61,550 Production hours: approx. 46,400 The machine can be inspected under power Immediately available

Condition: ready for operation (used), controller model: Fanuc 310i, empty load weight: 10,000 kg, total length: 4,500 mm, total width: 1,990 mm, total height: 2,300 mm, swing diameter over cross slide: 950 mm, Spindle 1: 20 kW - 5000 rpm - spindlebore: 70 mm Turret 1: 12 driven tools - 2,5 kW - 4000 rpm Driven C-axis X1 movement: 165 mm Y1 movement: +50/-30 mm Z1 movement: 678 mm Spindle 2: 17 kW - 5000 rpm - spindlbore: 42 mm Turret 2: 12 driven tools - 2,5 kW - 4000 rpm Driven A-axis X2 movement: 165 mm Z2 movement: 640 mm Iemca Master 880 P barfeeder Dia of spindle bore: 70 & 42 mm Power on the spindle: 20 & 17 kW Number of speeds: 5000 rpm Lodpfev Rwltex Af Sohr Chuck: Ø 175 mm Toolchanger: yes (2x) Number of tools: 12 tools (2x)

Condition: excellent (used), Year of construction: 2006, FAMUP MCP 45 CNC machining center TECHNICAL DATA axes Number of axes: 3 X-axis: 450 mm Y-axis: 300 mm Z-axis: 400 mm Feed rate Work feed X,Y,Z: 10`000 mm/min Rapid feed X,Y,Z: 30`000 mm/min Working pressure force X,Y: 2000 N Working pressure force Z: 3300 N Pallet Dimensions: 400 x 300 mm Number of grooves: 2 Groove width: 14 mm Groove spacing: 80 mm Max. Table load: 100 kg Changeover time: 9 sec. Spindle Spindle motor power: 5 kW Speed: 10`000 rpm Tool changer Magazine slots: 16 Max. Tool diameter: 63 mm Max. Tool length: 150 mm Max. Tool weight: 4 kg Tool change time: 1.7 sec Lhjdpfxeq U Rm He Af Ser Weight: Approx. 3000 kg No responsibility is taken for the correctness, completeness and up-to-dateness of the information.

Condition: used, Year of construction: 2006, spindle speed (max.): 5,000 rpm, total width: 45,000 mm, total length: 19,900 mm, total height: 23,000 mm, travel distance X-axis: 165 mm, travel distance Y-axis: 80 mm, bar length: 600 mm, CNC Lathe (with 2nd spindle, 3 turrets and Y-axis) Spindle bore diameter 65 mm Spindle speed 5.000 R/min Spindle motor 25/20 kW Spindle speed counter spindle 5.000 R/min X-axis movement 165 / 165 / 165 Y-axis movement 80 mm Z-axis movement 220 / 150 / 650 mm W-axis movement (subspindle to mainspindle) 690 mm Ljdpfx Afjxnmvfj Sjhr C-axis indexing 0,0001° Number of turret 3 Number of tools on turret 12 (3x 12) Tool taper VDI 30 Bar feeder LNS Quick Load Servo 65 If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.
