CNC lathe

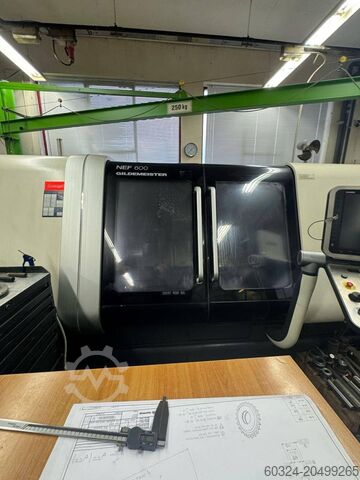

Gildemeister NEF 600

Condition: good (used), Year of construction: 2006, GILDEMEISTER NEF 600 CNC lathe Year of manufacture: 2006 Control system: SIEMENS 840D powerline with ShopTurn Equipment: 3-jaw chuck RÖHM 250 mm 4-jaw chuck RÖHM 250 mm Turret, 8-position Hydraulic tailstock Chip conveyor Foot switch Included in the scope of delivery: Complete set of VDI toolholders, equipped with turning tools and more Operating manual/documentation Technical data, transport & plans – see PDF. All technical specifications, illustrations, and content are non-binding and without warranty. Subject to change and errors. All other accessories visible in the photos and video are not included in the scope of delivery and are therefore not part of this sale. The scope of delivery only includes the accessories that are explicitly listed here, in the order confirmation, and in the invoice. FCA (Free on Truck) D-32457 Porta Westfalica Packaging only Hnsdpfx Adozddcieren Delivery time: immediately Subject to prior sale / Payment due immediately upon purchase

Condition: excellent (used), Year of construction: 2011, operating hours: 5,040 h, functionality: fully functional, turning length: 1,250 mm, turning diameter over cross slide: 420 mm, turning diameter: 420 mm, spindle speed (min.): 35 rpm, spindle speed (max.): 4,000 rpm, spindle bore: 80 mm, travel distance Z-axis: 1,250 mm, rapid traverse X-axis: 33 m/min, rapid traverse Z-axis: 33 m/min, bar diameter (max.): 80 mm, MAZAK QUICK TURN 300 Smart Operating Hours: Hnodpjwzkvfefx Adron Automatic Operation: 5,040 hours Condition: Very good condition, regularly serviced and meticulously maintained! Capacity & Working Area Max. swing diameter: Ø 720 mm Max. turning diameter: Ø 420 mm Max. bar stock diameter: Ø 80 mm Max. machining length: 1,200 mm Main Spindle Max. spindle speed: 4,000 rpm Spindle nose: JIS A2-8 Rated power (40% duty cycle): 26 kW Max. torque: 750 Nm Turret Number of tool stations: 12 Tool cross-section: 25 mm (external), 50 mm (internal) Feed Axes Rapid traverse (X / Z): 30 / 33 m/min Travel (X / Z): 240 mm / 1,314 mm Tailstock Taper: MK NC axis, pressure controlled via M-codes Max. axial pressure: 10,000 N Dimensions & Weight Machine dimensions (L x W x H): 3,770 x 1,810 x 1,900 mm Weight: 7,100 kg (without chip conveyor and coolant) Chuck: Kitagawa BB210 with through-hole Chip Management Mayfran hinged belt chip conveyor Coolant pump 8 bar & chip flush General Specifications: SD MEMORY I/F (1P) + USB MEMORY I/F (1P) Mazak standard colour NC controlled tailstock Tailstock pressure adjustment Tailstock with fixed quill (650U/1250U) Operator door with safety interlock switch Double foot switch Fully enclosed work area Work area lighting Safety devices according to global standards Complete coolant system Chuck status notification Automatic tool setter (Tool Eye) 10.4" colour display EIA/ISO package LAN interface

Condition: used, Year of construction: 2006, turning diameter 600 mm turning length 1250 mm control Siemens 840D radial face slide travel 320 mm turning speed range 5-3.000 U/min Number of tools 8 St. total power requirement 42 kva weight of the machine ca. 5,5 t dimensions of the machine ca. 3,6x2,15x1,95 m 1 pc. steadyrest 20 - 150 mm 1 pc. steadyrest 50 - 200 mm Hnjdpfx Aey I A Utsdrsn

Condition: excellent (used), Year of construction: 2005, CNC Lathe GILDEMEISTER NEF 400 Year of manufacture: 2005 Control: Siemens 840 D Technical specifications: Turning length: 650 mm Swing diameter over bed: 400 mm Swing diameter over cross slide: 270 mm Spindle bore: 65 mm Travel X-axis: 220 mm Travel Z-axis: 700 mm Max. main spindle speed: 4,000 rpm 8-position tool turret Machine weight: approx. 3,175 kg Hjdpeyin Imsfx Adrenn

Condition: used, Year of construction: 2012, turning diameter 350 mm turning length 650 mm control 840 D SL ShopTurn Siemens greates pass round over bed 385 mm Swing dia. over traverse guideway 350 mm turning speed range - main spindle 0 - 4.500 min/-1 power capacity - main spindel 11,5 / 8 kW max. Torque 340 Nm spindle diameter in front bearing 130 mm spindle bore 87 mm bar material dia. max. 65 mm max. chucking diameter 250 mm spindle head 170 h5 number of toolpositions 12 pos. Shank diameter DIN 69880: 30 mm Number of driven toolspositions 6 pos. Spindle speed - driven tool stations max. 4.500 min -1 power capacity driven tool-stations 5,5 kW x-axis 255 mm z-axis 800 mm tailstock 680 mm taper of center MK 4 clamping capacity 6,8 kN feed speeds 0 - 30.000 mm/min rapid traverse ( X / Y / Z ) 30 / - / 30 m/min Feed force ( X / Y / Z ) 4,5 / - / 6,2 kN total power requirement 28 kW weight of the machine ca. 3,3 t Hjdey E Tvvepfx Adrenn dimensions of the machine ca. 5,0 x 2,5 x 2,3 m CNC Universal Lathe GILDEMEISTER - NEF 400 V3 - C-Axis - Tool-Drive - only ca. 8093h Spindle hours - incl. 1x workbench - incl. 1x tool cabinet - incl. 1x cabinet for VDI tool holders - incl. 8x tool holders - incl. 4x driven tools (2 radial, 2 axial)

Condition: used, Year of construction: 2003, Technical data: Swing diameter: 680 mm Distance between centers: 1000 mm Speed: 2800 rpm Chuck: ø300 mm Hsdpfx Adsyfnqgjrenn Dimensions, approx.: 5560 x 2400 x 2130 mm Weight, approx.: 10,000 kg Equipment: - Control: Heidenhain CNC Pilot 4290 - 12-position turret VDM 40 - C-axis

Condition: ready for operation (used), Year of construction: 2007, Make: DMG Hnedpfsxnpbqox Adrjn Type of machine: Nef 600 Year of manufacture: 2007 Control system: Fanuc 210 is Machine's weight: 5,5 t Tool holder: VDI 40 x-travel: 320 mm z-travel: 1250 mm Speed range: 3000 U/min Cutting diameter: 600 mm Turning length: 1250 mm Overall dimensions: 4000 x 2200 x 2000 mm Tool turret - slots: 8 Pl. Spindle opening: 90 mm

Condition: ready for operation (used), Max. swing over bed: 528 mm Hedpfx Adsx Hx A Dorsnn Max. swing over cross slide: 370 mm Max. turning length: 785 mm Spindle bore: 77 mm Main spindle speed range: 20 - 3,500 rpm Tool turret: 12 positions Control: FANUC O-T Year of manufacture: 2000 Machine weight approx.: 6,200 kg
