CNC machining center

ELU Elumatec SBZ 130/01

Condition: excellent (used), Year of construction: 2003, Functionality: fully functional, machine/vehicle number: 1300030446, travel distance X-axis: 6,450 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 380 mm, workpiece length (max.): 6,500 mm, rotational speed (max.): 6,000 rpm, number of slots in tool magazine: 8, Equipment: rotational speed infinitely variable, The machine will be delivered free-loading on a truck. TECHNICAL DETAILS X1-axis travel: 6,450 mm X-axis travel: 300 mm Y-axis travel: 400 mm Z-axis travel: 380 mm Feed rate X1 / X, Y, Z: 34 / 18 m/min Tools Turret: 8 slots Tool diameter: 80 mm Oscillating operation: possible Tool change time: 1.2 s Spindle speed: 6,000 rpm Spindle power: 5.5 kW Tool taper holder: BT 30 Collet holder: S15 Clamping connections: 12 Drgdfx MACHINE DETAILS Air consumption per cycle: 180 l Dimensions: 9,800 x 3,000 x 2,400 mm Height with hood open: 3,300 mm Weight: 5,400 kg FEATURES - Automatic clamp adjustment - Continuously adjustable speed - Measuring plate included Delivery: EXW - free truck

Condition: used, Year of construction: 1999, x-axis 6450 mm Bur8Umn3L3 y-axis 400 mm z-axis 380 mm working lenght 6500 mm Number of tools 8 St. tool taper BT30 tool changing time 1,2 sec diameter of tools max. 80 mm turning speeds 6000 U/min Feed speed X = 34 m/min. Feed speed Y+Z = 18 m/min. total power requirement 8,5 kW dimensions 9800 x 3000 x 2400/3300 mm weight 5400 kg *Bar machining center, 3-axis machining of aluminum, plastic, steel and stainless steel profiles*

Year of construction: 2013, Condition: good (used), Functionality: fully functional, machine/vehicle number: 6300001143, elumatec sawing center type SBZ 630/01 Dox0N2 - maximum profile length 7.500mm - feed magazine for 7 profiles with 200mm width - 90° cuts over Y/Z axis - 45°-90°-135° tilting over Y/A axis - 45°-90°-135° tilting over Z/C axis - controlled material clamping - saw motor power 7.5 kW - controlled saw feed - including automatic chip removal belt Machine can be viewed working and will be available July 12

Year of construction: 2003, Condition: good (used), Functionality: fully functional, machine/vehicle number: 1300030464, For sale on customer order: Profile processing machine SBZ 130 with a length of 7,500 mm - automatic clamp positioning - pneumatic protective cover Dq9Uab - 3 angle milling heads - 1 x high-speed spindle - various collet chucks - barcode scanner - clamping jaws

Condition: ready for operation (used), Year of construction: 1999, Control Unit Brand Ferrocontrol Model 3.204 Main Drive Spindle speed range Up to 6000 rpm Tool taper BT30 Movement X-Axis Movement 6500 Y-Axis Movement 400 Z-Axis Movement 380 Additional Equipment For additional info, see the manual attached. Brsrvvgwfpi This 3-axis Elumatec SBZ 130 vertical machining centre was manufactured in 1999. It features a working range of X=6500mm, Y=400mm, Z=380mm, and a Ferrocontrol 3.204 control system. The revolver tool magazine holds 8 tools with a maximum speed of 6000rpm and a BT30 clamping cone. If you are looking to get high-quality milling capabilities consider the Elumatec SBZ 130 machine we have for sale. Contact us for more information. Application Types Milling

Year of construction: 2010, Condition: used, 3-axis machining center with automatic 8-way tool changer for aluminum, PVC or steel profiles Max. processing length: 7200 mm Dqkts2 Max. travel Y-axis: 480 mm Max. travel Z-axis: 325 mm Windows control with Elusoft dongle Speed infinitely adjustable up to 6,000 rpm minimum quantity spraying 2 angle heads, one rotatable 1 slow-speed spindle for steel profiles clamp detection and displacement 8 pneumatic material clamps Pendulum operation possible through 2 light barrier areas Loading included in the price Weight: approx. 5,000 kg

Year of construction: 2012, Condition: used, 3-axis machining center with automatic tool change for aluminum or PVC profiles Max. travel X-axis: 3,850 mm Max. travel Y-axis: 350 mm Max. travel Z-axis: 280 mm Windows 7 control with USB ports Speed continuously adjustable up to 24,000 rpm handheld control unit minimum quantity spraying Tool changer with 2 magazines (total 10 places plus angle head) profile length measuring system on the head tensioner detection and tensioner displacement Just under 1300 spindle hours Cd8Qk8Uiyu Light barrier A total of 5 material clamps Spindle in mint condition, spindle pull-in force: 16 kN Safety fence dismantled, but demonstration is still possible Additional stop with roller conveyor for longer parts Weight: approx. 2,000 kg

Year of construction: 2010, Condition: used, 3-axis machining center with automatic tool change for aluminum or PVC profiles Max. travel X-axis: 3,850 mm Max. travel Y-axis: 350 mm Max. travel Z-axis: 280 mm Windows control with USB ports Speed continuously adjustable up to 24,000 rpm handheld control unit minimum quantity spraying Tool changer with 2 magazines (total 10 places plus angle head) profile length measuring system on the head tensioner detection and tensioner displacement Light barrier A total of 5 material clamps Beqoq9G3C Spindle in new condition, spindle pull-in force: 15.5 kN Safety fence dismantled, but demonstration is still possible Weight: approx. 2,000 kg

Year of construction: 2008, Condition: excellent (used), Accessories: Tool holder with collets Dqygtz

Condition: used, Year of construction: 1994, Functionality: fully functional, machine/vehicle number: 26045, saw blade diameter: 420 mm, It performs cuts with double angle. It is supplied complete with input roller conveyor and output roller conveyor equipped with measurement reader. B2Blhzs0Cy

Year of construction: 2019, Condition: ready for operation (used), General Data Measurements width 1600 Measurements depth 7550 Measurements height 1450 Dpm3Qz Machine weight 5500 Control Unit Brand E580/1 Main Drive Main motor power 4000 W / 5.5 PS Additional Equipment 2 carbide saw blades for aluminum and plastic Diameter: 420 mm, number of teeth: 96 Saw blade cooling equipment Small stop for the stationary head Profile lifting bars for the stationary and moving head Work piece support that can be moved on the machine bed Two cutting and oversize cutting software solution Software connection to production preparation program Pneumatic clamping unit, horizontal Roller track mounted on a moving head 1.5 meters, 300 mm wide This 3-axis Elumatec SBZ 131 pipe saw was manufactured in 2019. It features a 7.2-meter cutting length, 4-axis control for precise aluminum and steel processing, and a revolver head with storage for 8 tools. The machine ensures operator safety with a light barrier and protective grid. It's ideal for complete profile processing without moving the raw material. Buy this Elumatec SBZ 131 pipe saw for efficient and accurate work. Contact us for further details regarding this pipe saw. Application Types Sawing

Year of construction: 2009, Condition: excellent (used), Functionality: fully functional, Length stop and measuring systems Roller conveyors Saw blades High performance cutting fluid Technical Data Pivoting range manually 22.5° to the left and right with digital display E111 Tilting range pneumatically from 90° - 45° For cutting range, see cutting diagram Saw blade diameter 420 mm Saw blade speed 2,800 rpm Bgccjhikk8 Power supply 230/400 V, 3~, 50 Hz Power output 4 kW Compressed air supply 7 bar Air consumption per working cycle 20 l without spraying, 32 l with spraying Length 1,400 mm, depth 1,500 mm, height 1,880 mm, weight 750 k

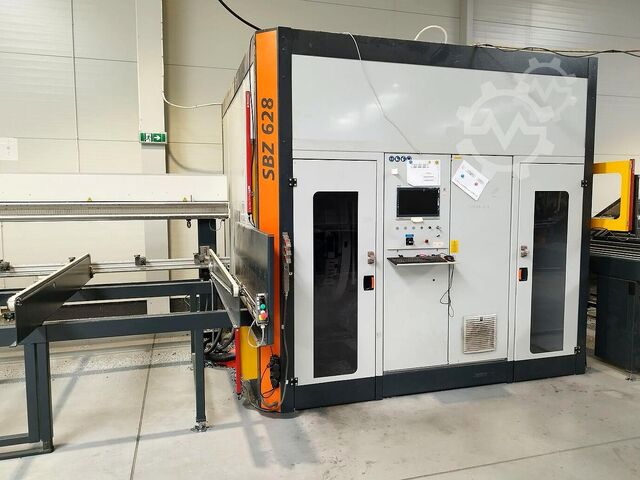

Year of construction: 2016, Condition: good (used), Functionality: fully functional, machine/vehicle number: 6280028128, Machine is provided "free loaded truck". No dismantling and loading costs! TECHNICAL DETAILS Max. profile cutting width: 320 x 160 mm Min. profile cutting width (depending on gripper position): 30 x 10 mm Raw material system Length of the raw bar system: 7,600 mm Finished part system Bwom927Ki8 Finished part length: 3,500–4,600 mm Kurt cell Kurt cell (50-150/150-350): optional Feed system Shortest raw bar length: 1,500 mm Swing arm selection: 5 (option 9) Support plate: 10 (over 120 mm 5) Infeed Servo drive: linear Gripper adjustment electric: Y/Z Gripper guide: standard Remnant piece measurement: optional Remnant piece processing: fully automatic Processing station Number of axes: 5 Milling spindles: 8 (can be prepared) Saw Number of axes: 3 Saw blades (diameter): Ø 550 mm, optional Ø 650 mm Saw angle: 22.5°–157.5° (swivel) Notch cuts: standard (from above) Outfeed chip carriage Number of axes: 1 Outfeed conveyor Lifting station: yes Swing selection: 5 Width of outfeed conveyor: 4,000 mm MACHINE DETAILS Dimensions: 20 x 3 x 4 m Weight: 8.8 t Connection power: 39 kW Operating voltage: 3/N/PE 400 V EQUIPMENT - Feed magazine - Loading transport - Processing station with milling unit, saw unit and clamping blocks - Unloading transport of profiles (removal gripper) and unloading conveyor - Acoustic protection cabin - Control panel on the soundproof cabin - Control cabinet - Fencing and protective doors

Year of construction: 2000, Condition: repair required (used), Functionality: limited functionality, machine/vehicle number: 1500050136, Technical data: - Travel X-axis: 7300mm - Travel Y-axis: 1000mm - Travel Z-axis: 650mm - Swivel angle A-axis: 0-90° freely programmable - Swivel angle C-axis 0-355° freely programmable - Max. processing length without front-side processing: 7300mm - Max. processing length with front-side processing: 6980mm - Tool changer with 10 places and a saw blade holder Bo72Ttwr8E - 9 material clamps - Tool holder SK30 Drcjnz - 2-layer processing

Year of construction: 2009, Condition: ready for operation (used), X-travel: 3850mm, y-travel: 350mm, z-travel: 280mm, working length: 3850mm, max. feed rate y and z/ x-axis: 30/ 50m/min, positioning accuracy: +/- 0,1mm, milling spindle rotational speed: 1-21.000/min, with electronic three-axis industrial PC-controls of which 2 axes as path control, with color screen and disk drive, barcode scanner and label printer. Drbmcn

Year of construction: 2009, Condition: used, 4-axis machining center with 8-way tool changer for aluminum or PVC profiles Max. processing length: 13,000 mm Y-axis travel: 850 mm Z-axis travel: 650 mm Swivel angle A-axis: 0° - 180° Max. Speed 21,000 rpm New PC with Windows 7 in 2020 minimum quantity spraying Tensioner detection and automatic displacement saw blade with 254 mm diameter from 2020 Pendulum operation through two light barrier areas Completely new spindle with 18 kN pull-in force Angle head for machining from below Barcode scanner Bgxke7Qspc Loading is included in the price Weight: approx. 6,500 kg

Condition: good (used), Year of construction: 2009, Functionality: fully functional, machine/vehicle number: 122009984, travel distance X-axis: 3,850 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 280 mm, rotational speed (max.): 24,000 rpm, number of slots in tool magazine: 8, No reserve price - guaranteed sale at the highest bid! For milling, drilling and thread cutting work on aluminum, PVC and thin-walled steel profiles for applications in window, facade and metal construction! CONDITION Spindle: New bearings Frequency converter: Recently replaced Tool change: Automatic tool change requires a new sensor - little effort TECHNICAL DETAILS Areas of application: Aluminum, PVC and steel processing Software/control: PC-based EluCam software Dq98Fv Processing area X-axis travel: 3,850 mm Y-axis travel: 350 mm Z-axis travel: 280 mm Feed rates (rapid traverse) X-axis: 60 m/min Y-axis: 30 m/min Z-axis: 30 m/min Spindle Power: 7 kW Max. speed: 24,000 rpm Tool holder: HSK-F63 angle head (as new, hardly used) Tool changer Type: Automatic tool changer Places: 8 Vices Number: 12 pneumatic double vices Safety equipment Included: light barrier and safety fence MACHINE DETAILS Machine weight: approx. 2,000 kg Dimensions: approx. 5.1 x 3.4 x 2.6 m

Year of construction: 2008, Condition: excellent (used), Processing center elumatec SBZ 609 for profile processing. Equipped with 19 tools. Automatic screw code scanner. The machine has a protective fence on the right and left side of the machine. Completely renovated. Dq8Zmp New tools built in. Replaced consumable parts.

Year of construction: 2016, Condition: good (used), Functionality: fully functional, machine/vehicle number: 6280028128, Machine is provided "free loaded truck". No dismantling and loading costs! TECHNICAL DETAILS Max. profile cutting width: 320 x 160 mm Min. profile cutting width (depending on gripper position): 30 x 10 mm Raw material system Length of the raw bar system: 7,600 mm Finished part system Finished part length: 3,500–4,600 mm Kurt cell Bemwhyrpn0 Kurt cell (50-150/150-350): optional Feed system Shortest raw bar length: 1,500 mm Swing arm selection: 5 (option 9) Support plate: 10 (over 120 mm 5) Infeed Servo drive: linear Gripper adjustment electric: Y/Z Gripper guide: standard Remnant piece measurement: optional Remnant piece processing: fully automatic Processing station Number of axes: 5 Milling spindles: 8 (can be prepared) Saw Number of axes: 3 Saw blades (diameter): Ø 550 mm, optional Ø 650 mm Saw angle: 22.5°–157.5° (swivel) Notch cuts: standard (from above) Outfeed chip carriage Number of axes: 1 Outfeed conveyor Lifting station: yes Swing selection: 5 Width of outfeed conveyor: 4,000 mm MACHINE DETAILS Dimensions: 20 x 3 x 4 m Weight: 8.8 t Connection power: 39 kW Operating voltage: 3/N/PE 400 V EQUIPMENT - Feed magazine - Loading transport - Processing station with milling unit, saw unit and clamping blocks - Unloading transport of profiles (removal gripper) and unloading conveyor - Acoustic protection cabin - Control panel on the soundproof cabin - Control cabinet - Fencing and protective doors

Condition: used, Year of construction: 2008, Functionality: fully functional, SBZ 151 elumatec bar machining center 7.3 meters 5-axis CNC control, used machine, built in 2008 Efficient machining of aluminum and steel profiles. Working length: 7,300 mm. Dq3Puf Automatic tool changer for 13 standard tools and 7 special tools Separate tool changer for aluminum saw blade max. diameter 500 mm Six-sided machining. From below with angle head (option) Automatic clamp detection and positioning Two-circuit clamping system with two pneumatically lowerable stops. Automatic central lubrication system as standard. Stable machine bed for working length 7,300 mm. Clamping system with integrated six-row ball bearing units on linear guides. 5-axis CNC control PC control panel with 15" color screen - PC keyboard with mouse - CD-ROM drive - Floppy disk drive - USB and PS2 connection Integrated network connection 10/100 MBit, RJ 45 Analog modem (phone line provided by customer) Machine control panel MP03 - 55 keys with LED control - Potentiometer separate for feed and spindle speed - 3 keys with LED - NC start - NC stop - reset Self-sufficient CNC core with 3D interpolation Independent PC system with mass storage of programs and simple Connection to the network RTCP (G26) - Simplified programming in space (inclined plane) taking into account the offset dimensions of the tool and pivot point offset Electronic handwheel Thread cutting without compensating chuck (option) Technical data: Travel range X-axis: max. 7,540 mm Max. travel speed 60 m/min. Y-axis travel: 1,150 mm Max. travel speed 40 m/min. Z-axis travel: 715 mm Max. travel speed 40 m/min. A-axis swivel angle: +/-110° freely programmable C-axis swivel angle: +/-180° freely programmable Max. swivel speed of the A and C axes 175°/sec. Positioning accuracy: X-axis +/- 0.1 mm Y-axis +/- 0.1 mm Z-axis +/- 0.1 mm Spindle speed 100 - 24,000 rpm. Max. spindle power: 16 kW S1 Tool holder: HSK F63 Cutter diameter: max. 100 mm Saw blade diameter: max. 500 mm Tool length: max. 150 mm from nominal cone size. Accessories included: Automatic tool changer on the right for 20 tools, left for 1 saw blade Two-circuit clamping system with 2 pneumatically lowerable material stops. 8 horizontal pneumatic material clamping devices Tool setting gauge Light barrier system for machine protection on the front Safety fence on the left and right Incl. optional accessories: 1x automatic length measurement on both sides 1x autonomous clamping device for 8 clamps 1x separate clamping device for autonomous clamping device 1x cycle device with special clamp 1x label printer 230 volt USB 1x tool tray for angle milling head 1x angle milling head for machining from below 1x saw blade holder complete with saw blade 1x handheld control unit 1x barcode scanner incl. software package for SBZ 151, consisting of: 1x eluCad basic module Office version 1x additional license for basic module 1x clamping device management 1x profile bar machining

Condition: good (used), Elumatec spare parts SBZ 122 Sd0Mhknawf

Condition: excellent (used), Year of construction: 2013, operating hours: 7,810 h, Functionality: fully functional, machine/vehicle number: 1400040686, travel distance X-axis: 7,600 mm, travel distance Y-axis: 850 mm, travel distance Z-axis: 650 mm, rapid traverse X-axis: 65 m/min, rapid traverse Y-axis: 60 m/min, rapid traverse Z-axis: 60 m/min, total height: 2,950 mm, total length: 11,340 mm, total width: 3,430 mm, overall weight: 4,900 kg, spindle speed (max.): 24,000 rpm, operating hours of spindle: 7,810 h, number of spindles: 1, Equipment: cooling unit,  4-axis (X, Y, Z, A) center,  For economical and efficient machining of aluminum profiles and thin-walled steel profiles,  Version with liquid-cooled milling spindle,  All machining processes such as milling, drilling and threading take place on a stationary profile,  Smooth machining using all tools,  Co-rotating tool magazine ensures short tool change times and, as a result, optimal machining cycles,  The magazine can be equipped with eight tools, Cptxt3Ja3E  Two separate machining zones allow machining in shuttle mode (option),  Windows operating system,  Machine equipped with eluCam program,  Max. length of machining fields with front machining: 7600 mm,  Max. length of machining fields without front machining: 7720 mm,  Machining on two stations in shuttle mode,  Automatic length measurement on both sides,  Possibility of clamping two profiles,  Barcode reader,  Stationary tool magazine (8 sockets),  Concurrent tool magazines for the angle head  eluCad office software package for optimized production management

Condition: good (used), Year of construction: 2010, Machining center ELUMATEC SBZ 608, year of manufacture 2010, from left to right, available at short notice Dqwgv2

Year of construction: 2009, Condition: good (used), 5-axis machining center with tool changer for aluminum or PVC profiles Max. processing length: 10,300 mm Travel Y-axis: 1150 mm Travel Z-axis: 715 mm A-axis swivel angle: 0° - 180° Lvapfk7 Angle C-axis: 0° - 180° Max. Speed 24,000 rpm Spindle power: 21 kW Tool changer with 13 standard and 7 special tools Saw blade diameter: 500 mm minimum quantity spraying Tensioner detection and automatic displacement 12 pneumatic material clamps Pendulum operation through two light barrier areas Manual control console Spindle in very good condition Loading is included in the price Weight: approx. 11,500 kg

Condition: excellent (used), Year of construction: 2016, operating hours: 1,395 h, Functionality: fully functional, machine/vehicle number: 1400040877,  4-axis (X, Y, Z, A) center,  For economical and efficient machining of aluminum profiles and thin-walled steel profiles,  Version with air-cooled milling spindle,  All machining processes such as milling, drilling and threading take place on a stationary profile,  Smooth machining using all tools,  Simultaneous tool magazine ensures short tool change times and, as a result, optimal machining cycles,  Magazine can be equipped with eight tools,  Windows operating system  Machine equipped with eluCam program  Max. length of machining fields with front machining: 4200 mm  Max. length of machining fields without front machining: 4320 mm  Automatic length measurement on both sides,  Barcode reader, Dpoyf2  Stationary tool magazine (8 slots),
