CNC Multitasking

DMG MORI NLX 2500 SY 700

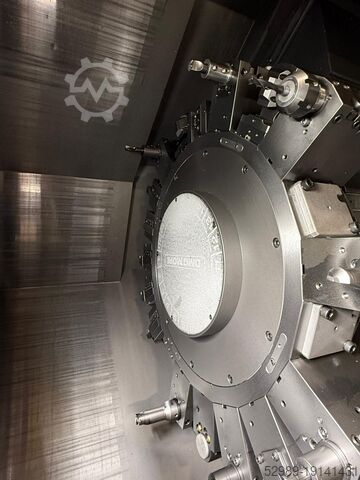

Condition: used, TECHNICAL DETAILS - Number of axes : 6 - Number of spindles : 2 - Number of turrets : 1 MAIN SPINDLE - Spindle nose : A2-8" - Spindle power : 18.5 [kW] - Spindle speeds : 4000 [rpm] - Max. bar diameter : 90 [mm] - Max. turning diameter : 460 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Spindle nose : A2-6" - Spindle power : 11 [kW] - Spindle speeds : 6000 [rpm] - C axis indexing precision : 0.001 [°] TURRET 1 - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 260/795 [mm] - Y stroke : +/-50 [mm] - Tool type : BMT - Live tools speed : 10000 [rpm] - Live tools power : 5.5 [kW] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 41 [kW] MACHINE HOURS - Number of hours under power : 21392.8 [h] - Number of working hours : 13797 [h] EQUIPMENT - CNC : CELOS - Interface : Ethernet / RS232 / USB / PCMCIA - Interactive programming : MAPPS V - 3 colors status lamp - Coolant tank : KNOLL * with high-pressure pump : 70 [bars] * with paper filtering unit - Tailstock option with counterspindle - Chips conveyor - Tool probe Ksdpsx H Atysfx Af Ssnf - Parts catcher - Parts conveying strip - Bar loader : LNS QUICKLOAD - Electric transformer - Number of turning tool holders : 2 - Number of fixed tool holders : 10 - Collet chuck

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, travel distance X-axis: 250 mm, travel distance Y-axis: 200 mm, travel distance Z-axis: 300 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, controller manufacturer: FANUC, workpiece diameter (max.): 32 mm, rotational speed (min.): 500 rpm, rotational speed (max.): 30,000 rpm, overall weight: 1,700 kg, spindle nose: HSK-E40, number of slots in tool magazine: 48, tool length: 95 mm, tool diameter: 63 mm, input voltage: 400 V, type of input current: three-phase, Equipment: documentation/manual, WILLEMIN MACODEL W408 MT TECHNICAL CHARACTERISTICS : Year : 2007 CNC control : FANUC 16i-MB Number of axes : 5 Stroke X axis : 250 [mm] Stroke Y axis : 200 [mm] Stroke Z axis : 300 [mm] Traversing feeds X, Y and Z axes : 30000 [mm/min] Max. bar diameter in turning spindle : 32 [mm] Main spindle max. speed : 6000 [rpm] Main spindle max. power : 3.7 [kW] Angular C axis stroke : 360 [°] B axis swivelling stroke : 115 [°] Spindle type : HSK-E40 Min. spindle speed : 500 [rpm] Max. spindle speed : 30000 [rpm] Spindle power : 10 [kW] Tool changer magazin number of stations : 48 Max. tool lenght : 95 [mm] Max. tool diameter : 63 [mm] Lubrication tank capacity : 80 [l] Collant pump flow rate : 40 [l/min] Rated current : 25 [A] Supply voltage : 400 [V] Weight : 1700 [Kg] Knedpfx Afjwu Ruho Sof EQUIPMENT INCLUDED : x1 0-90° pivoting backworking unit (6th side machining) x1 backworking vice x1 RENISHAW TS27R tool probe x1 RENISHAW NC4 TX laser system for tool setting and tool breakage detection x68 type F35 turning collets x9 HSK-40E milling/turning attachments x1 IEMCA BOSS 332 E bar feeder x1 spindle chiller x1 cutting fluid chiller x1 ELBARON mist extractor x1 3-colour status lamp x1 CO2 automatic fire extinguishing system (to be checked by the purchaser with a competent body) x1 set of technical manuals Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. HERMLE , DMU , monoblock , variaxis , chiron

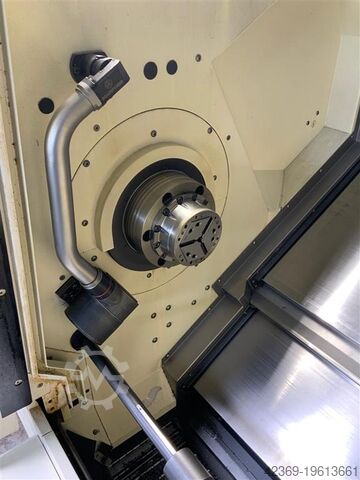

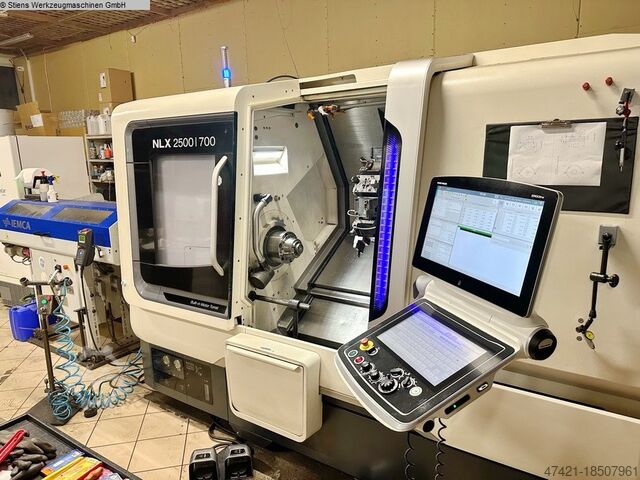

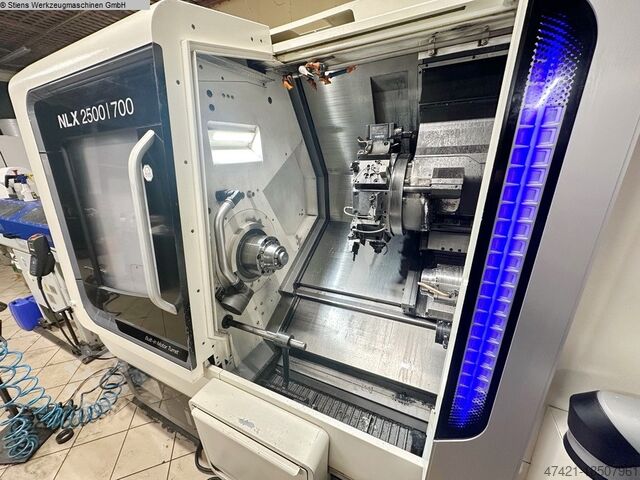

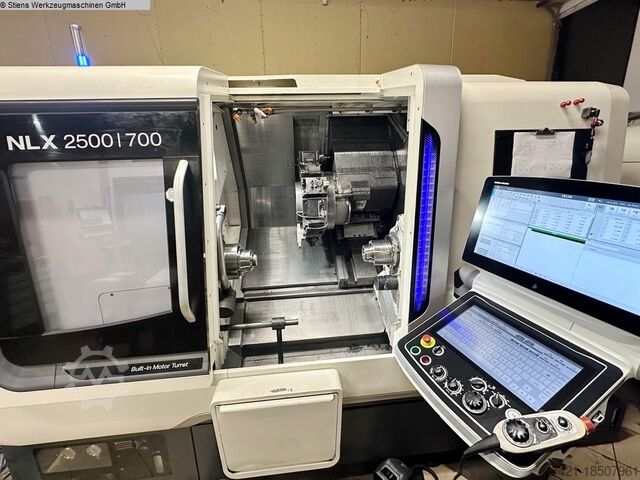

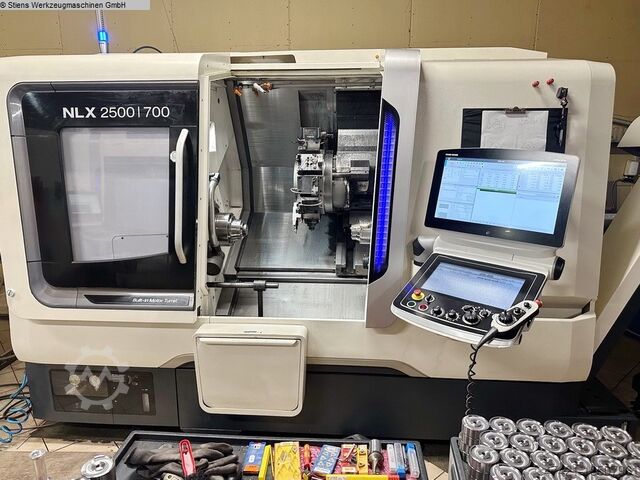

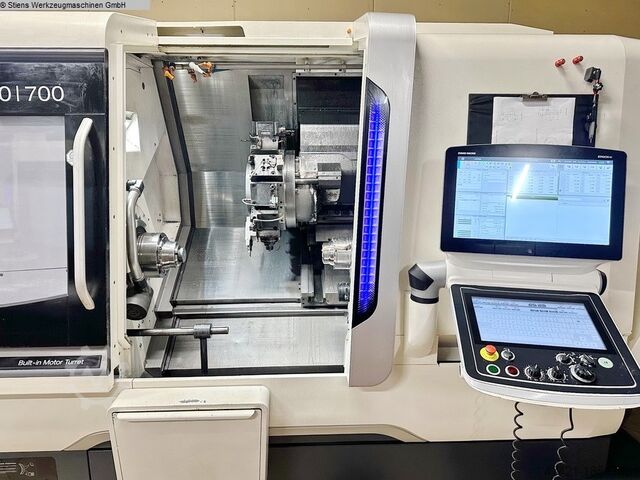

Condition: used, Year of construction: 2017, turning diameter max. 356 mm turning length 705 mm control M730 UM Mapps CELOS greates pass round over bed 920 mm Swing dia. over traverse guideway 742 mm turning speed range - main spindle 4.000 min/-1 power capacity - main spindel 18,5 / 15 kW spindle nose JIS A2-8 spindle bore 80 (91) mm C-Axis 0,001 ° Spindle speed range subspindle 6.000 min/-1 power capacity - Sub spindle 11 / 7,5 kW spindle bore 43 mm C-Axis 0,001 ° x-travel 260 mm z-travel 795 mm Y - Axis +/-50 mm rapid traverse ( X / Y / Z ) 30 / 10 / 30 m/min number of toolpositions 12 pos. Schank height for square tool 25 mm Drill shank diameter 50 mm turret change time 0,27 sec. Spindle speed - driven tools max. 10.000 min -1 power capacity - driven tools 5,5 / 4,2 kW total power requirement 41 kVA Kjdpfexzk Ifjx Af Sjnf weight of the machine ca. 6,4 t dimensions of the machine ca. 4,0 x 3,0 x 2,3 m CNC - Turning- and MillingCenter DMG MORI - NLX 2500 SY / 700 - Subspindle - Tool-Drive - C, Y-Axis - only 1.237h Spindle hours

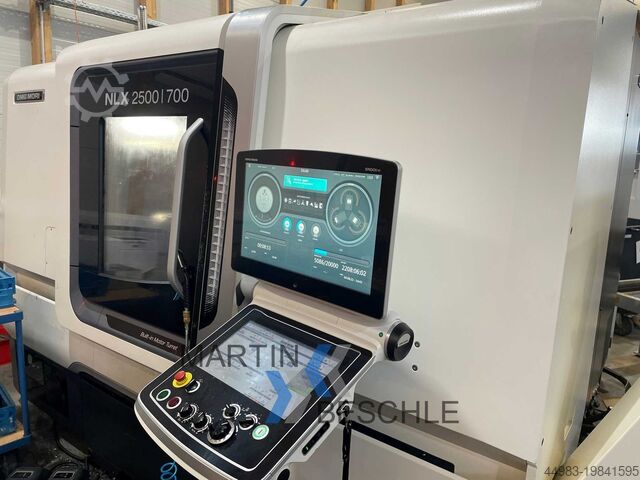

Condition: like new (used), Year of construction: 2011, operating hours: 9,080 h, functionality: fully functional, For sale: Well-maintained CNC turning and milling center DMG Mori Seiki NLX 2500 SY/700, year of manufacture 2011, equipped with Mitsubishi 730 BM control! Only approx. 9,000 operating hours! Travel axes X-axis: 260 mm Y-axis: 100 mm Z-axis: 795 mm Equipment and accessories: - Tool turret: 12 stations, all powered - Driven tool speed: Max. 10,000 rpm Knjdpfoxzqhrsx Af Ssf - Parts catcher - Electrical connection: 400 V - Power consumption: 37.6 KVA - Internal cooling: available - Main spindle chuck: Kitagawa BB210AB - Sub-spindle chuck: Kitagawa B206A521F - Swing diameter: 366 mm - Turning length: 705 mm - Spindle bore: 80 mm - Main spindle max. speed: 4,000 rpm, with 3-jaw chuck - Main spindle power: 18.5 kW - Sub-spindle max. speed: 6,000 rpm, with 3-jaw chuck - Chip conveyor - Tool measurement system in the working area - Manually deployable measuring arm for sub-spindle - Short bar loader, manufacturer: LNS - Includes tools: 8 fixed tools, 3 driven tools - Includes extraction system, brand: Indusa - Includes complete documentation Machine available immediately! Machine has been fully cleaned and inspected! We will undertake loading of the machine! Transport can be organized upon request!

Condition: used, Year of construction: 2005, Technical details: turning diameter: 275 mm turning length: 900 mm spindle passage: 65 mm power capacity at 100 % load: 25/20 kW spindle turning speed range: 1 - 5000 U/min spindle diameter in front bearing: 110 mm c-axis: 1 - 500 U/min. number of workpiece supports: 4 tool turret: 1 x-axis: 290 mm y-axis: 165 mm Knodpfewp D Nbox Af Ssf z-axis: 360 mm b-axis: 360 ° rapid speed: 18/30 m/min number of tools: 2x2 + 2x2 number of driven tools: 2x2 + 2x2 mm toolpiece turning speed range: 8000 / 2000 U/min power capacity: 25% ED 5,8 kW tool taper: TRAUB 60 tool turret: 2/3/4 x-axis: 170 mm z-axis: 600/950 mm y-axis: +/- 60 mm rapid speed: 18/15/30 m/min number of driven tools: 10 mm toolpiece turning speed range: 1 - 6000 U/min power capacity: 25% ED 5,8 kW tool taper: DIN 69880 40 x 63 total power requirement: 95 kW weight of the machine ca.: 16 t dimensions of the machine ca.: 10,0 x 3,5 x 3,0 m with CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000, Main and Sub spindle with C-axis 1 support with B-axis 3 turret supports dust exhauster, coolant attachment with coalescence-seperator and chip conveyor 2 pc. 3-jaw chuck SMW KNCS-N 170-43 2 pc. HAINBUCH Spanntop chuck 40 pc. various tool holder non-driven 6 pc various tool holder driven Spare parts package *

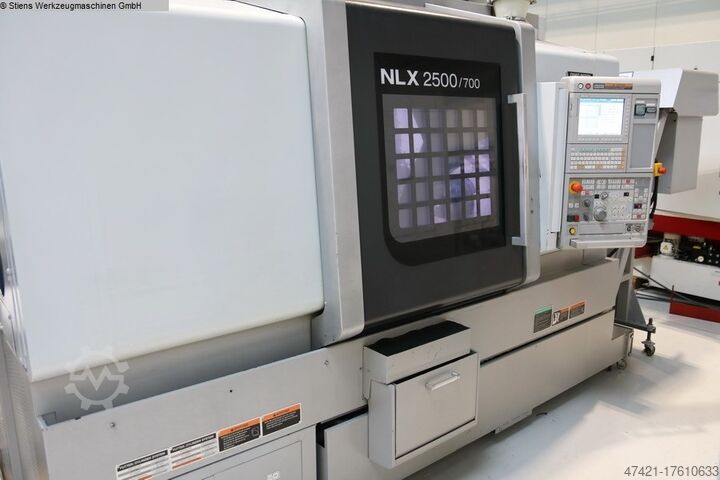

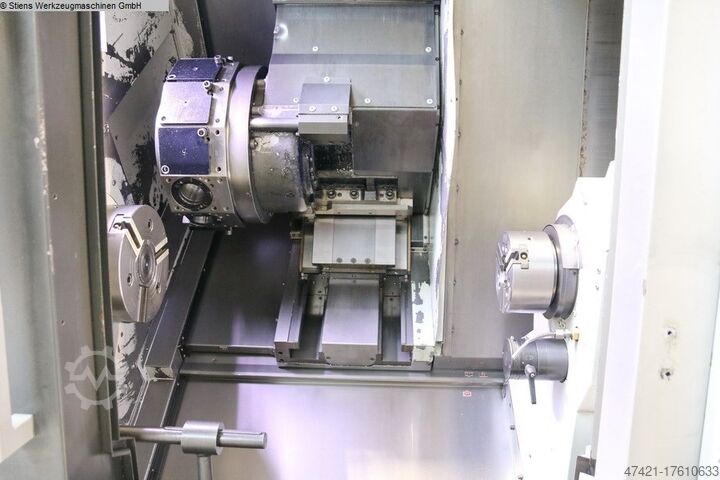

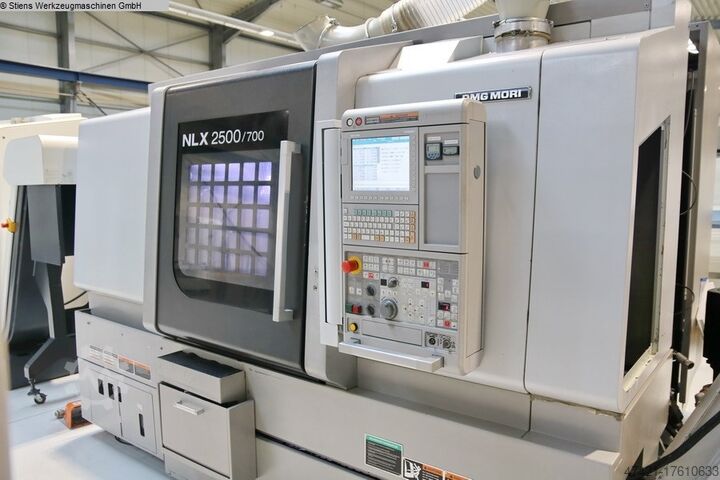

Condition: used, Year of construction: 2014, turning diameter max. 366 mm turning length 705 mm control M 730 BM MAPPS IV greates pass round over bed 920 mm Swing dia. over traverse guideway 742 mm turning speed range - main spindle 4.000 min/-1 power capacity - main spindel 18,5 / 15 kW spindle nose JIS A-8 spindle bearing diameter 140 mm spindle bore 91 mm max. usable bar diameter 80 mm chucking diameter 250 mm Spindle speed range subspindle 6.000 min/-1 power capacity - Sub spindle 11 / 7,5 kW spindle nose JIS A2-5 spindle bearing diameter 85 mm spindle bore 43 mm max. usable bar diameter ( - ) mm chucking diameter 170 mm x-travel 260 mm z-travel 795 mm Y - Axis +/-50 mm rapid traverse ( X / Y / Z ) 30 / 10 / 30 m/min number of toolpositions 12 pos. tool taper BMT 60 Schank height for square tool 25 mm Drill shank diameter 50 mm turret change time 0,27 sec. Spindle speed - driven tools max. 10.000 min -1 power capacity - driven tools 5,5 / 3,7 kW total power requirement 40 kVA weight of the machine ca. 6,4 t dimensions of the machine ca. 5,0 x 3,0 x 2,3 m CNC - Turning- and MillingCenter DMG MORI - NLX 2500 SY / 700 - Main- and Subspindle - C-Axis Knsdju Hq Rlspfx Af Sjf - Y-Axis - Tool-Drive

Condition: used, Year of construction: 2018, turning diameter max. 356 mm turning length 705 mm control M730 UM Mapps CELOS greates pass round over bed 920 mm Swing dia. over traverse guideway 742 mm turning speed range - main spindle 4.000 min/-1 power capacity - main spindel 18,5 / 15 kW spindle nose JIS A2-8 spindle bore 80 (91) mm C-Axis 0,001 ° Spindle speed range subspindle 6.000 min/-1 power capacity - Sub spindle 11 / 7,5 kW spindle bore 43 mm C-Axis 0,001 ° x-travel 260 mm z-travel 795 mm Y - Axis +/-50 mm rapid traverse ( X / Y / Z ) 30 / 10 / 30 m/min number of toolpositions 12 pos. Schank height for square tool 25 mm Drill shank diameter 50 mm turret change time 0,27 sec. Spindle speed - driven tools max. 10.000 min -1 power capacity - driven tools 5,5 / 4,2 kW total power requirement 41 kVA weight of the machine ca. 6,4 t dimensions of the machine ca. 5,0 x 3,0 x 2,3 m CNC - Turning- and MillingCenter DMG MORI - NLX 2500 SY / 700 Knsdpjvy Ig Hjfx Af Sjf - Subspindle - Tool-Drive - C, Y-Axis

Condition: reconditioned (used), Year of construction: 2008, operating hours: 13,600 h, functionality: fully functional, machine/vehicle number: 106, Machine partially overhauled by Willemin with new geometry and a new secondary spindle (6,000 rpm). New ball screws on X-Y-Z axes. Alignment and calibration. Ready for production. 5 axes – Fanuc 31i A5 – HSK40E – max 30,000 rpm – Year 2008. Country of manufacture: Switzerland Voltage: 3x400V / 60Hz; 50 A; 35 kVA Dimensions: 270x200x260 cm Ksdpjw T Tlrjfx Af Ssnf Net machine weight: 2,500 kg TECHNICAL SPECIFICATIONS WILLEMIN MACODEL 508 MT Control: Fanuc 31i A5 X axis: 450 mm Y axis: 200 mm Z axis: 425 mm B axis: -45° to +100° U axis: 300 mm Tool magazine: 48 PickUp stations Main spindle A: max Ø42 mm, max 6,000 rpm Main spindle C: max Ø42 mm, max 3,000 rpm Milling motor spindle: HSK40E, max 30,000 rpm All technical details are given without obligation and subject to errors or omissions.

Condition: used, Year of construction: 2014, Suitable for extracting oil mist. Nominal volume flow: 950 m³/h noise level: 71 dB (A) number of revolutions: 2850 rpm Dimensions W x D x H approx.: 525 x 592 x 781 mm Weight approx.: 55 kg Connected load approx.: 0.75 kW (400 V / 50 Hz), Ksdpfx Aswnprxjf Ssnf colour: Grey
