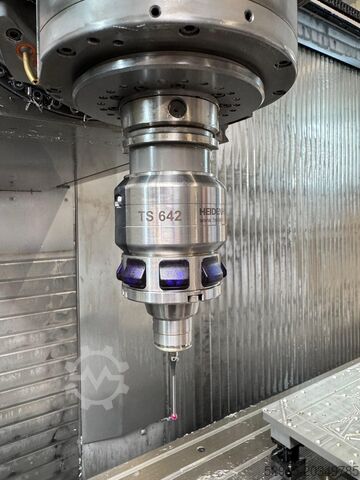

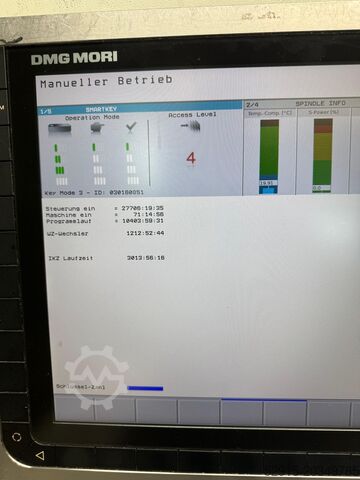

4 Axis CNC Milling machine

DMG MORI DMF 360-11 - 4 axis

Condition: refurbished (used), Year of construction: 1989, functionality: fully functional, machine/vehicle number: 193 34-41, travel distance X-axis: 1,600 mm, travel distance Y-axis: 1,250 mm, travel distance Z-axis: 1,600 mm, table load: 2,500 kg, spindle diameter: 102 mm, spindle speed (min.): 4 rpm, spindle speed (max.): 1,600 rpm, total height: 3,500 mm, total length: 6,500 mm, total width: 4,700 mm, table length: 1,400 mm, table width: 1,250 mm, year of last overhaul: 2025, Equipment: rotational speed infinitely variable, The machine was overhauled and modernized in 2025 and is immediately ready for operation! Travel paths: - Table cross travel (X-axis): 1600 mm - Spindle head vertical travel (Y-axis): 1250 mm - Table longitudinal travel (Z-axis): 1475 mm (restriction due to large table) - Quill travel (W-axis): 710 mm - Table rotation (B-axis): 360 degrees Clamping table: - Clamping surface: 1250 x 1400 mm - Table load capacity: 2.5 t Lrodpfxsw Rn R Rs Aaxjg Spindle: - Diameter: 102 mm - Tool holder: DIN2080, SK 50 - Infinitely variable speed: 4 – 1600 rpm - Drive power: 13 kW Feed: - X, Y, Z axes, stepless: 1 – 4000 mm/min Rapid traverse: - X, Y, Z axes: 4 m/min Power consumption: 42 kW Weight: 10 t Space requirements (L x W x H): 6.5 x 4.7 x 3.5 m Equipment: - Heidenhain TNC 320 - Coolant device

Condition: used, Year of construction: 1961, ram hammer weight 750 kg ram hammer stroke 660 mm no. of strokes 100 /min Ledevuullspfx Aaxjrg impact energy 2040 kJ distance lower die block / ram gudeway 6600 mm Throat 750 mm steel forging - rectangular up to 240 mm steel forging - diameter up to 270 mm power requirement 75,0 kW weight of hammer 16,5 t weight of anvil 15,5 t weight 32,0 t dimensions (WxDxH) 3,2 x 1,45 x 3,45 m Forging hammer with pneumatic drive can only be offered without putting into operation in our warehouse video at seller's site before dismantling available

Condition: good (used), Centre distance: 6500 mm Centre height: 665 mm Swing diameter over bed: 1270 mm Turning diameter over cross slide: 1000 mm Spindle speed: 3.55-710 rpm Faceplate diameter: 1200 mm Ledpfx Asw R Avboaxorg X-axis travel: 600 mm Main spindle bore: 128 mm Tailstock quill diameter: 200 mm Tailstock quill travel: 350 mm Tailstock quill taper: DIN 55028 Main spindle nose: DIN 55027 Accessories: 3 steadies, documentation

Condition: good (used), Year of construction: 2010, Ref. -No.: 10287 Manufacturer: DMG Type: DMC 210 FD Year of construction: 2010 Lsdpfxexxn Ukj Aaxjrg Type of control: CNC Control: Heidenhain Mill Plus Storage location: Halberstadt Country of origin: Deutschland X-Travel: 2100 mm Y-Travel: 2100 mm Z-Travel: 1250 mm Machine length: 11.000 mm Machine width: 5.000 mm Machine Height: 3.500 mm Max. Workpiece diameter: 2500 mm Max. Workpiece Weight: 6.000 kg Max. rotary table diameter: 1.850 O Table speed range: 250 min/-1 Tool Taper: HSK-A100 Tool Piece Magazine With: 183 Pcs./pcs. Spindle Speed: 12.000 RPM Max. Torque On The Boring Spindle: 288 Nm Max. Torque: 2.000 Nm Feed Speeds X/Y/Z Axis: 30.000 mm / min Max. Workpiece height: 1.460 mm axes: 5 Further information: Turning and milling center incl. pallet changing system Gear spindle Coolant treatment system, with belt filter, 710 x 50mm 1 Knoll 600S2 chip conveyor 2 Losma oil mist extraction units 1 steel platform (storage space for clamping device): 5,300 x 2,900 mm - Axes renewed 11.2024 - New encoder, electrical components renewed - Geometry protocols available Machine is still in production and under power. The machine can be viewed at any time by appointment.

Year of construction: 2008, condition: excellent (used), SMG HZPU 8000-3000/2100-S1 Hydraulic Drawing Press Brand SMG Lredpfxsn Awd Rs Aaxjg Type HZPU 8000-3000/2100-S1 Year 1995 Description Hydraulic Drawing Press H frame hydraulic press Pressing force 800 ton Clamping area Approx. 3,000 x 2,100 mm Installation height Max. 1,400 mm

Condition: used, Double column hydraulic press SMG type HBP 200 - 2000 / 2000 make no. 7.4117 year of construction 1986 - rebuild 2000 pressure force 200 ton. Stand passage front 2050 mm column passage sideways 2030 mm table area 2800 x 2000 mm ram area 2000 x 2000 mm ram stroke 700 mm installation height max. 1850 mm Table height above floor 750 mm ram retraction force 33 ton. Rapid feed speed 500 mm/s Pressing speed 72/36 mm/s Return stroke speed 420 mm/s Safety distance 230 mm Motor power main motor 75 kW Motor power control pump 11 kW Mains connection 380 Volt, 50 Hz - 8-fold flat guide for the ram Ledpfodzp Tcsx Aaxerg - Clamping plate with 22 mm T-slots at the ram, 2000 x 1900 mm, thickness 60 mm - Hydraulic ram locking at TDC - Measuring system with glass scale - Electrical control renewed in 2000 with SIEMENS SPS S7 - adjacent switch cabinet - 2-hand control panel adjacent - ground level installation - central lubrication - Operating instructions with circuit diagrams Space requirement of the press standing L x W x H 3700 x 2900 x 5900 mm Machine height complete with motor 5900 mm Space requirement for horizontal transport L x W x H 5900 x 3250 x 2950 mm weight 38 ton. The machine was used as a production press at Volkswagen until 2000. From 2000 the machine was used as a tool testing press in a tool shop. good condition

Condition: used, Year of construction: 1990, Technical details: tube diameter: 42 mm wall strength: 25 mm round bar steel: max. Ø 20 mm square material: Rohr 25 x 25 mm bending radius max.: innen max: Ø 20 und außen max: Ø 170 mm bending speed: keine Angaben °/s tube pipe draw up length: 3000 mm control: Software RC 7000 weight of the machine ca.: 2,8 t dimensions electric cabinet: 800 x 700 x 2000 mm Lsdou Ibvujpfx Aaxsrg dimension machine xH: 5,1 x 0,7 x 2,0 m Application: Machining of deformable tubes, rectangular tubes and round bars and square tubes. Description of the software RC7000, programming manual rectangular tube 42 x 20 x 2,5mm bending direction to the left Operation via control panel with monitor Accessories: -div. bending tools for tube Ø 25mm -12 div. collets -div. auxiliary and clamping devices *

Condition: used, Double column eccentric punching press BLEMA Gotha type PEZ 160-50 MHSY-ES Eccentric press with roller feed ALBA Machine no. No. 88151005 Year of construction 1988 / 92 Pressure force 160 ton. Frame width 970 mm Stand width sideways 560 mm Table size 900 x 900 mm ram surface 900 x 700 mm Tool installation height 560 mm, max. 700 mm Stroke adjustment 8-160 mm Ram adjustment travel 125 mm Stroke rate 25 to 70 strokes/min. Belt width in roller feed max. 400 mm Motor power approx. 15 kW Mains connection 380 Volt, 50 Hz - Infinitely variable stroke rate via frequency control - Automatic stroke adjustment - ram weight compensation cylinder with compressed air - Hydraulic overload protection in the ram - Pneumatic clutch/brake combination Lsdjdzqlvopfx Aaxerg - Central oil lubrication - Precisely guided press ram with oil-lubricated guides - UNIDOR press control - Swiveling control panel - Press and feed control cabinets, together on one platform, adjacent Platform dimensions 3400 x 2250 mm, height without feet 2950 mm Width of the press without feed 2100 mm Depth of the press with drive motor 2300 mm Overall height of the press 4150 mm Weight of punching press approx. 18 tons. For transportation, the drive motor is removed and the machine is placed on its face. In addition: NC roll feed straightening machine ALBA type GGVHY400 Apparatus no. 1405 and 1406, order no. 910708 (year of manufacture 1992) - ALBA PSS 300 feed control - Feed length infinitely programmable from 0.1 to 6500 mm per stroke - Belt thickness at 400 mm width max. 3 mm - Belt thickness for 300 mm width max. 4 mm - Belt cross-section max. 1200 mm2 - Roller drive hydraulically controlled by the feed - Height-adjustable feed unit on the press to adjust the material infeed height - Hydraulic unit opposite - Drag straightener with hydraulic opening and closing Weight of the complete system approx. 24 tons Space required for transport a mega trailer with an internal height of 3 meters and a loading length of 13.6 meters good condition

Condition: excellent (used), Year of construction: 1980, strip width: 1.500 mm strip thickness: 3 mm Lrjdpfx Ajqw Akmsaxsg coil weight: 10 t

Condition: used, Year of construction: 1983, nominal force 2500 t stroke 600 mm cycle time 13 - 18 s distance between columns 1720 mm Distance table/ram, max. stroke up, adjustment up 2600 mm table surface area 1720 x 1800 mm allowed max. force 4000 t blow die to die 5000 t ram surface 2100 x 1320 mm capacity of ejector in table 40 t ejector stroke in table 250 mm ejector surface area in table 900 x 820 mm capacity of ejector in ram 6 t ejector stroke in ram 40 mm spindle diameter 425 mm power requirement 900,0 kW weight 335,0 t Lredpfx Aswmf Tveaxeg Dimensions (WxDxH) 3,4 x 4,6 x 9,7 m height over floor 8,3 m fully automated forging line / spindle press with automation for the production of flanged shafts for hot forming only with reversible AC motor, pneumatic brake, plate ejector in table (40 t / 250 mm), ejector in ram (6 t / 40 mm), lifting device for repositioning, marking, tool change, insertion device, tilting device, loading and unloading arm, rotary table, circular oil lubrication, centralised grease lubrication cycle time approx. 13 - 18 s as is where is, WITHOUT putting into operation
