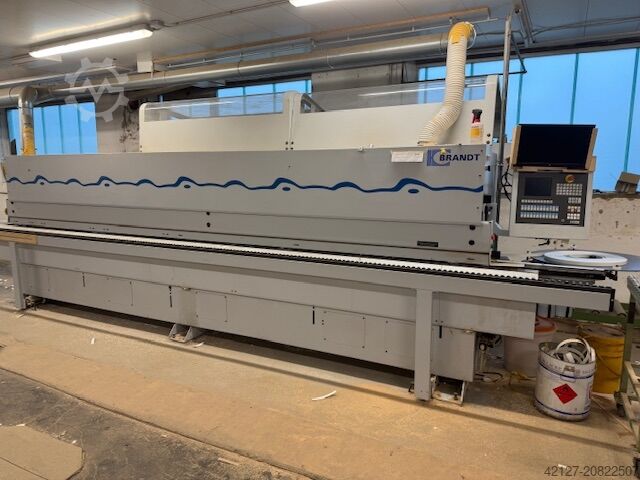

EdgebanderBrandt
Profi KDF 670
Machine data
- Machine type:
- Edgebander
- Manufacturer:
- Brandt
- Model:
- Profi KDF 670
- Year of construction:
- 2003
- Condition:
- ready for operation (used)
Price & Location
- Location:
- Südring 37, 54634 Bitburg, Deutschland
Details about the offer
- Listing ID:
- A208-22507
- Update:
- 24.12.2025
Description
Single-sided edge banding machine in right-hand configuration suitable for craftsmanship, for hot-melt adhesive application.
Quick-change gluing module for processing PU glue granulate in compliance with adhesive processing regulations.
Infrared hot-melt glue activation
Automatic edge magazine for coil material for thick PVC/ABS
Heavy-duty pressure zone
Centrally adjustable top pressure
Operating panel at machine infeed
PC 16 electronic control
Technical Data:
Edge thickness: 0.4 - 8 mm
Roll cut, max. 3 x 45 mm or 0.8 x 60 mm
Workpiece thickness: 8 - 55 mm
Feed rate: max. approx. 14 m/min
Tool set R = 2 mm (exchangeable for R = 3 mm)
Quickmelt gluing module
Motor-driven height adjustment for top pressure - PC 16
Adjustable infeed fence
Program-controlled adjustment for infeed fence
Additional unit for laminate overhang
Program-controlled pressure zone
Release agent application for workpiece
Jointing milling unit
Jointing cutter set, Dia
End trimming unit with chamfer/straight cut 0 - 15 degrees
Pneumatic adjustment for end trimming unit, chamfer/straight
Flush milling unit
Pneumatic adjustment for milling unit
Pneumatic two-point adjustment for vertical tracing rollers
Jointing unit 0 - 25 degrees, synchronous flush milling
Radius cutter set (exchangeable for chamfer cutter)
Program adjustment for edge thickness
Pneumatic adjustment for side tracing rollers
Profile milling unit above and below
- For profiling/flush trimming of end edges on post- and softforming parts and corner rounding of thick PVC edges. / Wood edges possible to a limited extent
Scraper with quick-change heads
Pneumatic adjustment for scraper
Flat scraper glue joint
Cleaning agent application for workpiece
Lhsdpfx Afjx Nrtns Ser
Buffing unit, 2 motors
Electrical and mechanical preparation of the edge banding machine for integration of Ligmatech workpiece return conveyors ZHR01/ZHR02/ZHR15
Weight: 3000 kg
Total connected load: 15 kW
Length: 5880 mm
Location: ex-site customer
- Immediately available -
System must be dismantled by the buyer
The listing was translated automatically. Translation errors are possible.
