Used edgebanders for sale (569)

Condition: ready for operation (used), Year of construction: 2016, machine/vehicle number: 0-261-04-6588, functionality: fully functional, power: 21 kW (28.55 HP), workpiece height (max.): 60 mm, feed rate X-axis: 18 m/min, total length: 6,060 mm, overall weight: 2,600 kg, The machine comes with the following configuration: Emulsion spray at both infeed and outfeed Edge pre-heating Pre-milling unit: Tool diameter: 100 mm, Tool height: 63 mm, diamond tool with replaceable knives, motorized adjustment for removal Glue application unit: Glue and hot air application, heated application roller, quick-change feature for the entire unit, automatic position adjustment via motor, 3 pressure rollers, edge feed speed: 14 m/min End trimming unit: Twin-motor unit with automatic tilt up to 15°, THK prism guide Radius milling unit: 2 tools, automatic 2-axis adjustment, automatic overlap adjustment Copying unit: 2 motors, automatic tool position change via servomotor, electromagnetic horizontal movement, vertically hydraulically damped movement Hsdpfx Aoyu If Njbwjk Cleaning and polishing unit Automatic return conveyor: Homag TFU 140 TECHNICAL DETAILS Workpiece thickness: 8–60 mm Max. feed speed: 18 m/min MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 6,060 x 1,555 x 2,300 mm Weight: 2,600 kg Total connected load: 21 kW Compressed air: 6 bar Air consumption: approx. 350 l/min Extraction: 2,820 m³/h EQUIPMENT Double top pressure for part stability Electronic thickness control Frequency converter for feed Automatic lubrication of feed chain Automatic motor calibration Touch control panel

Condition: used, machine/vehicle number: 006710, Type of edging: Thin edge, Thick edge, Solid wood, Veneer Gluing System: EVA Hotmelt, Hot Air Premilling Unit: yes Corner Rounding Unit: yes Hedpfxoqy Em Te Abwek Max feed speed: 11 m/min

Condition: used, machine/vehicle number: 008132, Type of edging: Thin edge, Thick edge Gluing System: EVA Hotmelt Premilling Unit: yes Hedpfxew Idc Rj Abwjk Corner Rounding Unit: yes Max feed speed: 18 m/min Maximum panel thickness: 60 mm Operating Units: 7 nr

Condition: used, machine/vehicle number: 008109, Type of edging: Thin edge, Thick edge, Solid wood Gluing System: EVA Hotmelt Premilling Unit: yes Corner Rounding Unit: yes Hsdpfjw Idc Dsx Abwek Maximum panel thickness: 12 mm Operating Units: 9 nr

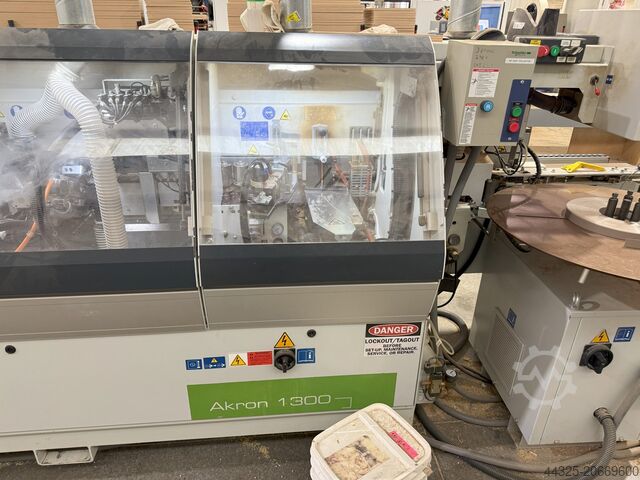

Condition: excellent (used), Year of construction: 2023, Biesse Akron 1330 A Edgebander Single-sided edgebander AKRON 1330-A Gluing Unit SP03 End trimming Unit IT03 Fine trimming Unit RF02 Corner rounding Unit AR02 PRE-MILLING UNIT RT02 Symmetrical diamond tools H=45 mm Z=2+2 30° included. EDGE SCRAPER RB02 Tools are not included. GLUE SCRAPER UNIT RC02 BRUSHING UNIT SZ02 SUPPLEMENTARY LATERAL PANEL SUPPORT KIT FOR THE INSTALLATION OF THE PANEL RETURN SYSTEM MANUAL INFEED SYSTEM FOR NARROW PIECES Hedpfxjyyb Ice Abwek KIT FOR PROCESSING "SHADOW LINE" PROFILE PANELS STRAIGHT AIR TABLE AT THE MACHINE INFEED ANTIADHESIVE UNIT ADZ02 PAIR DIAMOND-COATED MILLING CUTTERS H=65 mm Z=2+2 30°.In replacement of standard tools. HYBRID GLUING CHUCK FOR GRANULATED EVA/PUR GLUE INSTEAD OF THE STANDARD SYSTEM TM15 HYBRID PREMELTER FOR EVA/PUR GLUE ADAPTIVE INFRA RED LAMP AdIRL-700 AX-4, NC AXIS ON FINE TRIMMING UNIT PRO-NESTING KIT FOR FINE TRIMMING UNIT Pair of multiprofile milling cutters for fine trimming unit: chamfering 25 degrees, R=2 mm + R=1 mm, straight profile for solid wood AX-2, NC AXIS ON CORNER ROUNDING UNIT ROUNDING FUNCTION ONLY SLIDING UNIT FOR CORNER ROUNDING UNIT Pair of milling cutters, R=2 mm, for corner rounding unit Pair of milling cutters, R = 1 mm, for corner rounding unit AX-4, NC AXIS ON EDGE SCRAPER PRO-NESTING KIT FOR EDGE SCRAPER UNIT Pair of knives R=2 mm, for edge scraper Pair of knives R=1 mm, for edge scraper CLEANING UNIT LPT02 (Despite our great care all changes, mistakes in technical data, prices and all information is subject to (typing) errors. No guarantee on printed data! Availability subject to prior sales). (Trotz größter Sorgfalt bleiben Änderungen, Irrtümer bei technischen Daten, Preisen und allen Angaben (Tipp-)Fehler vorbehalten. Keine Gewähr auf gedruckte Daten! Verfügbarkeit vorbehaltlich Zwischenverkauf). Prices excl. advertisement cost MachineSeeker / Preise exkl. Inserierungskosten MaschinenSucher Best woodworkingmachines from the Netherlands Holland Die besten holzbearbeitungsmaschinen aus die Niederlande De beste gebruikte machines uit Nederland

Condition: excellent (used), Edgebanding Machine Advantage 4612F - Regularly maintained, year of manufacture 2002 - Total length 6000 mm - Width 1100 mm - Height 1900 mm - Weight 3100 kg - Feed rate: 12 m/min - Workpiece dimensions: width 65 mm, max. thickness 45 mm, min. thickness 10 mm, length 150 mm, edge height 55 mm, 7 bar pressure - With two interchangeable glue pots - Pre-milling, flush trimming saw, multifunction unit, profile & surface scraper, buffing Hodpfxsx Srp Is Abwek - With pre-milling unit

Condition: used, Year of construction: 2009, Upgrade for 2 mm 1st milling station; combination jointing cutter, Leuco surface scraper blade. Min./max. workpiece thickness: 10-40 mm. Min. workpiece length: approx. 180 mm. Ready for operation in approx.: 3.5 min. Feed speed: approx. 7 m/min. Dimensions approx.: 3300 x 1300 x 1400 mm. Weight: approx. 600 kg Hjdpfxjyymz Ie Abwjk Storage location: Supplier

Condition: used, Year of construction: 2016, Vitap Eclipse Edgebander for round shaped, curved workpieces Semi-automatic edge banding machine for large round or curved workpieces with a panel thickness between 10 and 60 mm and a belt thickness between 1 and 3 mm. The 60 mm height is only possible with an edge banding thickness of 1 mm. If the edge band is thicker, it depends on the quality of the band and must be tested beforehand in connection with the cutting unit. Description; Two copy rollers for the shape of the workpiece to be scanned Gluing station Glue tray with a capacity of 1 kg Two 800W heating elements with electronic temperature display via the PLC Glue application via glue roller Glue tray made of aluminum for heat distribution Glue supply can be adjusted by means of a button Automatic cutting unit for edge banding material on the roll from 3 to 45 mm Aggregate is activated by a sensor for closed edge tape with a perfect connection or by an encoder if only 1 side is pasted Laser system for length determination, no pre-measurement necessary On-off capability for throughput Hedpowgb Hxefx Abwek Height-adjustable table for narrow panels On-off capability for milling aggregate Two copy rollers for the shape of the workpiece to be scanned Milling unit equipped with 2 x 0.5 kW (15000 rpm high frequency) with top, bottom and front copy rollers Milling unit equipped with blades R=2, Phase 15°, D=69, Z=6 Large panel turntable with vacuum to hold product (All changes, mistakes in technical data, info and prices reserved. Availability subject to prior sales. No guarantee on printed data!) (Alle Änderungen und Irrtümer in den technischen Daten, Angaben und Preisen sowie Zwischenverkauf vorbehalten! Keine Garantie auf gedruckte Daten!) Best woodworkingmachines from the Netherlands Holland Die besten holzbearbeitungsmaschinen aus die Niederlande De beste gebruikte machines uit Nederland

Condition: reconditioned (used), Double-side Sizing-Milling & Edge Banding - First (1st) machine in a line Edges (tape) thickness in rolls (min/max) mm 0,3 / 3 Edges thickness in stips / lippings (min/max) mm 0,4 / 1 Panels thickness (min/max) mm 8 / 45 (60) Working width (min/max) mm 236 / 1300 Numerical Control / Software ICOS open (windows XP) Adjustable feeding speed (m/min ) 10 - 50 Without Transmission bar (Master & Slave system) SIZING PART (for each side): Spraying unit (Anti-sticking liquid) Hogging Units (2 x Kw 8) Hedpfx Asyypi Usbwjk EDGE-BANDING PART (for each side): Glueing Unit (EVA-Hot Melt + Quick Melt Unit) 04.1570 + 283.205 Edge coils supporting unit (No. 6 reels) SERVO-DRIVE guillotine shear (cutting the edge/band) Pressure zone (N.C. adjustment) Fine Trimming unit 08.055 (Kw 1 x 2) 0°-30° Profile Scraping unit 08.519 Glue scraping unit 08.50 Buffing unit 08.617-2 (2 x Kw 0,18) Spraying Unit (for polishing liquid) Milling grooving unit 08.190 (1 x Kw 4,5) 0°-90° / 180°-270°

Condition: used, Year of construction: 2016, Central pneumatic valve manifold, bus-controlled. Optimized maintenance unit with pressure sensor. Additional control air supply and pressure build-up valve. Chain feed with 2 feed speeds: 12 and 20 m/min. Drive motor 2.2kW (S6). Minimum workpiece length 140mm. Minimum workpiece width varies depending on workpiece length, height, and surface condition. 20 m/min feed is only possible up to a maximum edge thickness of 3mm and a maximum workpiece height of 25mm. When the corner rounding unit is selected, the speed automatically decreases to 12 m/min. Segmented, rubberized support pads with quick-change system. Minimum workpiece width varies depending on workpiece length, height, and surface condition. Electrically: 3x400V 50Hz. If a residual current circuit breaker (RCD) is upstream of the machine, it must be an all-current sensitive residual current device, type B, suitable for frequency inverter operation, with a tripping current of 300mA. End position damping for cross-cut saw unit. Jointing unit with plunge-controlled diamond cutters; speed 12,000 rpm, 4.4kW, max. cutting depth 3mm. Jointing cutter with diamond blades Z2+2, D-60 x 64 mm. e-Motion control. Extension frame for tempora 60.12. Machine base of the tempora 60.12 edgebander is made of thick-walled, electrowelded steel construction, featuring ribbing for high stability. Pneumatic-mechanical infeed lock for workpiece distance monitoring: a pneumatically controlled steel bolt prevents infeed of workpieces before the minimum distance is met. Prepared for retrofitting a pre-melter. Operating tools for tempora series. Workpiece feed and feed fence: the feeding support surface is designed as a roller bed for sensitive surfaces. The robust feed fence has a length of 1100mm. The jointing removal for the jointing unit is electrically position-controlled from 0-3mm at the feed fence and displayed via e-motion control. Upper pressure beam tempora 60.12E: made of welded, torsion-resistant steel construction. Motorized, controlled adjustable workpiece height from 8-60mm via e-motion control. Smooth, staggered, double-row upper pressure rollers ensure uniform pressure distribution on the workpiece. Workpiece distance monitoring with traffic light indicator. Spray application of separator agent. Cutter configuration 60mm Z3+3 'whispercut' tempora series. Glue application roller with reverse function. 50Hz rotary table — edge magazine for coil edge material 0.4-3mm. Ball bearing rotary table, diameter 800mm, for coil edge material. Strip magazine for 12 pieces of 10mm edges. Perfect 608: max. edge thickness 8mm. Edge feeding for coil and strip material, tempora series. Corner processing unit with motorized adjustment for post- and softforming profiles. Application-controlled profiling unit for machining end edges; edge thickness/workpiece height 10-60mm; min. workpiece length 270mm. Wood edges are possible only to a limited extent, depending on edge material. Restrictions apply for loose core layers on post-/softforming parts and extremely thin melamine/foil edges and surface materials. Pneumatically controlled, Teflon-coated glue unit for 1.5kg EVA granulate with synchronized glue roller and quick-change system. Suitable for processing PUR adhesive, taking adhesive processing guidelines into account. Hjdpfsyx Iwbox Abwok

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, Edgebanding machine with jointer and corner rounding unit Very well-equipped and hardly used edgebanding machine in robust construction, ideal for precise and efficient edge processing in woodworking trades. Equipment: • Jointer unit with 2 counter-rotating diamond cutters Hjdpjyx Ew Eefx Abwok • Edge feed for coil and strip material • Glue unit with glue roller • Pre-end trimming unit (roller) • Pressure unit for optimal pressing • End trimming unit with pulling trimming cut • Flush and radius milling unit • Corner rounding unit for end edges • Radius scraper unit • Surface scraper • Polishing unit • Manual unit adjustment • Control panel with LCD display and keypad • Extendable workpiece support Technical data: • Edge thickness: 0.4 – 5 mm • Workpiece height: 8 – 60 mm • Min. workpiece width: 70 mm • Min. workpiece length: 140 mm • Feed speed: 11 m/min • Extraction port: 120 + 2 × 80 mm • Weight: approx. 990 kg • Approx. dimensions (L × W × H): 4550 × 1550 × 1100 mm

Condition: excellent (used), 4-SIDES LINE of Sizing-Edge Banding and Drilling, composed of the following machines: A) Loader (portal/bridge) double pick-up station "IMA" with central motorized rollers conveyor. With 2 external on-ground roller ways to in-feed the piles (stacks) of panels to the Loader. Hjdoyyb Sujpfx Abwjk B) 1st Double-side Sizing & Edge Bander "IMA" Mod. Combima/N/II/230/A/R3 (mm 1300) C) Turning Station "IMA" (from lengthwise to crosswise) with double cone system. D) 2nd Double-side Sizing & Edge Bander "IMA" Mod. Combima / II /740 / B / R3 + (mm 3300) With KFA 30 (multi-profile copying Unit for fine-trimmimng and corner rounding) E) Drilling machinee "IMA" Mod. I-Magic (with 2 horizontal units + 4 bottom vertical unitsi) F) Motorized rollers conveyor "IMA" G) Turning Station "IMA" (from lengthwise to crosswise) with double cone system. H) Stacker (portal/bridge) double stacking station "IMA" with central motorized rollers conveyor. With 2 external on-ground roller ways to out-feed the piles (stacks) of panels from the Stacker

Condition: used, Year of construction: 2016, Industrial automatic edge bander SOLUTION XD MAIN FEATURES "E-TOUCH" CONTROL WITH AUTOMATIC PROGRAMMING: ONE "TOUCH" IS ENOUGH TO OPERATE THE MACHINE. STANDARD PRESSURE DEVICE WITH DRIVE BELT FOR OPTIMAL PANEL GUIDANCE. BANDING OF ROLLED MATERIAL, STRIPED EDGES, AND SOLID WOOD EDGES. GENERAL FEATURES: Single-sided edge bander in left-hand design for gluing rolled materials and strip edges using all conventional hot melt adhesives. The base frame consists of a sturdy, highly rigid steel welded stand, which provides optimal support for the processing units. The upper pressure consists of a thick-walled steel profile and a double trapezoidal drive belt that is automatically positioned to the panel thickness. Height adjustment with display on the top pressure and on the operator interface. Manual workpiece feeding system with a generously dimensioned work line and enlarged support surface facilitates the feeding of large workpieces. Adjustable infeed ruler for two positions with automatic selection for processing with or without pre-milling. Working units are attached to the pressure beam and mechanically connected to ensure automatic adjustment when changing panel thickness. Lower working units are attached to the machine frame or to the longitudinal beam for precise reference in relation to the panel. All high-frequency motors are powered by frequency converters (inverters). The unit is equipped with its own inverter for optimal flexibility and improved production times. The cleaning hood for all units positioned after the gluing unit is equipped with polycarbonate windows to ensure a good overview of the units during processing. The interior lighting of the cleaning hood is lined with sound-absorbing material for lower noise emissions during processing. The spacers on the infeed ruler allow the machine to be fed at the correct distance. The distance is automatically adjusted to the selected feed speed. The exhaust nozzles are arranged on the pivoting control panel, positioned in the infeed area, and are adjustable for ergonomic electrical installation in compliance with current regulations. The electrical component is housed in a metal casing, fixed to the machine frame and equipped with doors for easy access in case of any problems. The standard voltage is 400 V EU 50 Hz (with neutral). The material is fed by a feed chain with 80 mm wide chain plates made of rubberized nylon for optimal guidance and a high chain tension. The chain slides on two guides made of hardened and ground steel, one round and one flat, to ensure linear feed and prevent lateral misalignment. Automatic chain lubrication. The amount of lubricating oil is controlled by the control system according to the panels being processed. The storage roller conveyor is external and positioned along the entire length of the machine; it consists of an opening system that can be extended up to 650 mm (for panels with a maximum width of 1200 mm). E-TOUCHPC control system for quick and easy execution of the main functions which includes:– Editing of programs in Just in Time mode– Possibility of management via parts lists– Possibility of management by Hsdpsxy Tm Iefx Abwok

Condition: excellent (used), Year of construction: 2016, machine/vehicle number: 0-261-95-3811, functionality: fully functional, operating hours: 2,076 h, input voltage: 400 V, input current: 24 A, input frequency: 50 Hz, type of input current: three-phase, Equipment: CE marking, documentation/manual, We offer this Brandt Highflex 1440 Edge banding machine that has very low hour for a 2016 machine. Hjdpeyx H D Hofx Abwjk With edge rounding and corner profiling.

Condition: used, Year of construction: 2013, Used machine Year of manufacture: 2013 Equipment and technical data: Minimum workpiece length (mm): 160 Workpiece thickness (mm): 6-60 Edge thickness (mm): 0.4-6 Feed speed (m/min): 10 Overall length (mm): 4930 Weight (kg): 1420 Equipment: 15" touchscreen control Jointing milling unit with 2 milling heads Edge feed GluJet glue application system 2.3 kW, automatic glue height adjustment, sensor nozzle Pneumatic pressure unit Pneumatic end trimming unit Diamond cutters left and right with CM technology Corner copying unit with diamond cutters Surface scraper blade Buffing unit Special equipment: Extendable workpiece support Motorized pressure bridge adjustment with NC axis via program control Diamond jointing cutters left and right Extraction hoods for end trimming unit MOT 4 multifunction milling unit Vertical pneumatic tracing rollers Pneumatic swiveling device for milling unit MOT 4 MOT 2 scraper unit with chip collection box Spraying device for infeed and outfeed areas Availability: by arrangement Hsdpfx Abjyxyahjwjk Location: Röllbach

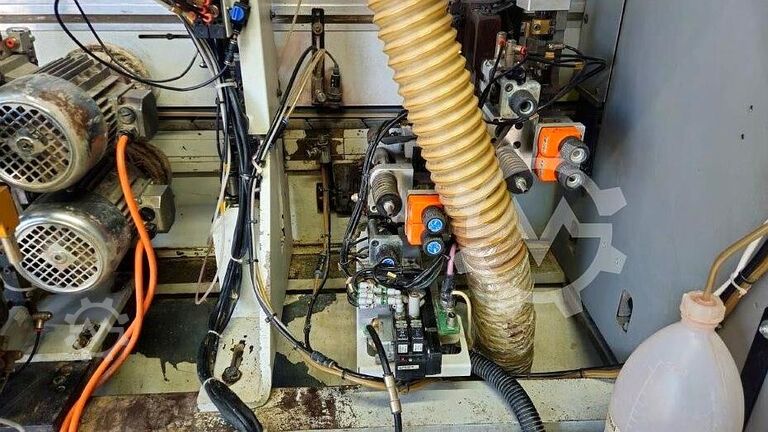

Condition: ready for operation (used), Year of construction: 2008, Edgebander manufactured in 2008. This BIESSE Edge Stream B1 features a comprehensive set of tools including a PU-gluing machine, pre-milling unit, edge trimmer, and fine milling unit. It also includes rounding and edge scraper units, along with swaying brushes and an edge heater. If you are looking to get high-quality edging capabilities, consider the BIESSE Edge Stream B1 machine we have for sale. Contact us for further details. • Liquid spray unit (ADZ) • Pre-milling unit (RT) • PU gluing unit (SP10, Nordson) • Edge trimmer (IT90) Hsdpoyw Nu Eefx Abwsk • Balance tool trimmer (RS10) • Fine milling unit (RF40) • Rounding unit (AR60) • Edge scraper (RB40) • Glue scraper unit (RC20) • Swaying brushes • Edge heater (PH10)

Condition: used, OTT Tornado - TOP Control via a 15-inch color touch monitor for full automation and maximum operating convenience CM-CombiMelt gluing system suitable for processing both EVA and PUR hot-melt adhesive as well as all standard cleaning granulates Joining unit for bonding chipboard panels Automatic roll magazine Automatic edge magazine Double end trimming unit with automatic swiveling 0° / 3° Flush trimming unit - for flush trimming - 12mm Fine radius trimming unit - radius trimming - profile cutters R2 - R5 Automated copy milling - corner rounding Scraper unit - radius - chamfer Flat scraper unit Release agent spraying device - PU Cleaning set with fine polishing unit Hjdpfx Abjyym Dcjwok Very stable workpiece support with roller conveyors - FRONT with scissor extension Complete set of tools included Machine is in EXTREMELY WELL-MAINTAINED CONDITION Machine from a joinery workshop Available from stock in Lieboch

Condition: used, Holz Her Auriga 1308 FÜ + PU Compact design – edge thickness 0.4 – 6 mm SPS touchscreen control Edge-Control PPC 221 color screen Pre-milling unit for preparing prior to adhesive application Fully automatic edge magazine for coil and strip material Glue application station GLU-JET, EVA and PUR adhesive (cartridge or granulate) + PU Glue application via nozzle technology Workpiece height 6–65 mm Automatic glue height adjustment Pressure unit 1912-3, pneumatic End trim unit 1918, pneumatic, for coil and strip material up to 8 mm edge thickness With pneumatic adjustment for trim saw angle 0–10° Milling unit 1827 MOT 4, flush milling 8 mm, radius milling – chamfer milling – 15°, 1827 MOT NC axes via control panel Corner rounding unit 1832 SPS, corner rounding for edges up to 3 mm thickness in through-feed operation Scraper unit for chamfers and radii with 2 scraper holders (motorized) Surface scraper unit – finish Spray unit – PU Complete set of DIA tools included Few operating hours / from a craftsman's workshop Hodpfx Aboyyl U Hewsk Machine is FACTORY OVERHAULED and in TOP CONDITION Available ex stock Lieboch

Condition: excellent (used), Edge banding machine FORMAT 4 Tempora 60.06 glueBox - used Touchscreen, pivoting control panel, program memory, automatic pressure bridge adjustment, feed via conveyor chain, extendable workpiece support, diamond jointing cutter for up- and down-feed, glue pot located underneath, glue pot changing device, use of PUR adhesives possible, GLUEBOX, printing unit with driven roller, cross-cut saw with 2 HF motors, pneumatically pivoting cross-cut saw, flush/radius trimming unit, motorized positioning control of the trimming unit, x-motion PLUS, corner rounding unit with diamond-coated cutter, radius scraper, radius scraper with motorized positioning, surface scraper, operation-controlled Surface scraper, Inlet barrier, Release agent spray device, Lubricant spray device, Cleaning agent spray device, Year of manufacture 2022 ----- Technical specifications ----- Edge thickness for rolls: 0.4 - 3 mm, Edge thickness for strips: 3 - 6 mm, Workpiece thickness: 8 - 60 mm, Min. workpiece length: 140 mm, Feed speed: 10 m/min., Screen diagonal: 15 inches, Dimensions of jointing cutter: D 80 x 64 mm, Joining cutter power: 1.1 kW, Crosscut saw power: 0.35 kW, Milling station power: 0.75 kW, Extraction nozzle Ø: 80 + 160 mm, Hjdpfju R S Nwox Abwjk Compressed air connection: 7 - 10 bar, Total length: 4,872 mm, Dimensions (LxWxH): 4,872 x 1,511 x 1,468 mm, Weight: 1,500 kg Quality information: - All settings checked - Adjusted according to manufacturer's specifications - Complete basic inspection - Complete basic cleaning - Electrical system checked - Pneumatic system checked - Ready for immediate use

Condition: used, machine/vehicle number: 006719, Type of edging: Thin edge, Thick edge, Veneer Gluing System: EVA Hotmelt Premilling Unit: yes Corner Rounding Unit: yes Max feed speed: 11 m/min Hjdpjq Awlisfx Abwok

Condition: used, machine/vehicle number: 007227, Position 1: Single Edgebanders HOMAG + LIGMATECH-KAL 310 + ZHR 05 Hjdpfewuuc Asx Abwok Position 2: Panel Return Systems HOMAG + LIGMATECH-KAL 310 + ZHR 05

Condition: used, Storage location: Sonnefeld Hedsway Dcepfx Abwek

Condition: used, Year of construction: 1996, Edge thickness: 0.4 - 12 mm Roll edge: 3 x 45 mm or 0.8 - 60 mm Minimum workpiece width: 65 mm Minimum workpiece length: 160 mm Workpiece thickness: 10 - 55 mm Feed rate: 13 m/min Pre-milling (joining) Glue pot Quickmelt Gluing unit Trimming Flush trimming Chamfering Radius trimming Corner rounding Flat scraper Buffing unit Machine dimensions: 7450 x 1220 x 2400 mm Weight: 3000 kg Storage location: Nattheim Hjdpevvkd Tefx Abwek

Condition: used, Year of construction: 2009, HOLZ-HER edge banding machine CONTRIGA 1366 Edge thickness: 0.4-30 mm (depending on equipment) Edge height: 51/66 mm (depending on equipment) Panel thickness: 6-45/60 mm (depending on equipment) Edge types: Rolls and strips Feed speeds: Continuous feed from 12-30 m/min (depending on equipment) With adjustable infeed level in the magazine area (max. adjustment range 30 mm) With height-adjustable magazine plate for changing the lower edge overhang With large magazine plate Ø 820 mm for edge rolls up to Ø 800 mm With transport chain including automatic central lubrication With motor-driven, position-controlled bridge height adjustment With pneumatic locking roller for the shortest workpiece sequence With extendable workpiece support (extension width 1600 mm) With space-saving, pneumatically controlled sliding hoods over the entire machine (Deviations for individual units are possible) with motorized infeed guide with injection oiler for lubricating all joints and bolts (including operating hours counter) with central connection for extraction (2x Ø 200 mm) with integrated chip collection box at the end of the machine (when radius scraper unit is installed) PPC 231 control system - Power PC for efficient setup and changeover - 15" SVGA screen with touchscreen - 128 MB CF memory card - USB connector on board - Ethernet network connection - Keyboard connector on board - Windows-like user interface - all information in plain text and/or graphics - Rotatable and pivoting control panel at eye level - Dust-proof membrane keyboard with softkeys (pushbuttons) - LED display for unit preselection - Program list with program names and numbers - Extensive program memory - Individual selection of the units with the functions as basic setting options for setpoints, route points and tool corrections as well as the fixed route points - Centralized and clear setup processes for units and their axis settings via fine adjustment (depending on the equipment) - Interval display for the shortest workpiece distance - Integrated path control - Path points are controlled generally or program-specifically - Clear and complete recording of all operating data - Service messages in plain text - Diagnostic system - including integrated synchronous bus system for high precision in unit control - Individual administration for up to ten users, including password protection - Online maintenance (optional), data exchange with HOLZ-HER Service - Barcode interface (optional) BASIC MACHINE CONTRIGA 1366 - Belt bridge Options and accessories for the basic machine Spraying device 1856 for the inlet and outlet area For the inlet area: Electronically controlled release agent sprayer with Riepe-LPZ/II release agent For the outlet area: Electronically controlled cleaning agent sprayer with Riepe-LP163/93 cleaning agent (only in conjunction with pre-milling unit 1961 and surface scraper 1964) Joint milling unit Joint milling station 1803 (2x 2.6 kW, 200 Hz, 12000 min-1) With two plunge-controlled milling units 1 unit in up-cutting direction 1 unit in down-cutting direction Plunge path 5 mm With static frequency converter 200 Hz Without milling tool With ProLock screw-in clamp for fast tool changes Tool for 1803 (workpiece height up to 60 mm) Diamond milling cutter PRO UT 2 pieces (front and rear) including protective covers Ø 100-63 - Ø 30 mm, Z = 3 + 3 + 3, 1x left-hand rotation, 1x right-hand rotation Noise-reduced milling cutter with integrated chip guide DFC technology (Leitz syst Hsdsvvkfdepfx Abwok

Condition: used, Year of construction: 2001, Edge thickness 0.2 - 6 mm Workpiece dimensions Width min. 70 mm Height min. / max. 8 / 42 mm Length min. 150 mm (strip edges) Feed speed: 12 m/min Glue application roller Machine dimensions L x W x H = 3500 x 900 - 1300 x 1250 mm Weight: approx. 1130 kg Power consumption: approx. 6.0 kW, 400 V, 50 Hz Equipment: - Double top pressure with manual height adjustment - Automatic magazine for roll edges up to 800 mm DM - Rapid heating tank with application roller in synchronous and counter-rotating direction - Pneumatic adjustment and resetting of all work units - Pneumatic cross-cutting shears for strip edges up to 3 mm - Manually adjustable infeed ruler - Double cross-cut saw 2 HF motors 0.2 kW, 12,000 n 2 automatic Positions = 0 + 3 degrees - Milling/flush trimming unit with two HF motors 0.43 kW, 12,000 n. Two-sided scanning with two HF indexable cutter heads. Radius scraper, automatically controlled. Flat scraper, automatically controlled. Storage location: Nattheim Hsdpfxevvkfqe Abwsk
