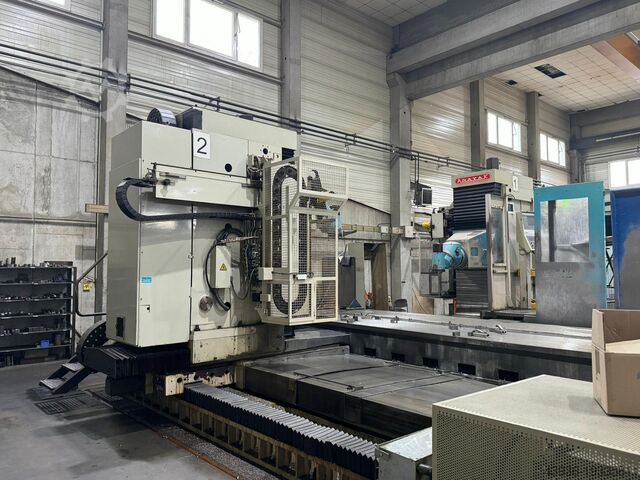

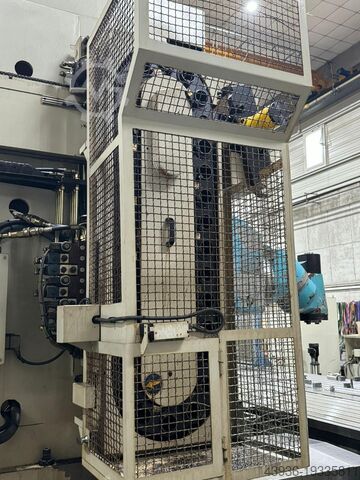

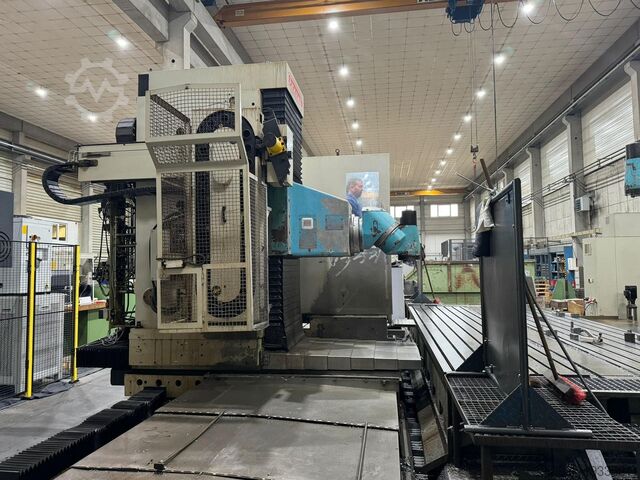

Bed type milling machine ANAYAK - HVM 50

Anayak HVM 5000 DUO

Condition: ready for operation (used), Year of construction: 2010, FPT heavy-duty, high-dynamic mobile column boring machine with 5-axis support, model SPIRIT 240-M140. Working range: X-AXIS: 14,000 mm Y-AXIS: 5,000 mm Z-AXIS: 2,500 mm Equipped with 2 rotary tables with a capacity of 50 tons each. Automatic tool changer. Numerical Control: Siemens. The machine is equipped with 3 heads: Nsdpfjwiifhox Af Sjwr 1 automatic bi-rotary thousandth TUPCG head, 1 automatic head for large removals TO144 1 D'Andrea head for turning with a working range from diam.150 to diam.1600 mod. U-TRONIC 800.

Year of construction: 2001, condition: excellent (used), Single screw extruder WEBER NE5 1-30:D with 2 co-extr. WEBER ZE30 Nwodpfx Aehy Tp Dof Sjr Year of construction 2001 Screw diameter 50 mm Application:PE-PP, Three-layer pipes or pipes with colored stripes The plant has manufactured heating pipes Condition: very good 2 Co-Extruders WEBER ZE30 Screw diameter 30mm The three-layer pipe system is my property Location: Sachal EXTRUSIONSMACHINEN D-26345 Bockhorn/Grabstede, Germany

Condition: reconditioned (used), travel distance X-axis: 10,000 mm, travel distance Y-axis: 1,300 mm, travel distance Z-axis: 2,100 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, feed rate X-axis: 30 m/min, feed rate Y-axis: 30 m/min, feed rate Z-axis: 30 m/min, spindle speed (max.): 6,000 rpm, spindle speed (min.): 36 rpm, rotational speed (max.): 6,000 rpm, tank capacity: 1,200 l, SHW Powerspeed 5 Travel paths • X-axis (bed): 10,000 mm • Y-axis (headstock): 1,300 mm • Z-axis (vertical): 2,100 mm Control • CNC control: Heidenhain iTNC 530 Feed rate • X, Y and Z axes: 30,000 mm/min • Acceleration: 3.5 m/s² Universal milling head in orthogonal design • Milling head holder swivel range: 360 x 1 degree • Milling head swivel range: 180 x 1 degree • Tool holder: SK 50 DIN 69871 • Speed range: 36 - 6,000 rpm Chip conveyor • Feed length: 10,000 mm Coolant system • Container capacity: 1,200 Liter ATTENTION the images are comparison images About us: MBM Maschinenservice & Gebrauchtmaschinen GmbH is an independent specialist for SHW machine tools. Our main focus is on tool milling machines. Our services include spare parts deliveries, on-site customer service, machine overhauls and control system modernizations. Services: - Used machines Njdpfx Asv Dhw Tef Sewr - Spare parts - Customer service - Machine service - Machine overhauls - Control system modernization _____ Used machine - used milling machine - used traveling column milling machine - orthogonal milling head - metalworking - tool milling machine - milling head - SHW machine - SHW spare parts - used milling machine - used milling machine - used CNC milling machine - used drilling and milling machine - used metal milling machine - used metal milling machine - used metal milling machine - used CNC milling machine - CNC milling machines - CNC milling machines - milling machine - large part machining - large part machining - large part machining - CNC large part machining - milling - shw - PS5 - PS 5 - Powerspeed - SHW PSZ 5 - SHW Powerspeed - SHW Powerspeed 5 - PSZ 5 - PSZ 5 - Heidenhain - MBM milling machine - MBM machine - column milling machine

Condition: good (used), WEBER tube extrusion line including: Nwsdpfx Aovryhyjf Ssr WEBER DS 8.5 Elmepla saw Battenfeld R200/6 Battenfeld V125

Condition: excellent (used), Year of construction: 1994, functionality: fully functional, travel distance X-axis: 10,000 mm, travel distance Y-axis: 1,250 mm, travel distance Z-axis: 2,500 mm, Equipment: documentation/manual, Zayer mobile column milling machine, horizontal stroke 10000, vertical stroke 2500, slide stroke 1250, spindle 1800n, tool magazine 30 positions, year 1994, Heidenhain 415b control with 15" LCD display replaced last year, cone grinding October 2024 (iso50), always serviced. Currently in use. Nwedewhd Alepfx Af Ser

Condition: good (used), Year of construction: 2002, functionality: fully functional, USED Soraluce Soramill Model SP 10000 Travelling Column, Table Type CNC Milling Centre, with Automatic Oil Mist Lubricated Orthogonal Milling Head with 1 X 1 Degree Indexing and HEIDENHAIN TNC 430 M Control System. Year 2002 SN 8647 Table Area - 10000 x 1100 mm Column Traverse (X) - 8500 mm Vertical Traverse (Y) - 1600 mm Ram Traverse (Z) - 1200 mm Spindle Motor - 28 kW Spindle Taper - Standard ISO 50 BT50 tooling Pullstud - DIN 6987 2-Form A. ISO 7388/2-Form A Independent Gearbox with 2 Ranges Speed Range - 20 to 4000 RPM Feed Range - 5 to 5000 mm/min Rapid traverse rate - (X, Y, Z) 15,000 mm/min Preloaded double nuts and recirculating ballscrews to each axis. Linear Guiding System with recirculating cylindrical rollers and steel guideway assemblies in X, Y and Z axes Independent A.C Drive motor to each axis. Linear Transducer in X, Y and Z-axes with air purge system. Automatic tool clamping. Automatic hydraulic tool releasing device. CNC Control HEIDENHAIN TNC-430-M. (Flat TFT screen with digital drives) 9 axes CNC and 1 spindle, 5 of them simultaneously interpolated. Nwjdpfx Aer Hr Arof Ser Working area lighting Electrical cabinet cooling system Electrical cabinet lighting Heidenhain HR410 portable electronic handwheel with 3m spiral cable Horizontally articulated pendant for CNC control Orthogonal head 28KW, 800Nm, 1deg x 1 deg, 4000rpm oil lubricated Price includes oil cooling unit for both head and gearbox. Option G2, Ram prepared for 4000rpm, is also included. Coolant through the spindle type AD. Coolant system with 500l capacity tank with two pumps providing low and high pressure of 3 and 8 bars and 50l/min flow. The system includes a combined paper and magnetic drum-filtering unit. Standard operators platform fixed to the column 40 tools capacity toolchanger magazine, BT50 Max. Tool length = 400 mm. Max. Tool diameter: - With full magazine = 120 mm. With adjacent position empty = 250 mm. Max. Tool weight = 20 kg. Mean tool weight with full magazine = 10 kg. Max. Permitted total weight = 20 kg. Swarf Conveyor Hinge type conveyor belt Machine preparation for the addition of a 4th axis electro-mechanical table. Splash Guarding against swarf at the table front and both sides. Consists of four sliding front doors with a height from the floor of 2.100mm and a length of 1.700mm each one. Manually operated opening and closing with mechanical interlock. The doors can be opened for the full longitudinal traverse. The rear of the table is open. Protection in the back and both lateral sides of the machine column.

Condition: like new (used), Year of construction: 2000, operating hours: 25,000 h, travel distance X-axis: 10,300 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,800 mm, feed rate X-axis: 10 m/min, feed rate Y-axis: 10 m/min, feed rate Z-axis: 10 m/min, position of the milling head: 2.5 x 2.5 °, spindle speed (max.): 3,000 rpm, spindle speed (min.): 60 rpm, table width: 3,300 mm, table length: 12,000 mm, mount diameter: 50 mm, total height: 48,750 mm, total width: 100,000 mm, total length: 212,000 mm, overall weight: 100,000 kg, Duplex milling are two machines located one opposite the other which can work seperately or as single machine, workpiece can be machined with 2 simultaneous spindles. Production increase of up to 50% in relation to conventional solutions, i.e. individual milling machines Improvements in part precision, by managing to do the machining of the part in one single setup, in most of the cases One sole operator can control the DUPLEX milling machines Reduced space and investment requirement comparing with two single machines Fast investment amortization due to the high productivity Duplex solution admits different configurations: single working area, pendulum working areas For machining excavator arms / boom like, CAT, Caterpillar, Komatsu, Hitachi, Hyundai, Doosan, Case, Bobcat, JCB, Kobelco, Liebherr, Kubota, Takeuchi, Volvo X-Axis: 10300mm Y-Axis: 2000mm Z-Axis: 1800mm Nsdpfx Aorx Rxtjf Sswr Table Length: 12000mm Table Width: 3300mm Table load: 100000 Power on spindle: 22/30kW Spindle speeds: 60 - 3000Rpm Spindle Taper: 50ISO/Bt/Mk Feed rate X-Axis: 10000mm/min. Feed rate Y-Axis: 10000mm/min. Feed rate Z-Axis: 10000mm/min. Millinghead auto-index:2.5 x 2.5° Working hours: 25000H Length: 21200mm Width: 10000mm Height: 4875mm Weight: 100000kg

Condition: used, Year of construction: 2008, x-travel 12.000 mm Nedpfsxvdunex Af Sowr y-travel 1.500 mm z-travel 3.500 mm feed 20.000 m/min Tool adapter DIN 69871 A50/HSK63

Condition: like new (used), Year of construction: 2007, travel distance X-axis: 3,000 mm, travel distance Y-axis: 900 mm, travel distance Z-axis: 900 mm, LAGUN FIXED BED MILLING MACHINE TECHNICAL SPECIFICATIONS Brand: Lagun Model: GBM 31 Table: 3100 x 900 mm CNC: Heidenhain iTNC 530 X-axis: 3000 mm Y-axis: 900 mm Z-axis: 900 mm Table weight: 6000 kg Operating speed: 3000 rpm Feed rate: 20000 mm/min Tools: 24 Motor: 22/27 kW Nwedswyv Nuepfx Af Sor Automatic milling head: 2.5 x 2.5° The machine is not equipped with through-spindle coolant. PRICE AND FURTHER INFORMATION ON REQUEST (CNC, SIEMENS, HASS, LAGUN, FAGOR, CINCINNATI, HEIDENHAIN, MACHINING, PINACHO, MORISEIKI, MILLING MACHINE, LATHE, GRINDER, BORING MACHINE, PRESS, LASER, SHEAR, PRESS BRAKES)

Year of construction: 1996, condition: good (used), Make:KRAUSS-MAFFEI Description: used type: KMD-2-50-KK output capacity: max. approx. 140-180 kg/h for H-PVC pipes, depending on material and product this can vary year of construction:1996 Screw diameter:50-103 mm (conical) Screw length:1300 mm Screw speed: max. 43 m/min. Drive motor: DC motor 25 kW Nodpeh Nmt Djfx Af Sewr Cylinder heating/cooling zones: 4/3 (oil cooling) inlet piece heating zone: 1 tool heating zones: 5 Equipment: dosing unit with hopper, vacuum pump for barrel degassing, barrel cooling unit, screw tempering unit Gearbox, was installed at 53,000 hrs. Overhauled worms and the cylinder Note: current running time is 62,590 hrs. Good Second hand functional
