Bench Drilling Machine

ALZMETALL AX2-T/S

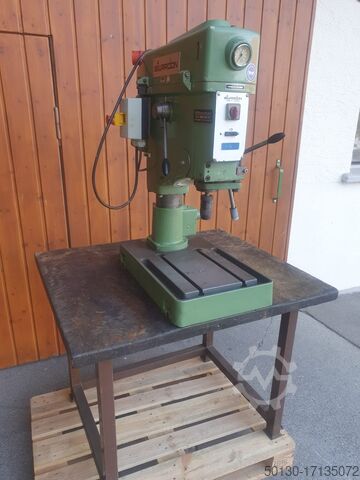

Condition: good (used), Gillardon GT 16 bench drill - MK2 holder - infinitely variable speed Good condition, fully functional, can be inspected and tested on site. Shipping also abroad. Inspection : Basically, I would like to point out that the item can be inspected and tested under power before purchase to avoid misunderstandings. Please ask questions before buying to avoid any ambiguities. For general questions or to make an appointment for a viewing, I can be reached at any time at the telephone number below or above. Rsdsum Staepfx Af Sock Errors in the description and prior sale reserved. VAT is shown separately on my invoices. Shipping with forwarding agent.

Condition: good (used), bore capacity in steel (diameter) 25,0/30,0 mm throat 260 mm bore stroke 120 mm number of spindle speeds 80-1400 min-1 table surface area 410 x 390 mm total power requirement 0,8/1,5 kW weight of the machine ca. 250 kg dimensions of the machine ca. 0,75 x 0,6 x 1,15 m Rodeuhhzhjpfx Af Sjck

Condition: used, Year of construction: 2015, machine/vehicle number: 188786, Tapping machine Make: MAXION Model: BT 15 GL Year of manufacture: 2015 - workshop tested Machine no.: 188786 4 speeds 320, 560, 1,000 and 1,600 rpm. Rcedpjvc A U Dofx Af Sok Accessories: - Lead screw device for jig-like threads - Lead screw change by means of quick coupling - Safety device against tool breakage - Program for single or continuous cycle - electronically controlled motor braking for single cycle - Electrical hood guard - electric chuck protection hood - 3m connection cable with 16A CEE plug - operating instructions incl. the following options: - Pull-out circuit After the safety device is activated device is activated, this enables the quill to be return the quill to the home position at the the push of a button. Without this device, the spindle must be the spindle must be turned back manually until the the home position.

Condition: used, Column Drilling Machine Make: IBARMIA Model: A-35 Year of manufacture: 1980 – workshop-tested Machine No.: 1294-C Speed: See technical data Accessories: Rjdpfjw Hxbmox Af Sjck - Automatic feed for drilling - Machine lamp - Machined coolant base plate - Coolant system - Operating manual Technical Data: 9 spindle speeds via gear stages 73/103/149/232/325/472/695/976 and 1415 rpm Right/left rotation 4 automatic drilling feeds: 0.1/0.2/0.4 and 0.4 mm Drilling capacity in steel (ST 60): 35 mm Drilling capacity in cast iron (GG 20): 45 mm Thread cutting capacity in steel (ST 60): M 27 Thread cutting capacity in cast iron (GG 20): M 33 Spindle taper MK 4 Spindle stroke: 200 mm Table dimensions: 510 x 510 mm (T-slot: 16 mm) Rotatable table plate Weight approx. 490 kg Used, sold without warranty.

Condition: excellent (used), Tool milling machine Manufacturer: Mikron Model: WF 3 DP Three-axis Heidenhain digital readout Tool holder: SK 40 24 spindle speeds: 30 – 2240 rpm Infinitely variable feeds, from 1 – 750 mm/min Table clamping surface: 450 x 800 mm Rsdpfx Afexvr Tro Seck X travel: 500 mm Y travel: 500 mm Z travel (vertical): 400 mm Hydraulic tool clamping Space requirements: Width: 1800 mm Depth: 1700 mm Height: 2000 mm (with pallet) Weight: 1800 kg
