Used Elumatec Mgs 105 for sale (4)

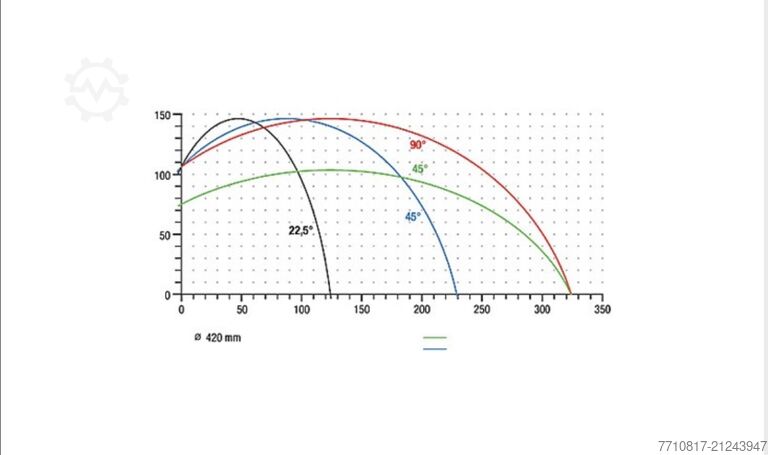

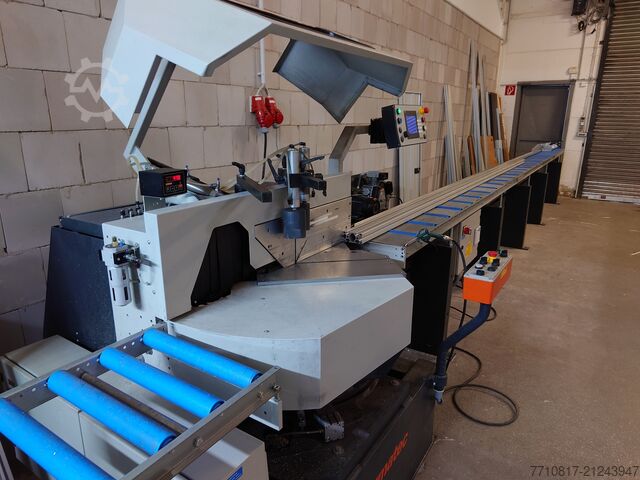

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, machine/vehicle number: 1050126700, saw blade diameter: 420 mm, total length: 160,000 mm, total width: 2,000 mm, overall weight: 750 kg, saw blade speed: 2,800 rpm, section length (max.): 7,000 mm, section length (min.): 50 mm, elumatec Profile Sawing System Overall footprint: Width x Length: 2.0 x 16.0 m comprising: elumatec Mitre Saw MGS 105 ----- Manual swivel range, 22.5° left and right with E 111 digital display Pneumatic tilt range from 90° to 45° Cutting area: see cutting diagram Saw blade diameter: 420 mm Saw blade speed: 2,800 rpm Electrical connection: 230/400 V, 3~, 50 Hz Output power: 4 kW Compressed air connection: 7 bar Air consumption per cycle: 20 l without spray, 32 l with spray Iedpfx Aoykmbnjfaean Length 1,400 mm, depth 1,500 mm, height 1,880 mm, weight 750 kg elumatec Stop and Length Measuring System AMS 200/08 Model No. 2000826770-12/14 Length: 7,500 mm (custom version) Measuring range: min. 50 mm / max. 7,000 mm Configuration: installed to the right of the saw Technical data: - Drive-independent measuring system - Positioning accuracy +/- 0.1 mm per meter - Pneumatic locking at position - Drag chain cable guidance elumatec Control E355/P Control system for AMS 200 Matrix display with membrane keypad Operating menu 1. Single saw cycle 2. Record set for data sets Record memory allows input of set number, length, profile number, angle position, and quantity Optional printer interface elumatec Infeed Roller Conveyor (left of saw) Total length 6.0 m (consisting of 2 units of 3,000 mm each)

Year of construction: 2007, condition: used, functionality: unexamined, Elumatec MGS 105/01 single head mitre saw with cut to length system, E111 digital display, E555 control, infeed and outfeed roller conveyors, s/n 1050126588 (advised 2007) This lot is located in Farnworth, Bolton. Collection must be made on Tuesday 3rd March 2026. Ijdoyg Rfcjpfx Afasan

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, machine/vehicle number: 1050126409, saw blade diameter: 420 mm, Mitre saw elumatec MGS 105/01 The universal saw for special applications The reliable elumatec principle “Cutting from below”: Free access to the table surface for optimal loading and unloading of profiles The patented saw arm suspension creates a cutting pressure towards the back fence which ensures safe clamping of the workpiece Safety hood opens automatically Pulsed coolant system Pivoting range manually 22.5° to the left and right with digital display E111 Tilting range pneumatically from 90° - 45° For cutting range, see cutting diagram Saw blade diameter 420 mm Saw blade speed 2,800 rpm Iajdpfx Asyhhv Isfaen Power supply 230/400 V, 3~, 50 Hz Power output 4 kW Compressed air supply 7 bar Air consumption per working cycle 20 l without spraying, 32 l with spraying Length 1,400 mm, depth 1,500 mm, height 1,880 mm, weight 750 kg Machine is ready for operation, saw blade was sharpened.

Condition: used, Year of construction: 1994, functionality: fully functional, machine/vehicle number: 26045, saw blade diameter: 420 mm, It performs cuts with double angle. It is supplied complete with input roller conveyor and output roller conveyor equipped with measurement reader. Isdpfsv Hfc Esx Afaoan
