Used dowel boring machines for sale (98)

Condition: excellent (used), 19 Drill You can call or write to us. We can speak and write German and Russian. You can also send messages in English Kfsdpfxoucqace Af Soa 5.1.5

Condition: good (used), functionality: fully functional, drilling depth: 45 mm, rotational speed (max.): 18,000 rpm, rotational speed (min.): 9,000 rpm, spindle speed (max.): 18,000 rpm, spindle speed (min.): 9,000 rpm, compressed air connection: 7 bar, input voltage: 400 V, working width: 1,200 mm, stroke length: 50 mm, height adjustment type: electric, input frequency: 50 Hz, mount diameter: 10 mm, power: 1.5 kW (2.04 HP), Dowel Hole Drilling and Insertion Machine SCHEER BS 5102 The BS 5102 is a high-quality, electronically controlled drilling and dowel insertion machine designed for precise end-face drilling operations and powerful dowel insertion. It is ideally suited for continuous industrial use in joineries, furniture, and cabinet manufacturing. Condition & Service: Condition: Completely overhauled & freshly painted Functionality: Fully operational Warranty: 12 months CE-compliant / dust tested Key Technical Data & Features: Workpiece width: 60 – 1200 mm (pendulum mode up to 600 mm) Workpiece thickness: 15 – 60 mm Vertical stroke: 7.5 – 50 mm Kjdswrnn Topfx Af Sjfa Drilling depth: max. 45 mm Drill motor: 1.5 kW, adjustable 9,000 – 18,000 rpm Drilling system: M10 external (Scheer system) Clamping cylinders: 4 short-stroke angled clamping cylinders (Ø 63 mm) Voltage: 400 V, 50 Hz Glue system: 1:1 membrane pump, max. 7 bar Extraction connection: Ø 80 mm | Airflow: 540 m³/h Equipment & Operating Comfort: Drilling, dowel insertion, or both simultaneously—for maximum flexibility PLC-controlled glue quantity—precisely adjustable Controlled X-axis with linear guide, rack-and-pinion drive, and servomotor Drill motor, glue unit, and dowel insertion unit integrated as standard Adjustable drilling depth & dowel projection directly at the support Clamping portal with 4 adjustable clamping cylinders—for exact workpiece fixation Stop rulers on the left, right, and middle of the machine table Large support surface for safe and flexible workpiece guidance Control & Programming: Siemens PLC control with PC and WP-Studio software Operating system: Windows 10 Display: 17" color screen Dialog-oriented operation, graphically supported Automatic mirroring of workpiece programs (left/right) Programmable workpiece and glue data Optional Features: Electronic glue monitoring Inspection mirror for visual monitoring of the spiral conveyor Additional drill motor for face drilling upon request Warranty & Reliability: We are convinced of the quality and durability of our machines—that’s why you receive a 7-year warranty on the machine construction, particularly on the design and guide mechanisms. Electrical supply parts and wear parts are excluded. Summary: This machine combines precision, modern control engineering, and high build quality. Perfectly suited for operations prioritizing reliability, efficiency, and operator convenience. 📞 Contact us for an individual offer or to schedule a demonstration. Machine available from stock. Delivery, commissioning, and training available as options.

Condition: reconditioned (used), Year of construction: 1995, machine/vehicle number: 9511/5376, workpiece height (max.): 40 mm, working width: 1,200 mm, number of spindles: 1, table width: 1,300 mm, table height: 900 mm, working height: 900 mm, pressure: 6 bar, workpiece width (max.): 1,200 mm, KOCH drilling and dowel insertion machine Type SPRINT PTP Workpiece dimensions Workpiece length (Y) 100 - 800 mm Workpiece width (X) 20 - 1200 mm Workpiece thickness (Z) 10 - 40 mm Machine equipment - Horizontal drilling station with one drilling spindle -Drill holder Ø 10 mm Kfedpfx Aforc A Nwo Sja - Dowel hole blow-out and extraction system - Glue application and dowel insertion station with a DW34 dowel tool for dowels Ø 8 mm - ELC electronic glue monitoring system - Vibratory conveyor - Glue pump 1:1 - Workpiece support table 1300 mm wide - 1 stop each left and right - Mechanical digital displays for height adjustment (workpiece thickness) -PC positioning control

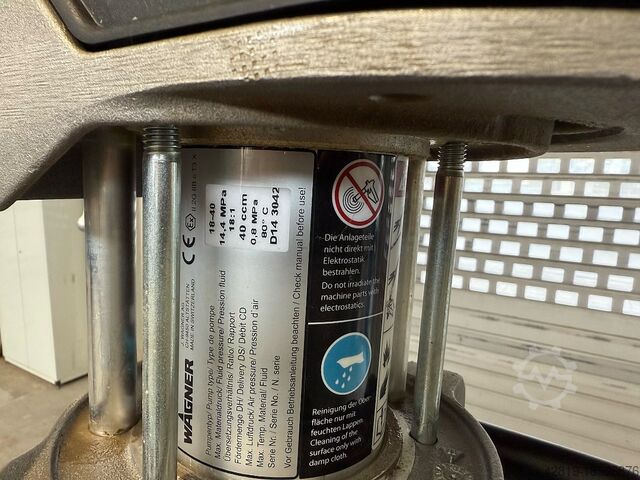

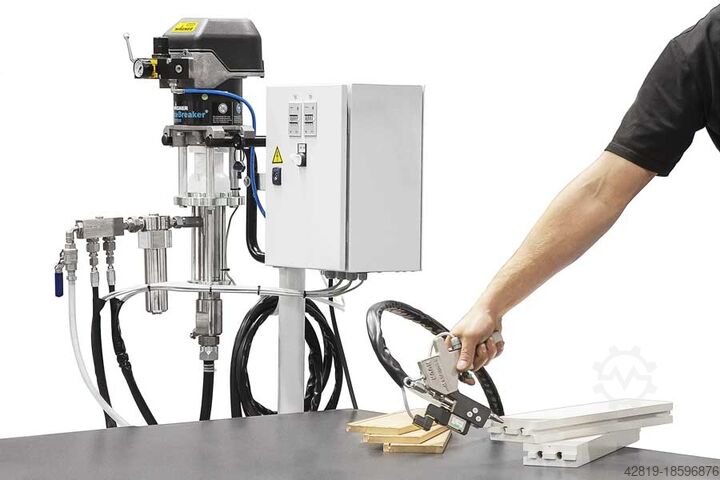

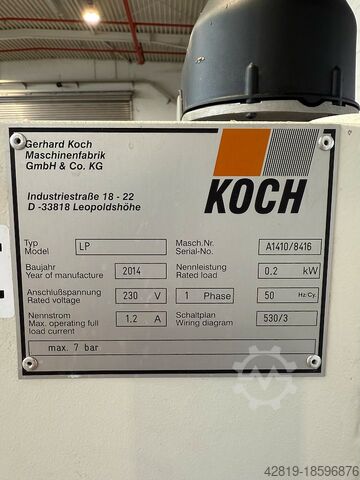

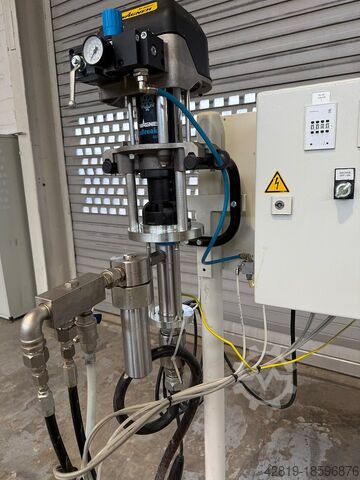

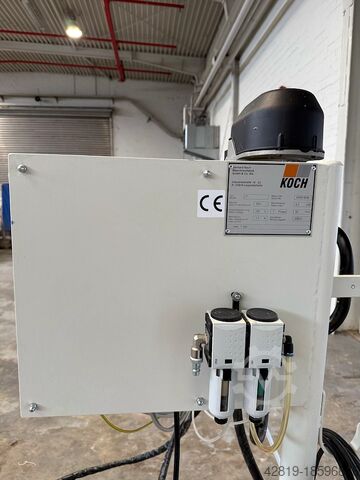

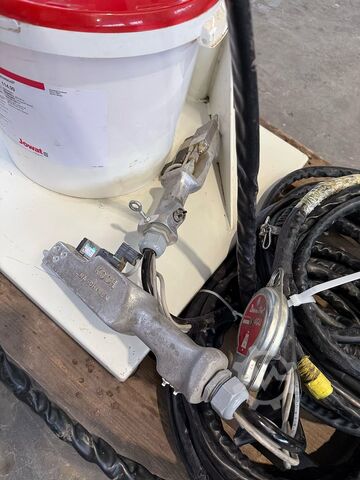

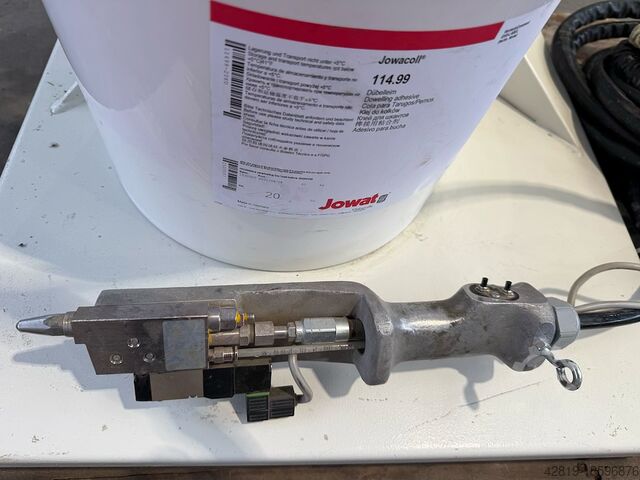

Condition: good (used), Year of construction: 2014, 2 pcs. KOCH glue gun, type: LP, year of manufacture: 2014 with Wagner high-pressure glue pump Automatic glue application (counter-hole gluing) Machine no. A1410/8413 Three-phase current 220 V/ 50 Hz Connection value 0.2 kW Pump type 18-40 Series no. D14 3042 Max. material pressure 14.4 MPa Transmission ratio 18:1 Delivery rate DH 40 cc Max. air pressure 0.8 MP a Kfodpfsv Dvapsx Af Soa Max. material temperature 80° Weight 100 kg (Subject to changes and errors in the technical data and subject to prior sale)

Year of construction: 1998, condition: good (used), I sell the multiple drilling machine with inserting KOCH Sprint-PTP Year: 1998 Number of drilling spindles 1 Number of inserting heads 1 Programming CNC-driven Z-axis Working width 1200mm Working height max. 36mm Available immediately Kedpfx Ajd Exwgjf Ssfa

Condition: reconditioned (used), Year of construction: 1997, functionality: fully functional, machine/vehicle number: 690924, Connected load 380V 1,84kW speed 2840 rpm number of spindles: 21 pieces, pitch 32 mm spindle distance 640 mm Kfedpfsh U Damjx Af Sea spindle rotation direction 11xright 10xleft M10 thread 2x safety clamps pneumatic foot valve table size 880 x 400 mm 1x side stop with 2 folding stops 1x basic fence 1x miter fence Unfortunately, we cannot answer inquiries without complete contact information.

Condition: used, machine/vehicle number: AN004439, Anzahl Bohrspindeln : 2 Stk Teilung : 32 mm Bohreraufnahme : Schnellspannfutter Bohrerschaft: 10 mm Bedienung : Fußpedal Kfedpfxeuuu Rks Af Sja Werkzeuge : Ja mm Bohrrichtung : von unten & stirnseitig max. Durchlasshöhe : 60 mm Anzahl Materialspanner : 2 Stk Art der Materialspannung : pneumatisch Ausführung : stationär Anschlagsystem : für Lochreihe und Konstruktionsreihe Gewicht ca. : 300 kg Motorleistung : 2+3 PS

Condition: like new (used), functionality: fully functional, Dowel Hole Drilling and Inserting Machine SCHEER BS 5102-V The BS 5102-V is a powerful, electronically controlled machine designed for precise and efficient face-end drilling and accurate insertion of wooden dowels. It is ideally suited for industrial wood processing—especially in furniture and carcass production. Condition & Service: Condition: As new (completely overhauled & newly painted) Functionality: Fully operational Warranty: 12 months CE compliant / Dust-tested Main Technical Data & Features: Workpiece width: min. 60 mm / max. 1200 mm (Pendulum operation: max. 600 mm) Workpiece thickness: 15 – 60 mm Drilling depth: max. 45 mm Vertical stroke of the support: 7.5 – 50 mm Min. lateral drilling distance: 10 mm Drilling unit: 9,000 – 18,000 rpm (adjustable), 1.5 kW Drilling system: M10 external (Scheer system) Servo motor: 0.54 kW, max. 60 m/min feed rate Dowel size: 8 x 30 / 8 x 50 mm, DIN 68150 Form A Glue system: 1:1 diaphragm pump, max. 7 bar Glue container: spiral conveyor, 3.5 liter capacity Extraction connection: Ø 80 mm | Extraction airflow: 540 m³/h at 30 m/s Clamping cylinders: 4 short-stroke cylinders (Ø 63 mm), angular clamping Power supply: 400 V, 50 Hz Machine Construction & Operator Comfort: Controlled X-axis with machine frame as workpiece support X-support with linear guide and rack-and-pinion drive Servo drive for feed system Clamping portal with 4 adjustable clamping cylinders—controllable in 2 groups Stop rulers: left, right, and center on the table Drilling depth and dowel projection are adjustable directly on the support Offcut Unit & Safety Systems: Safety hood locking Lamella safety curtain Integrated extraction channels Kfsdpfx Afeunvg To Soa Control & Operation: PC with Siemens PLC controller User interface: WP-Studio—dialog-oriented programming Operating system: Windows 10 Display: 17" color monitor Separate workpiece programs for left & right operating sides (mirrored possible) Glue quantity can be individually defined per program Network capable (LAN/WLAN), compatible with Windows, Linux, Mac, Novell Remote maintenance & software updates possible Optional Equipment: Y-axis: automatic adjustment of drilling and glue units Electronic glue monitoring: ensures controlled glue flow Additional drilling unit for surface-side drilling: • Drilling motor: 1.5 kW at 18,000 rpm • Drill feed: pneumatic • Drill stroke: max. 25 mm • Depth limit: via spindle & SIKO display • Drill distance from reference edge: 5 – 35 mm • Holder: M10 external, max. Ø 35 mm • Workpiece length: min. 70 / 90 mm Warranty & Reliability: We are convinced of the stability and manufacturing quality of our machines—that’s why you receive a 7-year warranty on the machine construction, especially on the supporting structure and guide mechanism. Excluded are electrical supply components as well as normal wear parts. Additionally, we provide a 1-year warranty on the complete machine (including control, hydraulics, pneumatics, etc.). Conclusion: This machine combines state-of-the-art control technology, high manufacturing quality, and user-friendly operation. Ideal for precise dowel hole drilling and automated dowel insertion—reliable and efficient for continuous operation. 📞 Contact us for an individual offer or to schedule a demonstration. Available from stock. Delivery, commissioning, and training available as options.

Condition: used, Year of construction: 2006, Machine including brand new 2-jaw chuck Machine cleaned, lubricated, partially overhauled, test run performed Drill chuck replaced. Chuck runout: 0.03 mm Used, top condition, low operating hours Make: Hofmann Model: LB 760 Year of manufacture: 2006 Machine no.: 76-01420 CE type-examined Motor: 1.8 kW, 2 speeds Table size: 760 mm Drill capacity: 0–20 mm Drill chuck: 20 mm Kfedpfxsw Ed Uis Af Soa Dowel boring device with 4 position stops Workpiece stop Mitre stop 45° Centre stop Motor speed: 2 settings (1500/3000 rpm) Digital height display Manual workpiece clamp, 1 x with 2 columns Extraction connection: Ø 120 mm Space requirement: approx. 1300 x 1200 x 1400 mm Weight: approx. 260 kg Location: 97447 Gerolzhofen, free loaded, unpackaged Delivery in as-inspected condition, without guarantee or warranty.

Condition: reconditioned (used), Year of construction: 1997, functionality: fully functional, Schleicher 3 unit drilling machine after lignum renovation. Kfedpfst Ndznox Af Soa Machine equipped with upper units 3 pieces .Pneumatic pressure .Working realized by forcing the button unit the rest of the automatic .Choice of units possible each one or all .Speed and depth of drilling the possibility of setting .Machine after major repair .New electricity and driver .Net price vat invoice warranty one year .The machine can be additionally equipped with rulers bumpers pressures and drilling heads of any spacing .

Condition: refurbished (used), Year of construction: 1996, operating hours: 350 h, functionality: fully functional, Universal Dowel Hole Boring Machine DB 4 Kfodpfxewq S E Ho Af Sja This used SCHEER Universal Dowel Hole Boring Machine DB 4 has been functionally tested (not newly painted). Worn parts/seals have been replaced, and the machine geometry was reset to ensure the highest precision. The SCHEER Universal Dowel Hole Boring Machine DB 4 is specifically designed for construction drilling, for series drilling in the 32 mm grid system, and for drilling fittings of various kinds; it enables all these tasks to be performed quickly, precisely, and with minimal setup times. Easiest operation via symbols and 4 program preselection controls for switching to new working processes in seconds. Central adjustment of the removable side stops always ensures flush alignment at the front edge for precise drilling of left and right workpieces. It does not matter whether the parts are cut to size or in square. The dowelled corner connection is always flush—both at the edge and at the CNC machines—just as simply and quickly as with a SCHEER DB 4. Safety clamping device across the entire table width, clamping of workpieces directly at the drilling bar. Stop rail with three adjustable flip-stops. Continuous table supports facilitate feeding and drilling of long workpieces; foldable workpiece support tables make series and fitting drilling easier. 2 drilling units Drilling motor Type BM 602-230/400 Volt, 50 Hz, n = 2860, 2.2 kW power 25-spindle attachment gearbox Spindle spacing 32 mm (other spindle spacings on request) For surface and face drilling. The vertical drilling unit is equipped with an oil brake for tear-free drilling of series holes. The control cabinet of the machine has been completely rebuilt and converted to the new SIEMENS LOGO control system. This ensures the operational safety of the machine for the future! Portal passage: max. 950 mm Working length: max. 2360 mm With pneumatic comb adjustment

Condition: reconditioned (used), Year of construction: 1990, Motors 2x1.85A 50Hz 380V 2800 rpm Air operating pressure 6 bar 30 spindles D=10 mm mount Combination foot switch Emergency stop switch Kfsdpfxev Nptms Af Soa Main switch Manual height adjustment Manual side adjustment

Condition: excellent (used), Year of construction: 2018, I sell the multiple drilling machine with inserting Vitap Blitz Year: 2018 Number of drilling spindles 1 Ksdpfjwg Tyqjx Af Sefa Number of inserting heads 1 Glue spraying with pump Programming CNC-driven X-axis Very good condition. Available immediately

Condition: like new (used), This used SCHEER DB 4 universal dowel boring machine has been functionally tested, worn parts have been replaced and the machine geometry has been readjusted to ensure maximum precision. The SCHEER DB 4 universal dowel hole drilling machine is specially designed for drilling construction holes, for drilling holes in rows in a 32 mm grid system and for drilling a wide variety of fittings; it enables all these tasks to be carried out quickly, precisely and without long set-up times. Extremely simple operation via symbols and 4 program preselection controls for changing over to the new work process in seconds. Central adjustment of the removable side stops, therefore always flush at the front edge, precise drilling of left and right workpieces. It does not matter whether the parts are cut to size or at the correct angle. The doweled corner joint is always flush, both on the edge and on the surface! No CNC machine can achieve this as easily and quickly as a SCHEER DB 4. Safety clamping device across the entire table width, clamping of the workpieces directly on the drilling beam. Stop rail with three adjustable folding stops. Continuous table supports make it easier to push through and drill long workpieces, fold-up workpiece support tables facilitate line drilling and hardware drilling. 2 drilling units Drill motor type BM 602-230/400 Volt, 50 Hz, n= 2860, 2.2 kW output 25-spindle attachment gearbox Spindle pitch 32 mm (other spindle pitches on request) For surface and face drilling. The vertical drilling unit is equipped with an oil brake for tear-free drilling through rows of holes. Kfedpfxou Rqi Ao Af Ssa The control cabinet of the machine has been completely rebuilt and converted to the new SIEMENS LOGO CONTROL. This ensures the operational safety of the machine for the future! Gantry passage: max. 950 mm Working length: max. 2360 mm

Condition: used, Year of construction: 1995, with pneumatic lift for drilling on 2 levels used, excellent condition, low hours Manufacturer: Hoffmann Model: HR 150 Year of manufacture: 1995 Machine no.: 15201 CE type tested Drill chuck: 16 mm Dowel drilling device with 1 piece indexing guide Workpiece stop Kodpfx Ajw Ed Ucof Ssfa Mitre gauge 45° Center stop Mobile Pneumatic lift Digital displays Pneumatic workpiece clamps, 2 pcs Space requirements approx. 1200 mm x 900 mm x 1300 mm Weight approx. 350 kg Storage location: 97447 Gerolzhofen, free loaded, unpacked Delivery as is, as inspected, without guarantee or warranty

Condition: good (used), Year of construction: 1982, functionality: fully functional, Power 380V 3.3A Kedpfx Afoq Auwtj Sefa Motor power 1.1kW 2800 rpm Automatic pneumatic control with control panel Drill head with 23 spindles, pitch 32 mm Drill hole depth adjustable drill shaft 10 mm position adjustment 5-60 mm Clamping height 80 mm Passage width 800 mm Dimensions: 1200 x 900 mm Weight approx. 400 kg 1x setting gauge row bore 1x setting gauge side stop 1x stop ruler 1500 mm 1x fence 2000 mm

Condition: used, Year of construction: 1979, from school operationused, good conditionmake Ayentype DB 1000 K 23year of construction 1979machine no. 7SA740GS-testednumber of spindles 23 piecesnumber of drilling beams 1spindle distance / grid 32 mmdrilling from aboveswiveling pneumatichole line drilling devicestorage location 97447 Gerolzhofen, free loaded, unpackeddelivery in as-is condition as viewed,without warranty and guarantee Kfjdevxr Raopfx Af Soa

Condition: reconditioned (used), functionality: fully functional, Drilling and pressing machine for all types of furniture fittings, rows of holes and hole group drilling machine in system 32 Power connection 400V 0.75kW Spindle speed 2800 rpm Stop ruler 960 mm 2x swivel stop for drills with shaft diameter 10 mm Workpiece thickness max. 40 mm 1x 7-spindle drilling head for row of holes, pitch 32 mm with integrated pins Manual feed Base Kjdpfxsumw Sbe Af Sjfa at an additional cost Olive drilling head €450.00 Mepla drilling head with pressing die €550.00 Hettich drilling head with pressing die €550.00

Condition: used, usedmanufactured by Gannertype Superdrillnumber of spindles 19 piecespindle distance / grid 32 mmhydraulic feeder brakeguide fences 2 piece length ca. 3,0 m / 1,5 mworking width 640 mmdrilling depth 95 mm / 110 mmdrill chuck D 10 mmpendulum fence 6 piececlamp 3 piecedrilling unitframe dowel unitrequired space ca. 1400 mm x 900 mm x 1200 mmtotal connected power 1,5 kWlocated in 97447 Gerolzhofen, free on truck, unpackedsale in current condition as seen,without revisionwithout guarantee and warranty Kfsdpfx Asvwf R Rsf Ssa

Condition: used, Year of construction: 1983, with 2 drilling beamused, good conditionmanufactured by Scheertype DB 3built in 1983Masch.-No. 83120number of spindles 25 piecenumber of drilling beams 2Spindelabstand / grid 32 mmdrilling from tophydraulic feeder brake 2 pieceguide fence 1 piece ca. 2500 mmworking width ca. 800 mm (768mm)drilling depth ca. 100 strokedrill chuck M 10pendulum fence 3 piececlamp 3 piecedrilling programs 4 piecerequired space ca. 1400 mm x 1300 mm x 1800 mmweight ca. 1000 kglocated in 97447 Gerolzhofen, free on truck, unverpacktsale in current condition as seen,without revision,without guarantee and Gewährleistung Ksdpfxsvwf N He Af Ssfa

Condition: used, Year of construction: 1977, used manufactured by Ayen type DB 1000 K2 built in 1977 Kfsdpfovwgagjx Af Soa Mach.-No. 751212 number of spindles 23 piece number of drilling beams 1 drilling from top tiltable pneumatic comb lowering pneumatic drill chuck D 10 mm clamp 3 piece grid 32 mm required space ca. l x w x h mm 1200 x 800 x 1600 weight ca. 370 kg total connected power 2,2  kW located in  97447 Gerolzhofen sale in current condition as seen - free on truck -

Condition: used, Year of construction: 1980, second hand Make Scheer Type DB 5 Year of construction 1980 Machine no. 508054 Number of spindles 21 pieces Number of drilling beams 1 drilling from below Kodpfovwfuvjx Af Sofa pivoted manually Working width 800 mm Drilling depth 80 mm Tensioner 2 pieces Pitch 32mm Space requirement approx. LxWxH mm 1200x800x1300 Weight approx. 300 kg Total connection value 2.2 kW Storage location 97447 Gerolzhofen Handover in the current condition as seen - free loaded -

Condition: used, Year of construction: 1989, with many drills used, top condition Make Hoffmann Type DB 23 Kfsdpovyurcofx Af Soa Year of manufacture 1989 Machine no. 169 Number of spindles 23 Number of drilling beams 1 Spindle spacing / grid 32 mm Drilling from below stroke 60 mm Stop rulers with central adjustment Working width 704 mm (1080 - portal passage) Drilling depth 70 mm horizontal Drill holder M 10 / cone 30° Space required approx. 1300 mm x 1000 mm x 1300 mm Weight approx. 500 kg Storage location 97447 Gerolzhofen, free loading, unpacked Handed over in the current condition as viewed, without guarantee and warranty
