Condition: used, machine/vehicle number: 008343, Max. panel width: 70 mm Lateral horizontal groups: yes Fedpfx Adox A Tl Nsuegk

Condition: used, Year of construction: 1965, bore capacity in steel (diameter) 40 mm total power requirement 4 kW Fgjdpjv S Iqcofx Adujk

Year of construction: 2009, condition: used, Used machine Year of manufacture: 2009 Condition: overhauled Description: The machine concept is extremely straightforward. The workpiece is placed into the machine. A quickly adjustable stop with pneumatic locking mechanism centers the workpiece within the machine. Upon foot pedal activation, the workpiece is pneumatically clamped and automatically conveyed to the drilling unit (30 m/min). Vertical spindles drill from below, ensuring that chips do not remain on the workpiece as they would on conventional machining centers. The horizontal spindles work on two sides of the workpiece. The workpiece length can be unlimited, as it is moved toward the drilling unit (X-axis). The drilling spindles, either individually or in a group, are freely programmable and move along the Y-axis. Drill depth and horizontal drilling operations are managed by the Z-axis. After all drilling operations are completed, the workpiece is conveyed back to the insertion side or, if desired, to the discharge side. Unlike conventional machining centers, where the workpiece is clamped using vacuum pods that need to be adjusted to the workpiece size, this step is completely eliminated with the 3-axis controlled point-to-point drilling machine. Advantages: - High processing speed Fgjdewmhmfspfx Aduek - Excellent price-performance ratio - Minimal space requirements All drilling operations can be performed in the smallest space: - Line boring - Structural drilling - Fitting drilling - Case connector drilling Equipment: - Welded machine frame - Drilling head with 7 vertical spindles and 1 horizontal twin spindle - 3-axis CNC control: - X: NC-controlled panel feed via traversing pneumatic clamp - Y: NC-controlled drilling head movement - Z: NC-controlled spindle depth adjustment - TRK precision guides - Pneumatic split pressure beam above the drilling unit - Pneumatic roller hold-downs at the infeed - Pneumatic transport clamp - Pneumatically lockable side stop with rollers - PC-based control with Windows XP (1 GB flash memory) - 8" color screen - Alphanumeric multifunction keyboard including mouse - Network card - USB interface Technical data: - Number of controlled axes: 3 - Maximum panel width: 1,000 mm - Maximum drilling width: 800 mm - Maximum feed speed (X-axis): 30 m/min - Spindle speed: 3,400 rpm - Maximum drill bit diameter: 35 mm - Maximum overall drill bit length: 70 mm - Drill bit holder: 10 mm shank with clamping surface - Connection power: 2.5 kW - Extraction nozzle diameter: 100 mm - Required pressure: 6 bar - Working height: 900 mm - Fold-out roller support at infeed side, 500 x 750 mm Dimensions: 1,650 x 1,920 mm Availability: short-term Location: North Rhine-Westphalia

Condition: used, Electric pneumatic hinge drilling machine Portas BEV for drilling hinges or fittings. Fgodpfx Asvlw Uqjdusk support table: approx. 300 x 37 cm mass: 180 kg

Condition: new, Year of construction: 2010, Center of spindle to wall or column 235 mm Column diameter 60 mm Fodpfxew Spc Rj Aduegk Size of table plate 290 x 290 mm Motor output 1 kW Speed 50 - 4000 U/min. weight of the machine ca. 72 kg

Condition: used, machine/vehicle number: 008342, Max. panel width: 70 mm Fgodex A Tc Ujpfx Adujk Max. panel length: 2100 mm No of injectors: 4 Lateral horizontal groups: yes

Condition: used, Year of construction: 1984, Row and Fitting Boring Machine Used machine Year of manufacture: 1984 Fgjdpsxdpkdefx Adujk Condition: Function-tested Technical data: Fully automatic pneumatic control with foot pedal Boring unit 1.1 kW Speed 2800 rpm Boring stroke 0–55 mm Stop ruler cross adjustable from 0–140 mm Working height 850 mm Space requirement without extension rail 1000 x 750 mm Compressed air connection 6 bar Weight approx. 70 kg Includes various stops, boring heads, and drills Location: Flörsheim Availability: Immediate

Condition: used, Electric pneumatic hinge drilling machine or fitting drilling machine Schafberger+Sprödhuber type BS for drilling hinges or fittings with mechanical centering. Fsdpjwvptfefx Aduegk Technical specifications: On demand

Condition: new, Year of construction: 2025, Dimensions (L/W/H) 1300x1200x1200 mm Weight 700 kg Total power requirement 1,9 kw Fgedpfx Ajv A Hydodujk

Condition: used, machine/vehicle number: 007400, Max. panel width: 800 mm Max. panel length: 1250 mm No of injectors: 1 Positioning of Units by NC: yes Fsdpfx Adet Hmt Ijuogk Lateral horizontal groups: yes

Condition: used, Year of construction: 1984, Used machine Year of manufacture: 1984 Fjdpfx Aekwg Rceduegk Universal dowel drilling machine with a swiveling drilling unit with fully automatic control with 2 safety pneumatic clamps Drilling gear motor 2.2 kW with 21 spindles Spindle spacing 32 mm with integrated oil damping Height adjustment 80 mm Drilling depth 80 mm Dimensions: 140x88x160 Weight 420 kg Availability: short notice Location: Flörsheim

Condition: used, division: 22 mm Shank: 5 mm Fgodpfxsw Uqpkj Aduok

Condition: new, Year of construction: 2025, Dimensions (L/W/H) 2800x1100x2200 mm Weight 1100 kg Total power requirement 8,8 kw Fedpfx Adovz Hwaousgk Horizontal and vertical drilling machine MULTI MZ3x8 - Max. Center Distance Between Holes 2440(L)mm x 300(W) mm- Min. Center Distance Between Holes 220(L)mm x 32(W) mm - cess length 2440 mm - cess length 220 mm - Plate thickness 12~40 mm - Total number of drilling bit 32pcs - Horizontal backside drilling rows 4 rows - Max. drilling dia. 35 mm(Single bit) and 13 mm (Multi)- Max. drilling depth 50 mm - Dia. of drilling bit shaft 10 mm - Length of drilling bit 57 mm/70 mm - Drilling bit speed 2840 rpm - Qty of horizontal L&R drilling rows 2 rows - Qty of vertical up drilling rows 2 rows - Air pressure 0.5~0.6 Mpa - Total power 8.8 kw - Net weight 1100 kg - Overall dimension 2800 x 1100 x 2200 mm

Condition: used, machine/vehicle number: 004922, Max. panel width: 250 mm Max. panel length: 1500 mm No of Top Units: 2 Lateral horizontal groups: yes Fedpfx Aog E Th Sodusgk

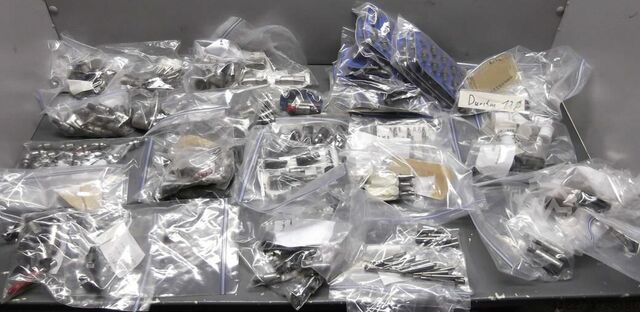

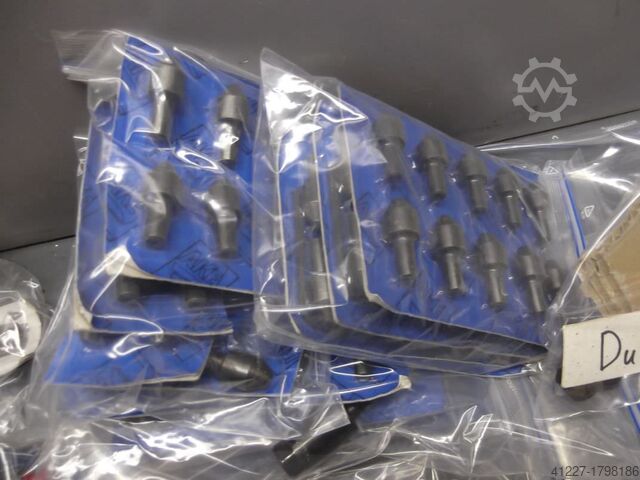

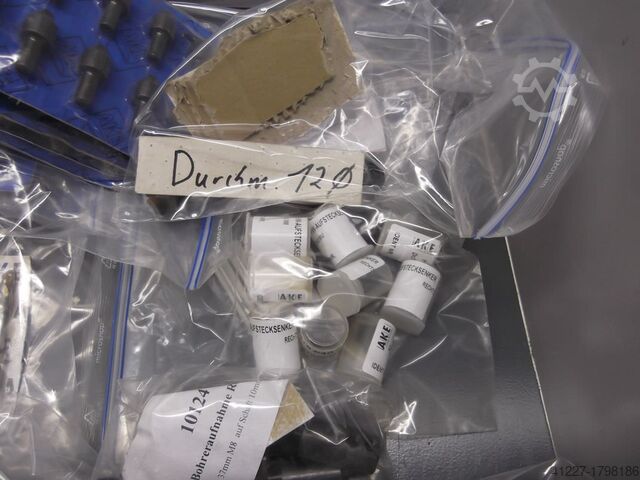

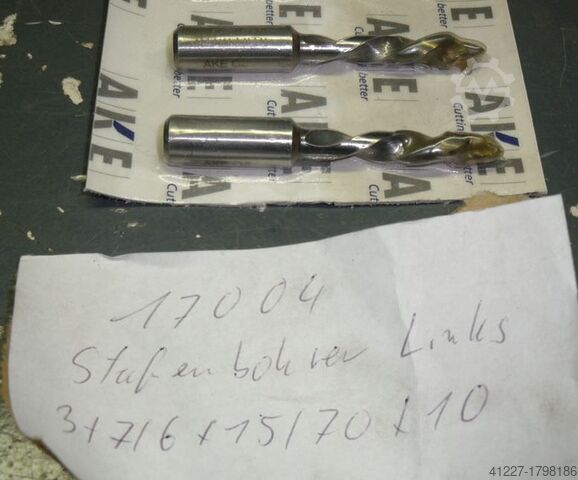

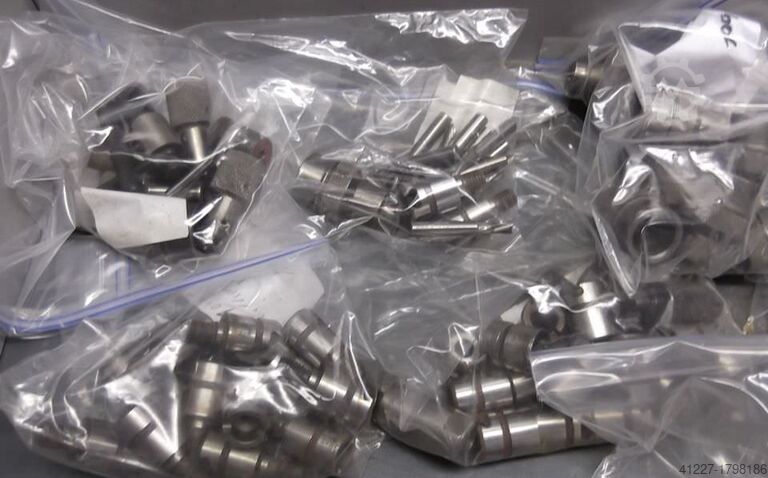

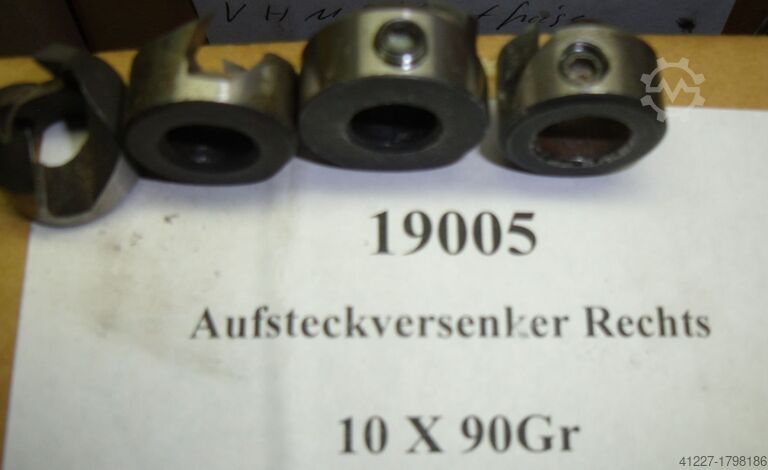

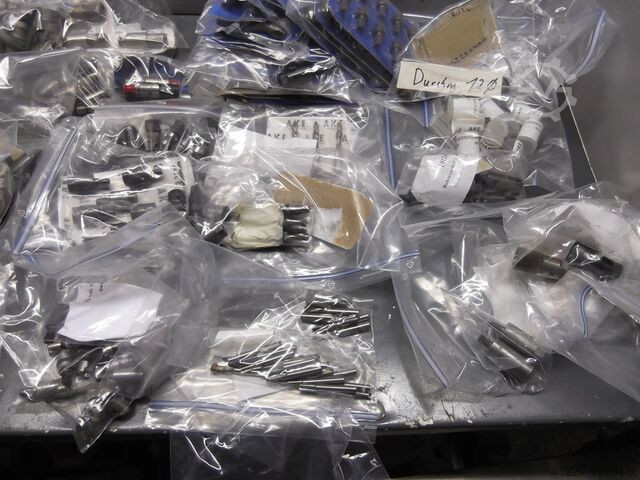

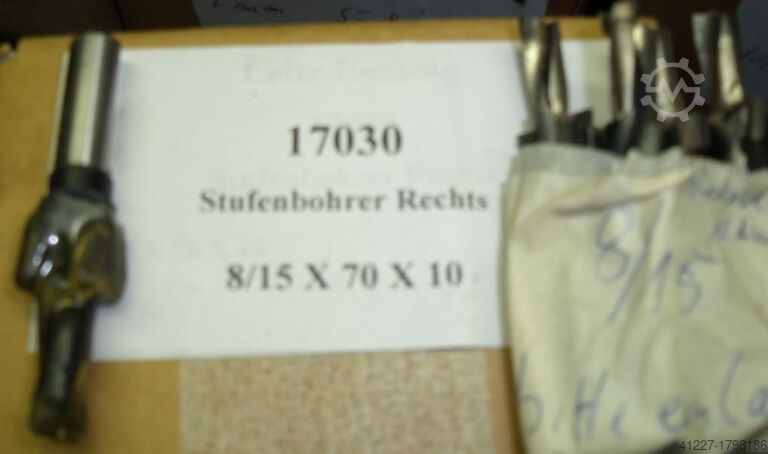

Condition: used, New, unused and used dowel hole drills as shown. length: Miscellaneous diameter: Miscellaneous Shank: predominantly 10 mm mass: 4,7 kg Fsdpfx Asvy Alkeduogk

Condition: used, machine/vehicle number: 008014, Max. panel length: 1250 mm Fsdpswuz S Djfx Adusgk Lateral horizontal groups: yes

Condition: used, Electro-pneumatic universal dowel hole drilling machine Scheer type DB4 for precise drilling of dowel holes in wood materials. The machine enables efficient and precise work thanks to several synchronously working, horizontal and vertical drilling spindles. Ideal for furniture and interior construction as well as for series production in woodworking. division: 32 mm drilling spindles: 2 x 25 Spindle distance: max. 768 mm Fgedsv Hnr Aepfx Adujk

Condition: used, machine/vehicle number: 008310, Max. panel width: 1050 mm Max. panel length: 2500 mm No of Bottom Units: 3 No of Top Units: 2 Fgjdpfex A Tlisx Aduek Positioning of Units by NC: yes Lateral horizontal groups: yes

Condition: used, Engine: 1.1 kW // 2,700 rpm. * Foot operation. Fgodslfcnwjpfx Aduok

Condition: used, Support table: 300 x 37 cm Engine: 1.6 kW engine: 1,6 kW Fgodpslfcntefx Aduek MAW BEV electric pneumatic cup band drilling machine for drilling cup bands or fittings.

Condition: like new (used), Shank: 8 mm diameter: Mainly 5.8 & 4.5 mm Quantity: 30 pieces Fsdpfevbhaijx Adujgk material: HSS

Condition: used, Scheer Type DB 5 dowel hole drilling machine for precise and fast drilling of dowel holes (horizontal and vertical) in solid wood and panel materials. The machine is ideal for series production in furniture construction as well as for precise joints in interior design. Includes a comprehensive range of dowel drill bits. Fgsdpfx Adswp E Uxjujk drilling spindles: 21 division: 32 mm passage width: max. 1.000 mm Pivot: pneumatic

Condition: used, Ayen type D4-105 knothole drilling machine for drilling out knotholes in wood as a wall model. Fgedpfx Aewlbuaedujk

Condition: used, Working width: 720 mm working width: 820 mm Max. passage: 45 mm Fedslfcn Espfx Adujgk Max throughput: 120 mm Drilling depth vertical: 45 mm, horizontal: 120 mm

Condition: used, Spindle mount: MK 2 Connected load: 750 W // 400 V // 50 Hz Drilling performance: 25 mm Fgjdpfet Rmbysx Adusk
