Horizontal lathes Weisser Heilbronn Goliath 460x2000 1975

Weisser Heilbronn

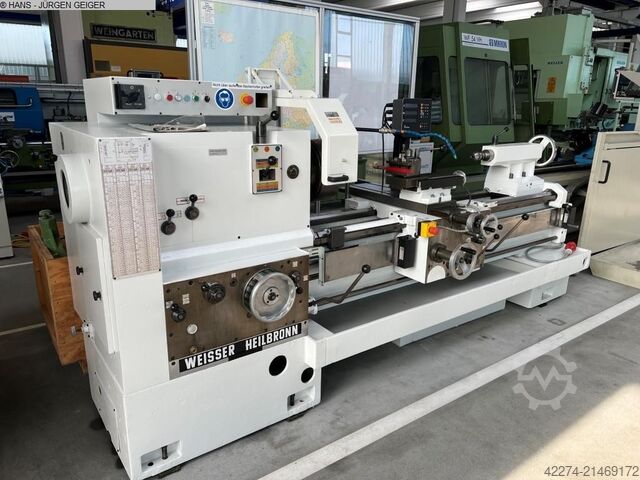

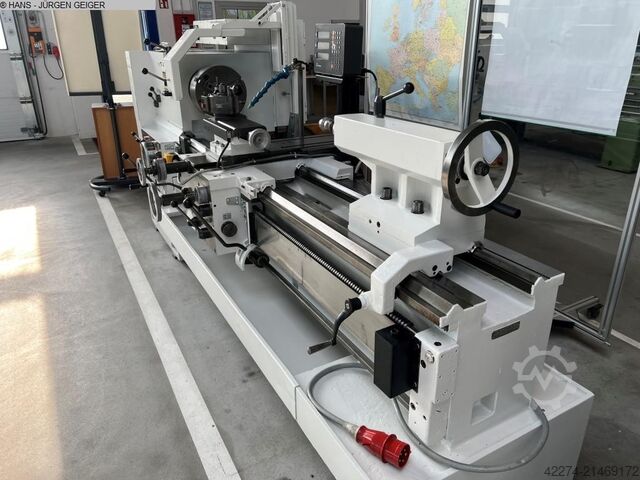

Condition: repair required (used), Year of construction: 1992, Weisser Heilbronn HEKTOR – Cycle-controlled CNC lathe - Bosch CC220 control system (requires repair) - Includes tools and accessories - Includes operating manual and technical documentation - Year of manufacture: 1992 Technical data: - Distance between centers: 2000 mm - Center height: 300 mm Pgedpfx Apsz Az Snjpot - Swing over bed: 600 mm - Spindle bore Ø: 80 mm - Tailstock spindle taper: MK5 - Bed width: 430 mm - Operating voltage: 400 V - Dimensions (W x H x D): approx. 4700 x 2300 x 2100 mm - Weight: approx. 8000 kg

Condition: used, Year of construction: 1973, spindle diameter 130 mm x-travel 3000 mm y-travel 2000 mm total power requirement 4,5 kW weight of the machine ca. 30 t Spindle Ø 130 mm Spindle taper SK 50 Working range: X = column, longitudinal 3,000 mm Y = headstock, vertical 2,000 mm Z = spindle stroke 1,000 mm Lower table 3,300 x 2.400 mm Max. weight on table 10 tons/m² Min./ max position of work spindle above table 770 / 2,770 mm Feeds 0.9 - 2,000 mm/min Quick feed for headstock and column 5,000 mm/min Quill feed 0.5 - 1,200 mm/min Speed range, partially infinitely variable 4.5 - 1,250 rpm Podpfx Ast Hwt Soppjgt Weight, approx. 30,000 kg Accessories / Special Features * HEIDENHAIN Digital Display for 3 axes. * Hardened guideways. * Ball screw spindles. * Infinitely variable spindle speeds and feeds. Feeds can be individually driven with motor. * Moving operating platform. * Hanging control panel. * Manual operating control. * Platform. * Hydrostatics in the column displacement. * Mounting plate 3,200 x 2,500 mm, planed, with t-slots. * Top table approx. 1,400 x 2,600 x height 900 mm, one face is handled. * Hydraulic clamping of column and slides. * Motor driven tool clamp. * Lots of accessories, including tool holders with and without tools, separate chip extractor, clamping aids, 1 angle plate, and other plates. Lots of other accessories. This is a strong machine which is very suitable for heavy cuts and therefore ideal for the machine tool industry and for tool manufacturers. Condition : Good. Machine can soon be inspected under power. Delivery : Ex stock as inspected Payment : Net, after conclusion of contract Thank you for your interest. We have other horizontal borers on stock. Please let us know what you need.

Condition: used, Year of construction: 1984, functionality: fully functional, turning diameter: 800 mm, center height: 400 mm, turning length: 2,850 mm, Universal lathe Weisser Heilbronn Senior Year of manufacture: 1984 Medium-duty machine 15 kW drive power Faceplate Pgjdpfszb N Npox Appjt Steady rest Digital display

Condition: ready for operation (used), functionality: fully functional, WEISSER HEILBRONN Junior / L & Z lathe with Heidenhain digital control -Center height 220mm -Turning diameter over bed 440mm -Distance between centers 1000mm Pgodpfx Apszwggvjpst -Spindle bore approx. 50mm -Spindle speeds 40 - 2000 rpm -Automatic longitudinal / facing feeds -Threading / Metric / Inch, etc. -Heidenhain digital display ND 780 -Forkardt F250 3-jaw chuck -Multifix base and inserts -Electric chuck guard -Follow rest -L & Z spindle cover -Work light -Documentation Dimensions: L x W x H 2.6 x 1.3 x 1.8 meters / Weight approx. 1800 kg Errors and omissions excepted.

Condition: ready for operation (used), Year of construction: 1970, functionality: fully functional, shaft length under head: 30 mm, section length (max.): 52 mm, Hilgeland CH1 KHA double-acting press Year of construction 1970 The machine is ready for immediate use! Pgodpsur N Daefx Appot

Condition: excellent (used), Year of construction: 1980, turning diameter 300 mm turning length 1700 mm swing diameter over bed slide 600 mm Psdpfx Aoytg Uysppjgt total power requirement 12,5 kW

Condition: used, Year of construction: 1978, Maximum turning diameter over the bed: 600 mm Maximum turning diameter over the cross slide: 390 mm Pedpfszc Ryljx Appegt

Condition: excellent (used), I am selling this machine, connected, can be tested. Max. workpiece diameter ..... 1600 mm Module ..... 16 - Psdpfx Ajv Nqppjppogt Power of the main electric motor ..... 12 kW Dimensions l x w x h ..... 4300 x 2000 x 3170 mm Machine weight ..... 18500 kg Can send a video of the machine, via whatsapp.

Condition: used, Year of construction: 1979, turning diameter over bed:480 mm turning diameter over slide rest:200 mm turning length:650 mm swing diameter max. over bed cover:200 mm centre distance:750 mm Pedpfx Ajdmbrxeppsgt spindle head:Gr.6 spindle bore:58 mm total power requirement:18 kW weight of the machine ca.:2,7 t dimensions of the machine ca.:2,70x1,58x1,68 m

Condition: used, Year of construction: 1976, turning diameter over bed 455 mm turning diameter over slide rest 285 mm turning length 1.000 mm center height over bed 225 mm centre distance 1.000 mm digital readout 2-Achsen ANILAM bed width 330 mm spindle taper KK 6 DIN 55027 spindle bore 45 mm Pjdpsy Ezyvsfx Appogt turning speed range 16 - 1.000 U/min power requirement 3,0 / 4,2 kW taper in tailstock-quill MK 4 dia. of quill 62 mm quill stroke 145 mm voltage 400 V total power requirement 4,5 kW weight of the machine ca. 1,95 t dimensions of the machine ca. 2,45 x 1,10 x 1,80 m - Serial-No.: 29-2561 - ANILAM 2-axis digital readout - 4-jaw tool holder - coolant equipment ATTENTION!!! Machine is sold without a chuck. Upon request and for an additional charge, the following 3-jaw spiral chucks can be included: - CENTER Ø 200 mm = 780.00 EUR - CENTER Ø 250 mm = 1,030.00 EUR

Condition: used, Table unit from a DROOP & REIN portal milling machine Clamping plate with T-slots made of cast steel gray cast iron Table unit with clamping plate and very solid guideway Table clamping surface 5500 x 2000 mm Travel of the table clamping plate approx. 3100 mm Table height 1050 mm Table load: max. 20 tons Ball screw: Ø 100 mm Thread pitch: 20 mm (single-start) - Processing table guided very stably on the bed - Metal telescopic guideway cover - comes from a DROOP & REIN portal milling machine - Longitudinal table movement via ball screw and SIEMENS servo motor - Clamping surface with 11 T-slots 28 mm - Drive via SIEMENS 1FT6134-6AB71-1AG2 servo motor with IC200448S/R encoder (RN 000 B25) Total length 9500 mm Width 2000 mm Psdethuzpopfx Appegt Overall height 1050 mm dead weight 28 ton. good condition
