Press Brake

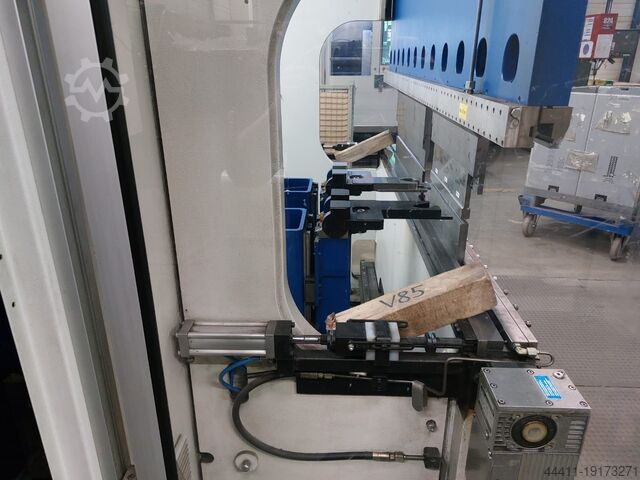

TRUMPF TrumaBend V85

Year of construction: 1998, condition: ready for operation (used), General Data Machine weight 8600 kg Nodpjxpkr Hsfx Ad Dsdc Control Unit Model Delem 65 CNC control Main Drive Bending length 2550 mm Additional Equipment Extended Installation Height and Stroke: Additional 150 mm each 2nd Foot Switch This 6-axis TRUMPF TrumaBend V85S press brake was manufactured in 1998. It features a bending length of 2,550 mm, an 850 kN bending force, and a 6-axis back gauge. The Delem 65 CNC control enhances precision, while the electro-hydraulic twin cylinder drive ensures robust performance. If you are looking to get high-quality bending capabilities, consider the TRUMPF TrumaBend V85S machine we have for sale. Contact us for more information about this machine. Application Types Bending

Condition: used, Year of construction: 2000, Press force: 85 t Bending length: 2050 mm Distance between uprights: 1750 mm Control: DELEM Stroke: 215 mm Throat depth: 410 mm Weight: 7,900 kg Machine dimensions: 2700x2100x2400 mm Accessories: - Two-hand operation - 2 support arms - Side safety doors - Lasersafe Fissler - Wila tool holder - Die shifting Ndsdpfsxnxwnjx Ad Doc - Crowning - Tool cabinet

Condition: good (used), functionality: fully functional, Year of construction: 1997, installation height: 535 mm, pressing force: 85 t, Bending length [mm] 2050.00 Pressing force [t] 85 Control Delem DA 69 Operating hours [h] 76807 Standard equipment: - Upper drive concept in two-cylinder design Y1/Y2 - Electro-hydraulic ram drive in proportional valve technology - Ram travel measuring system with spring compensation via glass scales - Modern block hydraulics - Spherical suspension and inclination of the pressure beam - CNC back stop system - Safe finger adjustment from the front - Self-centering, manual, hardened upper tool holder for vertical tool change - Hardened, manual lower tool holder - Program-controlled lower tool displacement (I-axis) for 2 positions - Flat front cover - Modern protective cover Ndodpfxswld R De Ad Dec + 6-axis back stop system + Hydraulic upper tool clamping + Hydraulic lower tool clamping

Condition: used, Year of construction: 1998, pressure 85.0 t chamfer lenght 2050 mm distance between columns 1750 mm column arm 410 mm stroke 365 mm dayligth 535 mm Ndsdpfx Asxaa Urjd Dec ajustment speed 200 mm/sec working feed 1.0 - 10.0 mm/sec return speed 135 mm/sec back stop - adjustable max. 600 mm table width 120 mm work height max. 1050 mm Number of working hours 28.500 h oil volume 200 l operating pressure 340 bar total power requirement 14.0 kVA weight of the machine ca. 9050 kg range L-W-H 2680 x 2100 x 2885 mm with increased installation height / piston stroke very well maintained condition (!!) with only approx. 28.500 operating hours - in checked condition - machine video - ?v=ZuwyPKJSYLw Equipment: - CNC electro-hydraulic press brake - including DELEM CNC control * swiveling control panel at the front left - CNC controlled axes: Y1 - Y2 - X - R - Z1 - Z2 - I + CNC crowning - CNC electro-motorized back stop (X axis) - CNC electro-motorized height adjustment of the back stop (R axis) - CNC electro-motorized adjustment of the stop fingers (Z axes) - CNC pneumatic die displacement (I axis) - CNC motorized table crowning - WILA electro-hydraulic upper tool clamping - WILA electro-hydraulic Lower tool clamp - 1x freely movable 2-hand / foot control - 2x front, stable support arms including "sliding system" - side protective device (swinging doors) - rear protective device (swinging doors) - bending tool storage cabinet (right front, side) - original operating instructions + circuit diagram etc. further technical data: - feed speed X axis .. 500 mm/sec. - feed speed R axis .. 300 mm/sec. - feed speed Z axis .. 1000 mm/sec. - travel range X axis .. max. 600 mm - travel range R axis .. max. 250 mm

Condition: ready for operation (used), Year of construction: 2001, Main Drive Number of axis 5 Additional Equipment Top drive concept in two-cylinder design y1/y2 Electro-hydraulic ram drive with proportional valve technology Ram travel measuring system with spring deflection compensation via glass scales Modern block hydraulics Cnc backgauge system Safe finger adjustment from the front Self-centring, manual, hardened upper tool holder for vertical tool change Hardened, manual lower tool holder Programme-controlled lower tool displacement (i-axis) for 2 positions Modern protective cover Main Drive Number of axis 5 Additional Equipment Ndodpfx Adsw Nb Ndj Djc Top drive concept in two-cylinder design y1/y2 Electro-hydraulic ram drive with proportional valve technology Ram travel measuring system with spring deflection compensation via glass scales Modern block hydraulics Cnc backgauge system Safe finger adjustment from the front Self-centring, manual, hardened upper tool holder for vertical tool change Hardened, manual lower tool holder Programme-controlled lower tool displacement (i-axis) for 2 positions Modern protective cover This 5-axis TRUMPF TrumaBend V85 press brake was manufactured in 2001. It features an electro-hydraulic ram drive, CNC backgauge system, and a modern protective cover. The machine includes a 4-axis back gauge system and both hydraulic upper and lower tool clamping. If you are looking to get high-quality bending capabilities, consider the TRUMPF TrumaBend V85 machine we have for sale. Contact us for more information about this machine. Application Types Bending

Condition: used, functionality: fully functional, Year of construction: 2001, Press force 85 t, Bending length 2050 mm, Distance between uprights 1750 mm, Control DELEM, Stroke 215 mm, Throat depth 410 mm, Total power 13 kW, Weight 8,750 kg, Machine dimensions 3190 x 2100 x 2375 mm Nsdpfxjw Imq Rj Ad Dodc

Condition: ready for operation (used), Year of construction: 2001, operating hours: 35,900 h, General Data Measurements width 2100 mm Measurements depth 2700 mm Measurements height 2900 mm Machine weight 9050 kg Control Unit Brand TRUMPF Nodpfexirh Nsx Ad Djdc Model n/a Main Drive Pressing force 850 kN Bending length 2050 mm Stroke 365 mm This TRUMPF TrumaBend V85 press brake was manufactured in 2001. It features a pressing force of 85 tons, a stroke of 365 mm, and a bending length of 2050 mm. Equipped with DALEM CNC 3D software, it offers high working speed and precise control. Additional features include hydraulic clamping and motorized CNC back gauge systems. Consider the opportunity to buy this TRUMPF TrumaBend V85 press brake. Contact us for more information about this machine. Application Types Bending

Condition: excellent (used), functionality: fully functional, Year of construction: 2001, Pressure: 85 t Bending length: 2050 mm Nodpjw D Abrefx Ad Dsdc Frame gap: 1750 mm Control: DELEM Stroke: 215 mm Throat depth: 410 mm Total power: 13 kW Weight: 8,750 kg Machine dimensions: 3190 x 2100 x 2375 mm

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2004, machine/vehicle number: B0103A0209, overall weight: 11,000 kg, total length: 3,200 mm, total width: 2,400 mm, total height: 3,000 mm, pressing force: 85 t, TECHNICAL DETAILS Pressure force: 85 t Bending length: 2050 mm Column width: 1750 mm Thrust: 410 mm Operating pressure: max. 340 bar Stroke: max. 365 mm Deceleration: max. 95 ms Rapid traverse: 200 mm/s Working speed: 1 - 11 mm/s Retraction speed: 135 mm/s Safety distance Safety distance: min. 190 mm Ndedpfov E Ncgjx Ad Djc Machine weight Weight of the press: 9,950 kg
