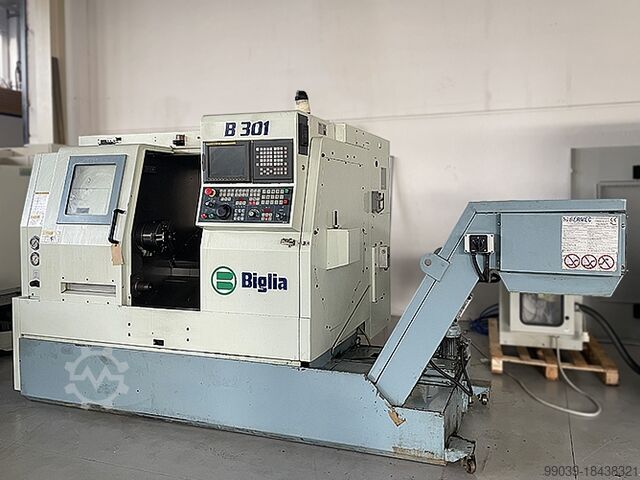

CNC LATHETornio CNC Biglia
B301 Usato in Ottime Condizioni
Machine data
- Machine type:
- CNC LATHE
- Manufacturer:
- Tornio CNC Biglia
- Machine number:
- 8662
- Year of construction:
- 2005
- Condition:
- ready for operation (used)
- Functionality:
- fully functional
- Operating hours:
- 9,400 h
Price & Location
- Location:
- Via Case Nuove 135 A/1, 47842 San Giovanni in Marignano, Italia
Technical details
- Turning length:
- 380 mm
- Turning diameter:
- 400 mm
- Spindle bore:
- 55 mm
- Spindle speed (max.):
- 5,000 rpm
- Spindle speed (min.):
- 100 rpm
- Travel distance X-axis:
- 160 mm
- Travel distance Y-axis:
- 440 mm
- Travel distance Z-axis:
- 380 mm
- Spindle motor power:
- 11 W
- Rapid traverse X-axis:
- 20 m/min
- Rapid traverse Y-axis:
- 12 m/min
- Rapid traverse Z-axis:
- 20 m/min
- Total height:
- 1,900 mm
- Total length:
- 3,500 mm
- Total width:
- 1,650 mm
- Type of input current:
- three-phase
- Overall weight:
- 3,300 kg
- Bar passage:
- 45 mm
- Spindle nose:
- ASA 5"
- Coolant pump power:
- 75 W
- Tailstock quill diameter:
- 85 mm
- Number of tool stations in tool turret 1:
- 12
- Equipment:
- documentation/manual
Details about the offer
- Listing ID:
- A184-38321
- Update:
- 09.12.2025
Description
Year 2005, used and refurbished, ideal for precision machining of small to medium-sized components.
This machine is robust, reliable, and compact, equipped with a bi-directional 12-position turret, automatic tailstock, and hinged belt-type chip conveyor.
Dsdpfx Aevw Agveduswf
Perfect for machine shops and companies seeking a high-quality, ready-to-use CNC lathe.
Main technical specifications:
- Model: Biglia B301
- Year: 2005
Capacity:
- Max swing diameter: 400 mm
- Max bar working diameter: 45 mm
- Max secondary operation diameter: 220 mm
- Max machining length: 380 mm
Spindle:
- Spindle nose: ASA 5”
- Spindle bore: 55 mm
- Chuck: 3-jaw Autoblok 210 BH
- Spindle speed: 100 – 5000 rpm
- Spindle motor power: 11 – 15 kW
Travel:
- X axis travel: 160 mm
- Z axis travel: 380 mm
- B axis travel: 440 mm
Feed rates:
- X/Z axis rapid traverse: 20 m/min
- B axis rapid traverse: 12 m/min
Turret and tailstock:
- Turret: bi-directional, 12 stations
- Automatic tailstock: yes
- Quill diameter: 85 mm
- Taper: MT4
Weight and dimensions:
- Machine weight: 3,300 kg
- Dimensions: 3,500 × 1,650 × 1,900 mm (h)
Included accessories:
- Hinged belt-type chip conveyor
- 12 static tool holders
- Parts catcher (pick-off arm)
Condition and availability:
- Used machine, tested and in perfect operating condition
- Ready for delivery
- Machine can be inspected by appointment at our facility
- Available for movement testing by appointment at our site
Ideal for: precision machining, batch production, and applications on steel, aluminum, brass, and technical materials.
The listing was translated automatically. Translation errors are possible.
