Press brake

TD CONCEPTION

Condition: like new (used), DESCRIPTION Max workpiece width, mm: 1150 Max thickness of the workpiece, mm: 120 Feed rate, m / min: 5-20 Overall dimensions, mm: 5000х3000х2800 Power, kW: 139 Weight, kg: 11000 Machine for bottom grinding : Working unit 1. Contact roller diameter 250mm, Working unit 2. Contact roller diameter 250mm, Working unit 3. Sanding shoe, Machine for top grinding : Working unit 1. Contact roller diameter 250mm, Gbsdpshm E Ixefx Ah Sew Working unit 2. Contact roller diameter 250mm, Working unit 3. Sanding shoe

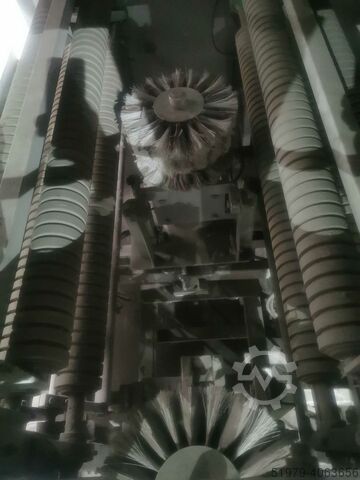

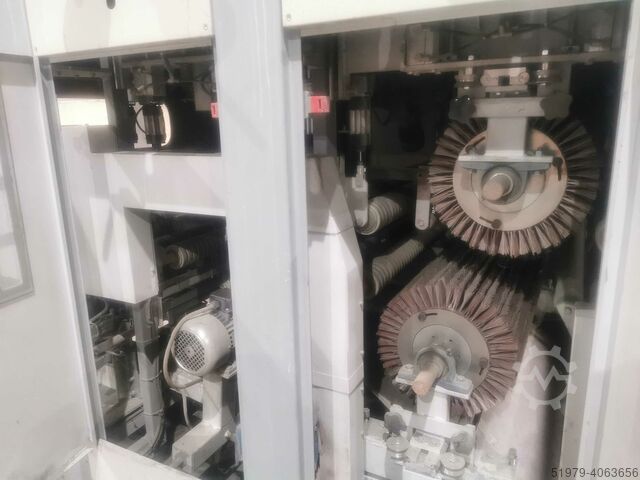

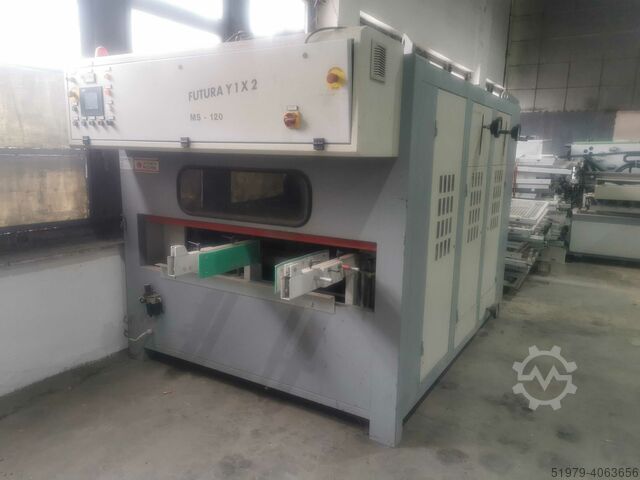

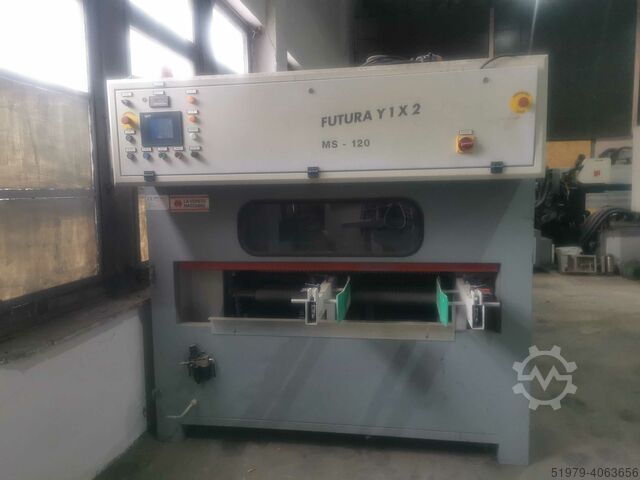

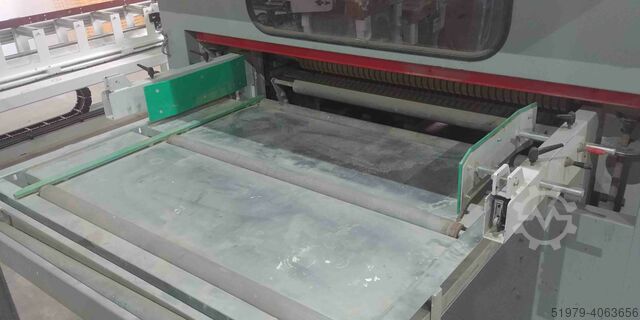

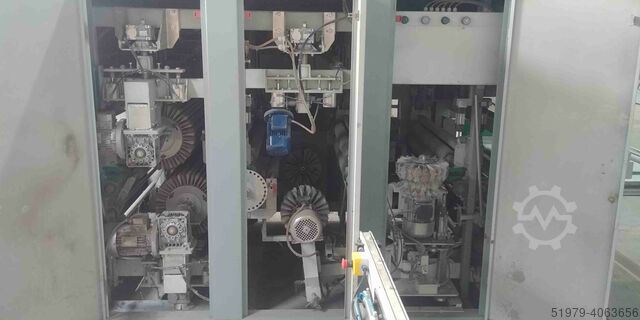

Condition: excellent (used), Year of construction: 2005, I sell the 4-Side brushing machine suitable for windows, doors, tables, etc. Futura MS120 Y1 X2, year 2005 Gsdpfxed Raqkj Ah Sebw Working width 1200mm Working height 200mm Total weight 2500kg Configuration: Side brushing heads left - right H.170mm 2 bottom heads left - right Nylon W.140mm Oscillating top head W.260mm Big brushing heads top - bottom W.1150mm Machine equipped with heads on the pictures. Available immediately.

Condition: used, No. 3221 Vacuum dryer / drying chamber DWT / IWT MD 2600 x 13000 Used The machine is still connected to power and heating, but has not been used for 3 years Dryer diameter 2600 mm Dryer length 13000 mm Package length 13000 mm Package width 1200 mm Package height 2100 mm Gross capacity 33 m3 Net capacity 20 m3 sawn timber or 15 m3 logs Electrical connection 44 kW Electrical consumption 15 kW/h Water drain 50 mm Water connection 25 mm Heat connection 87 kW, 85 °C hot water at the dryer Heat consumption 500 kcal per liter of moisture or 0.6 kW per liter of moisture Including BUDERUS B305/160 boiler, heat output 141 - 160 kW The boiler is operated with natural gas The system is supplied as a fully assembled unit Boiler cylindrical on 3 supports Hydraulic, fully automatic boiler lock Boiler material solid stainless steel to DIN, x5 Cr Ni 189 150 mm insulation, clad with 1 mm galvanized sheet steel Rails in stainless steel, spacing 600 mm 1 rail bridge in front of the boiler 4 trolleys for loading and unloading, length 3200 mm each 12 fans with Siemens motors, 2 spare motors Heating coil as stainless steel finned tubes with aluminum fins, length 150 m, surface 250 m2, diameter 25 mm Flow and return pipe diameter 80 mm Heating medium 85 °C Hot water at the consumer Circulation pump capacity 75 m3/h Vacuum pump BUSCH LX 0260 B, year of construction 2013 Gedowiw Evspfx Ah Sebw Nominal suction capacity min. 200 m³/h / max. 455 m³/h / final pressure 33 hPa (mbar) 1 electric condenser for condensing the vapor 3 fans for cooling or condensing the vapors PLC control Tracks in front of the dryer 14000 x 600 mm The entire system stands on a concrete floor and can be lifted with a crane and loaded onto trucks Transport dimensions approx. 18000 mm long, 3050 mm high (without cooling system) Sale on behalf of the customer, ex location near 09131 Chemnitz, without dismantling, transport and assembly Dismantling, loading and transport by us optionally possible Subject to errors in the description and price To avoid possible misunderstandings, an on-site inspection is possible and recommended by appointment Sold as is Technical details, condition description, year of manufacture and scope of delivery according to manufacturer's brochure or previous owner, without guarantee Subject to prior sale No warranty is given for used machines, the following applies: “purchased as viewed” Images and videos serve as examples and do not represent the actual scope of delivery Terms of payment: Prices excl. VAT, payment before collection or shipping Terms of delivery: ex location

Condition: excellent (used), Year of construction: 2004, Calibration / sanding line top bottom COMPACT - SATURN 135 R.R.K Inf and SATURN 135 RRK Sup RRK Inf: Motorized up/down adjustment with electronic thickness display - Fixed worktable height 950mm-Automatic belt centering - Working width 1350mm - Thickness 3-165mm - Strips 2620x1365mm 1- Steel roller D=250mm - 30kw motor 2- Roller 90sh D=250mm - Motor 18.5kw 3- Roller 44sh D=220mm with skid - Motor 15kw Settings and position displays on each group - Selector for activation or deactivation of each group roller - belt feed motor with inverter 5.5hp - belt feed speed 3 to 18m/min - blower oscillation timed cleaning - vacuum device with 10hp fan - CE standards RRK Sup: motorized up/down glide with electronic thickness display - Fixed worktable height 950mm- Automatic belt centering - Working width 1350mm - thickness 3-165mm - belts 2620x1365mm 1- Steel roller D=250mm - 30kw motor 2- Roller 90sh D=250mm - Motor 18.5kw 3- Roller 44sh D=220mm with skid - Motor 15kw Gsdsugr Iiepfx Ah Sebw Settings and position displays on each group - Selector for activation or deactivation of each group roller - belt feed motor with inverter 5.5hp - belt feed speed 3 to 18m/min - blower oscillation vacuum device with 7.5 hp fan - elevating platform for in-line operation machine in working line: height 950mm - CE standards spare parts stock with additional roller

Condition: good (used), Year of construction: 1998, functionality: fully functional, working width: 1,300 mm, 1 bottom calibrating sander equipped with 3 bottom belts Gjdpow A A Ensfx Ah Sebw 30, 22, 18.5 kW 1 top calibrating sander equipped with 3 top belts

Condition: good (used), functionality: fully functional, Vacuum drying chamber from ISVE. ISVE control system was brought up to date in 2024, machine inspected. Godpfx Aoxgdrboh Sebw

Condition: excellent (used), Year of construction: 1992, functionality: fully functional, Category type: Sander - Polisher Volume: 1 - 1 Convert Sells to: Worldwide I sell the widebelt sanding machine COSTA S CCTT 1350 Configuration 1pc. hard rubber cylinder 1pc. soft rubber cylinder 1pc electronic segmented pad 1pc electronic segmented pad Cleaning unit combined brush + air blow in the outfeed Pressure shoes for short elements Air-blow on all units Vacuum underpressure table with integrated ventilator Designed for the line with fixed working height and moving aggregates 4 motors total power 96kW Godswrm Sdjpfx Ah Sjbw Condition very good ! Available immediately
