Cnc swiss type lathe

STAR SB-16

Condition: excellent (used), Year of construction: 2006, TECHNICAL DATA Axis data Rapid traverse rates: X, Y, Z, ZB, XB: 35,000 mm/min C: 198,000 °/min (550 min⁻¹) Maximum feed rates: X, Y, Z, ZB, XB: 10,000 mm/min C: 10,000 °/min (27.8 min⁻¹) Minimum input increment: X, Y, XB: 0.001 mm / 0.0001 inch (diameter) Z, ZB: 0.001 mm / 0.0001 inch C: 0.001° Machining capacities Maximum machining diameter: Ø16 mm (5/8 in) Maximum headstock stroke: fixed guide bushing: 205 mm (8 in) rotating guide bushing: 155 mm (6–3/32 in) rotating magic guide bushing: 155 mm (6–3/32 in) Maximum drilling capacity with driven tool: Ø6 mm (15/64 in), Ø4 mm (5/32 in) Maximum tapping capacity with driven tool: M5×P0.8, M3×P0.5 Maximum milling capacity: Ø10 mm (25/64 in), Ø7 mm (9/32 in) Maximum thread cutting capacity: M8×P1.25 Machine configuration Operating mode: right-hand machining station Design: integrated mechanical/electrical setup Dimensions (L×W×H): 1861 × 1060 × 1750 mm Spindle height: 1060 mm Weight: approx. 1700 kg Main spindle Spindle speed: max. 10,000 min⁻¹ Speed control: S-command + direct 5-digit command Main spindle drive: 2.2 kW (continuous), 3.7 kW (15 min/60% duty cycle) Indexing: 15°, 1° Tool combinations Various combinations with 1–3 spindles for tool diameters Ø12 mm, Ø10 mm, or Ø6 mm Tool holders for ER11 or ER16 Redowvap Rspfx Ac Hjch Drill mounting Number of tools: 4 Max. speed: 5000 min⁻¹ (ER16), 7500 min⁻¹ (ER11) Drive motor: 0.4 kW Tool selection: servo motor Backworking unit Max. chuck diameter: Ø16 mm (5/8 in) Max. part length: 80 mm Max. outer spindle travel: 30 mm Max. part ejection length: 50 mm Spindle speed: max. 8000 min⁻¹ Spindle drive: 100 W, AC servomotor Tools: 4-spindle unit Max. drilling capacity: Ø8 mm (5/16 in) Max. tapping capacity: M6 × P1.0 SCOPE OF SUPPLY Includes (non-exhaustive list): STAR SB-16D CNC Swiss-type lathe Fire extinguishing system Coolant tank LNS Tryton-112 bar feeder High-pressure pump Machine accessories Bar feeder accessories Complete operating documentation Exact scope of supply as per photo documentation.

Condition: ready for operation (used), Year of construction: 2005, operating hours: 6,797 h, Control Unit Brand FANUC Model 21i-TB Additional Equipment Door monitoring / Spindle clamping device for the main spindle / Main spindle indexing 15° (not applicable for 480S) / Work light / Disconnect switch (control current: 30mA, available as an option for 480A) Rcjdpfoxfwzgjx Ac Hoh Tool set This Star SB-16 was manufactured in 2005. It features a robust FANUC control system, separate coolant tank, automatic central lubrication, and a 6-station tool holder. Ideal for precision turning, it includes a 4-spindle drill holder and a comprehensive workpiece removal system. Consider the opportunity to buy this Star SB-16 swiss type turning machine. Contact us for more information. Application Types Turning

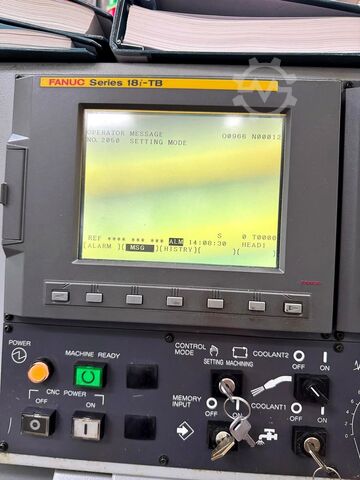

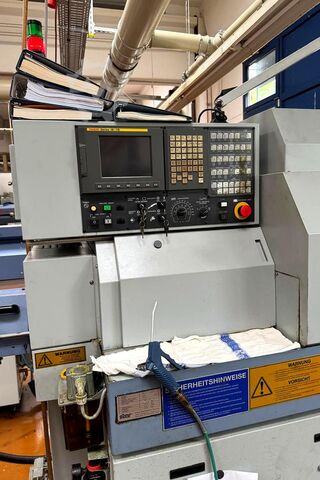

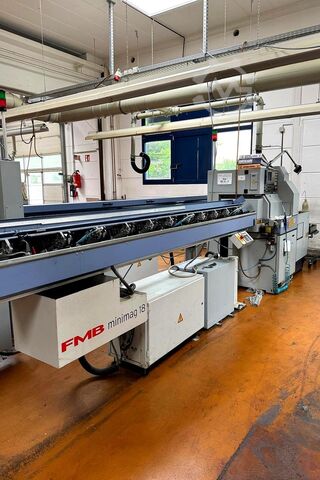

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, turning length: 205 mm, rotational speed (max.): 6,000 rpm, bar diameter (max.): 16 mm, controller model: FANUC Series 18i-TB, number of axes: 5, CNC Swiss-type automatic lathe with main and sub spindle! A similar machine was recently auctioned successfully! TECHNICAL DETAILS Machining data Max. bar diameter: 16 mm Max. turning length: 205 mm Max. spindle speed: 6,000 rpm Number of axes: 5 Bar length: 3,200 mm Control system: FANUC Series 18i-TB MACHINE DETAILS Weight: 1,650 kg EQUIPMENT Rcjdpfxow Uip Aj Ac Hsh Main spindle Sub spindle 8 tool stations for side machining 2x 4 tool stations for rear and face machining 3 driven tool stations Small parts discharge conveyor Bar feeder magazine: FMB Minimag 18 Coolant system: Oil

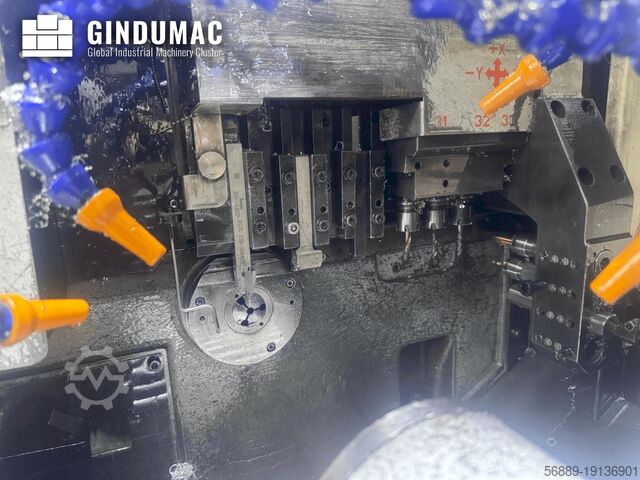

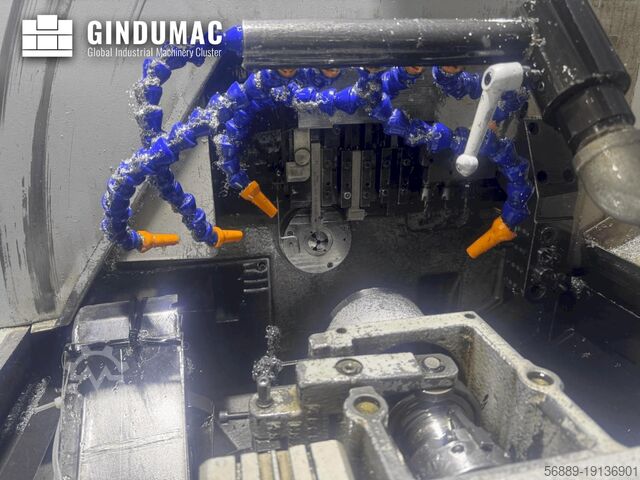

Condition: ready for operation (used), Year of construction: 2005, Control Unit Brand FANUC Model Series 18i-TB Additional Equipment Bar Feeder: Model: FMB MINIMAG 3200/A / Bar Length Capacity: Up to 3200 mm This 6-axis STAR MICRONICS SB-16 was manufactured in 2005, featuring a FANUC 18i-TB control unit, a maximum machining diameter of 18 mm, and a length per chucking of 200 mm. It boasts a main spindle speed up to 10000 rpm and dual spindle motor power of 2.2/3.7 kW. If you are looking to get high-quality turning capabilities, consider the STAR MICRONICS SB-16 machine we have for sale. Contact us for more information. Rcjdpjwkapgsfx Ac Hjh Application Types Turning

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, machine/vehicle number: 1673, turning length: 205 mm, rotational speed (max.): 6,000 rpm, bar diameter (max.): 16 mm, controller model: FANUC Series 18i-TB, number of axes: 5, CNC sliding headstock automatic lathe with main and sub spindle! Rcjdpfxjw Uim Ij Ac Hjh TECHNICAL DETAILS Machining data Max. bar diameter: 16 mm Max. turning length: 205 mm Max. spindle speed: 6,000 rpm Number of axes: 5 Bar length: 3,200 mm Control: FANUC Series 18i-TB MACHINE DETAILS Weight: 1,600 kg EQUIPMENT Main spindle Sub spindle 8 tool stations for side machining 2x 4 tool stations for back and face machining 3 driven tool stations Small parts discharge conveyor Bar feeder: FMB Minimag 3200 A

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: 3085, turning length: 205 mm, rotational speed (max.): 6,000 rpm, bar diameter (max.): 16 mm, controller model: FANUC Series 18i-TB, number of axes: 5, CNC Swiss-type automatic lathe with main and sub spindle! TECHNICAL DETAILS Machining Data Maximum bar diameter: 16 mm Maximum turning length: 205 mm Maximum spindle speed: 6,000 rpm Number of axes: 5 Bar length: 3,200 mm Control: FANUC Series 18i-TB MACHINE DETAILS Weight: 1,650 kg EQUIPMENT Rcsdpfsw Echnsx Ac Hjh Main spindle Sub spindle 8 tool positions for side machining 2x 4 tool positions for rear and face machining 3 driven tool stations Small parts discharge conveyor Bar feeder: FMB Minimag 18 Coolant system: oil

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, turning length: 205 mm, rotational speed (max.): 6,000 rpm, bar diameter (max.): 16 mm, controller model: Fanuc Series 18i-TB, number of axes: 5, CNC Swiss-type automatic lathe with main and sub-spindle! TECHNICAL DETAILS Machining Data Redpfx Asw Eb Hcsc Hjch Bar diameter: max. 16 mm Turning length: max. 205 mm Spindle speed: max. 6,000 rpm Number of axes: 5 Control Control manufacturer: FANUC Control model: Series 18i-TB MACHINE DETAILS Weight: 1,650 kg EQUIPMENT Main spindle Sub-spindle 8 tool stations for side machining 2x 4 tool stations for rear and face machining 3 driven tool stations Small parts discharge conveyor Bar feeder: FMB Minimag 18 (bar length: 3,200 mm) Coolant system: Oil
