Lathe - cycle controled

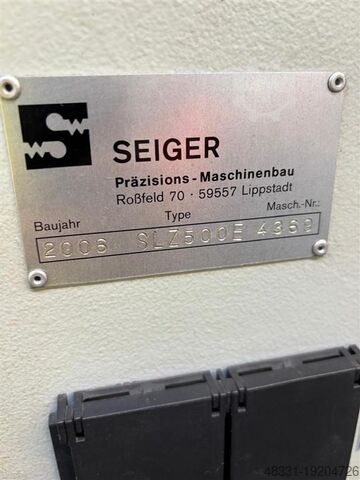

SEIGER SLZ500E

Condition: repair required (used), Year of construction: 2003, Kern lathe CD 402 Baij 2003 in top condition but with control system issues. Gusdpfx Absxn Axco Doa

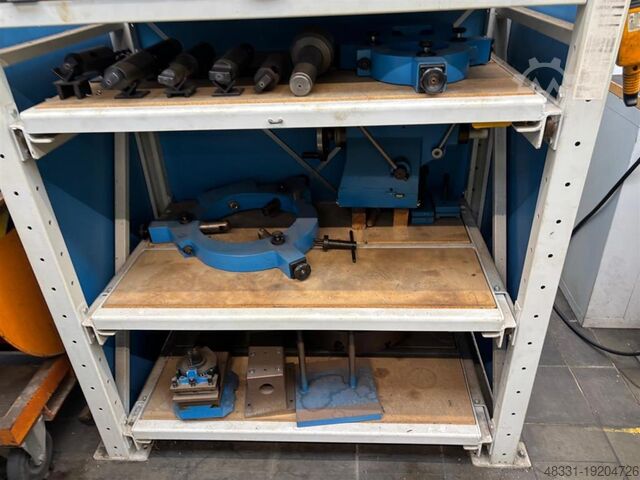

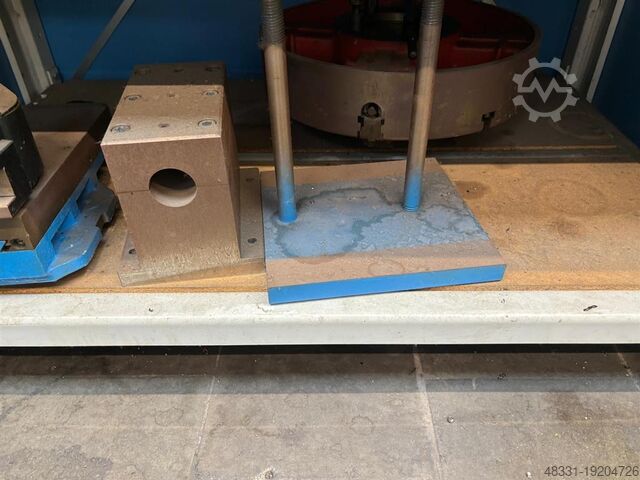

Condition: used, Year of construction: 2006, Technical details: turning diameter over bed: 500 mm turning dia. over face-slide: 290 mm turning length: 850 mm centre distance: 850 mm longitudinal traverse (z-axis): 900 mm facing movement (x-axis): 260 mm control: Manuaplus 4110 Gjdpfxswtct Hs Ab Djua revolution per minute: 10 - 3000 / 2x seples U/min max. torque on the spindle: 920 Nm spindle bore: 70 mm facing movement (x-axis): 8 m/min. longitudinal traverse (z-axis): 10 m/min. operating hours - idle run: ca. 34.600 h tailstock taper ISO: MK 5 tailstock quill stroke: 180 mm total power requirement: 24 kVA Weight approx.: 5,2 t dimension machine xH: 2,2 x 3,2 x 1,9 m Multifix steel holder size C 3-jaw chuck Ø 250mm chip tray manual hour counter live center in tailstock Operation control panel and monitor Accessories: 4-jaw chuck Ø 250mm with internal jaws various chuck keys Machine lighting 8x foot plates 4x wedge lifters various pairs of jaws 1x steady rest Ø 100mm closed *

Condition: good (used), Year of construction: 2012, functionality: unexamined, turning diameter over cross slide: 340 mm, spindle bore: 93 mm, turning length: 2,000 mm, turning diameter: 570 mm, turning diameter over bed slide: 570 mm, quill stroke: 180 mm, total length: 3,800 mm, total width: 2,100 mm, total height: 1,900 mm, overall weight: 4,500 kg, SEIGER SLZ-570 E x 2000 – CNC cycle lathe Robust German precision lathe with 2,000 mm centre distance and Siemens 840D control. Equipped with ZF two-speed gearbox, powerful AC main drive (20/25 kW) and large spindle bore of 93 mm including accessories. Sandvik Coromant Included in the scope of delivery are various tool holders and accessories, including: Gsdpfx Aboyhnvbe Deua Sandvik Coromant tool holder / adapter Various holders for Multifix system Steadies / rests Additional accessories as per images

Condition: used, Year of construction: 2001, chucking diameter 250 mm greates pass round over bed 500 mm swing diameter over slide rest 290 mm centre distance 850 / 1350 mm Godpfx Abjw Syc Is Djua control Heidenhain weight of the machine ca. 2700 t dimensions of the machine ca. 2900 x 1953 x 1825 m

Condition: ready for operation (used), Year of construction: 2008, Year of manufacture: 2008 Control system: Fanuc Maximum length of the turning: 650 mm Max. turning diameter: 350 mm Spindle bore: 42 mm Maximum rotary speed of the spindle: 3500 1/min Length: 2400 mm Width: 1700 mm Height: 1500 mm Weight: 1800 kg Accessories/options: Gjdpfx Aov Tpansb Deua 3-jaws chuck lots of jaws collet type chuck collets steady faceplate Parat type tool holders Under power in our warehouse.

Condition: used, Year of construction: 1996, Technical details: turning diameter: 500 mm turning length: 1500 mm turning diameter over bed slide: 290 spindle bore: 71 mm turning speed range: 3 - 2800 U/min rapid speed: 10 / 5 m/min feed speeds: 1 - 2000 mm/min total power requirement: 22 kW weight of the machine ca.: 3,2 t dimensions of the machine ca.: 3,0 x 1,6 x 2 m Gjdpfowwlvlex Ab Dsua with Teach In controll R&D MTC-K PARAT toolpost 1 fixed steday dia. 100 mm 4 jaw face plate dia. 500 mm coolant attachment *

Condition: used, Year of construction: 2003, machine/vehicle number: 2885002273, functionality: fully functional, operating hours: 18,782 h, travel distance X-axis: 630 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 480 mm, Deckel Maho DMC 63V milling machine for sale. The machine was manufactured in 2003. Heidenhain iTNC 530 control system. Magazine for 24 SK40 tool holders. 10,000 rpm belt-driven spindle, significantly cheaper to maintain than an electric spindle. Tool measuring probe. Material measuring probe readout system installed. Port for connecting to a computer network for file transfer. The machine was imported from a tool shop in Germany. It was used here for manufacturing individual components. The machine has a new spindle with a one-year warranty. Adjustable gripper clamping force. The Heidenhain control power supply has been replaced with a new one. Gusdpfx Ajv R U Uljb Dea The monitor starts up without delay. After import, the X-axis guides, roller, and X-axis belt were replaced. The coolant pump was replaced with a new one two years ago. Y-axis cover wipers were replaced as well. The tool turret does not get stuck. We are selling a machine ready for immediate production; we need space for a 5-axis milling machine.

Condition: refurbished (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: 65039, travel distance X-axis: 1,500 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 700 mm, spindle speed (max.): 8,000 rpm, Traveling column machine Generally overhauled 2023 Work table clamping area mm 1500 x 1000 Table height mm 750 Number of T-slots 6 Size of T-slots DIN 650 mm 18 Travel paths X-axis mm 1500 Y-axis mm 1000 Z-axis mm 700 Distance table top edge - spindle bottom edge min/max. mm 150 / 850 Main spindle drive for speed 8000 min-1 AC motor, frequency controlled kW 16 at 44% ED Speed range: min -1 15 – 8000 Torque at 44% ED Nm 104 constant up to min -1 1500 Feed drives X-axis AC servo motor kW 3.5 Gujdpfxjwv Nl Uj Ab Dea Y-axis AC servo motor kW 2.0 Z-axis AC servo motor kW 3.5 Rapid traverse speeds (X/Y/Z): m/min. 30/30/20 Indirect position measuring system. Accuracy Positioning accuracy X, Y axis to 1000 mm mm ± 0.0150 Repeatability X, Y axis mm ± 0.0075 Positioning accuracy Z axis mm ± 0.0150 Repeatability Z axis mm ± 0.0075 24-way tool magazine mounted on the right-hand side of the traveling column - Tool positions 24 - Tool shaft (DIN 69871 / 69872) SK 40 - Max. tool diameter mm 76 - Max. tool length mm 250 - Max. tool weight kg 8 Machine control Heidenhain iTNC530 optional 620

Condition: used, Year of construction: 2000, turning diameter 400 mm turning length 1000 mm control FAGOR control CNC 8055/B-T centre height 200 mm centre distance 1000 mm turning dia. over face-slide 210 mm bed width 300 mm spindle bore 65 mm spindle turning speed range 0 - 3000 U/min transmission ratio 2 feeds - longitudinal 0 - 10.000 mm/min feeds - cross 0 - 10.000 mm/min rapid travel - longitudinal/face 15 m/min tailstock quill diameter 68 mm tailstock quill stroke 155 mm tailstock taper MT 4 Gusdpfx Abjvh I T Ao Dsa total power requirement 8 kW dimensions 3,1 x 1,9 x 1,78 m Accessories: 3-jaw chuck 200 mmø, MULTIFIX-tool post with various inserts, coolant

Condition: excellent (used), For sale: A set of professional SK40 tool holders in Ø12 size, brands HOLEX and Orion. All tool holders are manufactured according to DIN 69871 AD/B and are intended for CNC machining centers. Technical specifications: • Taper: SK40 • Clamping diameter: Ø12 mm • Length: 100 mm • Specification: DIN 69871 AD/B • Manufacturer: HOLEX and Orion • Condition: used, functional, in good condition (visible signs of use, do not affect functionality) Applications: • End mills Ø12 • Drills Ø12 • Countersinks Ø12 Gujdexcy Ttepfx Ab Dsa
