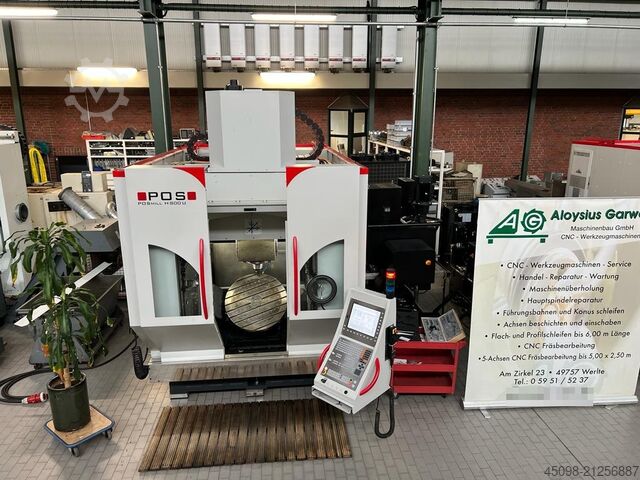

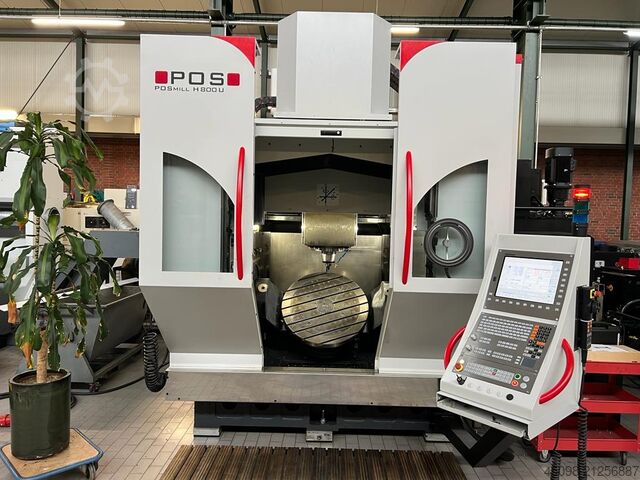

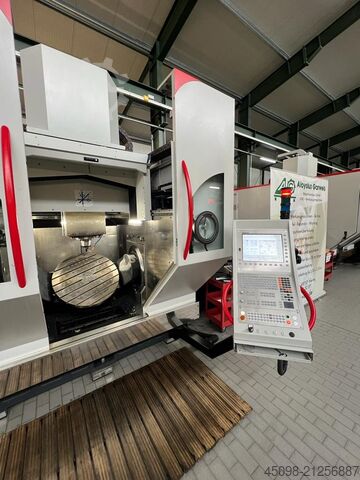

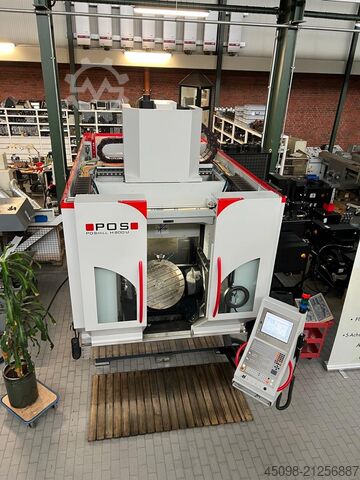

5-axis machining center

POSMILL H 800 U

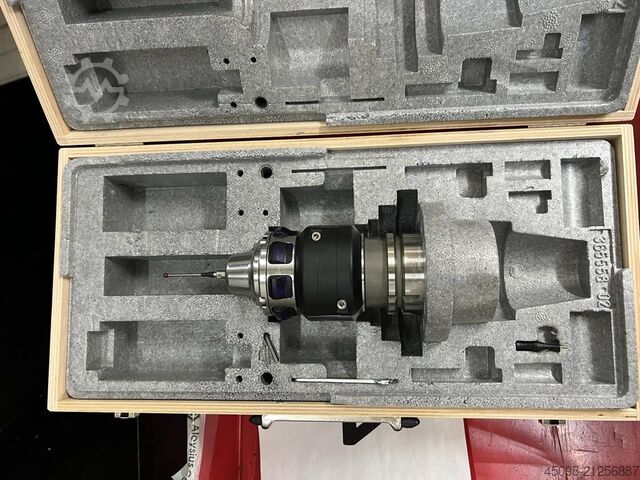

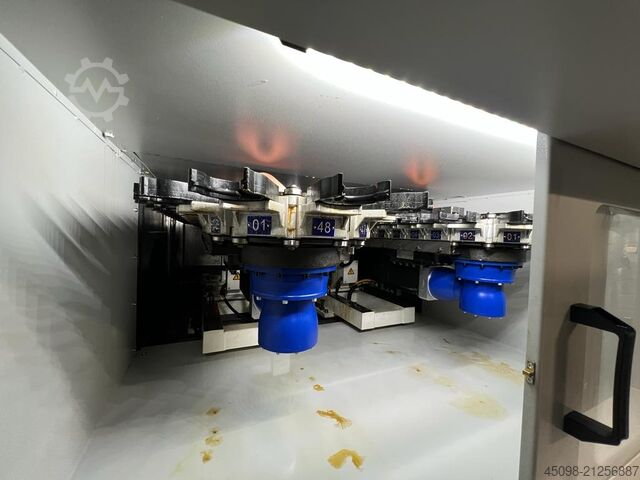

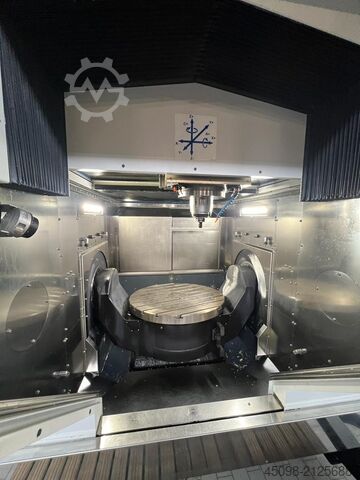

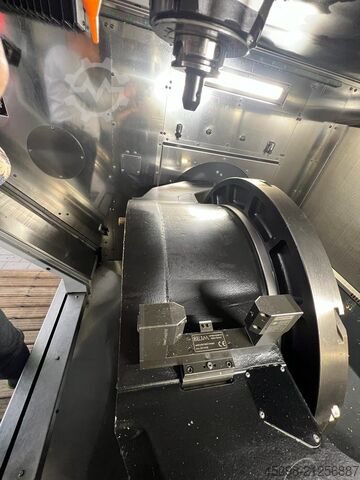

Condition: excellent (used), Year of construction: 2019, 5-Axis Machining Center POS POSMILL H 800 U Control: Heidenhain iTNC 530 Year of manufacture: 2019 ATTENTION: Machine has ONLY 500 spindle hours!!! Traverses: X-axis: 670 mm Y-axis: 830 mm Z-axis: 600 mm A +120° to -120°, C 360° Table load capacity: 1,200 kg Spindle interface: HSK-63A Kdedpeyk Az Djfx Ahwoh Tool magazine: 96 positions Spindle speed: 18,000 rpm Equipment Rotary-swivel table Rotating viewing window Glass scales on all axes Handheld control unit Heidenhain touch probe Laser tool breakage detection Rotary union in the table Air connection in the table incl. M-function Coolant system Internal cooling Chip conveyor Automatic roof Extraction unit Documentation General data Repeat accuracy/positioning accuracy on delivery: 0.004 mm/0.008 mm (VDI/DGQ 3441) Including tool holders with tools mounted in the tool changer (No suggestions), oil mist extraction IKZ Chip conveyor Rated power 90 kVA Full load current 125 A Max. current load 200 A 400 V 50 Hz

Condition: good (used), Year of construction: 2020, 5-Axis CNC Machining Center - Universal - Manufacturer: MAZAK Machine Model: Variaxis J-500 Control Unit: Mazatrol SmoothG Year of Manufacture: 2020 Number of Controlled Axes: 5 TECHNICAL DATA Travel - X-Axis (mm): 350 - Y-Axis (mm): 550 - Z-Axis (mm): 510 - Swivel Range A-Axis (degrees): -120 / +30 - C-Axis (rotary axis, rotary and tilt table): (degrees): 360 Feed Rate X/Y/Z (mm/min): 8,000 Rapid Traverse Kdjdpfx Aheyabu Iewsh - X-Axis (mm/min): 30,000 - A-/C-Axis: 10,800 degrees/min. Spindle - Max. Spindle Speed (rpm): 12,000 - Drive Power (ED) 100 / 40 (kW): 7.5 / 11.0 Tool Magazine - Tool Holder: BT40/CAT40 - Pull Stud: Yamazaki ANSI Type - Number of Tool Positions: 30 - Tool Diameter (mm): 90 - Tool Length (mm): 300 Machine Table: Swivel rotary table Pallet System - Pallet Changer: 2-position - Clamping Table Dimensions (mm): 500 x 400 Swivel Rotary Table - Rotary Table Diameter (mm): 500 x 400 - Max. Workpiece Weight (kg): 200 FEATURES + Through-spindle coolant 70 bar + Hinged belt chip conveyor + Oil mist extractor + Tool length measurement and breakage control + Additional interior lighting + Signal tower (3-color) Subject to change and errors in technical details and specifications.

Condition: ready for operation (used), Year of construction: 2017, operating hours: 11,200 h, spindle speed (max.): 18,000 rpm, travel distance X-axis: 670 mm, travel distance Y-axis: 820 mm, travel distance Z-axis: 600 mm, controller manufacturer: HEIDENHAIN, controller model: iTNC 530, number of axes: 5, This 5-axis POSmill H800U was manufactured in 2017. A universal machining center featuring a Kessler spindle with 18,000 rpm and a turning diameter of 800 mm. It includes a Heidenhain 530 control and is fully equipped with Heidenhain measuring systems on all axes. Noteworthy is the 96 tool changer positions . Consider the opportunity to buy this POSmill H800U universal machining center. Contact us for more information. • New service in april 2025 with rotary union replaced (€8600) • 96 tool changer positions Kedjyfulqspfx Ahwsdh • Pedestal to save space, coolant supply stacked (rare) • Large spindle cooler • Fully equipped with heidenhain measuring systems on all axes • Kessler swing arm, turning diameter 800 mm, fully usable with zero-point system • Internal coolant pressure: 40 bar • Coolant system: water and air external and through spindle, internal coolant pressure 40 bar with 600 liters • Nc swivel rotary table: Ø 800The machine underwent a complete overhaul in early 2025 – the relevant documentation is available. Replacement of rotary unions, rod connection, machine maintenance Additional equipment • Accessories: chip conveyor

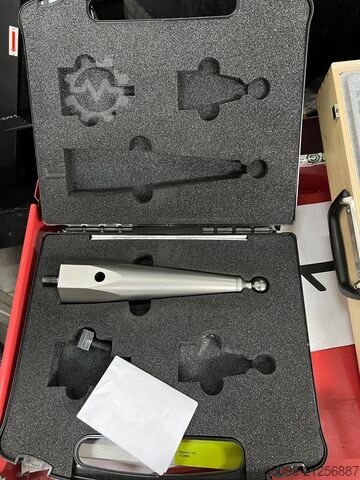

Condition: ready for operation (used), Year of construction: 2018, operating hours: 12,971 h, spindle speed (max.): 18,000 rpm, travel distance X-axis: 670 mm, travel distance Y-axis: 830 mm, travel distance Z-axis: 600 mm, controller manufacturer: HEIDENHAIN, controller model: iTNC 530, number of axes: 5, This 5-axis POSmill H 800 U was manufactured in 2018. It features a 670x830x600 mm travel range, a swivel range of -120 to 120 degrees, and a continuous 360-degree rotary table. Equipped with an 18,000 rpm milling spindle, 96-position tool changer, and Heidenhain iTNC530 control, this universal machining centre is ideal for complex machining tasks. Consider the opportunity to buy this POSmill H 800 U universal machining centre. Contact us for more information about this machine. • Swivel range (B): -120° to +120° • Rotary table (C): 360° continuous • Tool changer: 96 positions, HSK-A63, rear-mounted with display • Measuring systems: Heidenhain linear scales (X/Y/Z) with purge air; Heidenhain rotary measuring system • POS kinematic module incl. reference ball • POS contour protection • Control cabinet cooling: active air-to-air • Spindle cooler: controlled • Oil cooling for 4th/5th axes: controlled • Network and USB connections • Automatically controlled crane loading hatch • Coolant pump at the head via M-functions • Tool change safety door • Table media interfaces: 3 hydraulic connections and 1 air connection in the table center • Mobile electronic handwheel • Operating hours: 22,996 total; 12,971 program runtime Additional equipment • External chip agitator / swarf (chip) conveyor Kdedsydpp Uepfx Ahweh • Chip removal device with dedicated pump • Water gun (washdown) • Air at the spindle • Electromechanical oil/coolant separator • Automatic coolant level monitoring • Operating status indicator light (stack light) • Hydraulic power unit, incl. control via M-function Technical Specification Taper Size HSK 63

Condition: new, Year of construction: 2026, Introducing the latest model of the CORMAK WL3000 industrial laser welder, which combines advanced FIBER technology with innovative design solutions, offering unparalleled precision and efficiency. This device is designed for welding various types of metals, which ensures the quality and repeatability of welds at the highest level. Thanks to the 3-in-1 function enabling welding, cutting and laser cleaning, the device is versatile and effective in many industries. Why choose CORMAK WL3000? The CORMAK WL2000 laser welding machine is the perfect solution for professionals looking for reliability, precision and efficiency. Its innovative design and advanced cooling system make it a future-proof device that can handle even the most demanding welding tasks. Pre-order now and take advantage of this unique offer! Key Features and Benefits Advanced cooling system : A new, more efficient water cooling system ensures optimal operating temperatures, allowing you to work longer without interruption and increasing the lifespan of your device. Innovative design : The ergonomic and lightweight design of the welding head allows for welding even in hard-to-reach places. Thanks to the adjustable spot size (0-5 mm) and replaceable nozzles, the operator has full control over the welding process. Easy to use - thanks to the solutions used and the well-thought-out design, the operator can start working after a short training Low indirect radiation, just wear protective glasses to filter strong light when working Much faster welding than traditional methods, productivity can increase by 3 to 10 times Concentrated beam: slight change in structure due to small heat-affected area, Repeatability of welds, the weld seam is nice, the welds are of high strength. Very thin materials such as 0.5 mm stainless steel can be welded. Welding option with or without wire. The integrated laser cleaning function increases the range of applications of the device. Possibility of using the cutting option - ensures excellent cutting quality, without mechanical processing. Technical parameters Maximum power 3000 W Laser wavelength 1070nm Fiber optic length 10m Working modes Continuous / Modulated Air pressure 10 - 15 L/min Welding speed 0-215mm/s Automatic wire feeder Ø 0.8 - 2.0 mm Maximum power consumption ≤11.0kW Focal length 150mm Cooling system water Operating voltage 400V Shielding gas consumption 20L/min Ksdskkbw Ujpfx Ahwjdh Dimensions 600x1100x1100mm Weight approx. 207 kg

Condition: ready for operation (used), Year of construction: 2012, operating hours: 17,050 h, travel distance X-axis: 670 mm, travel distance Y-axis: 830 mm, travel distance Z-axis: 600 mm, overall weight: 20,000 kg, spindle speed (max.): 18,000 rpm, number of axes: 5, This 5-axis POSmill H 800 U was manufactured in 2012. It features a Heidenhain iTNC 530 control, a new spindle with 5,700 hours since 2021, and a robust 18,000 rpm spindle speed. The machine offers extensive travel with dimensions of 670/830/600 mm and supports 96 tool positions. Additional features include an internal coolant supply at 60 bar, a comprehensive coolant system, and a chip conveyor. Consider the opportunity to buy this POSmill H 800 U universal machining centre. Contact us for more information. Additional equipment • new spindle since 2021: only 5700 spindle hours (Wear-related spindle replacement) • Inspection under power possible Machine Benefits Technical Machine Benefits Kedpfx Aex D Dx Ashwjdh • Through-spindle air flow • Internal coolant supply: 60 bar • Coolant system with 1000l paper belt filter • Rotating viewing window • Chip flushing gun // bed flushing • Oil mist extraction • Blum tool breakage/measurement • Heidenhain 3d touch probe • Mobile electronic handwheel • Kinematics package Extra Information Spindle replacement due to wear (new spindle: 5600 hours since 2021) Production Hours: Control on: approximately 33300 hours, Spindle on: 17050 hours (new spindle 5600 hours, replaced in 2021 due to wear) Tool Positions: 96 Includes tool holders (shrink-fit chucks, collets, etc.)

Condition: excellent (used), Year of construction: 2004, operating hours: 60,477 h, travel distance X-axis: 1,050 mm, travel distance Y-axis: 710 mm, travel distance Z-axis: 710 mm, controller manufacturer: Heidenhain iTNC 530, controller model: iTNC 530, workpiece weight (max.): 800 kg, total height: 3,000 mm, total length: 3,500 mm, total width: 2,500 mm, table width: 800 mm, table length: 800 mm, overall weight: 9,600 kg, spindle speed (min.): 18,000 rpm, Year of construction: 2005 CNC controller: Heidenhain iTNC 530 Axes X-axis travel mm: 1050 Y-axis travel mm: 710 Z-axis travel mm: 710 B-axis degrees: 103º Feed rates m/min: 30 Rapid traverse m/min: 30 Milling/turning table nc: Number of pallets: 1 Table dimensions mm: Ø800 Max. workpiece weight kg: 800 Spindle Spindle speed rpm: 18000 Spindle drive power kW: 28 (40%) Spindle torque Nm: 121 Tool system Tool holder: SK 40 Tool magazine slots: 32 Tool changer: Pick-up Chip-to-chip time s: 14 Kdedpfjx Arcaox Ahwjh Equipment Rigid table with integrated rotary table Swivel head Infrared probe Rinsing gun blowing air through spindle center selectable via M-function Tool measuring arm Internal coolant supply Machine running times Under power: 151446 Spindle Working: 60477 Basic machine dimensions / weight Length mm: 3500 Width mm: 2500 Height mm: 3000 Weight kg: 9600

Condition: excellent (used), Year of construction: 2007, machine/vehicle number: 22049, functionality: fully functional, CNC horizontal machining center MAZAK HC NEXUS 5000-II + PALLETECH (6 Paletten) Mfg. year 2007 Kodpfx Ahjpm Igzewodh Mazatrol Matrix control movements: X-axis: 730 mm Y-axis: 730 mm Z-axis: 740 mm Distance spindle nose to spindle center 70-810 mm Distance spindle center to pallet surface 100-830 mm Pallet size 500 x 500 mm Max. workpiece dimensions Ø800 x 1000 mm Max. pallet load 700 kg Main spindle 30 kW Max. spindle speed 18.000 rpm BT-40 Tool magazine for 120 tools NC indexing table, 1° indexing Tool length measuring – Laser Renishaw NC4 Swarf conveyor, Tecnoforme Coolant through spindle Coolant tank 300 microns rotofilter 18 bar high pressure pump Pulse generator Palletech system with pallets and loading station CE-mark

Condition: excellent (used), Year of construction: 2013, 5-axis machining center (BAZ) Control: Heidenhain Travel paths: X 2000 mm, Y 600 mm, Z = H 800 mm, V 700 mm. Ksdpfxsyaba Dj Ahwjdh Max. clamping weight (rotary table): 1200 kg Max. spindle speed: 18,000 rpm

Condition: good (used), Year of construction: 2014, Ref. -No.: 10553 Manufacturer: HANDTMANN / BAVIUS Type: HBZ Trunnion 120 Year of construction: 2014 Type of control: CNC Control: Heidenhain TNC 640 Storage location: Halberstadt Country of origin: Germany Machine-No.: 200XXXXX X-Travel: 1270 mm Y-Travel: 1100 mm Z-Travel: 900 mm Table Height: Ø 1200 mm Table Load: 2000 kg Max. Tool Weight: 20 kg Max. Tool Length: 90 x 200 / 24 x 400 mm Max. Tool Diameter: Ø 130 mm Tool Taper: HSK 100 Numbers Of Tools In Magazin: 40 Tool Piece Magazine With: 140 Pcs./pcs. Spindle Turning Speed - Stepless: 14.000 RPM Max. Torque: 15000 Nm Rapid Traverse X-Axis: max. 60 m / min Rapid Travel Y-Axis: max. 60 m / min Rapid Traverse Z-Axis: max. 60 m / min Machine length: 7500 mm Machine width: 5500 mm Machine Height: 3500 mm Weight Of The Machine Ca.: 26 t Rapid traverse C-axis: max. 25 RPM Rapid traverse A-axis: max. 20 RPM A-axis (swivel axis): - 30 / + 120 ° C-axis (rotary table axis): 360 ° Further information: - Horizontal machine, Y-axis arranged vertically - Machine stand designed as a welded construction - set up on height-adjustable precision wedge shoes, chip tray with cooling lubricant device, for external splash water cooling capacity: approx. 400 liters, with clean water pump, LP circuit, approx. 40 1/min at approx. 5 bar and rinsing nozzles on the Z-axis and/or the spindle - Complete safety housing Kedpex Hn A Tsfx Ahwodh - Stainless steel interior lining - Work area lighting - Manual loading door to the work area with polycarbonate safety window with glass front panel - Side viewing window to the work area with polycarbonate safety pane with glass front pane - Maintenance area freely accessible - HSK 100 hollow shank taper - Tool clamping via springs, tool release hydraulically - Tool clamping control - Cone cleaning - incl. spindle orientation The machine can be viewed under power by arrangement.
