CNC Lathe

NAKAMURA TOME TW 30

Condition: used, Year of construction: 1997, functionality: fully functional, machine/vehicle number: W301002, Technical characteristics: Work Area # Maximum turning diameter: 270 mm # Maximum machining diameter: 215 mm # Maximum workpiece length: 265 mm # Distance between spindle noses: 1080 mm # X1/X2-axis travel: 195 mm / Rapid traverse in X: 12 m/min # Z1/Z2-axis travel: 265/780 mm / Rapid traverse in Z: 24 m/min # B-axis travel (right spindle): 850 mm / Rapid traverse in Z: 24 m/min Spindles # Spindle as per DIN 55026: Size A2-6 # Maximum speed: Left & Right 50–5000 rpm Ihedpfx Asxw Uh Iod Njt # Power at 100% duty cycle: Left 11 kW / Right 11 kW # Main spindle special feature: Optional dual command clamping cycle for 2-stage chuck clamping # Bar capacity: Left spindle 51 mm / Right spindle 51 mm Two Tool Turrets # Tool interface: BMT55 # Number of stations: 12-position disc turret Electrical Equipment # Operating voltage: 200/220VAC +10%/–15%, single-phase, 50/60 Hz # Connected load: 54 kVA (connection 61 VA) Dimensions # Machine dimensions (L×W×H): 3645 × 1875 × 1970 mm # Weight: 10,800 kg Main Features and Capabilities: # Horizontal construction: Optimal chip evacuation and easy part handling # CNC control: Fanuc 6i-TT # Chip conveyor # Automation interface for gantry loader available # Main spindle fitted with Autoblock Chuck 265 TXS # Each turret equipped with 2 external tool holders # Documentation: Electronic not available / Hardcopy available Machine status: RUNNING/IN OPERATION

Condition: refurbished (used), Year of construction: 1988, Ingramatic RP1V: M6x75/40 mm. 230-600 ppm. Also available with Washer. Completely overhauled to new. Machine visible in Calolziocorte (LC). OVERHAUL TO CE STANDARD. Overhaul includes: - DISASSEMBLY AND CLEANING OF EACH OF ITS PARTS - REPLACEMENT OF ALL BEARINGS - GRINDING GUIDES OR EVENTUAL REPLACEMENT IF NOT IDONEE - OVERHAUL OF INTRODUCER GROUP - OVERHAUL OF SLIDE ASSEMBLY WITH REPLACEMENT OF LARDONS IN Iodpfx Aoh Riuusd Noht BRONZE - NEW LUBRICATION SYSTEM WITH CONTROL UNIT HYDRAULIC UNIT COMPLETE WITH PUMP, LEVEL SWITCH, PRESSURE SWITCH AND DIVIDERS - NEW WATER PUMP FOR COMB - NEW Ø670 CUP VIBRATOR COMPLETE WITH PANEL VIBRATOR CONTROL AND PHOTOCELL FOR OVERFLOW - REVISED ROLLER EVACUATION UNIT - PROTECTIVE CASING COMPLETE WITH LAMP AND MICRO - SOLENOID VALVE INSTALLATION WITH NEW AIR SYSTEM FOR VIBRATOR AND GUIDES - NEW ELECTRICAL SYSTEM ACCORDING TO CE STANDARDS COMPLETE WITH INVERTER - NEW MOTOR - BELTS REPLACEMENT - PAINTING RAL FROM YOU INDICATED

Condition: new, Year of construction: 2025, functionality: fully functional, turning height: 1,400 mm, workpiece weight (max.): 8,000 kg, turning diameter: 1,600 mm, faceplate diameter: 1,250 mm, total height: 5,190 mm, total width: 4,875 mm, total length: 3,885 mm, rotational speed (max.): 360 rpm, torque: 17,880 Nm, table load: 8,000 kg, overall weight: 30,000 kg, Equipment: rotational speed infinitely variable, Vertical turret lathe in flat-guided design with extensive full equipment: WITH MILLING FUNCTION - Milling spindle 2000rpm SK50 22 KW - C - axis 0.001 degrees - Complete housing - Chip conveyor - Internal coolant supply - Fanuc control - 24 tools - 12 milling tools - Manual Guide I - Tool holder package - Electronic handwheel - Signal light - Manual 3-jaw faceplate 1250mm - Renishaw tool measurement - Renishaw workpiece measurement - Glass scales in X and Z axes - 24 month guarantee Ihedpfx Adsvtzc Ie Njt

Condition: used, machine/vehicle number: 152.00.80.20, Universal machining center, CNC tool milling machine, milling machine, universal milling machine, tool milling machine, drilling and milling machine -function tested -Clamping table: 800 x 445 mm Ihjdofbma Nspfx Ad Njt -Travel: X/Y/Z 500/500/385 mm -Spindle holder: SK40 -quill stroke: 90 mm -Speeds from: 31.5 to 3150 rpm -Coolant device -Dimensions: 1475/1770/H2000 mm -Weight: 1966 kg

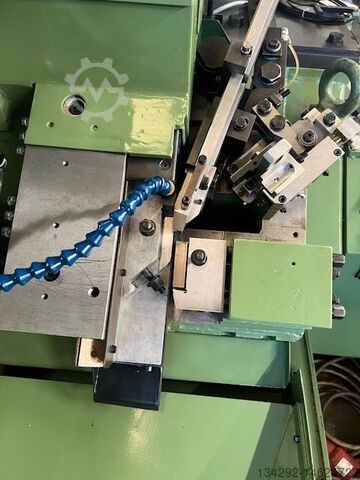

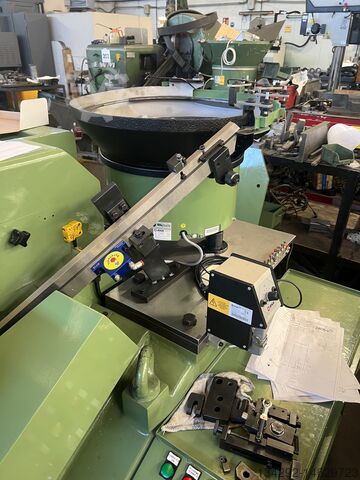

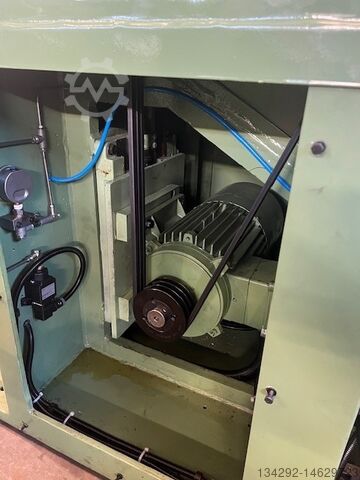

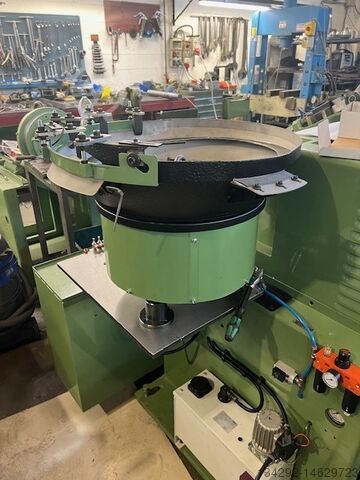

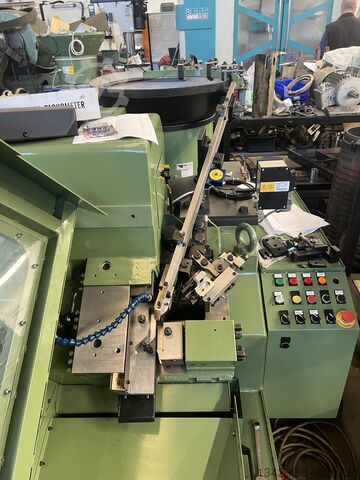

Condition: refurbished (used), Year of construction: 2024, thread length: 50 mm, Flat die threading machine E.W. MENN GW32 Completely refurbished as new. New Guides, new vibrator, new vibrating evacuation. Ihsdjq Tr I Njpfx Ad Net New electrical system with Inverter and PLC M4x50/30 mm. 750 ppm To view and try c/o HBR srl - Calolziocorte (LC)

Condition: ready for operation (used), Year of construction: 2003, travel distance X-axis: 2,000 mm, travel distance Y-axis: 1,150 mm, travel distance Z-axis: 585 mm, workpiece weight (max.): 4,000 kg, table width: 1,000 mm, table length: 2,240 mm, table load: 4,000 kg, overall weight: 25,000 kg, spindle speed (max.): 6,000 rpm, spindle nose: BT50, number of spindles: 1, number of slots in tool magazine: 30, input voltage: 400 V, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, This machine was decommissioned from production while operational and was replaced due to the purchase of a new machine. Unfortunately, the machine cannot be viewed running anymore, but it is displayed in our stock. ATTENTION! The displayed images are both from us and previously from our customer. Additional information: Max. weight on the table: 4,000 kg Chip conveyor Renishaw MP10 workpiece probe Custom-made machine table for easy clamping of workpieces Total weight: approx. 25,000 kg Transport dimensions: 1 Colli MAZAK machine, 620x319x307 cm, weight approx. 19,000 kg Ihedpfx Adjwvkcne Net 1 Colli coolant tank, 3x1.1x0.7 m, weight 210 kg 1 Colli magazine, 5x1x1.9 m, weight approx. 1,450 kg 1 Colli chip conveyor, 4x1x1.6 m, weight 220 kg

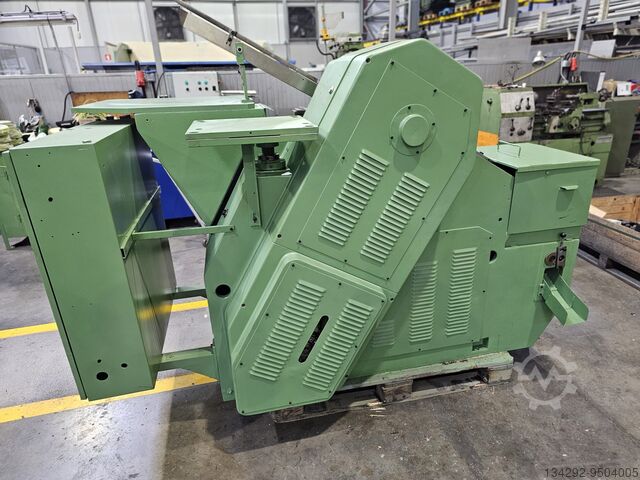

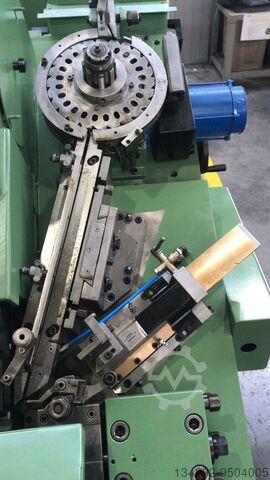

Year of construction: 1988, condition: new, Ingramatic RP1/R for washer assembly Ihsdpfxelcbkgs Ad Not M6x75/40mm. Fixed die length: 85 mm. Moving die length: 95 mm. Die height: 65 mm. 230-600ppm. Completely overhauled like new. Machinery visible in Calolziocorte (LC) REVISION ACCORDING TO CE STANDARDS. The review includes: - Disassembly and cleaning of each piece - Replacement of all bearings - Correction of guides or possible replacement - Introducer group revision - New washer assembly group - Slide unit overhauled with bronze gibs replaced - New lubrication system with hydraulic unit complete with pump, level switch, pressure switch and distributors - New die water pump - New cup vibrator diam. 670 mm. complete with vibrator control panel and overflow photocell - Revision of the roller evacuation group - Protective casing complete with lamp and micro - Solenoid valve installation with new air system for vibrator and guides - New electrical system in accordance with CE standards complete with inverter - New engine - Belt replacement - RAL painting indicated by you

Year of construction: 1974, condition: refurbished (used), INGRAMATIC RP2 REVISED like NEW M8x90/45 mm. Fixed die length: 115 mm. Moving die length: 130 mm. Die height: 65 mm. 410 ppm Range production: M3 - M8 Completely revised as new. Machine visible in Calolziocorte (LC) - Italy REVIEW ACCORDING TO CE. The review includes: - DISASSEMBLY AND CLEANING OF EVERY PIECE - REPLACEMENT OF ALL BEARINGS Ijdpfx Adjipm Rij Nsht - RECTIFICATION OF GUIDES OR POSSIBLE REPLACEMENT IF NOT SUITABLE - REVIEW OF THE INTRODUCER GROUP - OVERHAUL OF THE SLIDE GROUP WITH REPLACEMENT OF BRONZE PARTS - NEW LUBRICATION SYSTEM WITH CONTROL UNIT HYDRAULICS COMPLETE WITH PUMP, LEVEL SWITCH, PRESSURE SWITCH AND DISTRIBUTORS - NEW WATER PUMP - NEW CUP VIBRATOR COMPLETE WITH PANEL VIBRATOR AND PHOTOCELL CONTROL FOR TOO FULL - REVIEW OF THE ROLLER EVACUATION GROUP - PROTECTION CASE COMPLETE WITH LAMP AND MICRO - SOLENOID VALVE INSTALLATION WITH NEW AIR SYSTEM FOR VIBRATOR AND GUIDES - NEW ELECTRICAL SYSTEM ACCORDING TO CE STANDARDS WITH INVERTER - NEW ENGINE - BELTS REPLACEMENT - RAL PAINTING INDICATED BY YOU

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, machine/vehicle number: 2434, nominal power (apparent): 16 kVA, input voltage: 400 V, 4.5 kW spindle (2800-18000 rpm) pneumatic rotary table -90 °, 0 °, +90 °, intermediate angles manually set 4 pneumatic clamps pneumatic bumpers quick tool change system cooling system Windows 10 touchscreen operator panel with online access Ihodowgmxtjpfx Ad Njt automatic tool diameter correction axes operating on linear bearings, brushless motors axes working range: X – 3050 mm, Y – 410 mm, Z – 300 mm, I – 180°

Condition: good (used), Gyártó: SIM Isdeh T T Dkspfx Ad Nsht Tip: EPA 220 Rúdadagolóval szerelve
