5 axis CNC Machine

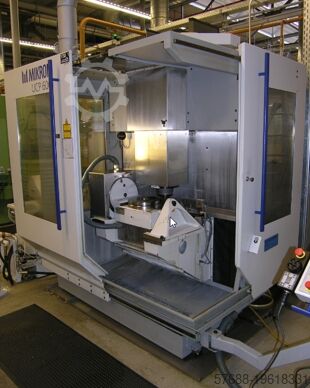

MIKRON UCP 600

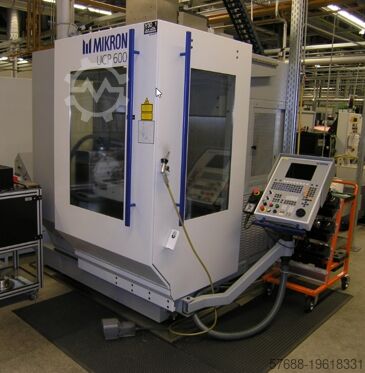

Condition: used, Year of construction: 2005, machine/vehicle number: 107.32.99.158, travel distance X-axis: 530 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 450 mm, controller model: Heidenhain iTNC 530, spindle speed (max.): 12,000 rpm, Re-auction due to buyer’s payment default! The machine spindle was replaced in July 2025! TECHNICAL DETAILS Travel range X-axis: 530 mm Travel range Y-axis: 450 mm Travel range Z-axis: 450 mm Rotary table Table diameter: 400 mm Table load capacity: 200 kg Swivel range: degrees Swivel speed: 20 rpm Rotational speed: 30 rpm Tool holder: SK40 Maximum speed: 12,000 rpm Recommended maximum working feed rate: 15 m/min Rapid traverse speed: 22 m/min Feed force X and Y/Z: 5,000 N Magazine capacity: 30 Maximum tool diameter: 90 mm Maximum tool length: 250 mm (manual 350 mm) Maximum tool weight: 6 kg MACHINE DETAILS Control system: Heidenhain iTNC 530 with digital control Positional tolerance according to DIN/ISO 230-2/97: 0.008 mm Machine weight: 6,500 kg EQUIPMENT RENISHAW MP 12 measuring probe Blum tool monitoring system Kledjziz Ncspfx Achow

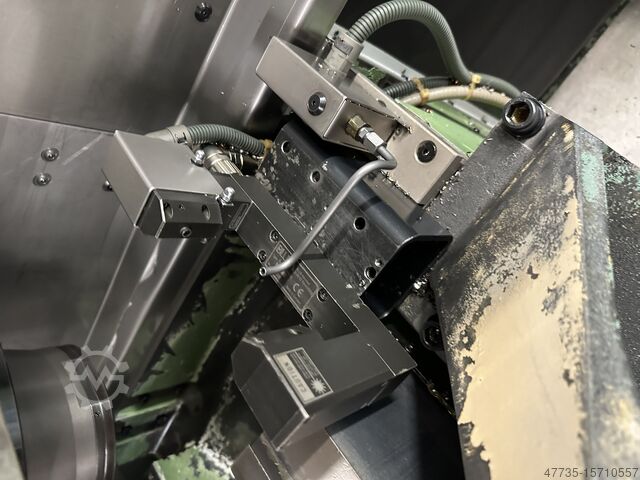

Condition: used, TECHNICAL DETAILS - Number of axes : 10 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 16 [mm] - Max. machining length : 184 [mm] - Spindle speeds : 10.000 [rpm] - C axis indexing precision : 0.1 [°] COUNTER-SPINDLE - Max. bar diameter : 16 [mm] - Spindle speeds : 10.000 [rpm] - C axis indexing precision : 0.1 [°] GUIDE BUSH HOLDER 1 - Number of positions : 5 - Number of motorized positions : 3 - Live tools speed : 8.000 [rpm] GUIDE BUSH HOLDER 2 - Number of positions : 5 - Number of motorized positions : 3 - Live tools speed : 8.000 [rpm] END ATTACHMENT - Number of positions : 4 - Number of motorized positions : 4 - Live tools speed : 8.000 [rpm] SECONDARY OPERATION - Number of positions : 6 - Number of motorized positions : 3 - Live tools speed : 8.000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 14 [kVA] MACHINE HOURS - Number of working hours : 54.035 [h] Kodpouhhp Ssfx Achelw EQUIPMENT - CNC : Fanuc PNC DECO - Rotating tool motor on : S2, S3, S5,S6 - Rotating guide bush - Parts catcher - Coolant tank * with high-pressure pump - Bar loader : IEMCA GENIUS 118 / 32LL - Cooling unit : MARKSA CSW 200 - Fire extinguisher * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. - Number of turning tool holders : 3

Condition: ready for operation (used), Year of construction: 2007, Make: MIKRON / GF AGIECHARMILLES Type of machine: UCP 600 Vario Year of manufacture: 2007 Control system: Heidenhain iTNC 530 Machine's weight: 7.700 kg Tool holder: HSK-A63 spindel speed: 20.000 1/min x-travel: 600 mm y-travel: 450 mm z-travel: 450 mm Speed range: 20.000 1/min max. Table load: 200 kg Spindle lock: HSK-A63 Max. workpiece weight: 200 kg Operating time: 57.098 h Chip removal device: Ja Cooling system: Ja Spindle operating time: 3.003 h Tailstock: Nein Overall dimensions: 6.820 × 4.800 × 2.810 mm Traverse Z-axis: 450 mm Table dimensions: Ø 450 mm Number of tools in the magazine: 30 Internal coolant supply: Ja Clamping assembly: HSK-A63 3D Measuring probe: Ja (Blum) Klsdjzkr Tnjpfx Achsw : Ja : Nein

Condition: used, Year of construction: 2001, Technical data: Tool holder: SK 40 Travels: X-axis: 530 mm Y-axis: 450 mm Z-axis: 450 mm Max. Tool weight: 260 kg Spindle speed: 12000 1/min Max. Table load: 380 kg Weight, approx.: 6500 kg Dimensions (DxWxH), approx.: 2000 x 2200 x 2400 mm Kledjt Hr Ahepfx Achow Equipment: - Control Heidenhain TNC 430 - 4-axis from SMP (France)

Condition: good (used), Year of construction: 2001, Mori Seiki SV-500/50 4 Axis Vertical Machining Centre with Mori Seiki MSC-501 CNC Control, Table Size 1100mm x 600mm, 40 Tool ATC, BT50 Spindle Taper, Cool Jet 70 - 30 DF High Pressure, Coolant Filtration Unit, Filtermist FX7002 Oil Mist Extractor, Spindle Speed Max 6000rpm, Renishaw Tool Probe Eye, Machine Weight 7800kg. S/No. 1864 Includes Various BT50 Spindle Tool Holders in ATC and Boxes Klodpfx Asx Nap Djchsw

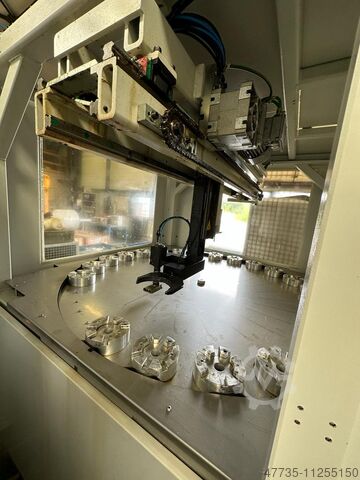

Condition: used, Year of construction: 2008, • Commissioned: 2008 • Travel ranges X600 / Y450 / Z450 Kljdpfxozampqj Achjw • Heidenhain iTNC 530 control system • Electric handwheel • Step-Tec HSK A63 spindle with 20,000 rpm • Internal cooling, 70 bar • 120-position tool magazine (ATC) • 7-position pallet changer, 3R 280 x 280 Dynafix • Blum laser tool measurement system • 3D probing system, M&H • Minimum quantity lubrication system • Band filter system, 600 liters • Chip conveyor • Visiport The machine will be available in October 2026.

Condition: used, Year of construction: 2005, machine/vehicle number: 107.32.99.158, travel distance X-axis: 530 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 450 mm, controller model: Heidenhain iTNC 530, spindle speed (max.): 12,000 rpm, No minimum price – guaranteed sale to the highest bidder! The machine spindle was replaced in July 2025! TECHNICAL DETAILS Travel range X-axis: 530 mm Travel range Y-axis: 450 mm Travel range Z-axis: 450 mm Rotary table Table diameter: 400 mm Table load: 200 kg Swivel range: degrees Swivel speed: 20 rpm Rotational speed: 30 rpm Tool holder: SK40 Maximum speed: 12,000 rpm Recommended maximum working feed rate: 15 m/min Klodpszara Uefx Achsw Rapid traverse speed: 22 m/min Feed force X and Y/Z: 5,000 N Magazine capacity: 30 Maximum tool diameter: 90 mm Maximum tool length: 250 mm (manually 350 mm) Maximum tool weight: 6 kg MACHINE DETAILS Control system: Heidenhain iTNC 530 with digital control Positional tolerance according to DIN/ISO 230-2/97: 0.008 mm Machine weight: 6,500 kg EQUIPMENT RENISHAW MP 12 measuring probe Blum tool monitoring system

Condition: ready for operation (used), Year of construction: 2017, travel distance X-axis: 1,100 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 510 mm, controller manufacturer: HEIDENHAIN, controller model: TNC 620 (3D), spindle speed (max.): 12,000 rpm, spindle motor power: 13,000 W, number of axes: 3, This 3-axis DMG MORI CMX 1100 V was manufactured in 2017. It features impressive axis travels of 1100 mm in X, 560 mm in Y, and 510 mm in Z. The machine is equipped with a 30-position tool magazine and a HEIDENHAIN TNC 620 control system. If you are looking to get high-quality machining capabilities, consider the DMG MORI CMX 1100 V vertical machining centre we have for sale. Contact us for further details. • Operating hours: • Spindle hours after replacement: 2,900 h • Spindle hours (machine counter): 32,420 h • Power-on hours (counter): 60,300 h • Condition: Powered on and running in production; inspection possible (operation, geometry, overall condition) • Worktable size: 1400 × 560 mm • Axis dynamics: Rapid traverse 30 m/min (linear axes) • Spindle: • Tool clamping: DIN 69872 • Tool magazine: 30-position chain-type magazine with double gripper • Cooling/media: Coolant–air switching via M-function (external), chip tray Kljdpjylkl Tjfx Achsw • CNC control: HEIDENHAIN TNC 620 (3D) with ASCII keyboard and 15" monitor • Measuring systems: Direct measuring systems (linear scales) on X/Y/Z; air purge for measuring system • Additional machine options: • Safe voltage package: X and Y axis motors with brake, overvoltage limiter, undervoltage monitoring with emergency stop trigger • Software options – HEIDENHAIN: • Option 3 (#21): M120 tool radius compensation for contouring, LOOK AHEAD up to 99 blocks, 3D machining, M118 handwheel positioning during program execution Additional equipment • Scraper-type chip conveyor (left side) • Coolant tank, 250 l • Manual wash gun for machining area • 4-color signal tower • HEIDENHAIN probing package: Wireless workpiece measuring probe and probe calibration ring • Manual handwheel (portable control panel) Additional information • A brand-new original DMG spindle was installed by DMG Service in November 2024 • The service report includes both the spindle measurements and the machine geometry measurements taken after the replacement Technical Specification Taper Size SK 40

Condition: good (used), Year of construction: 2000, 20000 rpm, tool measurement on table will come, Kedpfjr Urm Sox Achslw Parts shown by hand not come.

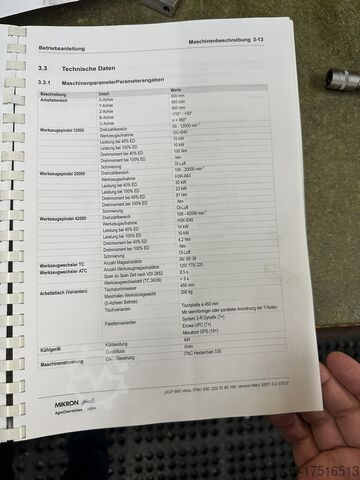

Condition: good (used), MIKRON UCP 600 VARIO is a 5‑axis machining center engineered for high precision, accuracy and reliability in complex machining. Table 320×320 mm; travels X600 Y450 Z450; indexing C n x360°; head B -115/+30°. 30‑station tool magazine; tool Ø max 80 mm, length 200 mm, weight 8 kg; spindle nose HSK‑A63. Spindle stepless 0–20,000 rpm, 30 kW, 91 Nm torque. Feed 15,000 mm/min, rapid 22 m/min; power 3x400 V 50 Hz. Machine weight ~7,700 kg; dims L6820×W4800×H2540(2810) mm. Options: paper filtration, water cooler, chip conveyor, EROWA UPC table, electronic handwheel, lamp, status light. 4+5 axis revised 2023. Achieves tight tolerances; suited to automotive, aerospace, medical, watchmaking and machine‑tool sectors. Klodsyxn Nkopfx Achsw

Condition: used, Year of construction: 1973, spindle diameter 130 mm x-travel 3000 mm y-travel 2000 mm total power requirement 4,5 kW weight of the machine ca. 30 t Spindle Ø 130 mm Spindle taper SK 50 Working range: X = column, longitudinal 3,000 mm Y = headstock, vertical 2,000 mm Z = spindle stroke 1,000 mm Lower table 3,300 x 2.400 mm Max. weight on table 10 tons/m² Min./ max position of work spindle above table 770 / 2,770 mm Feeds 0.9 - 2,000 mm/min Quick feed for headstock and column 5,000 mm/min Quill feed 0.5 - 1,200 mm/min Speed range, partially infinitely variable 4.5 - 1,250 rpm Weight, approx. 30,000 kg Accessories / Special Features * HEIDENHAIN Digital Display for 3 axes. * Hardened guideways. * Ball screw spindles. * Infinitely variable spindle speeds and feeds. Feeds can be individually driven with motor. * Moving operating platform. * Hanging control panel. * Manual operating control. * Platform. * Hydrostatics in the column displacement. * Mounting plate 3,200 x 2,500 mm, planed, with t-slots. * Top table approx. 1,400 x 2,600 x height 900 mm, one face is handled. * Hydraulic clamping of column and slides. * Motor driven tool clamp. * Lots of accessories, including tool holders with and without tools, separate chip extractor, clamping aids, 1 angle plate, and other plates. Lots of other accessories. This is a strong machine which is very suitable for heavy cuts and therefore ideal for the machine tool industry and for tool manufacturers. Kledpst Hwt Sjfx Achew Condition : Good. Machine can soon be inspected under power. Delivery : Ex stock as inspected Payment : Net, after conclusion of contract Thank you for your interest. We have other horizontal borers on stock. Please let us know what you need.

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, machine/vehicle number: 107.32.99.077, travel distance X-axis: 530 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 450 mm, rapid traverse X-axis: 22 m/min, rapid traverse Y-axis: 22 m/min, rapid traverse Z-axis: 22 m/min, (Please tell us your offer price) Sale only within Europe, incl. Turkey Price without packaging; delivery condition: FCA (machine location) ===== Technical data see handout. All warranty rights are excluded. For the correctness of the technical data and year of construction, for the completeness of accessories and tool equipment, and for compliance with all safety and environmental protection requirements specified in the accident prevention regulations. No sale to private individuals. Ksdpfx Aexrc Sqjchelw Sales only within Europe, incl. Turkey Price without packaging; Delivery condition: FCA (machine location) ===== Technical data please see handout in attachment. German text leading language. Without any guaranty and warranty, including completeness of tools & accessories as well as environmental and safety regulations. No private sales.
