Chain mortiserMASTERWOOD
OMS 5 MM
Chain mortiser
MASTERWOOD
OMS 5 MM
Year of construction
2004
Condition
Used
Location
Schwanberg

Show images
Show map
Machine data
- Machine type:
- Chain mortiser
- Manufacturer:
- MASTERWOOD
- Model:
- OMS 5 MM
- Year of construction:
- 2004
- Condition:
- excellent (used)
Price & Location
- Location:
- 8541 Schwanberg, Österreich
Call
Details about the offer
- Listing ID:
- A983-2580
- Update:
- 10.06.2025
Description

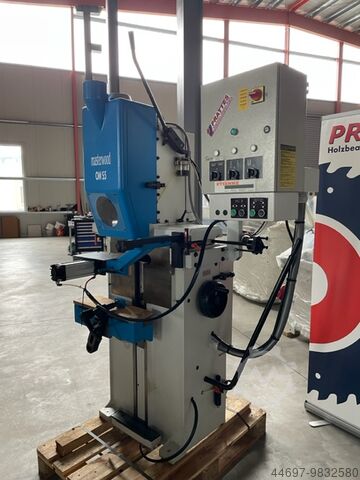

chain mortising machine with additional unit made up of two horizontal routers for the execution of the handle and the key holes
and two adjustable and motorised swinging units for the execution of slots
vertical working unit:
max work piece thickness 230 mm
max work piece height 710/ 1050 mm
vertical stroke length 150 mm
horizontal stroke length 300 mm
traverse head stroke 80 mm
head tilting +/- 45 deg.
vertical stroke of head stock bracket 250 mm
headstock bracket tilting +/- 45 deg.
max. workpiece height 1000 mm
chain motor 2,2 kW, 400V, 50 Hz
horizontal working unit:
swinging unit no. 2
min/ max. longitudinal stroke 80/ 130 mm
manual traversal stroke 140 mm
pneumatic transversal stroke 140 mm
swinging unit motor 0,18 kW, 400 V, 50 Hz
router motor 1,8 kW, 400V, 50 Hz
Hnjdpfx Aslpcffjbrju
weight approx. 650 kg
incl. pump for automatic chain lubrication
incl. tools
incl. manual
Advise used machines:
• Technical data without obligation, mistake and intermediate sale reserve.
• Price is considered ex-location price
• All articles or machines are bought as seen without any entitlement on warranty.
• It is left to the choice of the buyer to view the machines before at its location.
• Special arrangements are possible but only valid in written form.
(We answer your inquiries only with stated address + telephone number!)
and two adjustable and motorised swinging units for the execution of slots
vertical working unit:
max work piece thickness 230 mm
max work piece height 710/ 1050 mm
vertical stroke length 150 mm
horizontal stroke length 300 mm
traverse head stroke 80 mm
head tilting +/- 45 deg.
vertical stroke of head stock bracket 250 mm
headstock bracket tilting +/- 45 deg.
max. workpiece height 1000 mm
chain motor 2,2 kW, 400V, 50 Hz
horizontal working unit:
swinging unit no. 2
min/ max. longitudinal stroke 80/ 130 mm
manual traversal stroke 140 mm
pneumatic transversal stroke 140 mm
swinging unit motor 0,18 kW, 400 V, 50 Hz
router motor 1,8 kW, 400V, 50 Hz
Hnjdpfx Aslpcffjbrju
weight approx. 650 kg
incl. pump for automatic chain lubrication
incl. tools
incl. manual
Advise used machines:
• Technical data without obligation, mistake and intermediate sale reserve.
• Price is considered ex-location price
• All articles or machines are bought as seen without any entitlement on warranty.
• It is left to the choice of the buyer to view the machines before at its location.
• Special arrangements are possible but only valid in written form.
(We answer your inquiries only with stated address + telephone number!)
