Tool Room Milling Machine - Universal

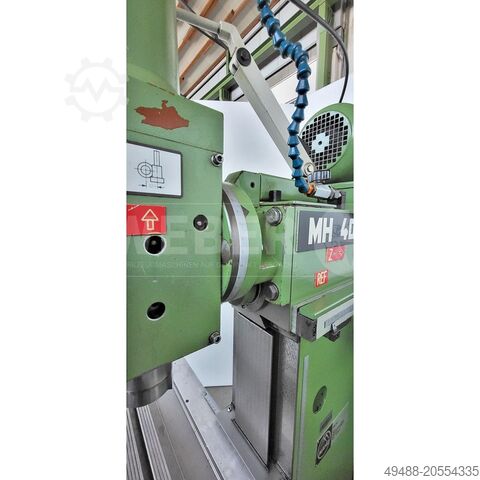

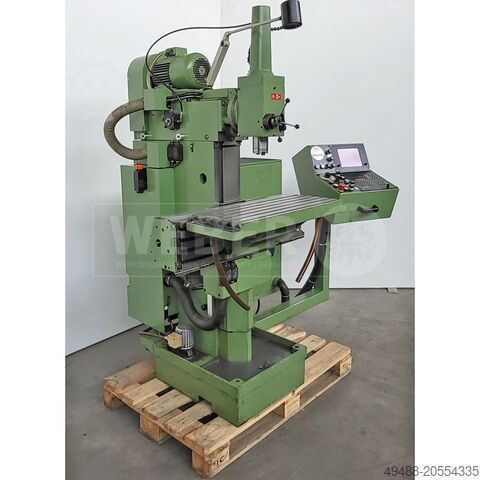

MAHO MH 400 P

Condition: used, Year of construction: 1984, travel distance X-axis: 400 mm, travel distance Y-axis: 375 mm, travel distance Z-axis: 250 mm, Maho MH400P Milling Machine Year of manufacture: 1984 The Heidenhain path control system is inactive. The machine has been converted to conventional operation – all functions except path control are available. Digital readout on 3 axes. The spindle runs very smoothly, the guideways show minimal wear. x-travel: 400 mm y-travel: 375 mm z-travel: 250 mm Table size: 205 x 800 mm T-slots: 4 x 45 14 H7 Speed range: 50 - 3150 rpm Tool holder: SK40 Dsdpjxltwwefx Aduewf Quill travel: 50 mm Hydraulic tool clamping Hydraulic axis clamping Feed rates X + Z axis: 5.0 - 1000 mm/min Feed rate Y axis: 5.0 - 670 mm/min Rapid traverse: 2.4 / 1.6 m/min Creep feed: 1/100 Central lubrication Spindle drive: 2.2 kW Electrical documentation available Weight: 950 kg Dimensions (LxWxH): approx. 1.20 x 2.00 x 1.85 m

Condition: used, Technical data: Tool holder: SK 40 Travel X/Y/Z: 400 / 375 / 250 mm Speed range: 50 - 3150 rpm Feeds: X/Z-axis: 5 - 1000 mm/min Y-axis: 5 - 670 mm/min Rapid traverse: X/Z-axis: 2.4 m/min Y-axis: 1.6 m/min Table size (vertical): 205 x 800 mm Dwsdpfjxxkw Uex Aduef Quill stroke – vertical spindle: 50 mm Power: 4 kW Dimensions (WxDxH), approx.: 1790 x 1550 x 1800 mm Equipment: - Rapid traverse - Coolant system - Emergency stop push button - Machine light

Condition: good (used), x-travel 400 mm y-travel 375 mm z-travel 250 mm table-size 205 x 800 mm T-slots 4 x 45 14 H7 speeds 50 - 3150 U/min tool taper 40 ISO quill stroke 50,0 mm Feeds X + Z Axis 5.0 - 1000 mm/min Feeds Y Axis 5.0 - 670 mm/min rapid traverse 2.4 / 1.6 m/min control Heidenhain total power requirement 5.1 kW weight 950 kg range L-W-H 1860 x 1790 x 1750 mm Machine from a vocational training center In good condition (!!) Equipment: - MAHO universal tool milling/drilling machine - HEIDENHAIN "TNC 135" positioning/path control * 3-axis manual data input control * Programmable by the machine operator * Convenient and easy operation - Electric motor-driven feed rates in all axes (X/Z/Y) * X and Z axis: 5.0 - 1000 mm/min with rapid traverse of 2.4 m/min * Y axis: 5.0 - 670 mm/min with rapid traverse of 1.6 m/min - Tiltable milling head to both sides - Tiltable T-slot universal table - Vertical clamping range - Continuously variable speed adjustment Dwodpfxoxl E Syo Aduef - Manually extendable spindle sleeve - Hardened and ground guideways - Electro-hydraulic tool clamp - Coolant system - Front coolant tank - operating instructions
